Overview

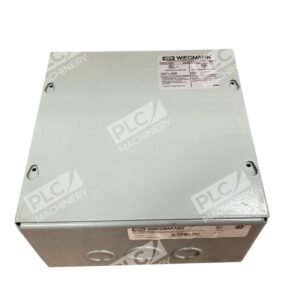

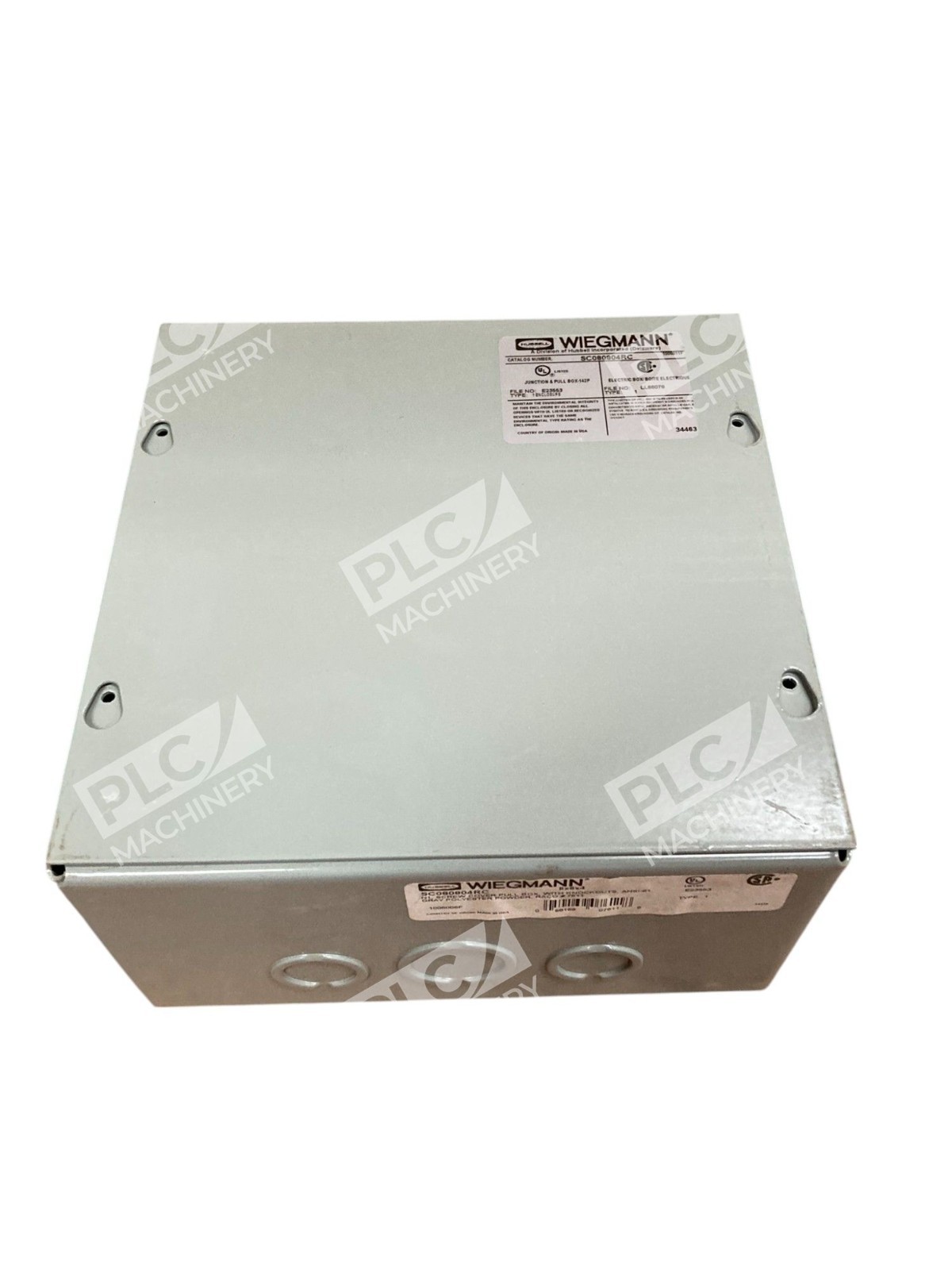

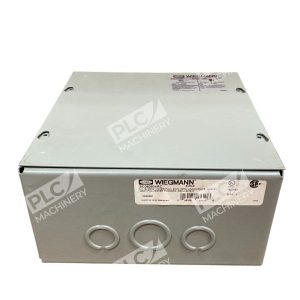

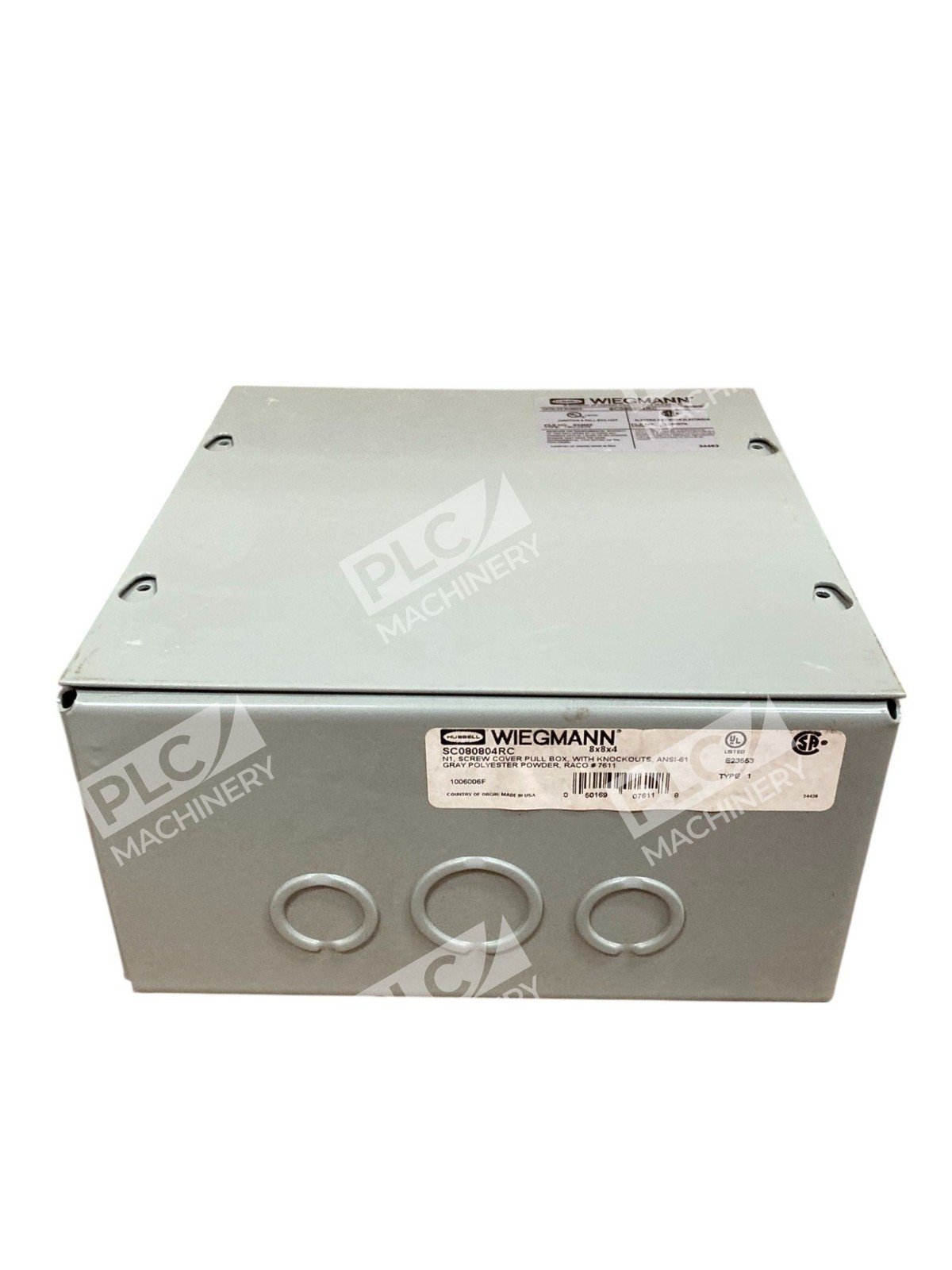

The Hubbell Wiegmann SC080804RC is an indoor NEMA 1 screw cover junction and pull box designed for commercial and general industrial wiring applications. This 8″ × 8″ × 4″ pull box is made of pre-galvanized steel and designed for indoor locations. NEMA 1 enclosures are intended for indoor use, primarily to provide a degree of protection against contact with the enclosed equipment in locations where unusual service conditions do not exist. The enclosure features a flat, removable screw-fastened cover that permits easy removal and access for wiring maintenance.
Key Features
- Pre-galvanized steel construction suitable for indoor wall mounting
- Flat, removable covers fastened with screws
- Ideal for surface mounting or allows runs of conduit for power or communication conductors

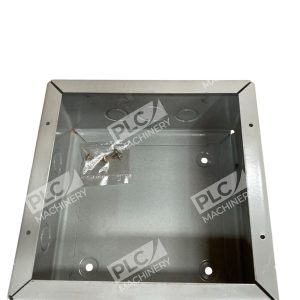

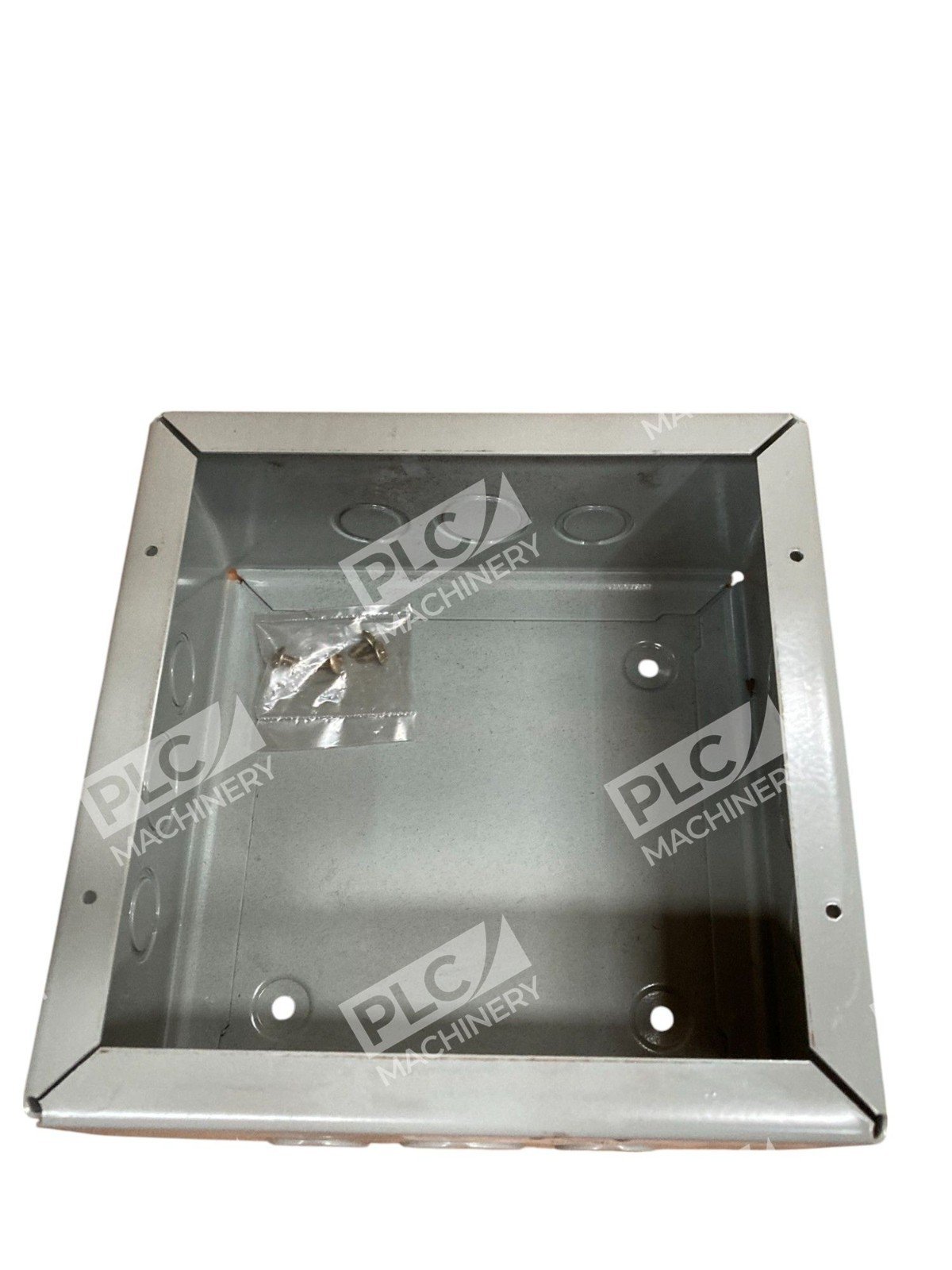

- Holes provided in back for mounting
- With knockouts for convenient conduit entry
- Grey polyester powder coat finish resistant to minor corrosion
Technical Specifications
The SC080804RC meets industry standards for NEMA 1 general-purpose indoor enclosures and includes mounting hardware and self-tapping screws. The enclosure is spot welded with a 256 cubic inch interior capacity. This compact size makes it suitable for tight installations while maintaining adequate conductor workspace.
Typical Applications
- Junction box and pull box in commercial and general industrial applications
- Indoor electrical wiring distribution points
- Equipment connection enclosures
- Conduit termination and conductor protection
- Surface-mounted service installations
Compatibility & Replacements
Compatible With
- Standard electrical conduit (1/2″ – 2″ diameter)
- Removable cover knockouts for flexible entry configuration
- Wall-mounted installation with standard fasteners
- Conductor and cable management systems
Replaces / Drop-In Replacement For
The SC080804RC is the NEMA 1 (indoor) equivalent enclosure in the Wiegmann SC series. For NEMA 3R (outdoor) applications, the RSC080804RC is the weatherproof variant, which shares identical external dimensions but includes enhanced corrosion protection.
Works With
- Standard electrical conduit systems (EMT, rigid, flexible)
- Wire and cable management applications
- Indoor utility distribution and power installations
- Low-voltage communication and signaling circuits
