Overview

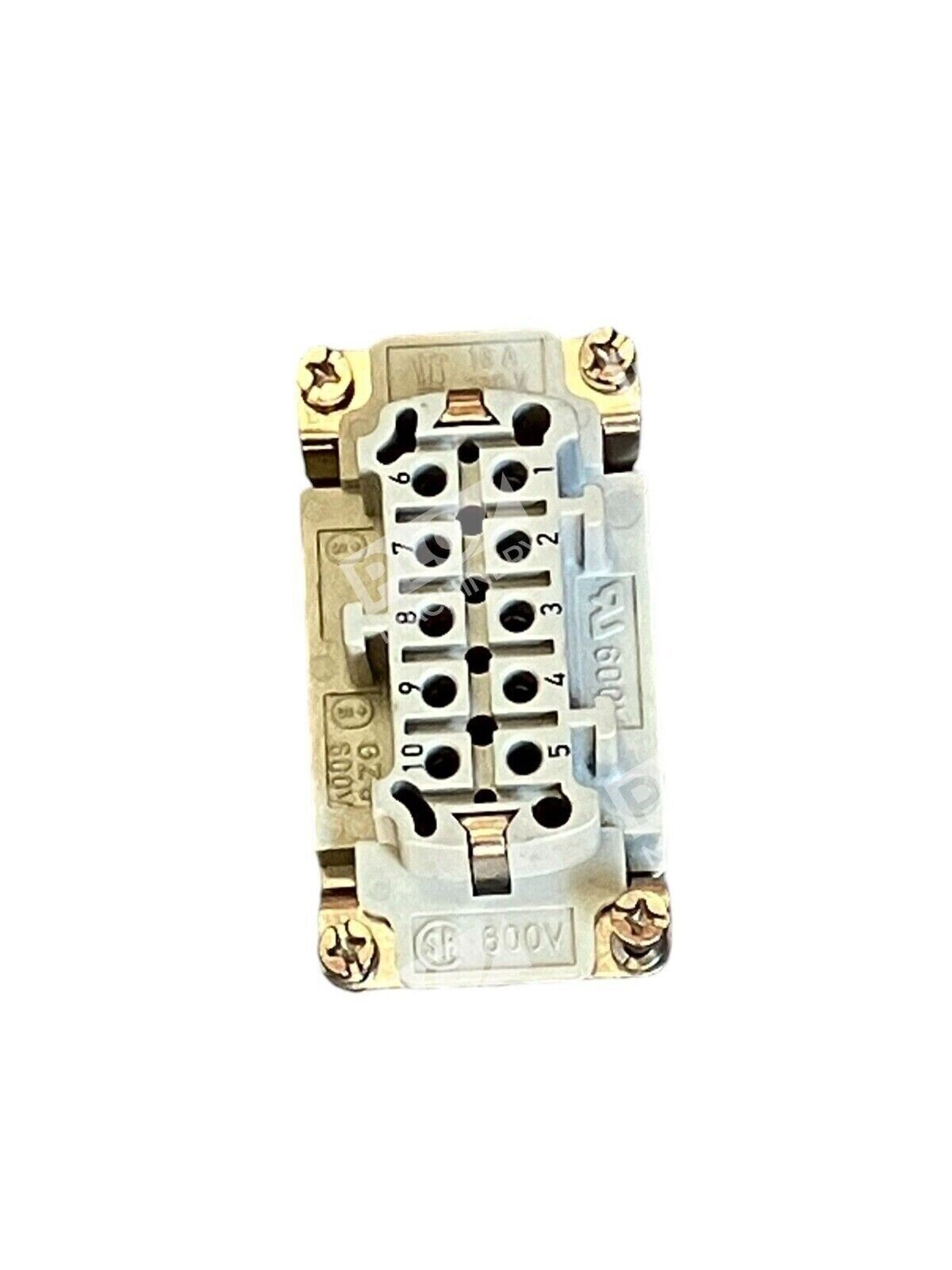

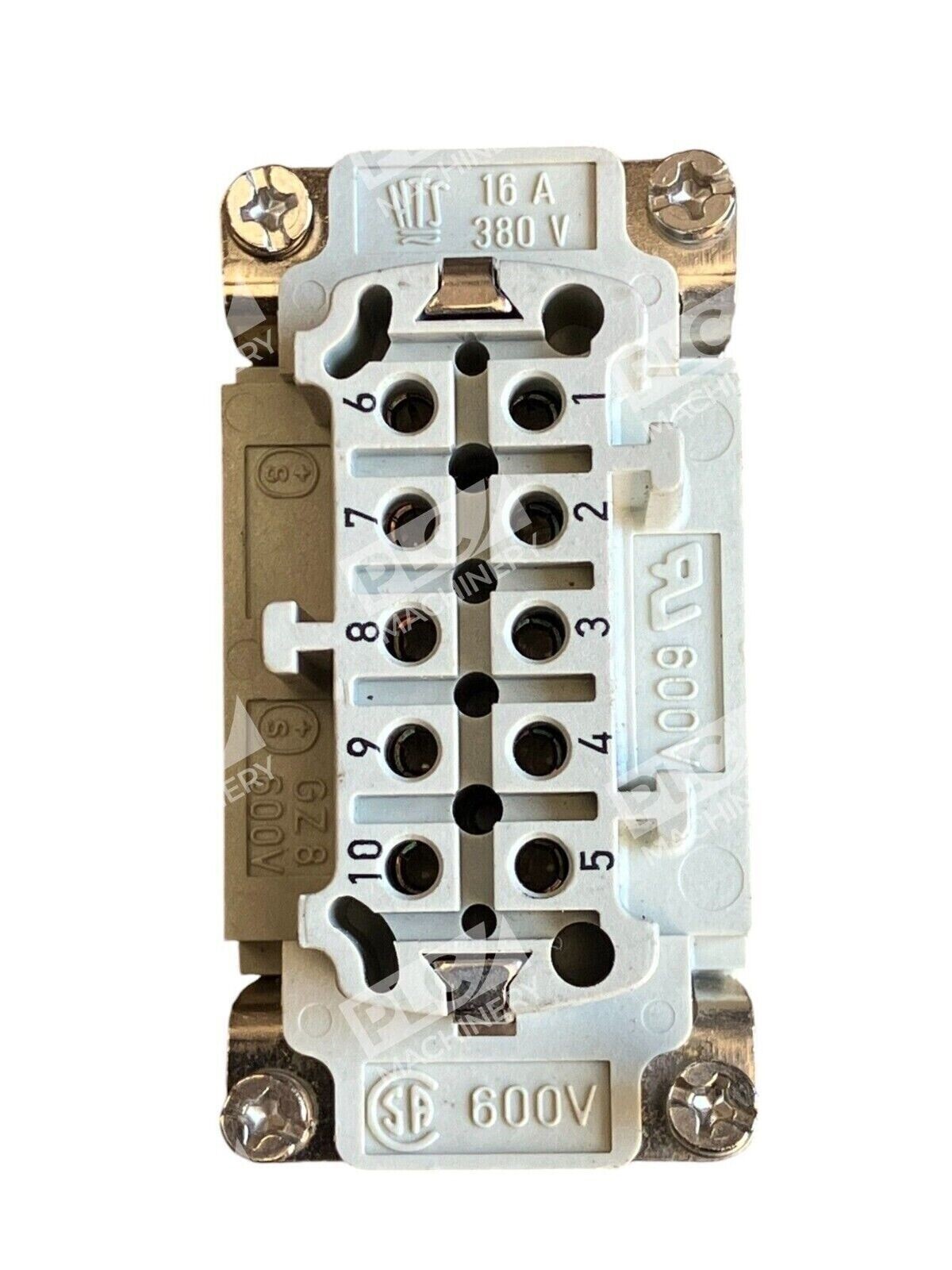

The TYCO HTS GZ8 connector is a robust industrial-grade electrical connector designed for secure power distribution in demanding applications. Rated for 600V and 16A capacity, this connector features a 6-pin receptacle configuration with integrated housing, making it ideal for three-phase 380V systems and other heavy-duty electrical connections. The GZ8 model combines proven reliability with compact form factor suitable for panel mount and direct installation scenarios.
Key Features
- 600V maximum voltage rating with 16A current capacity
- 6-pin receptacle configuration with integrated housing
- Designed for 380V three-phase industrial systems
- Heavy-duty connector construction for reliable long-term operation
- Compact design suitable for control panels and equipment enclosures
- Proven performance in industrial automation and machinery applications
Technical Specifications
- Manufacturer: TYCO Electronics (HTS series)
- Part Number: GZ8
- Voltage Rating: 600V (operating)
- Current Rating: 16A
- Pin Configuration: 6-pin receptacle
- Housing: Integrated connector housing
- Application Voltage: 380V three-phase
- Type: Heavy-duty industrial connector
Typical Applications
The HTS GZ8 connector is commonly used in:
- Industrial machinery and equipment power connections
- Three-phase motor control systems (380V)
- Production line assembly and automation systems
- Manufacturing equipment power distribution
- Control panel interconnections in industrial facilities
Compatibility & Replacements
Compatible With
- Industrial equipment requiring 600V 16A heavy-duty connectors
- Three-phase 380V power distribution systems
- Manufacturing machinery with 6-pin connector interfaces
- Legacy industrial automation equipment
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The GZ8 connector is a standard TYCO HTS series component; compatibility with specific equipment models should be confirmed against your equipment’s connector specifications.
Works With
- TYCO HTS series heavy-duty connector systems
- Industrial control cabinets rated for 600V operation
- Manufacturing equipment with threaded or panel-mount connector interfaces
- Three-phase power distribution in industrial environments
