Overview

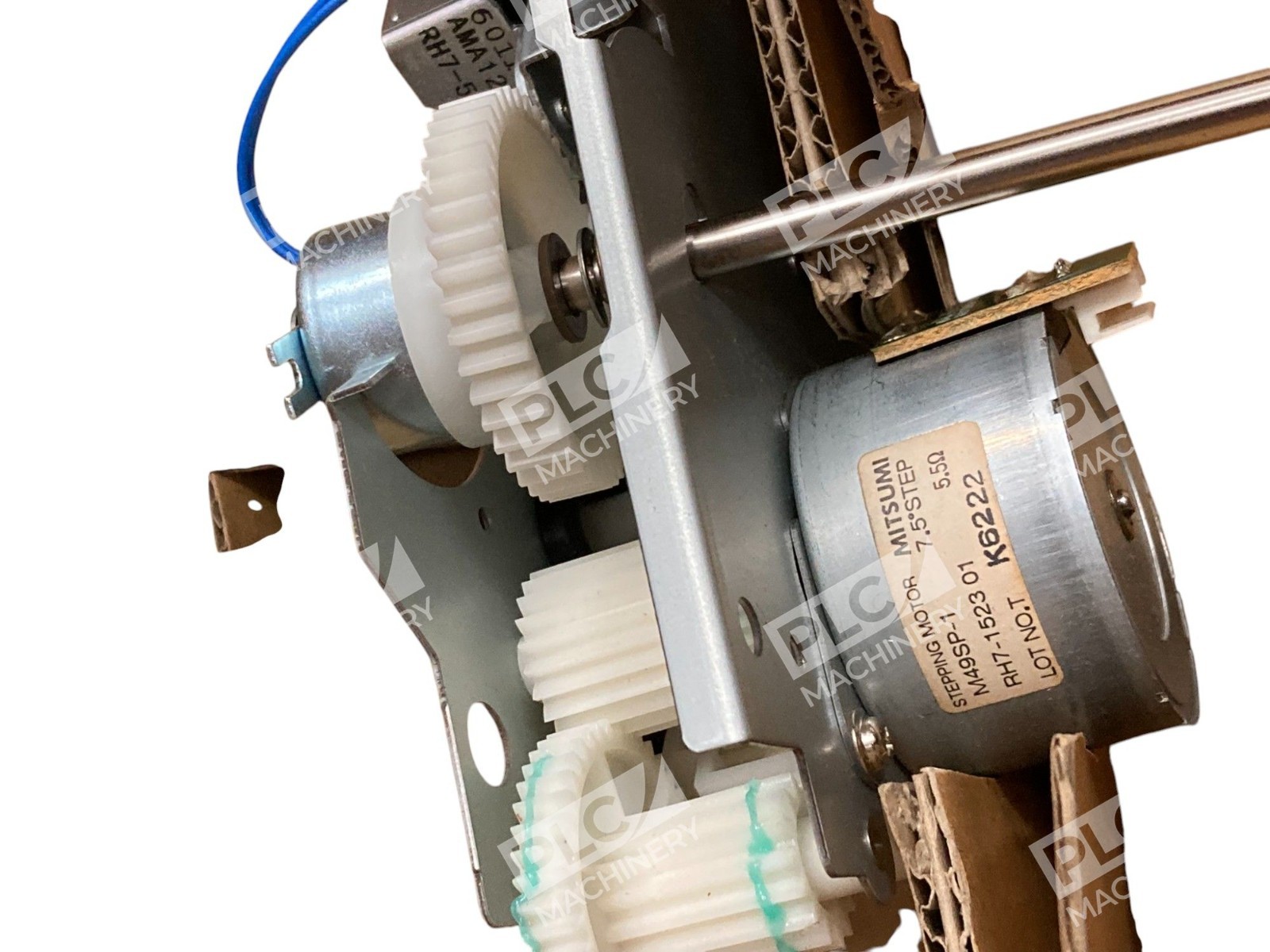

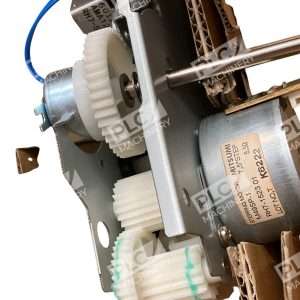

The HP RH7-152301 stepping motor is an original equipment manufacturer (OEM) component engineered for use in HP imaging and printer systems. This brushless stepper motor delivers precise positional control and repeatable motion, making it essential for paper-feed mechanisms, toner cartridge positioning, and other critical alignment functions in LaserJet and related printer platforms.
Key Features
- Original HP OEM component with verified compatibility
- Brushless stepping motor design for reliable, maintenance-free operation
- Precision positioning and repeatable motion control
- Integrated control electronics on PCB assembly
- 24V DC operating voltage standard for HP imaging equipment
- Built-in protection functions and thermal management
Technical Specifications
The HP RH7-152301 is configured as a compact stepper motor assembly with integrated control board. Key operating characteristics include 24V DC supply voltage, standard step resolution for HP printer mechanisms, and low-torque operation designed to minimize heat generation and protect connected subsystems. The motor includes automatic shutdown and power-reduction features for thermal management.
Typical Applications
- HP LaserJet and imaging printer paper feed systems
- Toner cartridge positioning and registration mechanisms
- Sheet feeder and output tray motor assemblies
- OPC drum or fuser drive systems requiring precise stepper control
- Original equipment repair and field replacement
Compatibility & Replacements
Compatible With
- HP LaserJet printer series (various models)
- HP imaging and multifunction devices requiring stepper motors
- 24V DC control systems with stepper motor interface
- OEM paper feed and positioning mechanisms
Replaces / Drop-In Replacement For
This is an OEM component (HP RH7-152301) used in HP-manufactured printing equipment. Verify your specific printer model and part location before ordering to ensure compatibility with your equipment configuration.
Works With
- HP printer control boards and mainboards
- 24V DC power supply systems
- Standard HP stepper motor driver interfaces
- Paper feed and positioning subsystems
