Overview

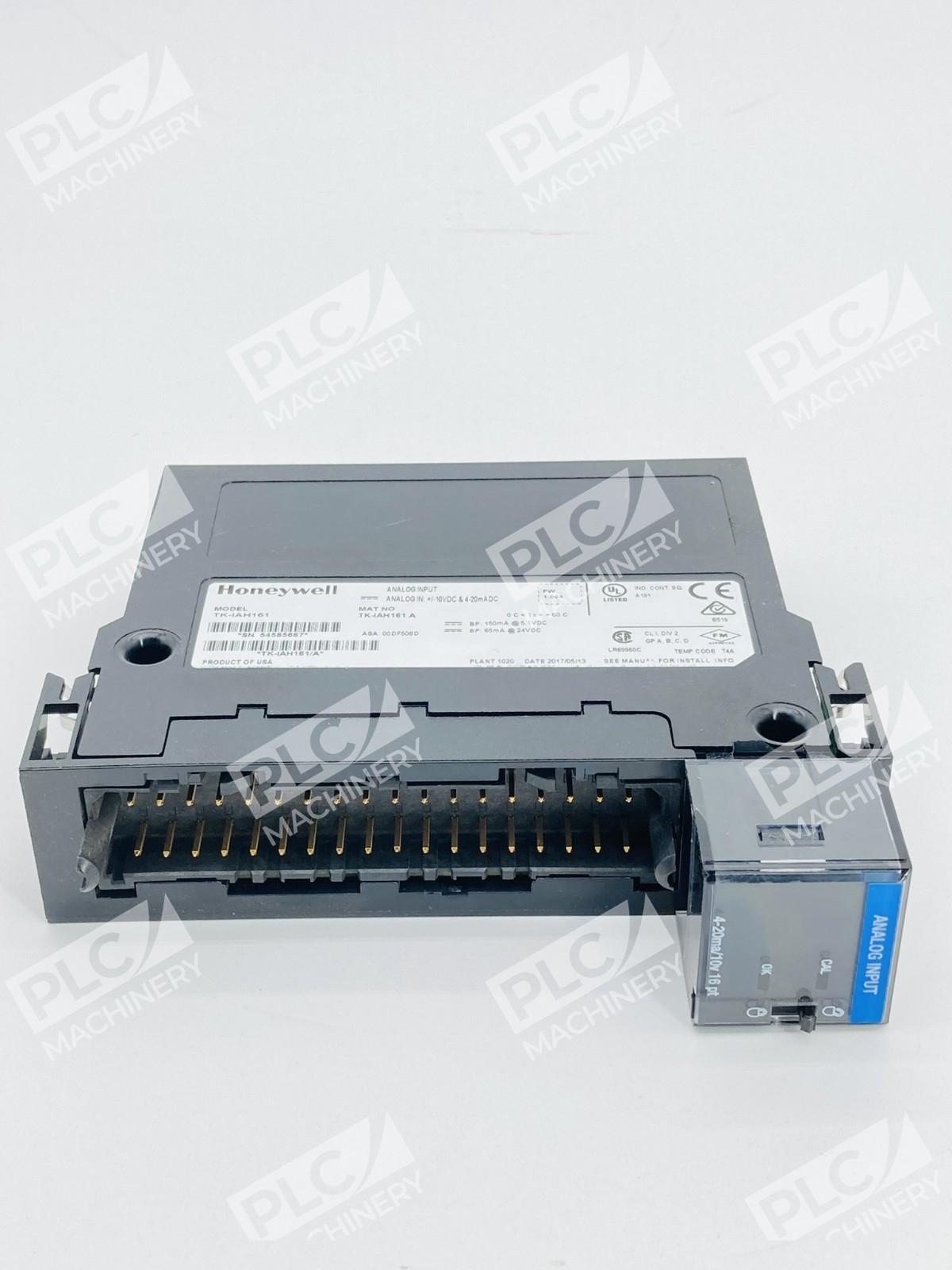

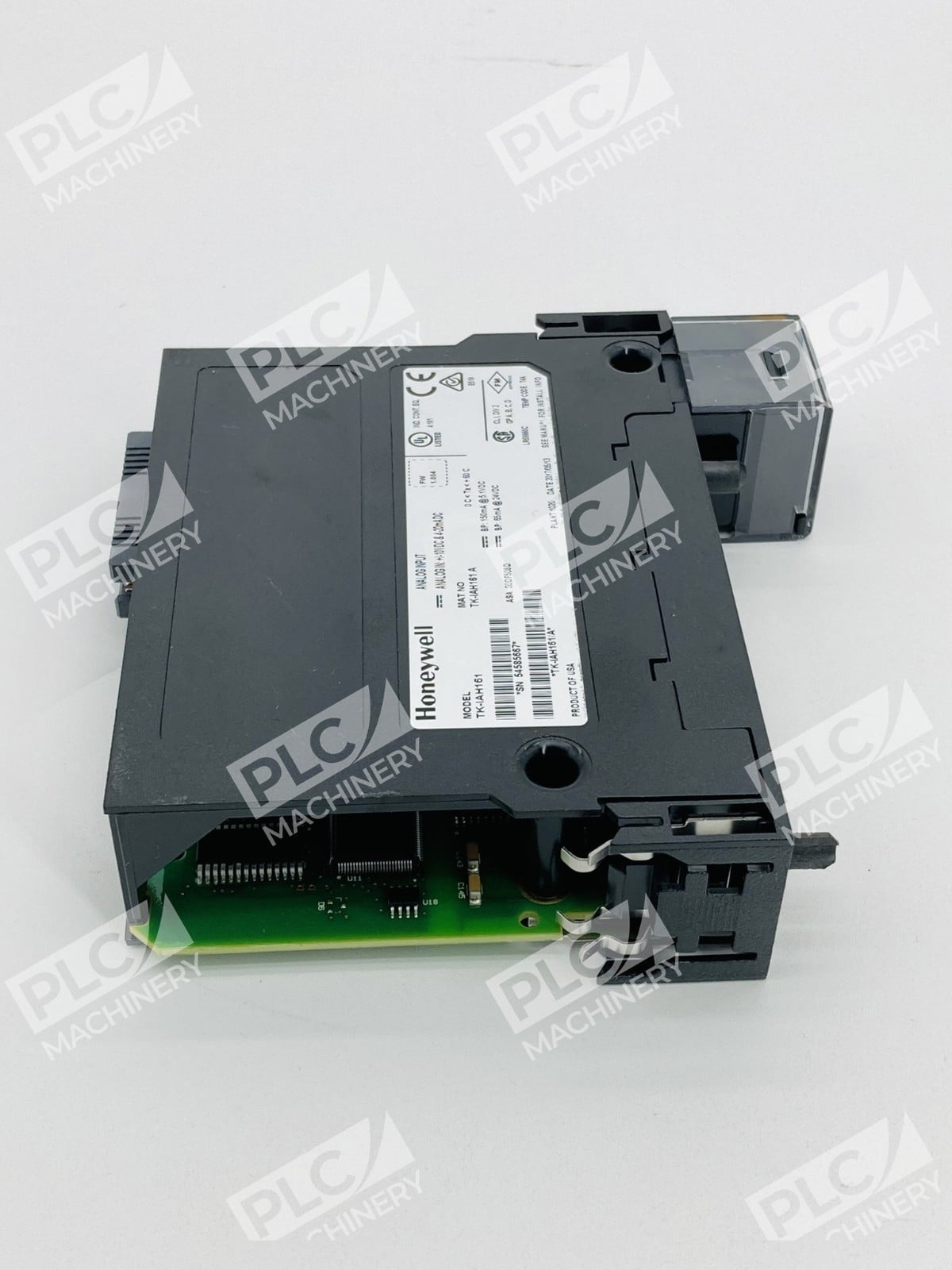

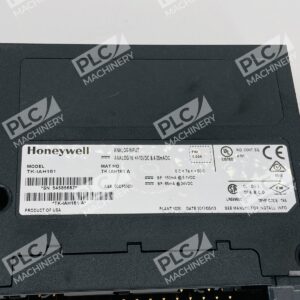

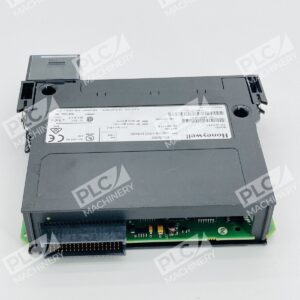

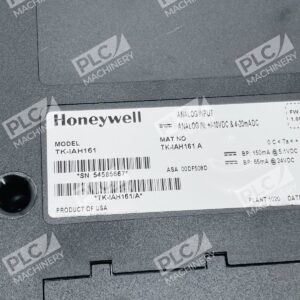

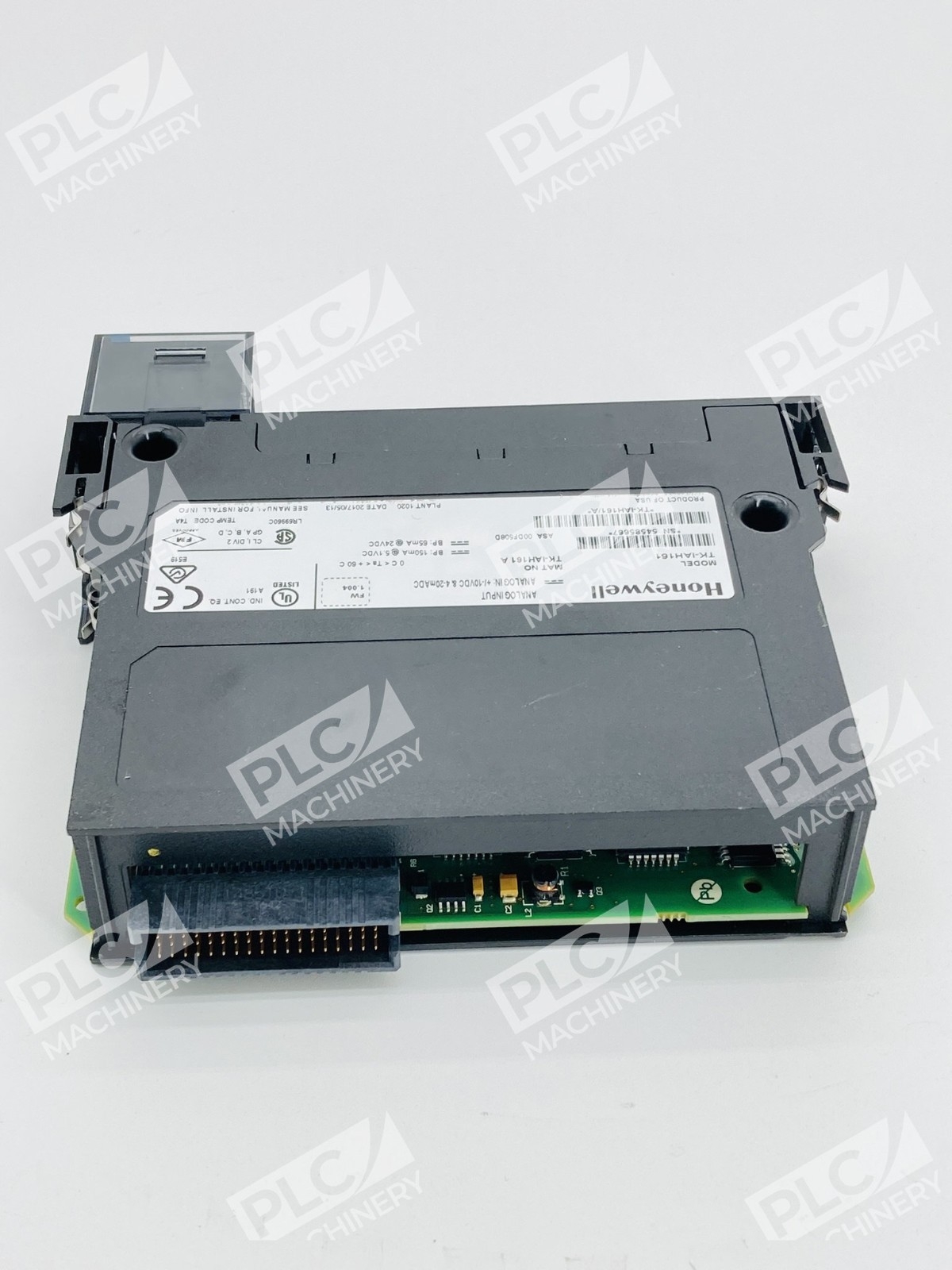

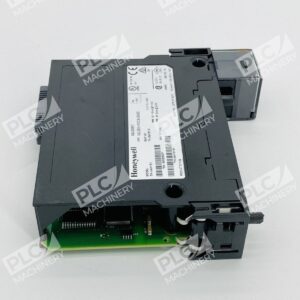

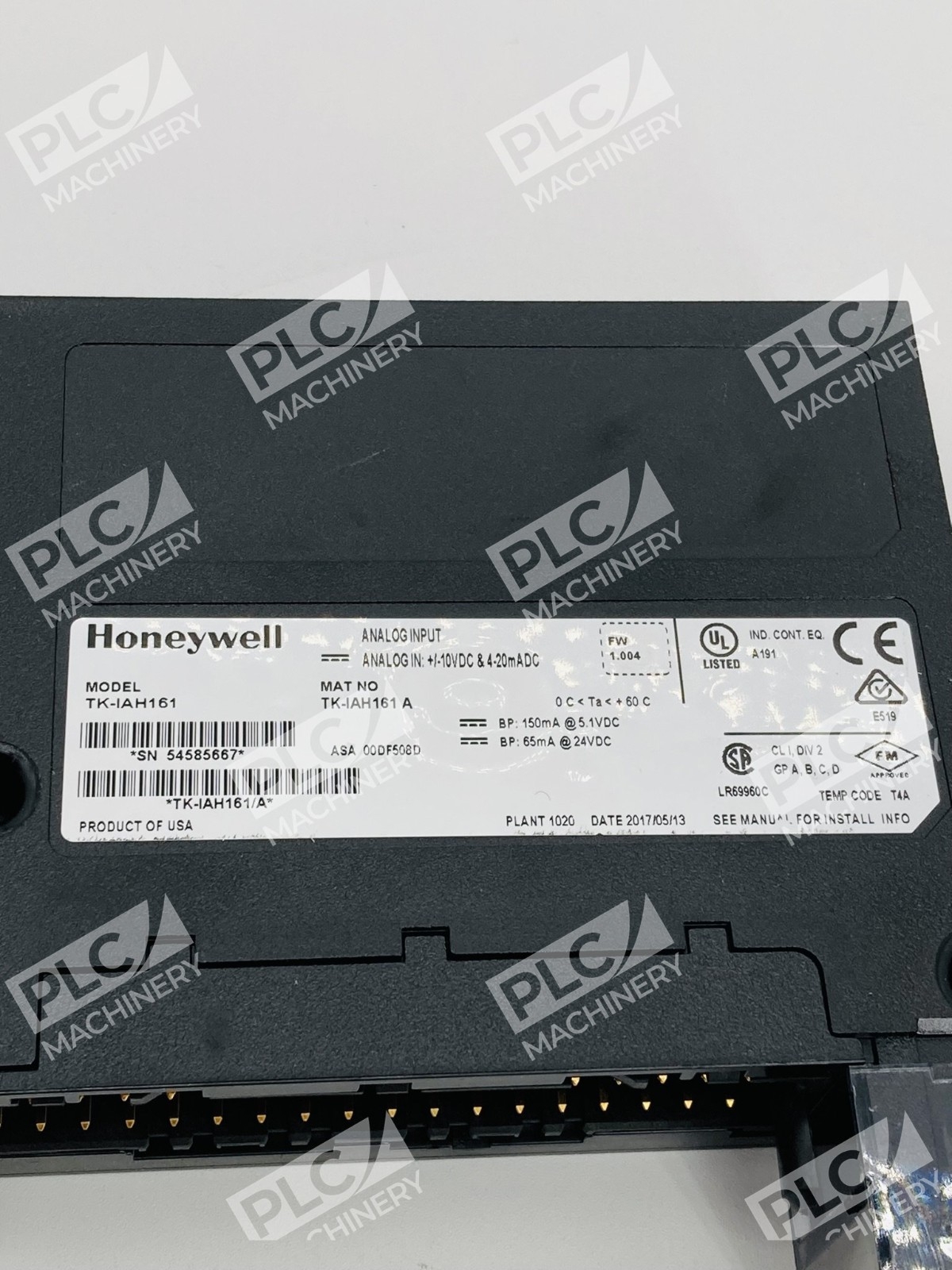

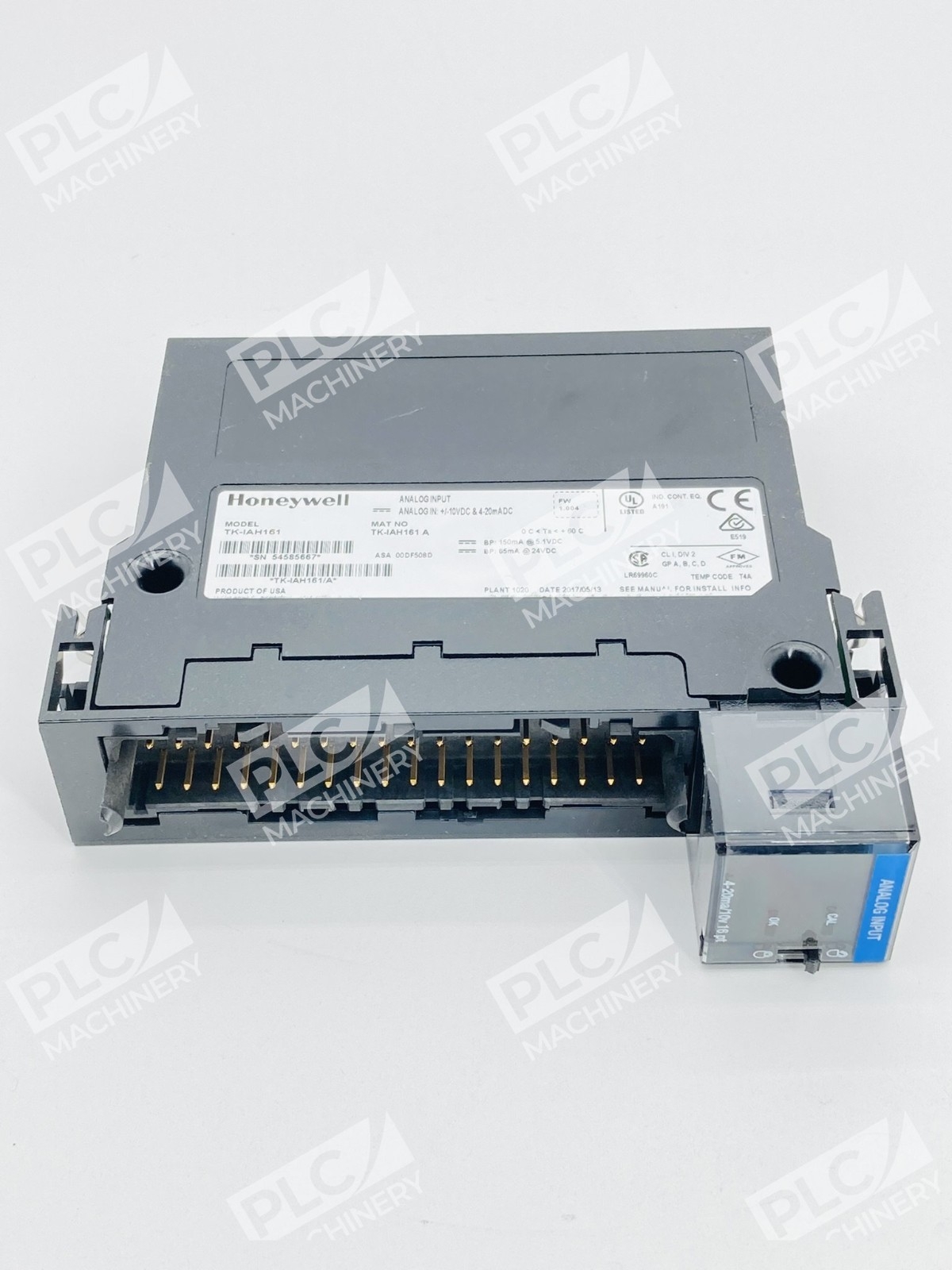

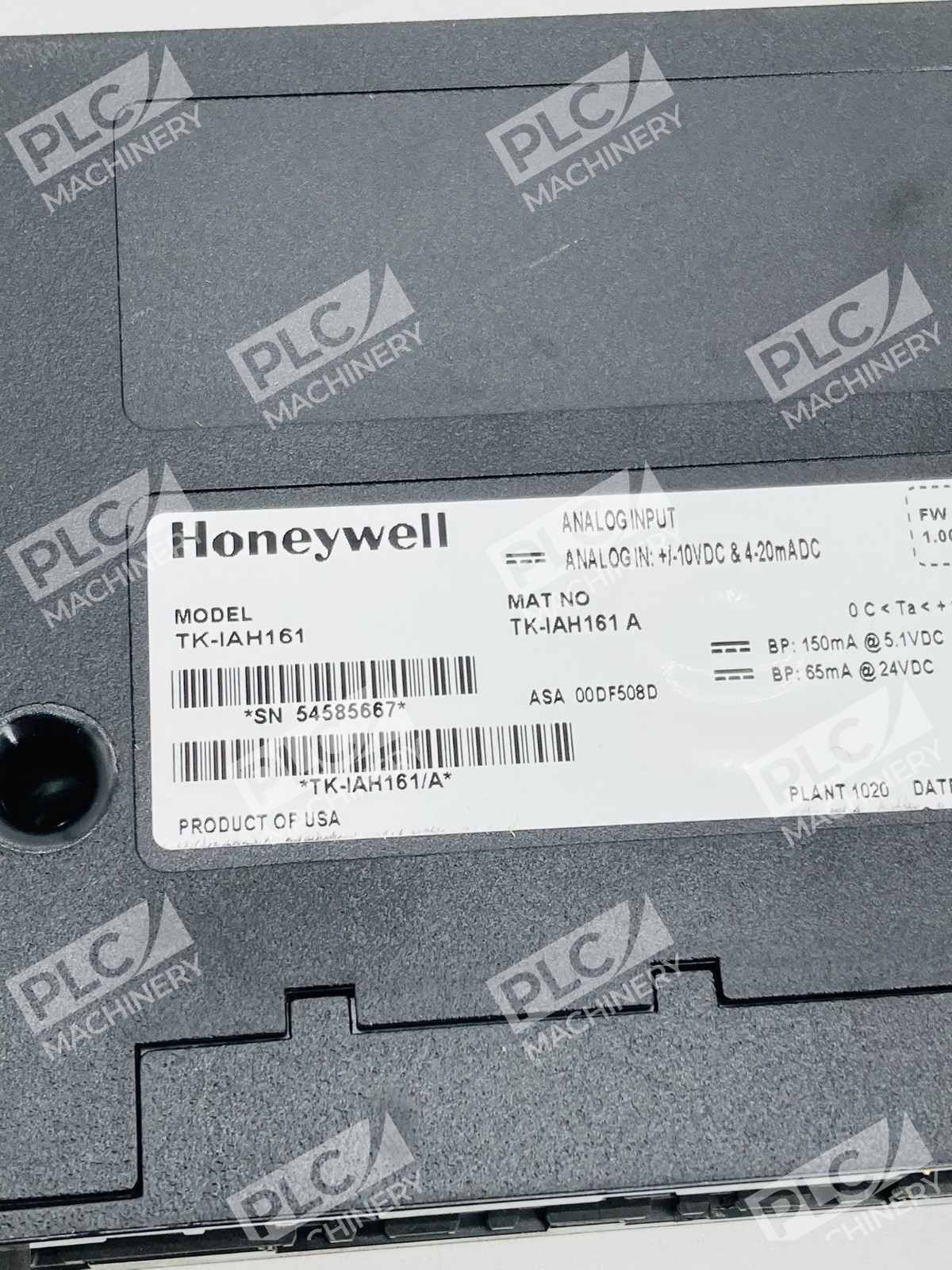

The Honeywell TK-IAH161 analog input module is a precision 16-channel signal conditioning and acquisition device engineered for Honeywell Experion® PKS C200 and C300 control systems. This high-level analog input module converts field instrument signals—voltage (0–10 V, 1–5 V) and current (4–20 mA) ranges—into high-resolution digital data for real-time process monitoring and control. With integrated cold junction compensation, filtering, and per-channel scaling, the TK-IAH161 delivers accurate, noise-resistant signal capture across diverse industrial automation and process control applications.
Key Features
- 16 high-level analog input channels supporting voltage and current signal ranges
- 16-bit resolution across configurable input ranges for precise measurement
- Cold junction compensation, filtering, and scaling for signal conditioning
- Low input impedance (250 Ω current, >1 MΩ voltage) for minimal loading effects
- 5 mA maximum power dissipation; efficient thermal footprint
- Channel bandwidth of 20 Hz (−3 dB) optimized for process applications
- Isolation voltage rated 100% tested at 2550 VDC for 1 second
- 36-position terminal block (TC-TBCH) connection interface
- RFI immunity <2% error at 10 V/m, 27–1000 MHz
Technical Specifications
- Product Type: High-Level Analog Input Module
- Channels: 16
- Input Voltage Range: 0–10.25 V, 0–5.125 V (selectable per channel)
- Input Current Range: 0–20.5 mA (internal 250 Ω resistor)
- Resolution: 16 bits across each input range
- Voltage Input Impedance: >1.0 MΩ
- Current Input Impedance: 249 Ω nominal
- Module Publish Rate: 250 msec
- Channel Bandwidth: 20 Hz (−3 dB)
- Power Dissipation: 4.1 W max
- Isolation Voltage: 100% tested at 2550 VDC for 1 second
- RFI Immunity: <2% error at 10 V/m, 27–1000 MHz
- Connection: 36-position terminal block (TC-TBCH)
- Series: Honeywell Experion® PKS C200, C300
Typical Applications
The TK-IAH161 is ideally suited for:
- Process Control: Temperature, pressure, and flow measurement in HVAC, chemical, refining, and power generation systems
- Equipment Monitoring: Vibration, speed, and performance signal acquisition from rotating machinery and pumps
- Data Logging: Multi-channel sensor input for environmental monitoring, building automation, and plant analytics
- Safety Interlocks: Multi-input safety system integration requiring high reliability and noise immunity
- OEM Integration: Drop-in analog front-end for machinery manufacturers integrating with Experion control platforms
Compatibility & Replacements
Compatible With
- Honeywell Experion® PKS C200 control system
- Honeywell Experion® PKS C300 control system
- Honeywell Experion® LX process controller
- Analog signal conditioning and sensor integration workflows
Replaces / Drop-In Replacement For
- TC-IAH161 (equivalent high-level module variant)
- Legacy Honeywell DCS analog input modules in compatible rack configurations
- Verify compatibility with your system integrator or control architecture before ordering.
Works With
- Honeywell Experion® PKS engineering workstation and configuration software
- Industry-standard 4–20 mA and 0–10 V transmitters and sensors
- Fieldbus and gateway devices supporting analog signal bridging
- Cold junction reference modules for thermocouple expansion
