Overview

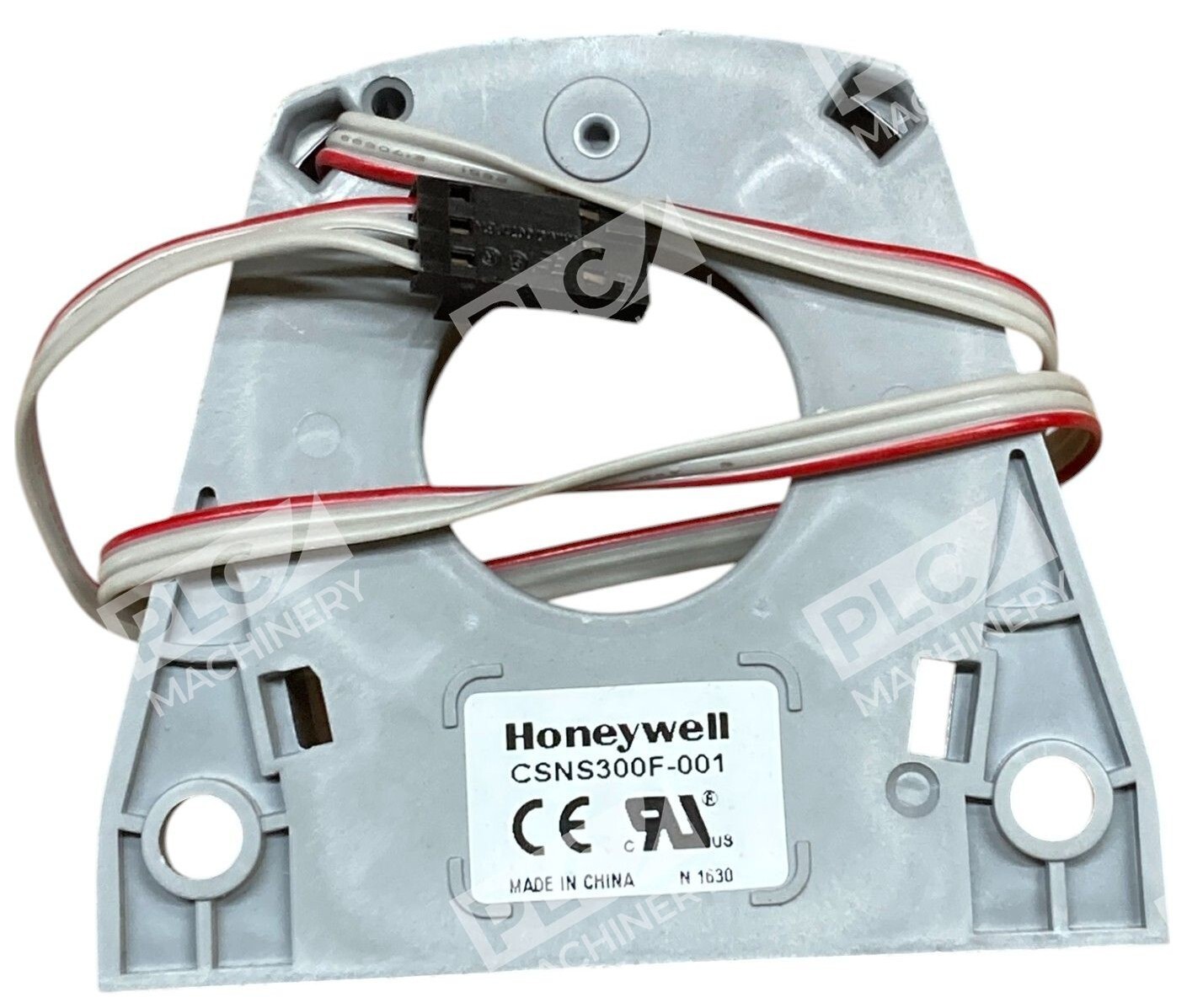

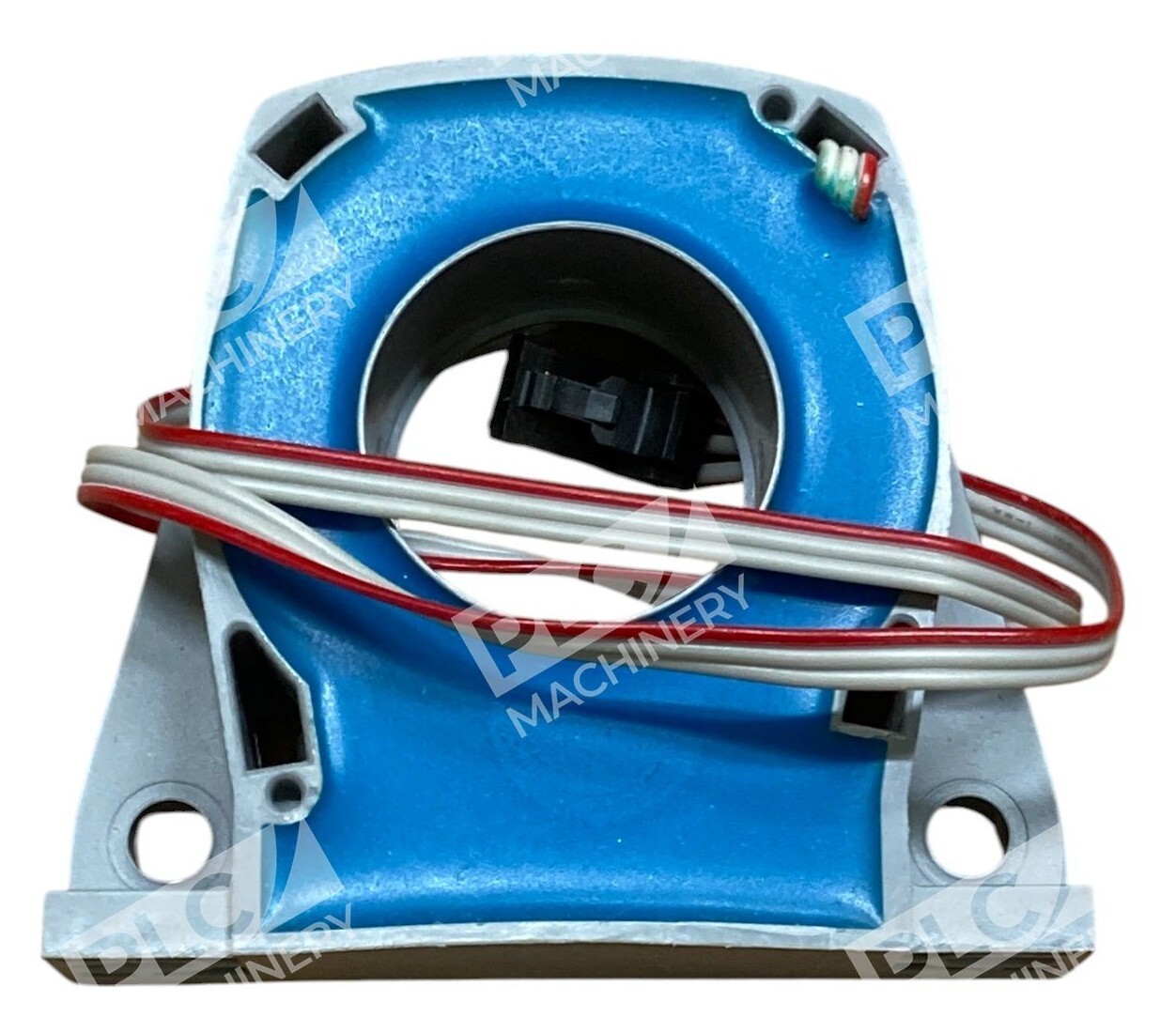

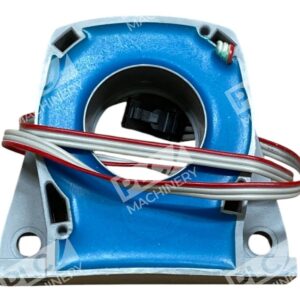

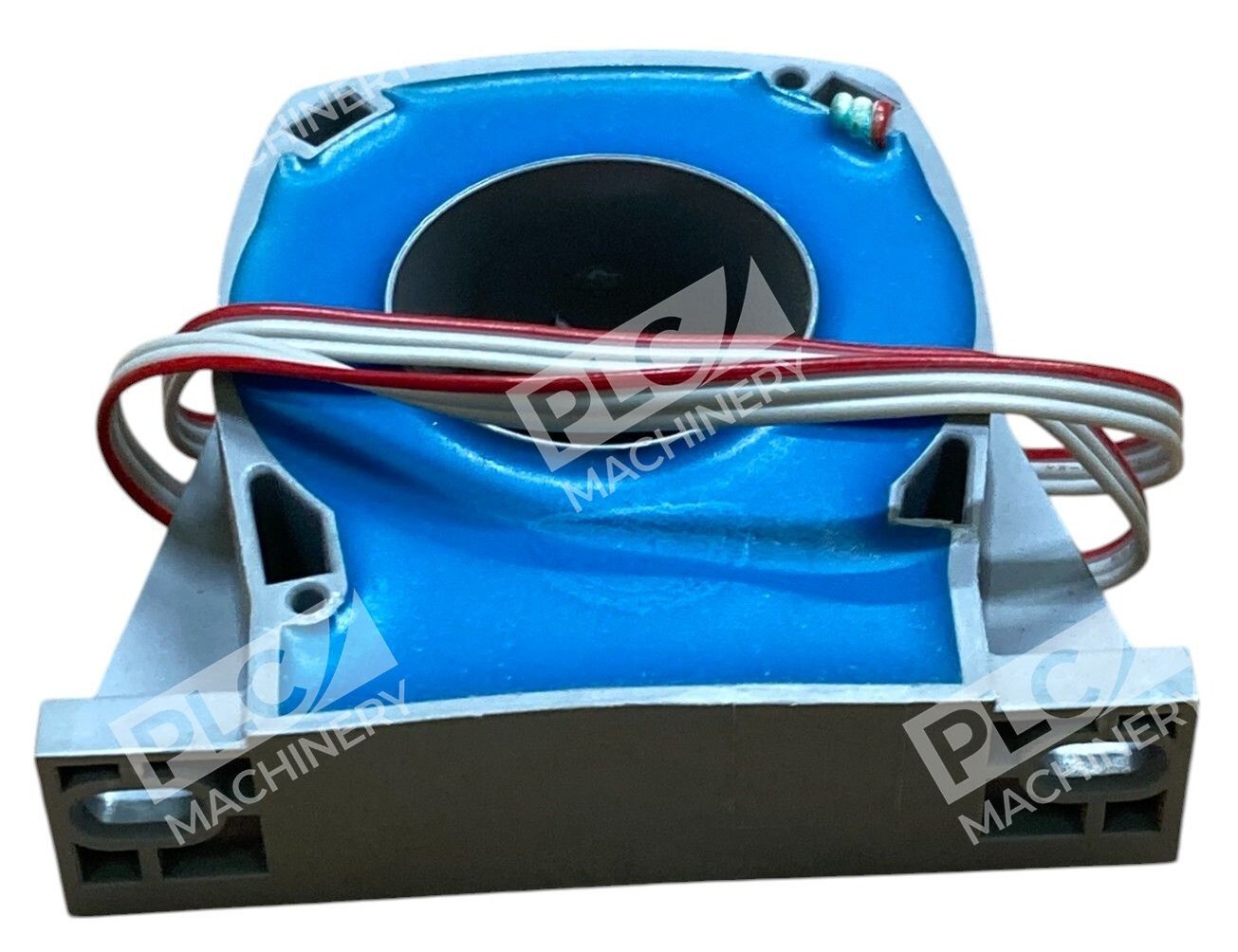

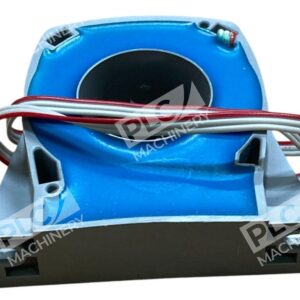

The Honeywell CSNS300F-001 is a closed loop current sensor built on Hall effect and null balance (zero magnetic flux) principles. The sensor constantly controls magnetic flux in the core at zero, and measures primary current based on the feedback current required to balance that zero flux, multiplied by the primary-to-secondary winding ratio. This design delivers high precision and stability for AC, DC, and impulse current measurement in industrial automation, power distribution, and motor control applications.
Key Features
- 300 A current rating with ±0.5% accuracy
- 0A to 600A measurement range for both DC and AC
- 12V to 18V DC supply voltage
- 500 ns response time for fast fault detection
- Operating temperature range from -40°C to +85°C
- EU RoHS compliant
Technical Specifications
- Sensor Type: Closed loop Hall effect
- Current Rating: 300 A
- Measurement Range: 0–600 A AC/DC
- Accuracy: ±0.5%
- Supply Voltage: 12–18 V DC
- Response Time: 500 ns
- Operating Temp: -40°C to +85°C
- Output: ±15V
- RoHS Status: EU RoHS compliant
- Package Height: 60.7 mm
- Package Length: 67.5 mm
Typical Applications
- Motor drive current monitoring and diagnostics
- Power supply and inverter output current measurement
- Energy metering and billing systems
- Overcurrent protection and fault detection
- Industrial process automation and PLC-based control
- Power quality and harmonic analysis systems
Compatibility & Replacements
Compatible With
- Allen-Bradley and Rockwell Automation PLCs (analog input modules)
- Siemens S7 series programmable logic controllers
- Mitsubishi MELSEC and FX automation systems
- Omron CJ/CP series controllers
- 4–20 mA signal conditioning systems
- Industrial data acquisition and monitoring systems
Replaces / Drop-In Replacement For
- CSNS300F-003 (alternate output configuration)
- CSNS300M-001 (similar 300 A rating, different housing)
- Verify compatibility with your system integrator before ordering.
Works With
- PLC analog input modules (0–10V, 4–20 mA standards)
- Data acquisition systems and SCADA software
- Signal conditioning and transducer modules
- Studio 5000, TIA Portal, and other industrial control software via analog card interfaces
