Overview

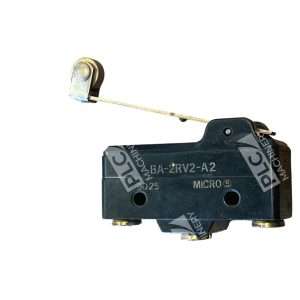

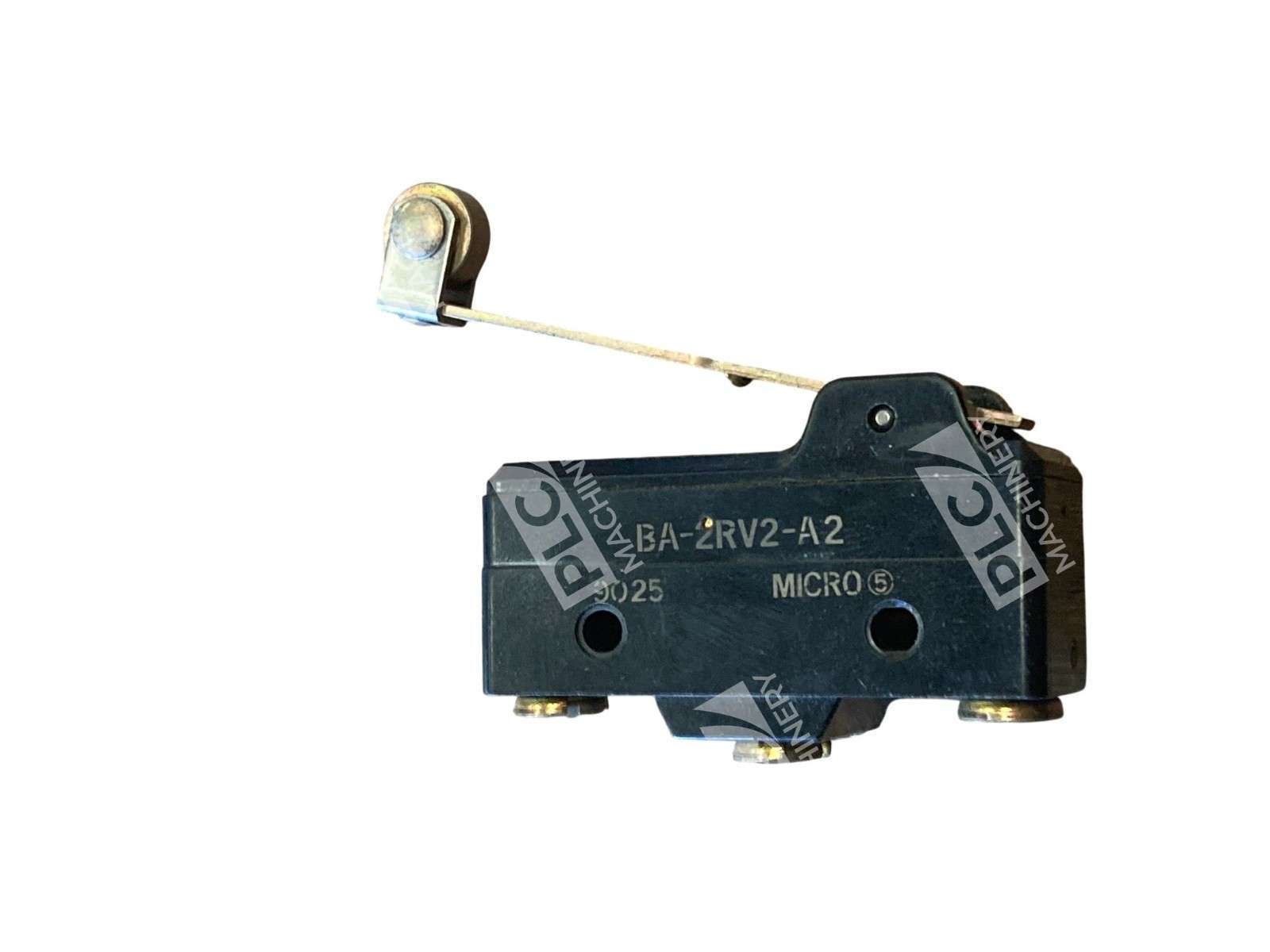

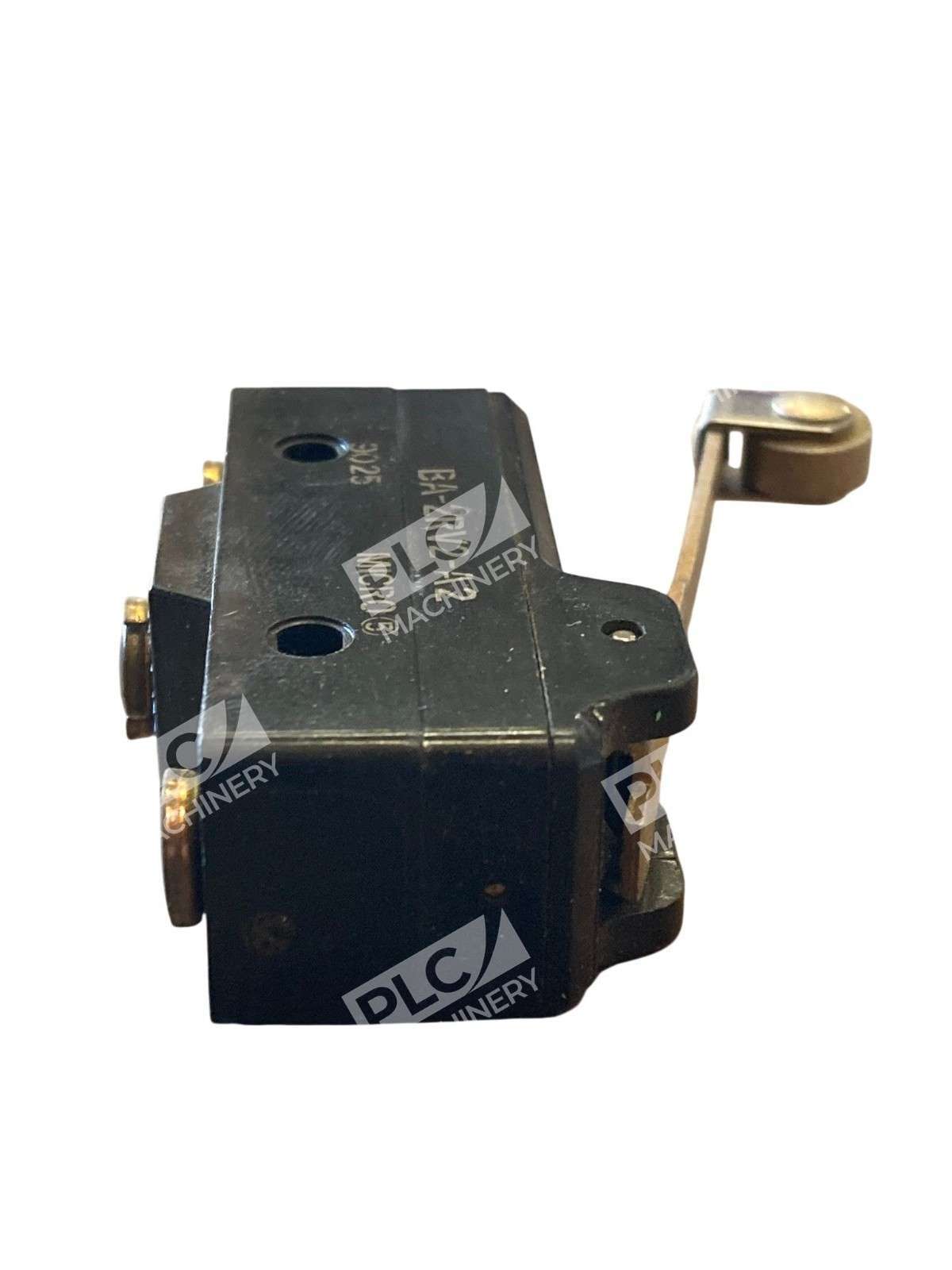

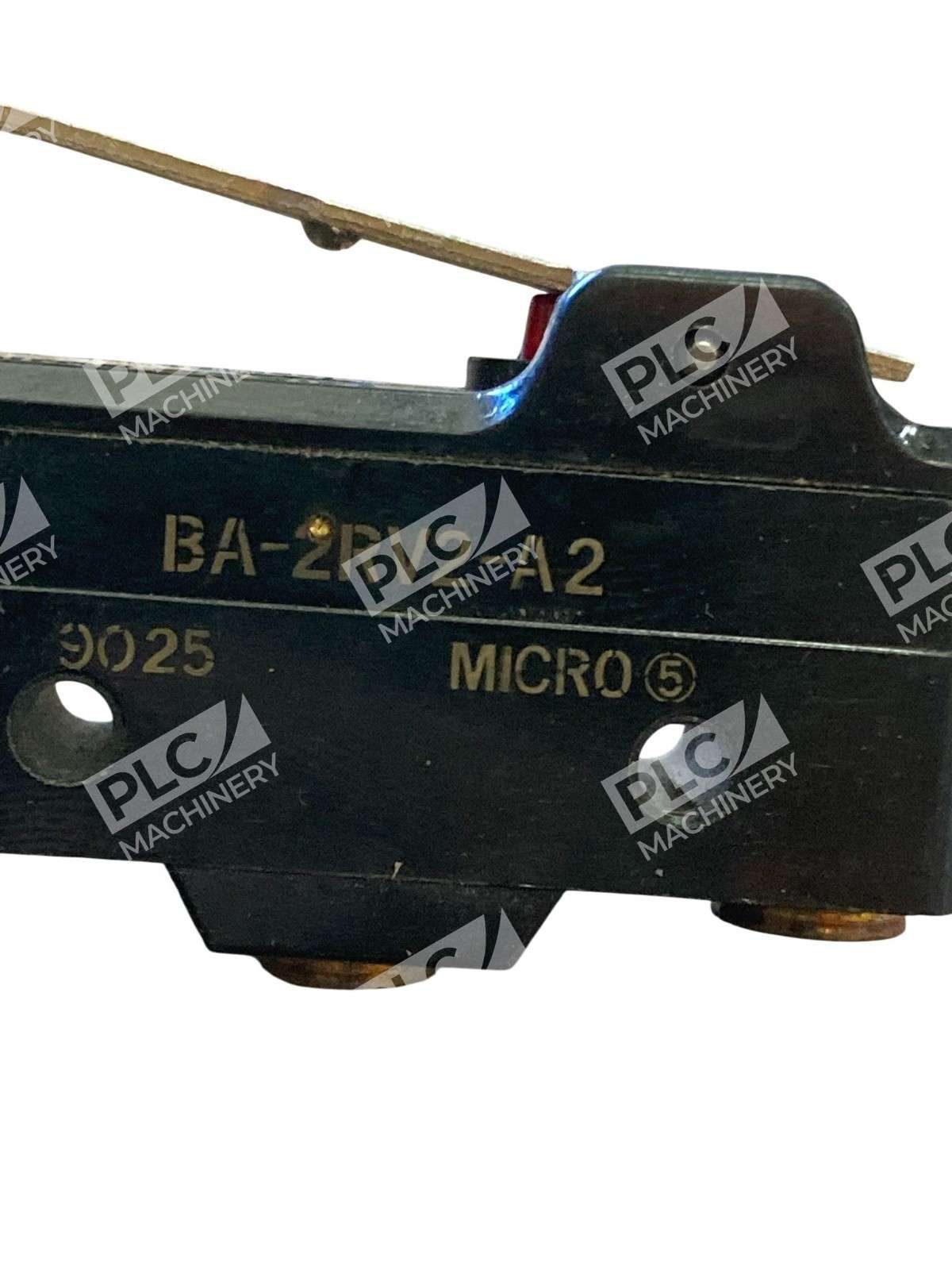

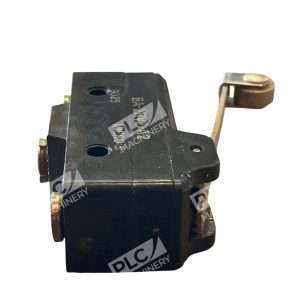

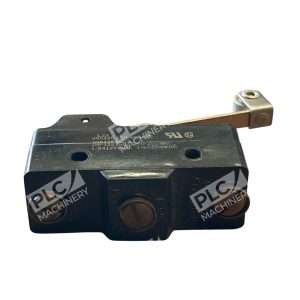

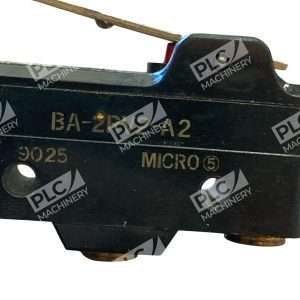

The Honeywell BA-2RV2-A2 is a MICRO SWITCH BA Series premium large basic snap-action switch designed for precision on/off applications in industrial control systems. This SPDT (Single Pole Double Throw) micro switch features a stainless steel roller lever actuator and delivers accurate, reliable contact switching with enhanced mechanical durability. Built to exacting standards, it is widely used in limit switches, end-of-travel detection, presence/absence sensing, and manual operator interfaces.
Key Features
- SPDT contact configuration with two independent circuits

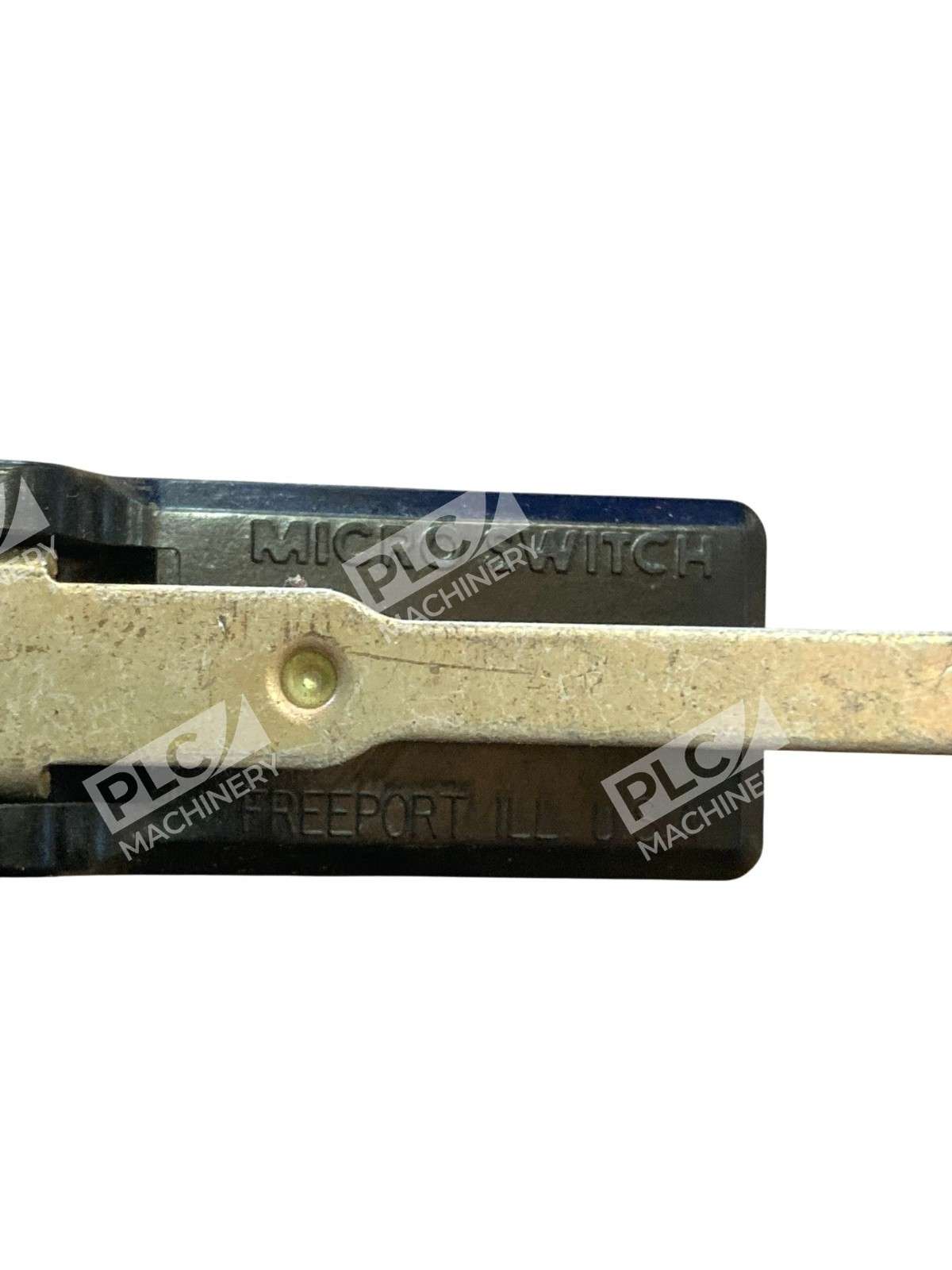

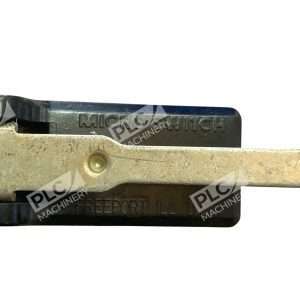

- Roller lever actuator (stainless steel) for smooth, repeatable actuation
- Snap-action mechanism ensures positive contact engagement

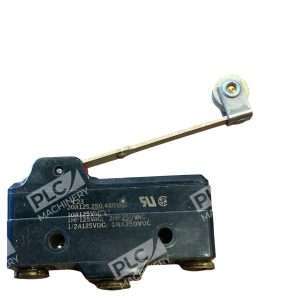

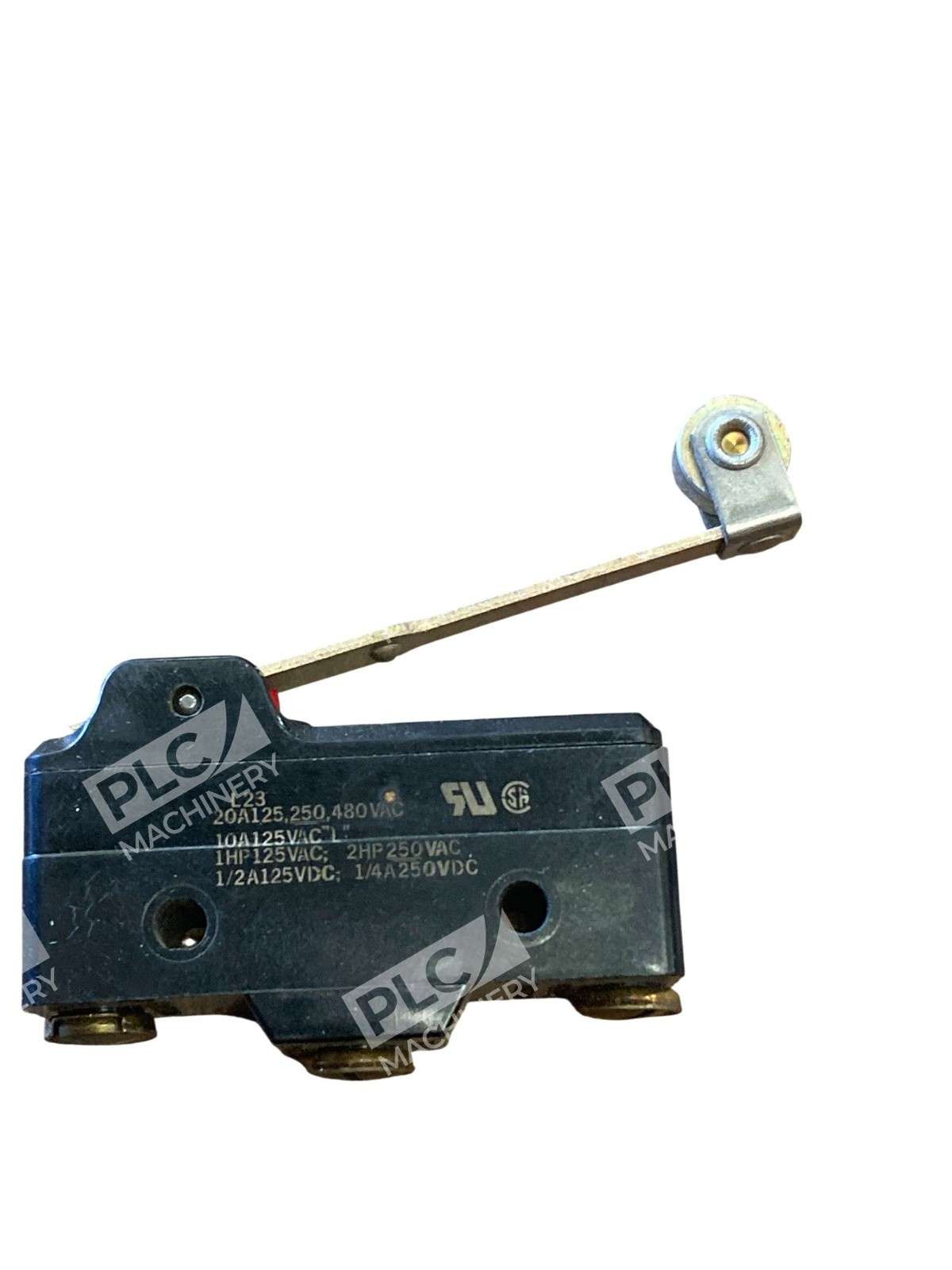

- Rated 20A at 250VAC and 480VAC maximum contact voltage
- Low operating force of 3.5 oz (0.97 N) for reduced actuator fatigue

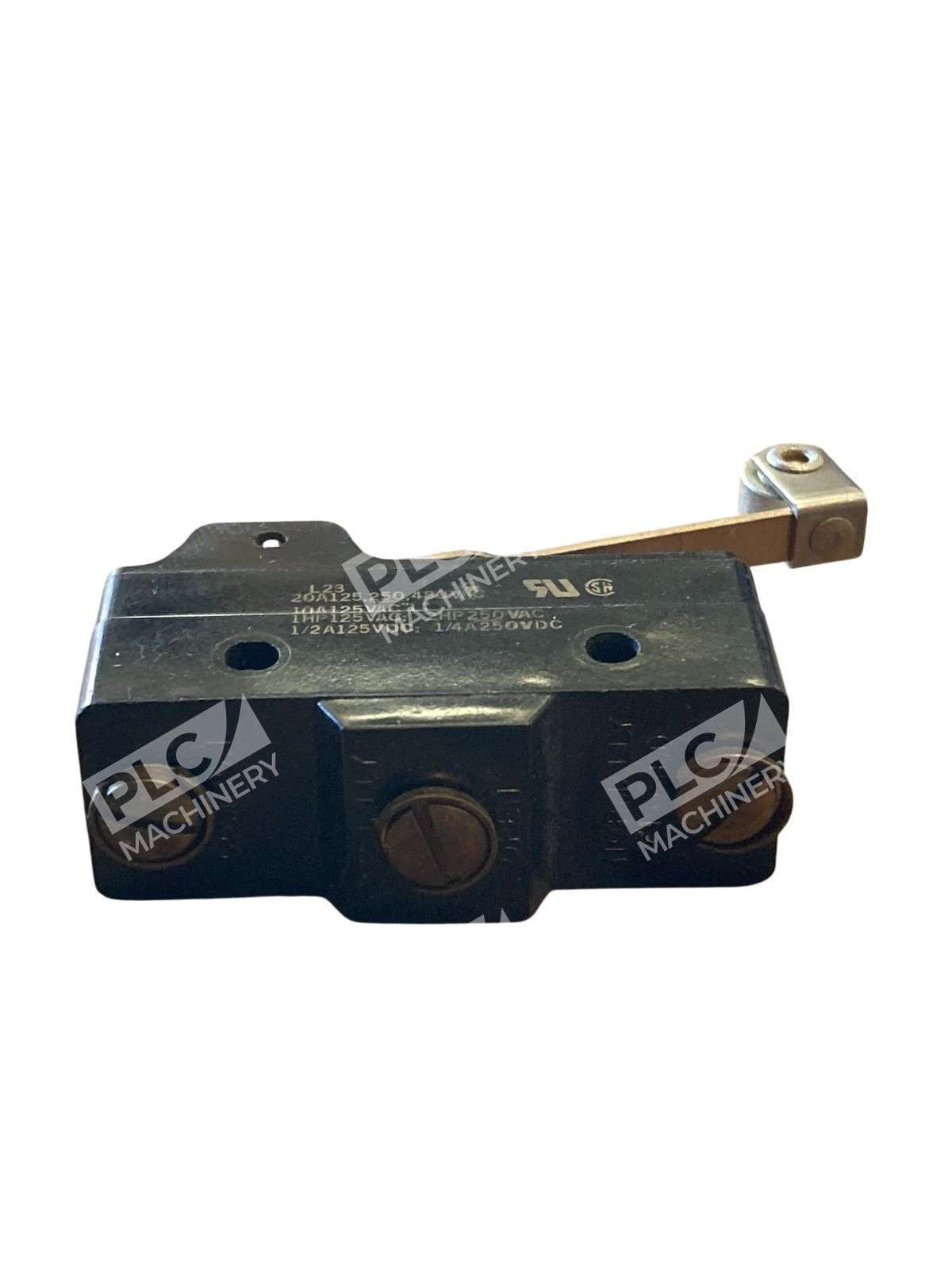

- Screw terminal connections for secure, permanent wiring
- 20 million cycle life rating at 95% survival rate
- UL, CSA, CE, and ENEC certified for global standards compliance
- Rigid lever design with elongated mounting hole for tool-free positioning

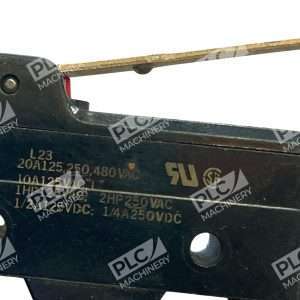

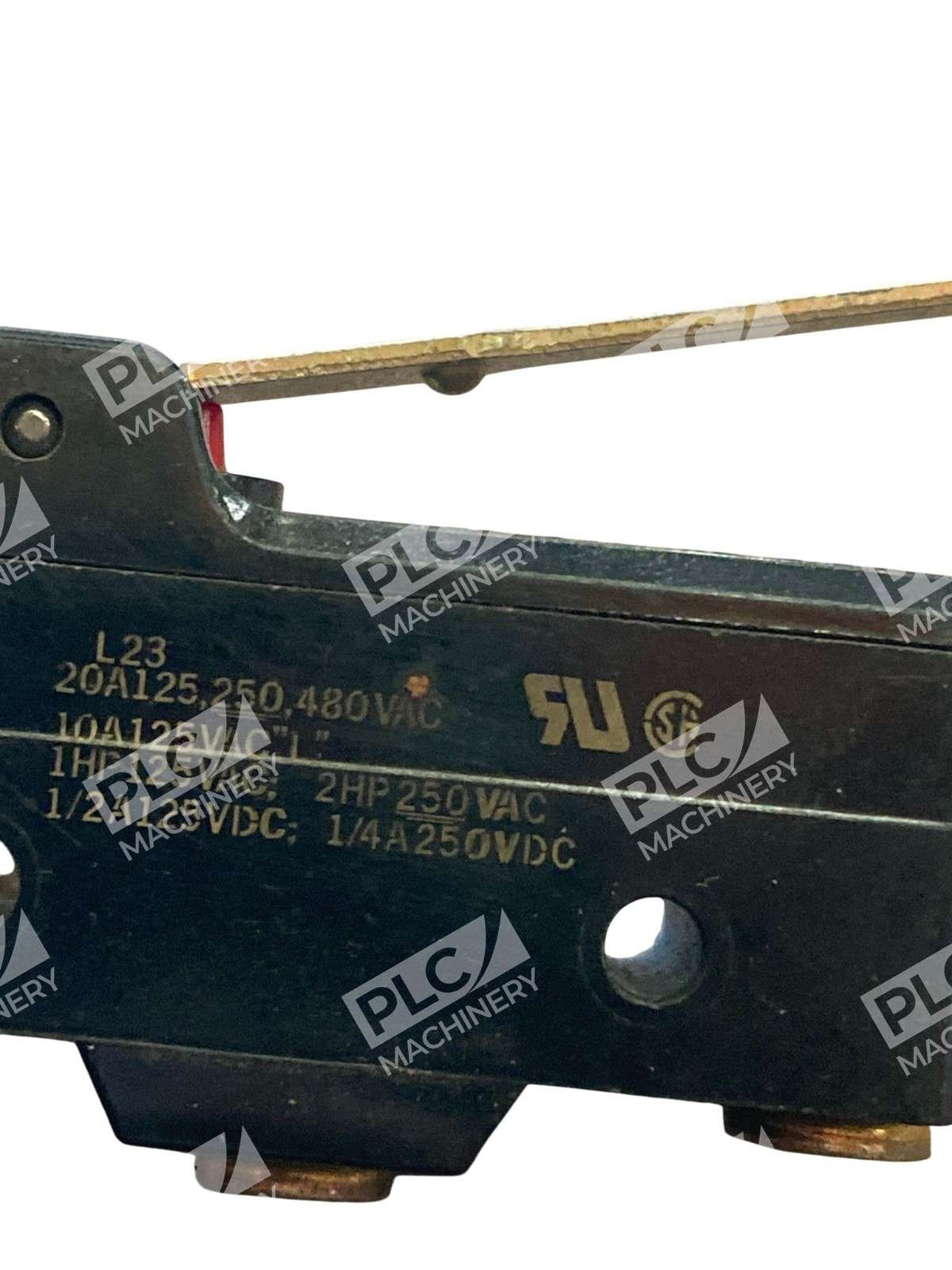

Technical Specifications
- Contact Configuration: SPDT (Single Pole Double Throw)
- Actuator Type: Roller Lever (Stainless Steel)
- Contact Current Rating: 20A (AC and DC)
- Contact Voltage (AC): 250VAC nominal, 480VAC maximum
- Contact Voltage (DC): 250VDC
- Operating Force: 3.5 oz (0.97 N)
- Differential Travel: 0.0002″ (sensitive)
- Termination: Screw mount
- Contact Material: Silver
- Body Material: Phenolic plastic
- Mechanical Life: 20,000,000 cycles at 95% survival
- Motor Load Capability: Up to 2 HP @ 250VAC
- Power Load Switching: Up to 25A
- Certifications: UL, CSA, CE, ENEC
- Mounting: Through-hole with elongated hole for positioning
Typical Applications
The BA-2RV2-A2 micro switch is ideal for:
- End-of-travel and limit switch applications
- Presence/absence detection in machinery and equipment
- Manual operator interface and push-button circuits
- Door and cabinet interlock switches
- Fluid level and pressure sensing
- Precision on/off control in industrial automation systems
- HVAC system control and monitoring
- Motor protection and overload circuits
Compatibility & Replacements
Compatible With
- Standard industrial control panels and enclosures
- Manual lever and pedal actuators
- Roller plungers and specialized actuators (with mechanical adaptation)
- 24VDC to 480VAC control circuits
- Motor control and machinery limit circuits
Replaces / Drop-In Replacement For
The BA-2RV2-A2 is a direct replacement for applications previously using older Honeywell micro switch models in the BA series with identical roller lever configuration and 20A rating. Verify mechanical and electrical compatibility with your original equipment documentation before substitution.
Works With
- Standard industrial wiring (screw termination accepts AWG 14-10 wire)
- Mechanical actuators: rollers, levers, plungers, and cams
- Manual control buttons and position switches
- PLC discrete input cards and industrial relays
- Motor starters and soft-start controllers
- Pneumatic and hydraulic valve solenoids
