Overview

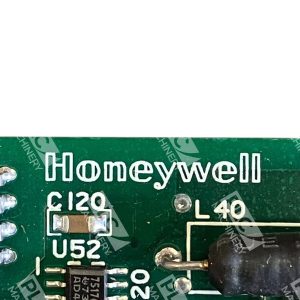

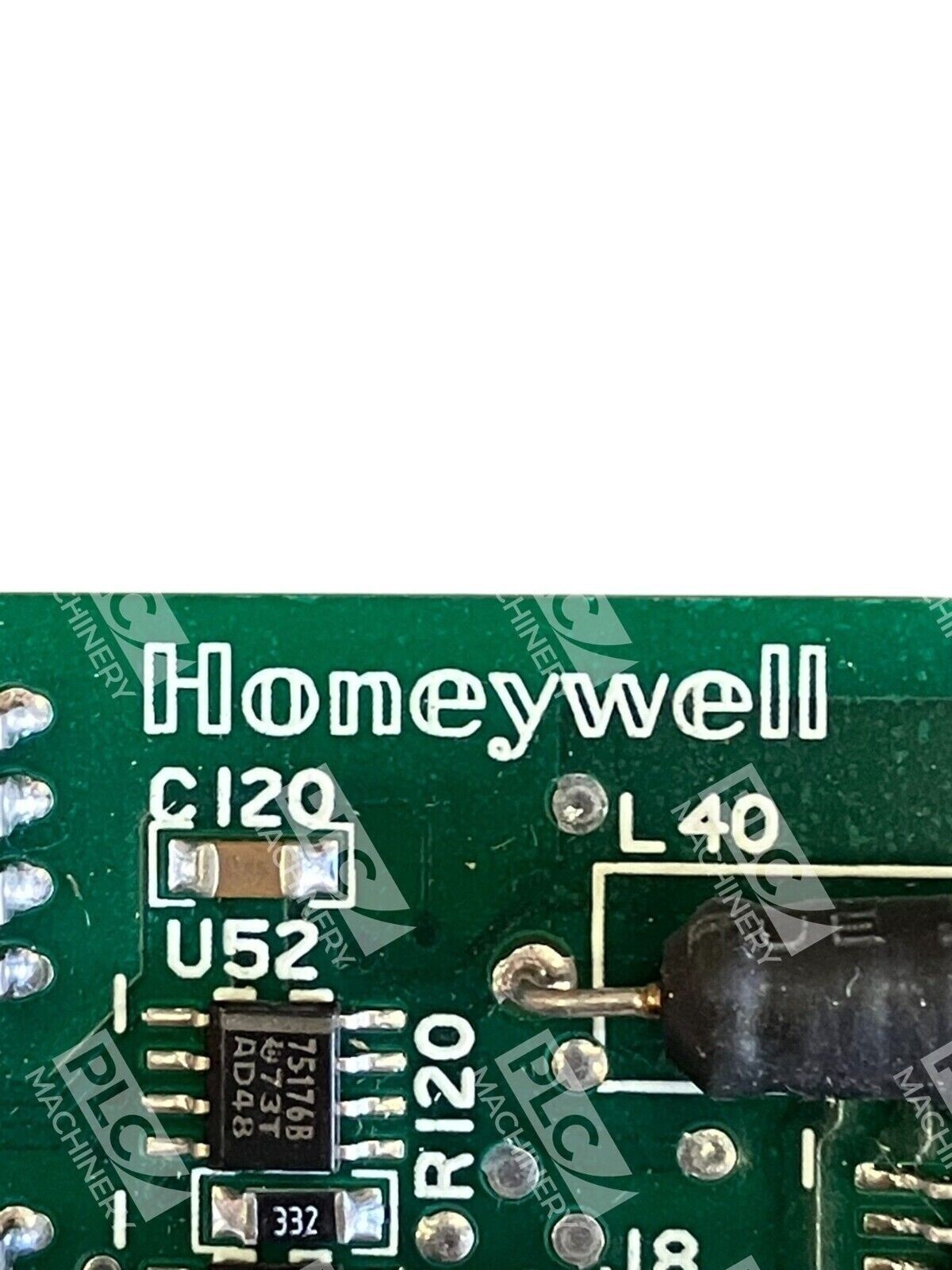

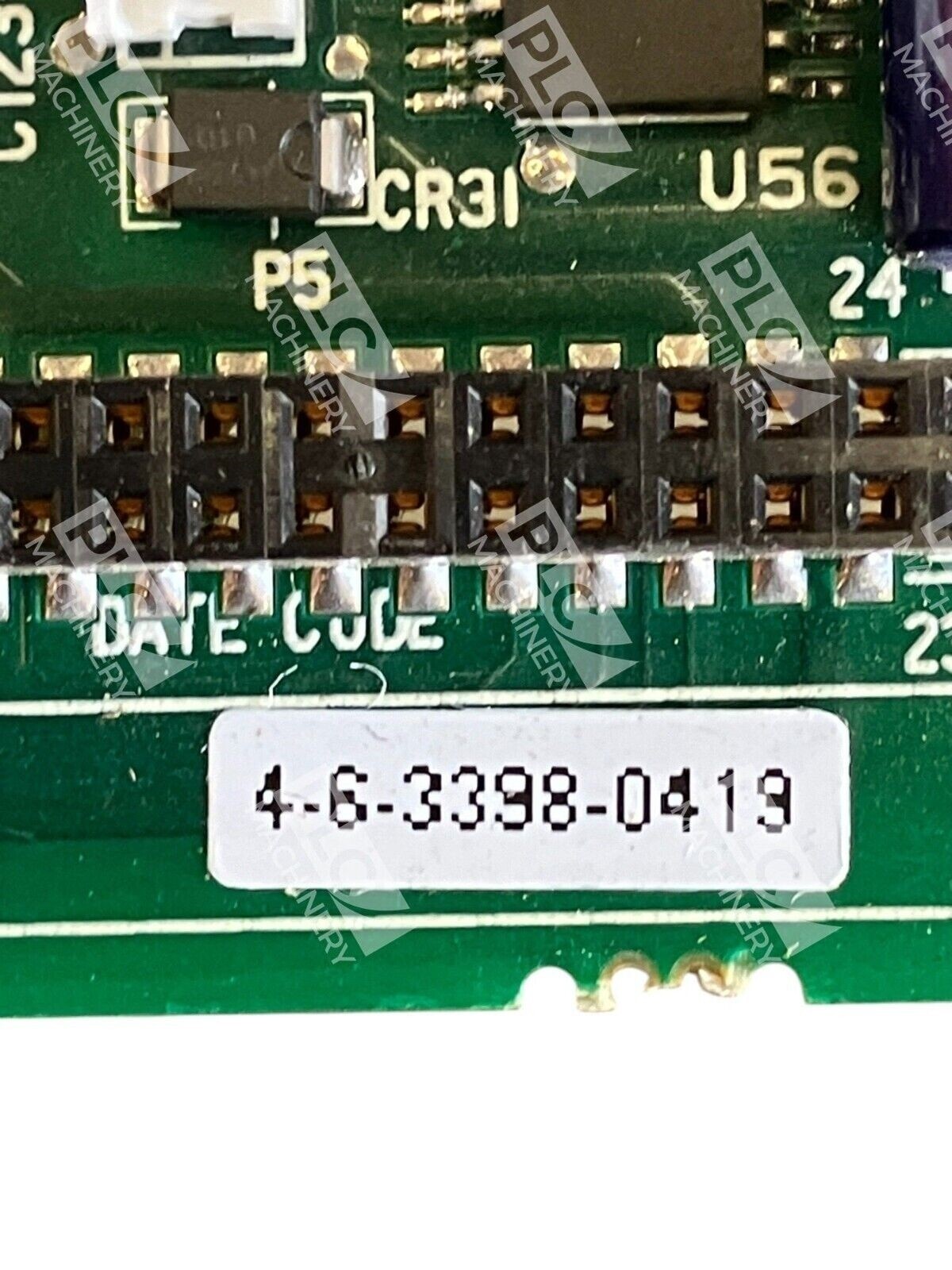

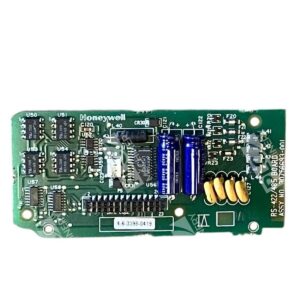

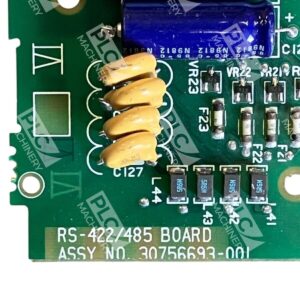

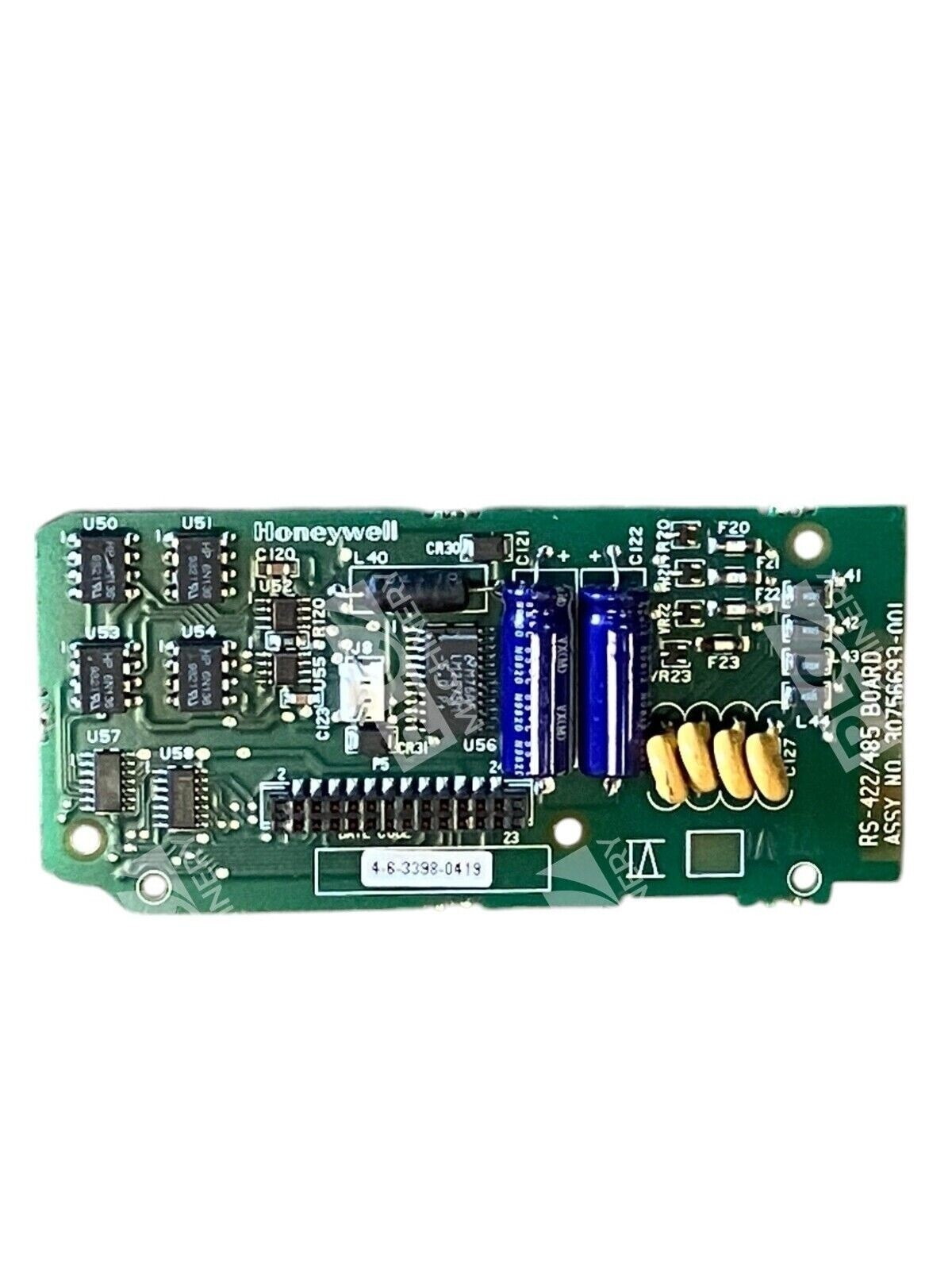

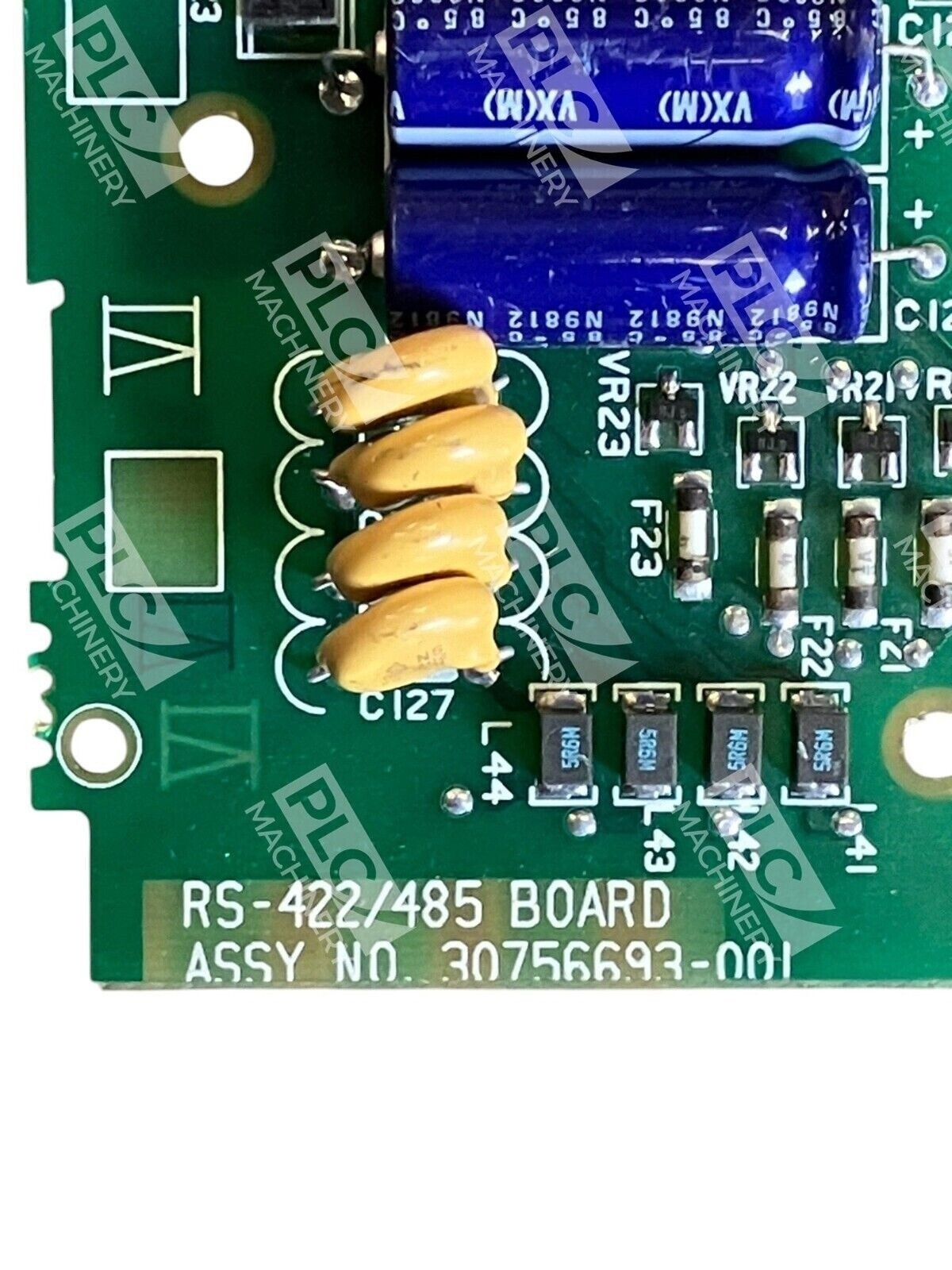

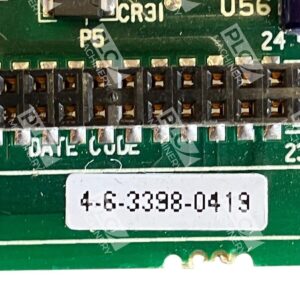

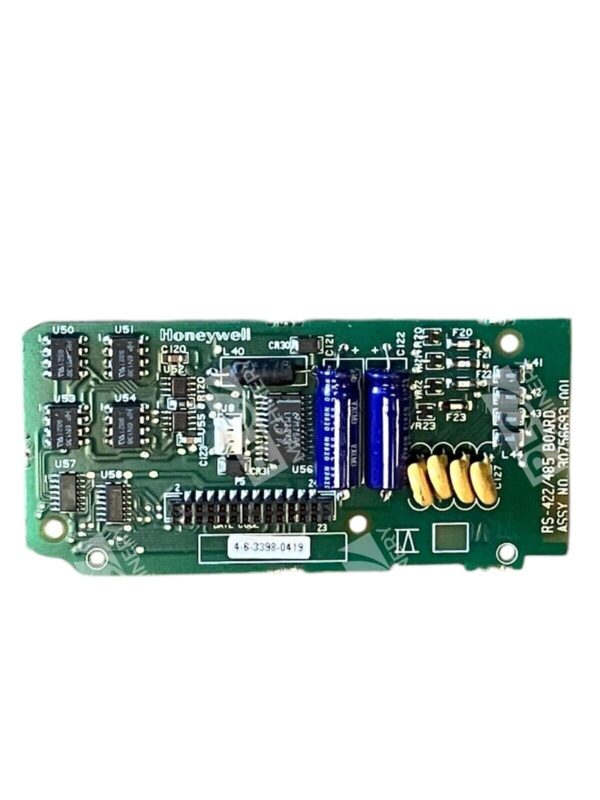

The Honeywell 4-6-3398-0419 (part number 30756693-001) is a proven RS-422/485 communication board designed for industrial automation and process control applications. This interface board enables reliable serial communication across extended distances in noisy industrial environments, making it essential for PLC systems, distributed I/O networks, and multi-drop sensor arrays.
Key Features
- Dual-protocol support for both RS-422 and RS-485 differential signaling
- Extended cable run capability — supports transmission distances up to 1,200 meters at lower baud rates
- Noise-resistant differential signaling for industrial EMI environments
- Multi-drop topology support for connecting multiple devices on a single communication line
- Reliable integration with Honeywell and third-party industrial controllers
Technical Specifications
Specifications for the Honeywell 4-6-3398-0419 RS-422/485 board reflect industrial-grade communication standards:
- Communication Protocol: RS-422/485 (differential signaling)
- Topology: Point-to-point and multi-drop configurations
- Maximum Cable Distance: 1,200 meters (3,900 feet)
- Data Rate Range: 100 kbit/s – 10 Mbit/s (dependent on cable length)
- Signaling: Differential (±6V maximum per line)
- Typical Applications: Serial bridge for PLCs, distributed I/O networks, SCADA gateways
Typical Applications
The Honeywell RS-422/485 board is deployed in:
- PLC-to-sensor networks requiring noise immunity in factory floors
- Building automation and HVAC control systems
- Water treatment and wastewater process facilities
- Legacy industrial controller integration and retrofit projects
- Distributed motion control and safety relay networks
- Remote monitoring and SCADA terminal interfaces
Compatibility & Replacements
Compatible With
- Honeywell PLC and programmable controller systems
- Allen-Bradley and other third-party industrial controllers supporting RS-485 gateways
- SCADA and HMI platforms with serial communication modules
- Standard RS-422/485 field devices and sensors
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The part number 30756693-001 is the Honeywell reference designation for this communication interface.
Works With
- RS-422/485 serial communication protocols
- Multi-master and master/slave network topologies
- Modbus RTU and other serial industrial protocols
- Industrial ethernet gateways and serial-to-ethernet converters
