Overview

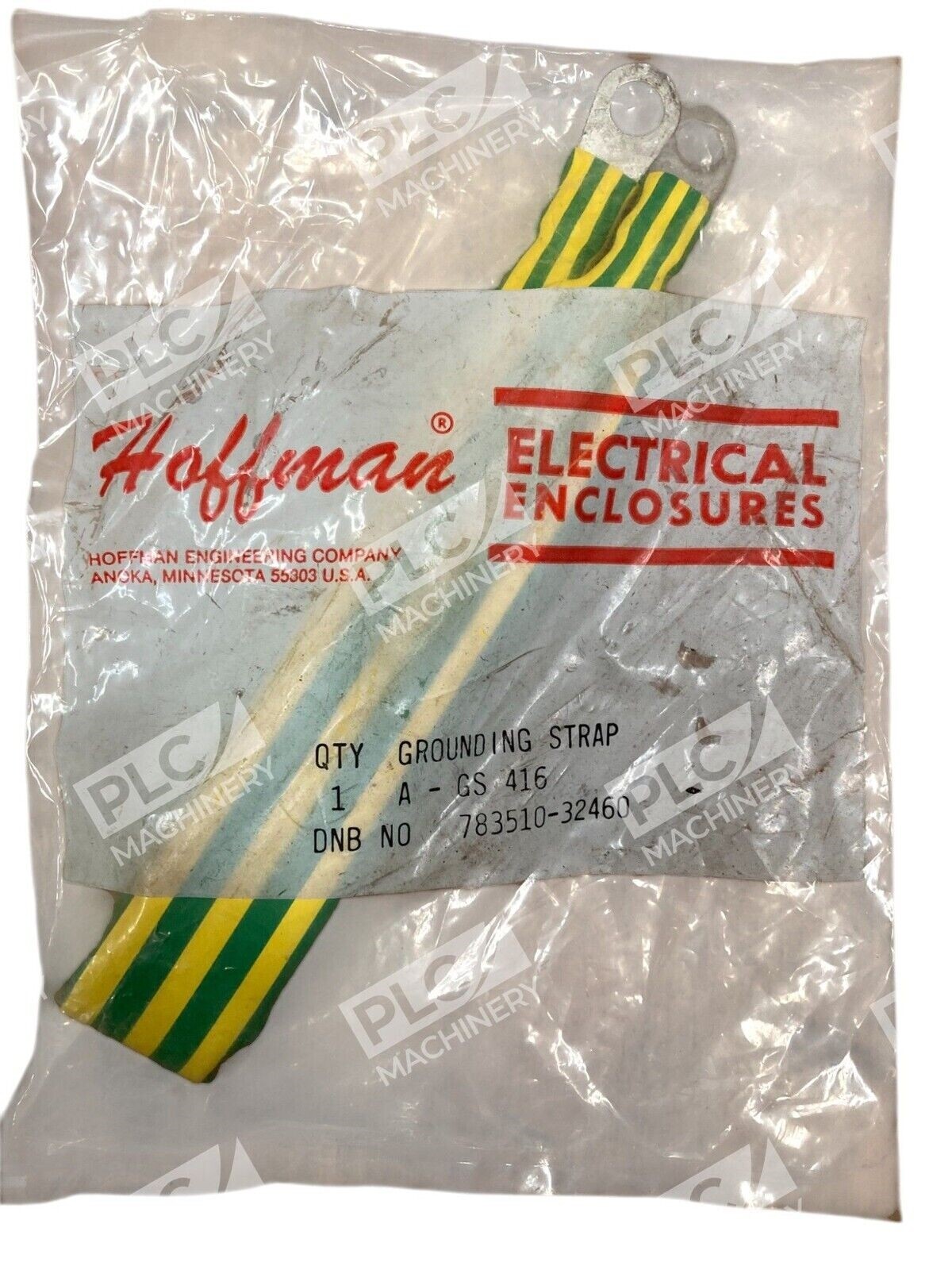

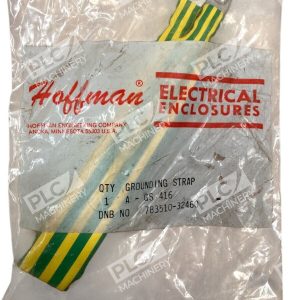

The Hoffman AGS416 grounding strap is a braided copper grounding assembly engineered for electrical continuity in NEMA enclosures and industrial cabinets. Hoffman grounding straps are designed to provide a means of attaching a grounding conductor to an electrical enclosure and can be used to provide electrical continuity between metal parts which must be electrically connected. This model meets industry standards for reliable equipment grounding in control panels, motor starters, and distribution boxes.
Key Features
- Braided copper construction with ring terminal at both ends
- 4 AWG conductor size for robust current-carrying capacity
- 16-inch length (16.19″) between ring terminals
- Tinned copper material for corrosion resistance
- Meets NEMA and code-compliance requirements for equipment grounding
- Drop-in replacement for legacy enclosure systems
Technical Specifications
Material is copper, size is 4 AWG x 16 inch, catalog number AGS416. The strap accepts #4 AWG wire at both ring terminals, providing secure conductor termination without additional crimping tools. Design supports both new installations and retrofit applications in industrial electrical enclosures.
Typical Applications
- NEMA 1, 3R, 4, and 12 electrical enclosures
- Motor control centers and starters
- Disconnect switches and transfer switches
- Industrial control panels and cabinets
- Equipment grounding conductor bonding
- Machinery and plant-floor electrical installations
Compatibility & Replacements
Compatible With
- nVent Hoffman enclosure systems (A80 series)
- Standard NEMA industrial electrical enclosures
- UL-listed control panel assemblies
- #4 AWG grounding conductors and equipment grounds
- Ring-terminal-compatible bus bars and ground studs
Replaces / Drop-In Replacement For
- Legacy 4 AWG braided copper grounding straps
- Previous Hoffman grounding strap models with same wire gauge and length
- Verify compatibility with your enclosure manufacturer before ordering
Works With
- NEMA equipment grounding systems
- NEC (National Electrical Code) compliant installations
- UL 508A listed control panel assemblies
- Standard electrical enclosure bonding practices
