Overview

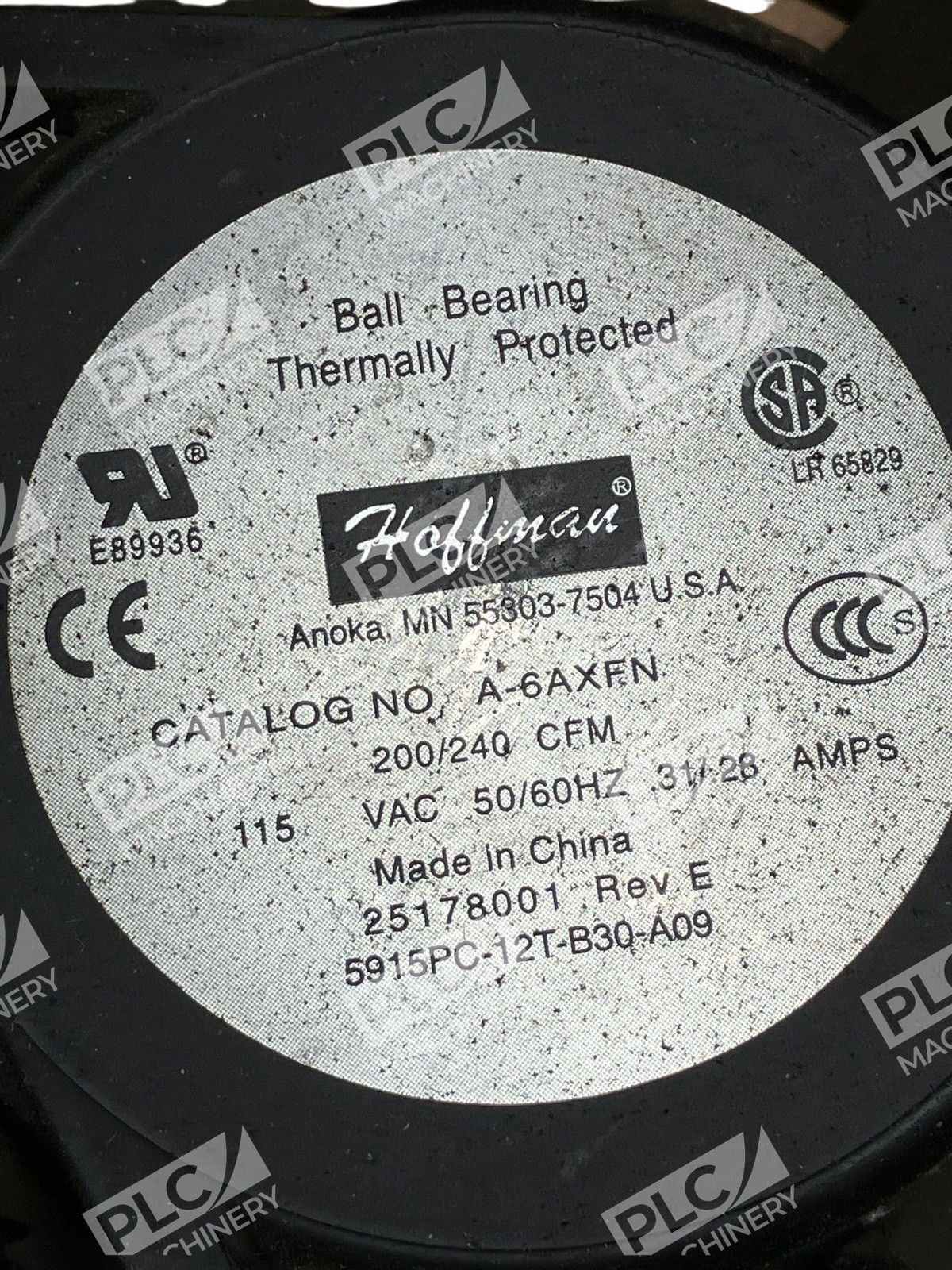

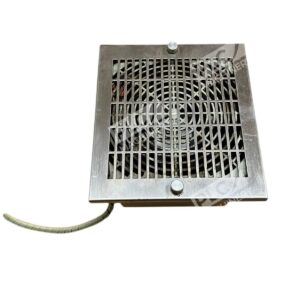

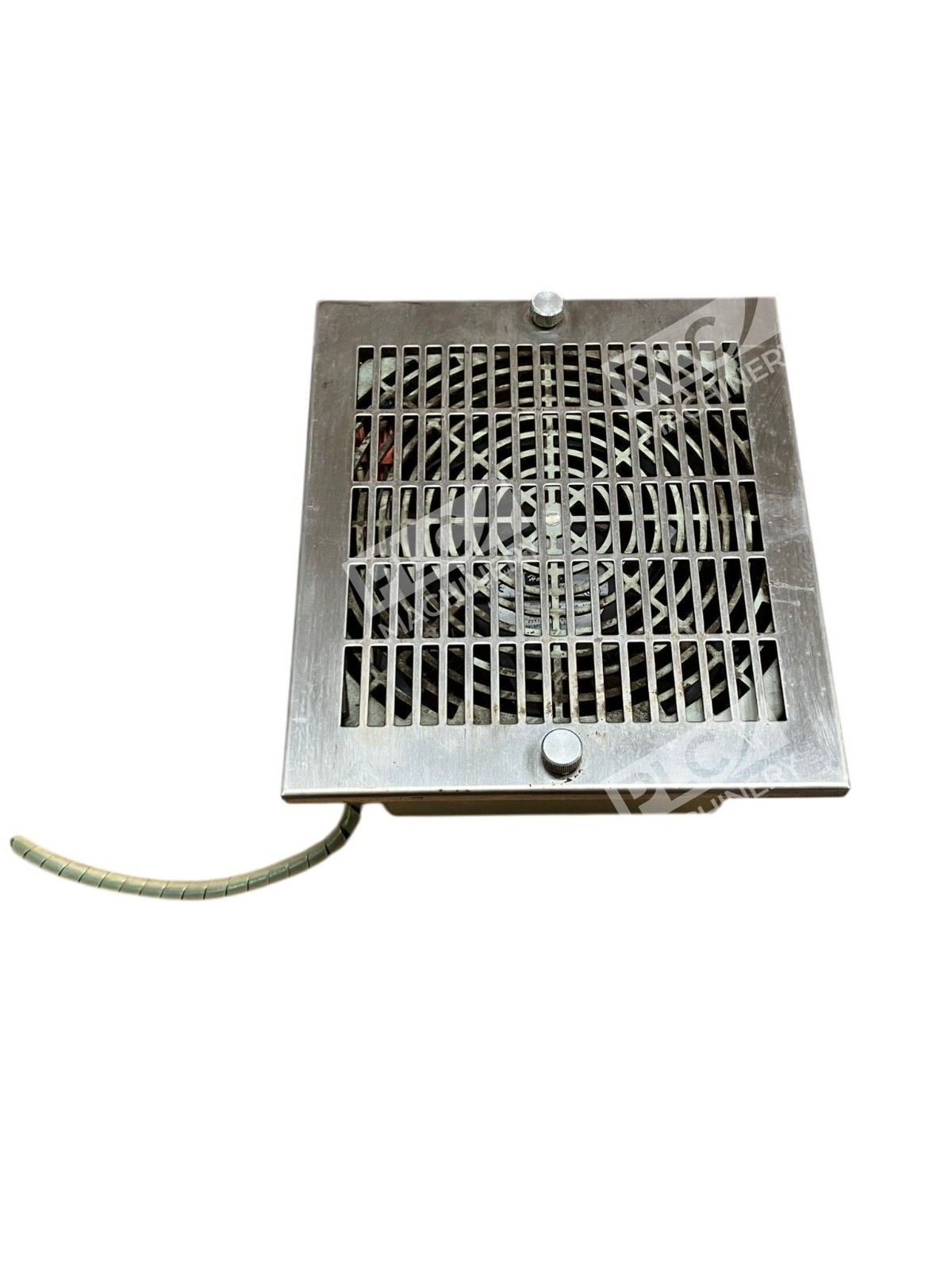

The Hoffman A-6AXFN is a 6-inch compact axial fan engineered for quiet, reliable cooling in industrial control enclosures where space is limited. Rated at 115VAC, 60Hz, this unit delivers 240CFM airflow and draws 0.36A at 60Hz (0.45A at 50Hz). The fan features ball-bearing construction, split-capacitor motor design with thermal protection, and is approved by UL and CSA standards.
Key Features
- 240CFM airflow at 3200RPM—adequate cooling for mid-sized industrial enclosures
- Ball-bearing construction—rated for 50,000 hours continuous operation without lubrication or service
- Split-capacitor motor with thermal overload protection prevents premature failure
- Quiet operation at 56dBA—reduces noise in control rooms and manufacturing areas
- Dynamically balanced impeller molded from polycarbonate ensures smooth, vibration-free performance
- Wire leads (stripped 1/2″) for direct terminal connection; includes finger guard
Technical Specifications
- Input voltage: 115VAC ±10%, 50/60Hz dual frequency
- Current draw: 0.36A at 60Hz, 0.45A at 50Hz
- Power rating: 32W at 60Hz, 36W at 50Hz
- Air flow: 240CFM at 60Hz (3200RPM), 200CFM at 50Hz (2670RPM)
- Noise level: 56dBA at 60Hz, 50dBA at 50Hz
- Frame type: Circular, 172mm (6.77″)
- Depth: 38mm (1.5″)
- Bearing type: Ball bearing
- Motor type: AC split-capacitor
- Max operating temperature: 70°C
- Certifications: UL, CSA approved
Typical Applications
The Hoffman A-6AXFN excels in control enclosures, electrical panels, and drive cabinets where ambient temperatures require active cooling but installation space is restricted. Common uses include:
- Programmable Logic Controller (PLC) enclosures in factory automation
- Variable Frequency Drive (VFD) and soft-starter cabinets
- Distributed I/O terminal cooling in industrial machinery
- Power distribution and switchgear thermal management
- Compact HVAC and refrigeration unit cooling
Compatibility & Replacements
Compatible With
- Industrial electrical enclosures with standard flange mounting
- Control panels and PLC cabinets requiring 115VAC power
- Drive cooling applications (VFD, soft-starter, servo amplifier cabinets)
- HVAC and refrigeration equipment using 115VAC supply
- Any system with 50/60Hz dual-frequency power availability
Replaces / Drop-In Replacement For
This unit is a direct replacement for other Hoffman 6-inch axial fans in the same series. For verified drop-in compatibility with your specific enclosure model, consult the original equipment manufacturer’s thermal management documentation or contact your system integrator.
Works With
- Standard 115VAC industrial power distribution (single-phase AC)
- Thermostat-controlled switching (may require external relay for automated on/off)
- Manual or automatic enclosure ventilation systems
- Finger guard and optional replacement guard kits (Hoffman part availability)
