Overview

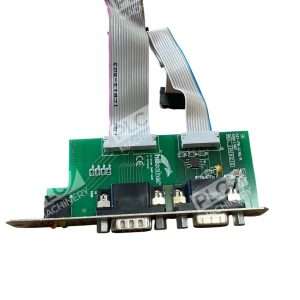

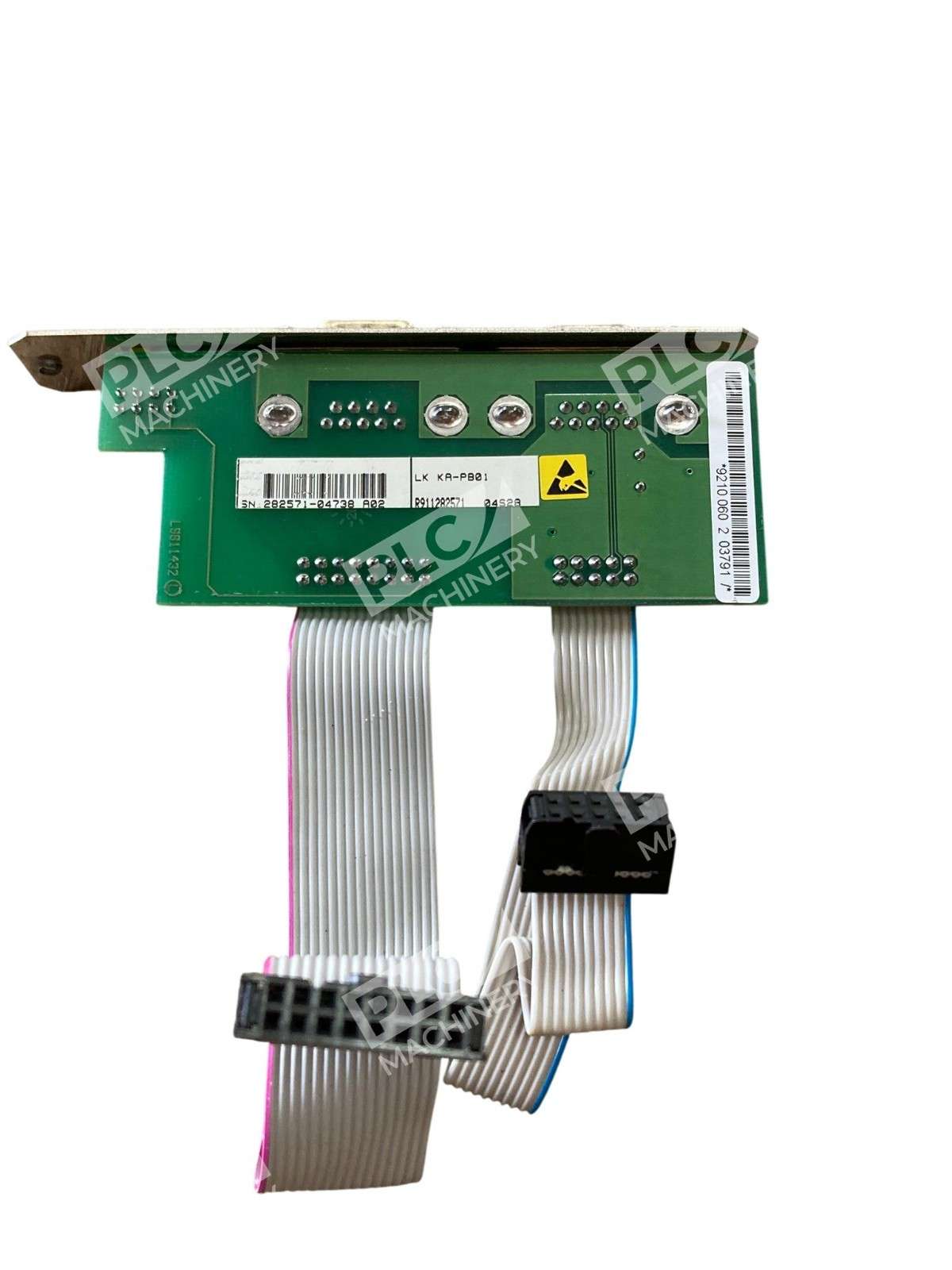

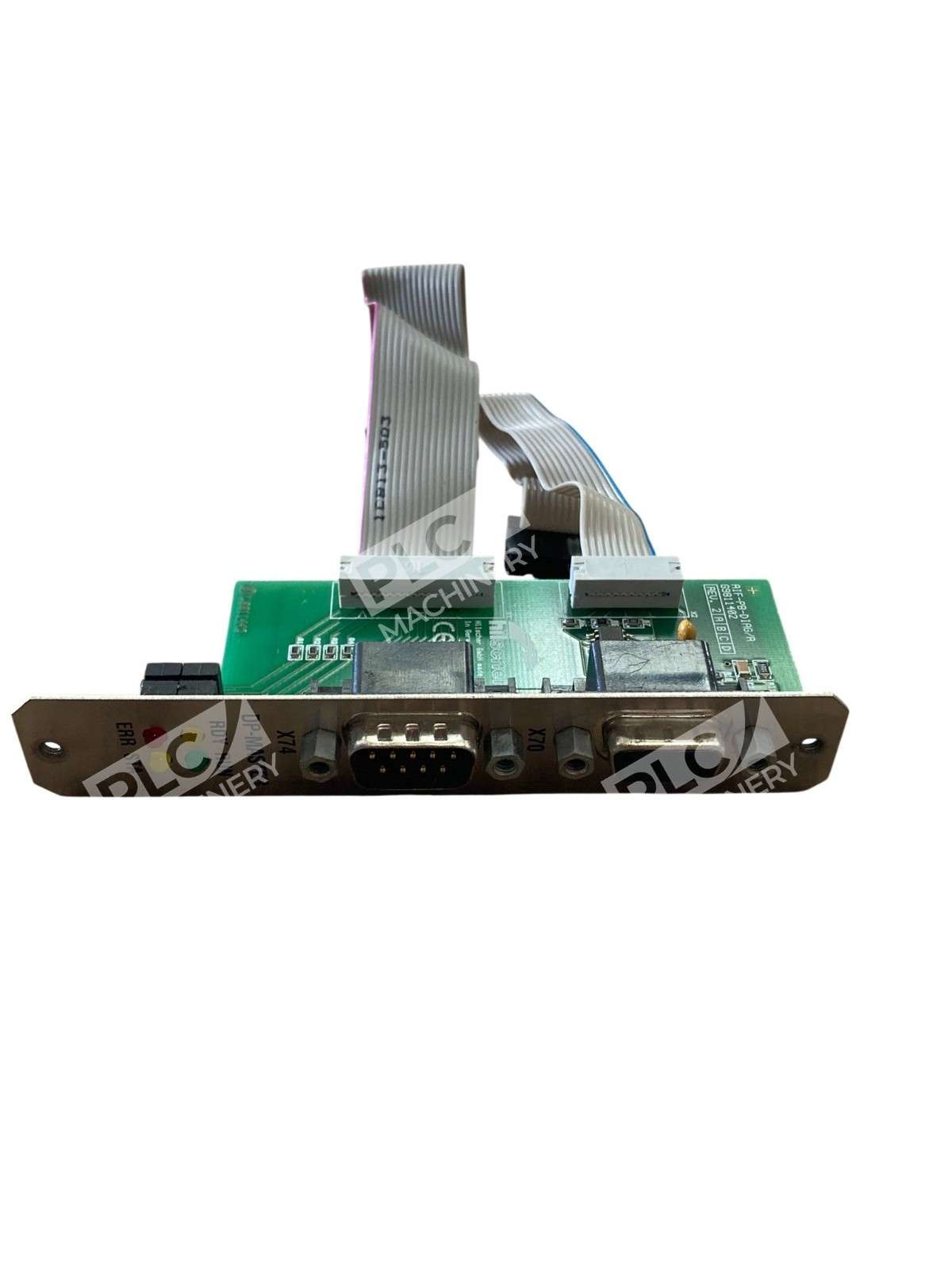

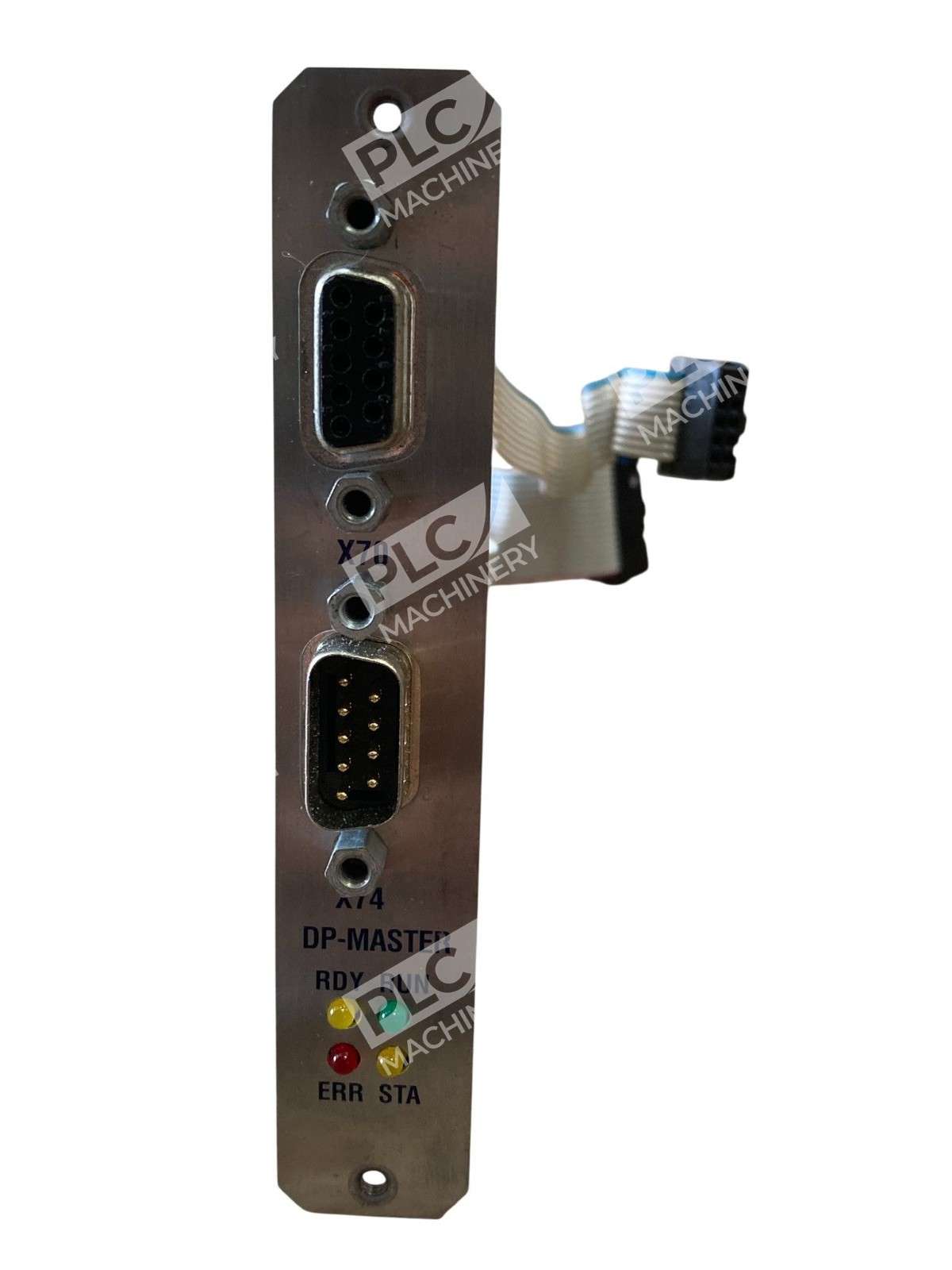

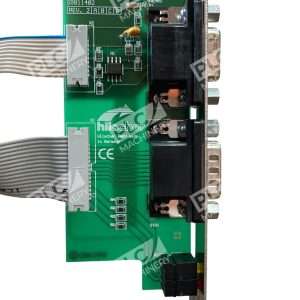

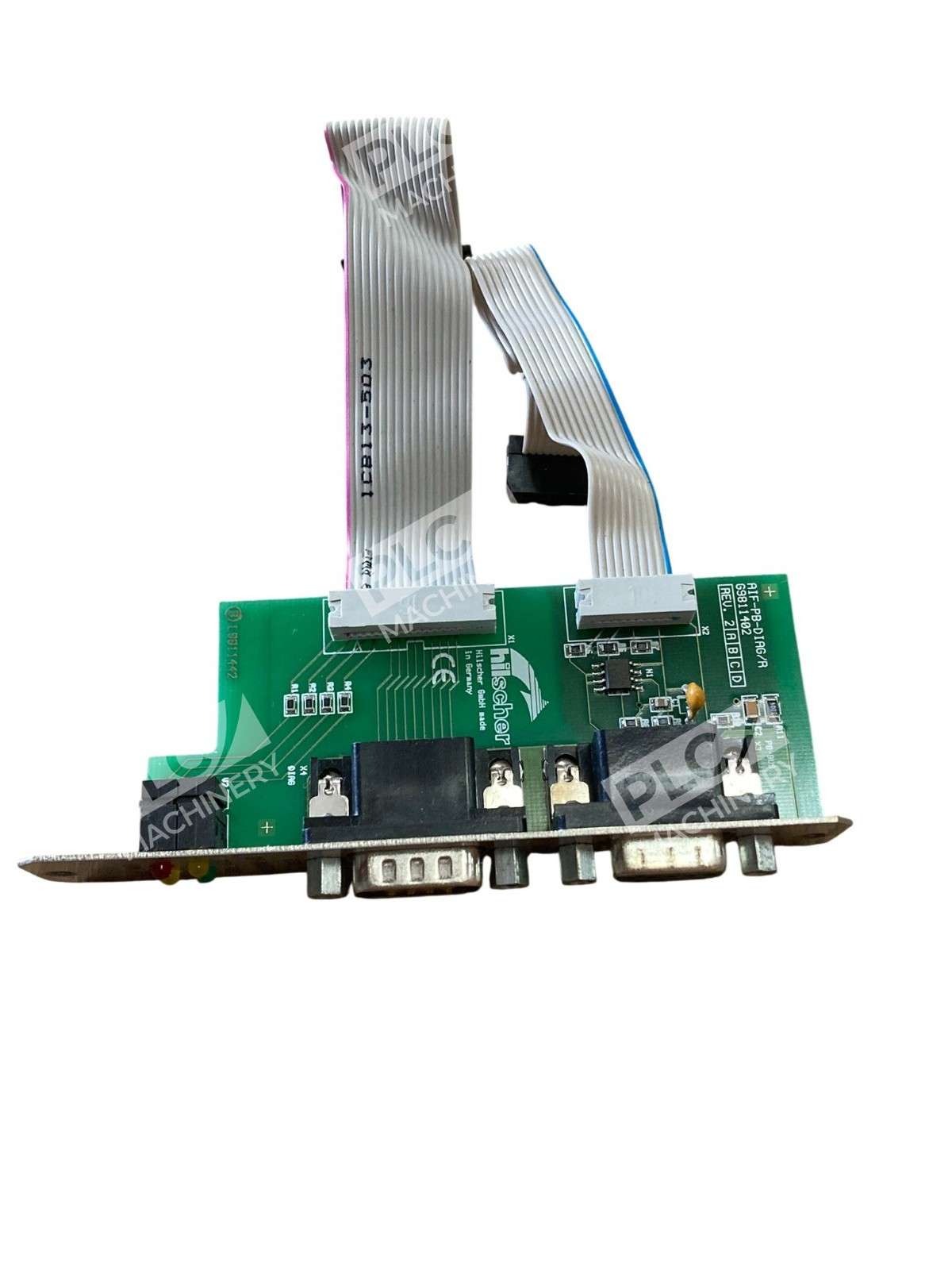

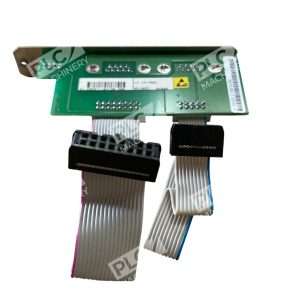

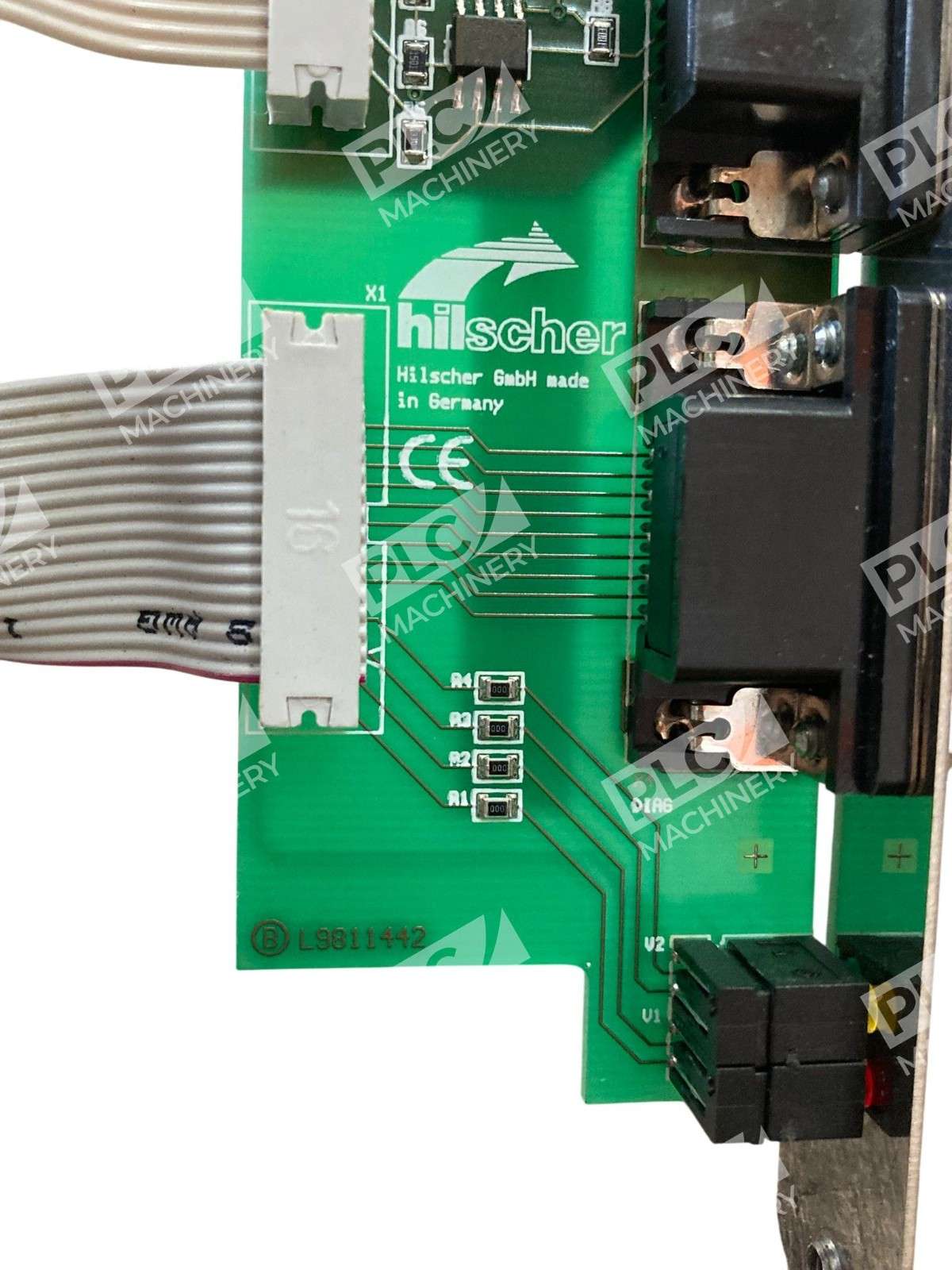

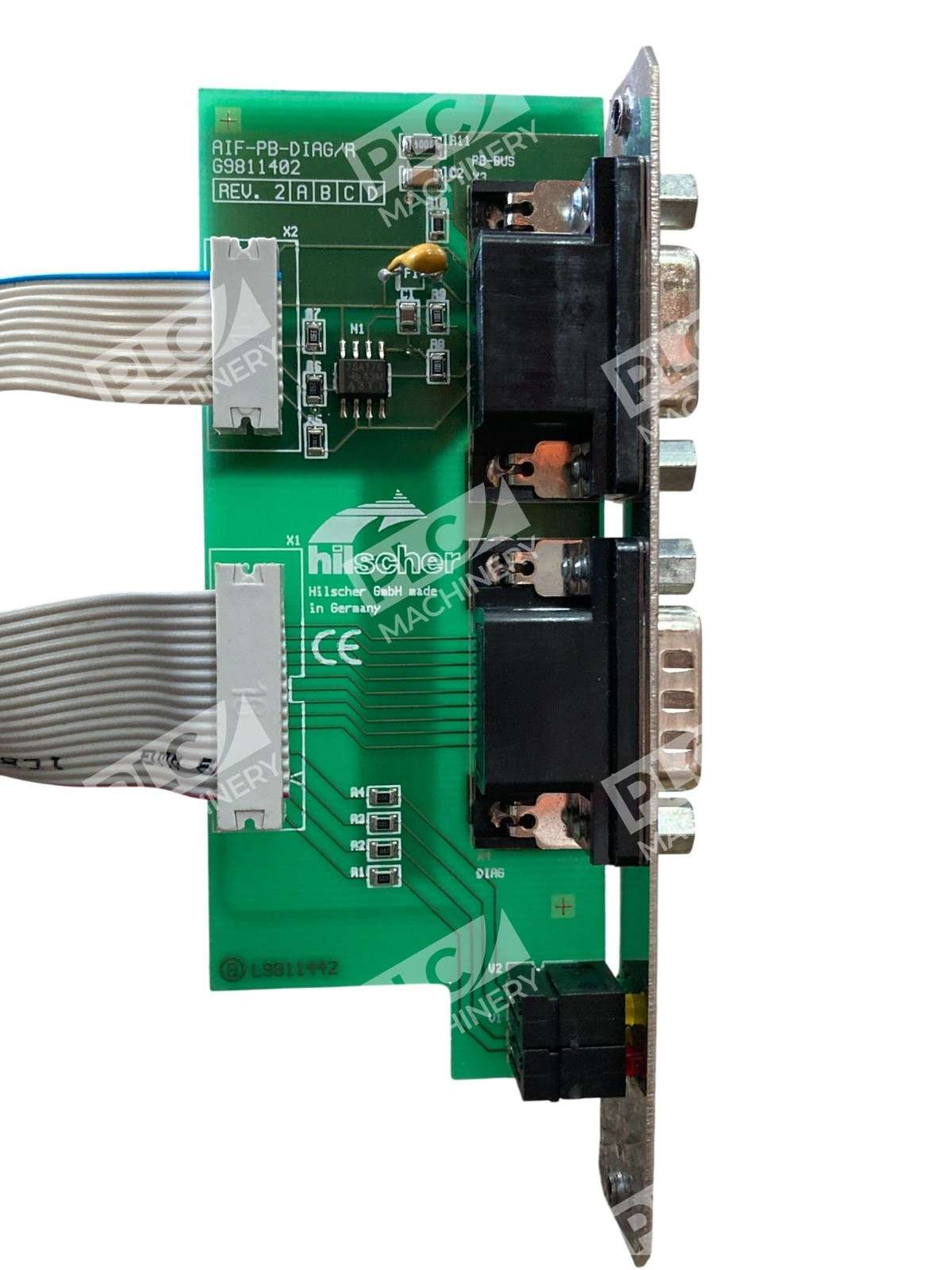

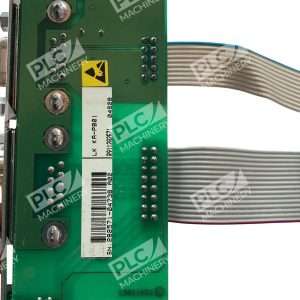

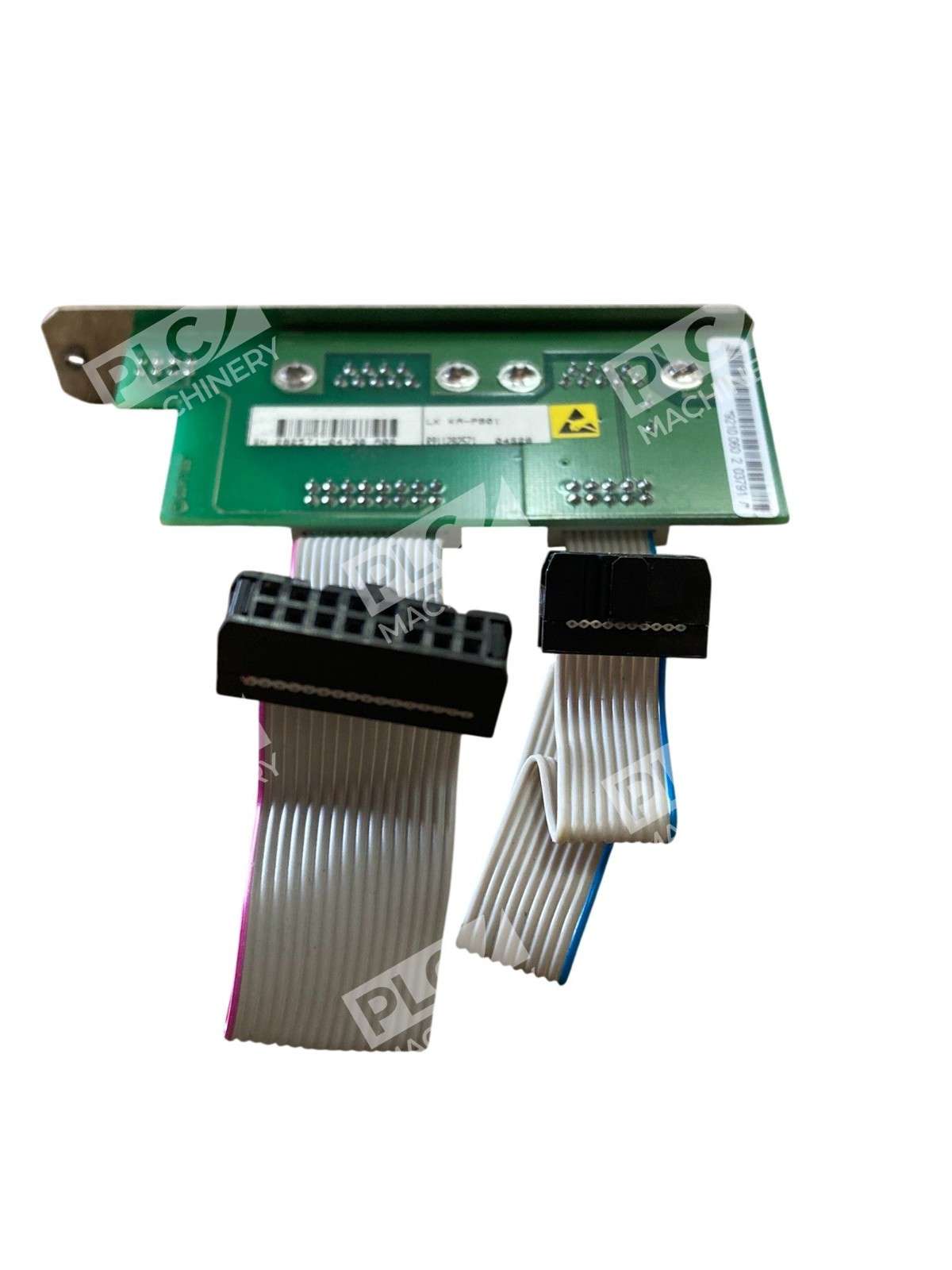

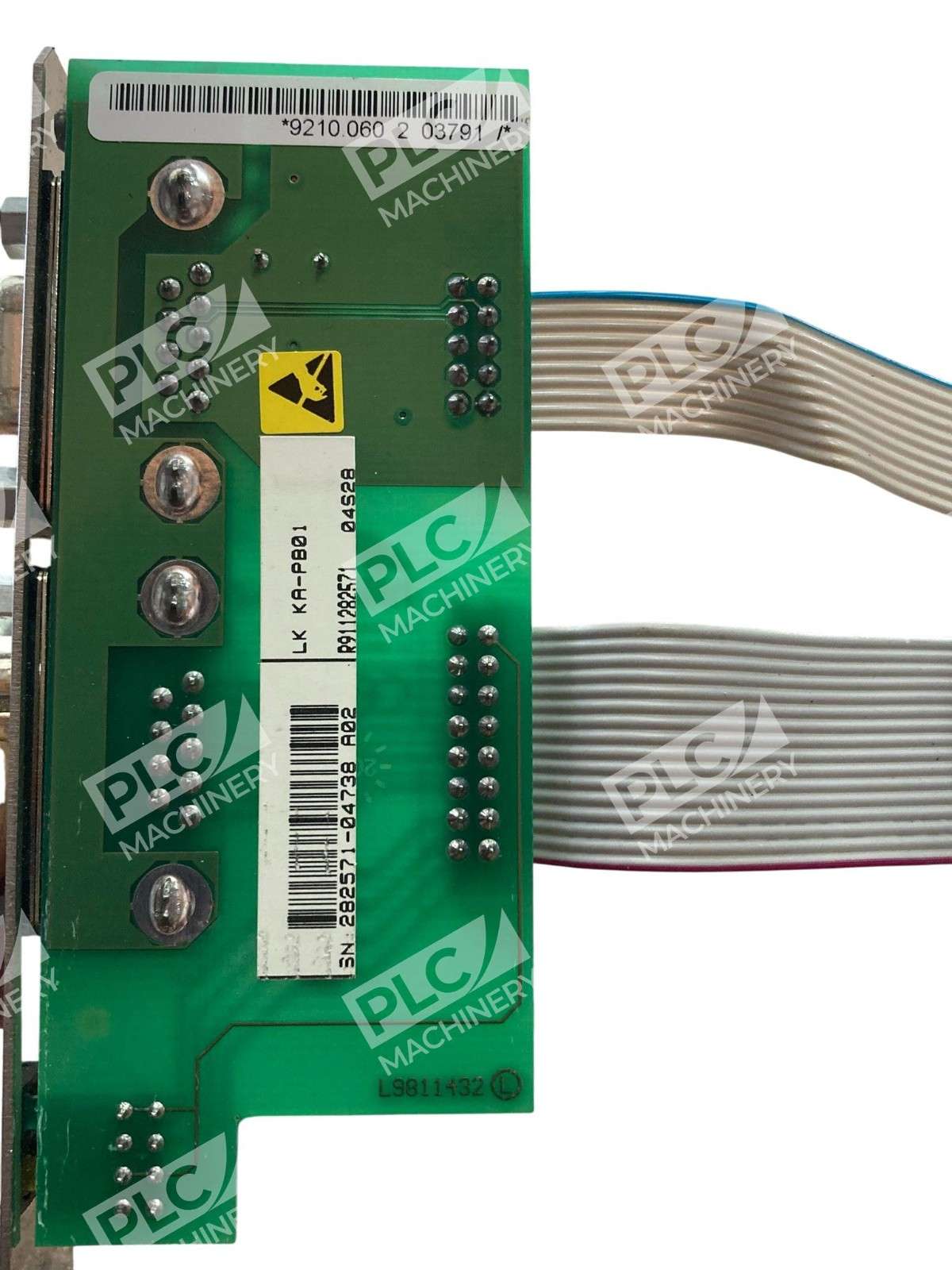

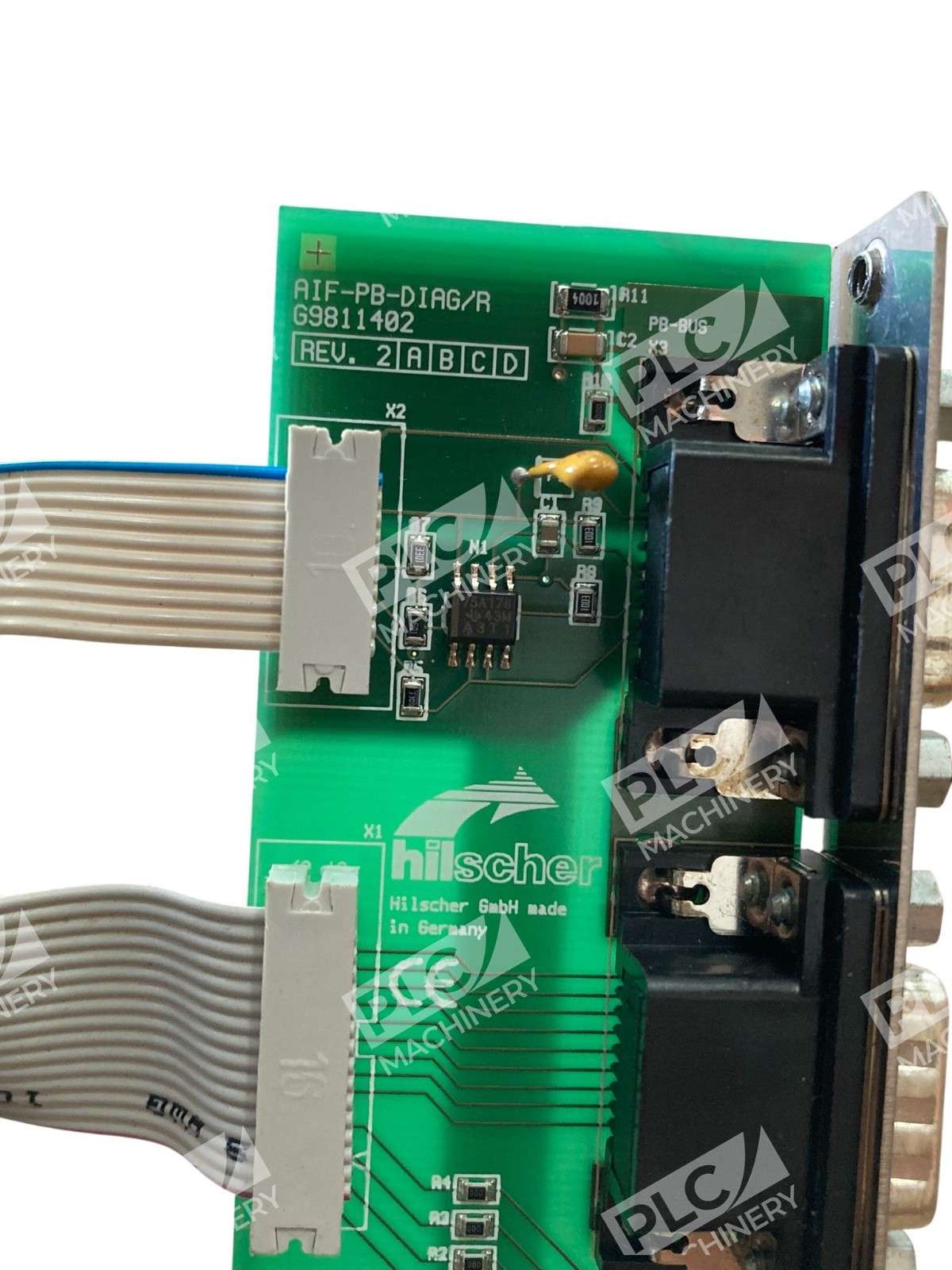

The Hilscher AIF-PB-DIAG/R PROFIBUS DP diagnostic module is a specialized interface for real-time monitoring and diagnostics of PROFIBUS DP master and slave devices. Designed for integration with DP-MASTER X70/X74 controllers, this module enables system integrators and maintenance technicians to monitor network health, identify communication faults, and perform troubleshooting without interrupting production. PROFIBUS DP supports connection of up to 126 I/O devices on a single cable and facilitates better diagnostics for faster commissioning and less expensive upgrades.
Key Features
- Real-time PROFIBUS DP network monitoring and diagnostics
- Compatible with DP-MASTER X70/X74 diagnostic systems
- Supports acyclic diagnostic data exchange for device parameter access
- PROFIBUS DP networks achieve speeds of up to 12 Mbit/s, with most operating at 1.5 Mbit/s, and support telegram sizes of up to 244 bytes
- Essential for troubleshooting distributed I/O architectures
- Industrial-grade reliability for continuous operation
Technical Specifications
Specifications for the AIF-PB-DIAG/R module include PROFIBUS DP fieldbus connectivity, diagnostic interface capability, and compatibility with Hilscher master devices. The module operates within standard PROFIBUS DP parameter ranges and supports DP-V1 diagnostic messaging.
Typical Applications
- Manufacturing automation systems requiring PROFIBUS DP network diagnostics
- Preventive maintenance monitoring of distributed PLC systems
- Real-time troubleshooting of PROFIBUS slave device faults and communication errors
- Integration with Hilscher master controllers for network visibility
- Industrial motion control environments with synchronized PROFIBUS networks
Compatibility & Replacements
Compatible With
- Hilscher DP-MASTER X70 diagnostic systems
- Hilscher DP-MASTER X74 diagnostic systems
- PROFIBUS DP fieldbus networks
- Standard PROFIBUS DP-compliant slave devices (up to 126 nodes)
- Systems supporting DP-V1 diagnostic messaging
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering to confirm interchangeability with legacy diagnostic modules or alternative PROFIBUS diagnostic solutions.
Works With
- PROFIBUS DP protocol (DP-V0, DP-V1)
- Hilscher SYCON.net configuration software
- PROFIBUS DP Device Type Managers (DTM)
- FDT frame applications for master configuration
- Standard PROFIBUS DP engineering tools and GSDML files
