Overview

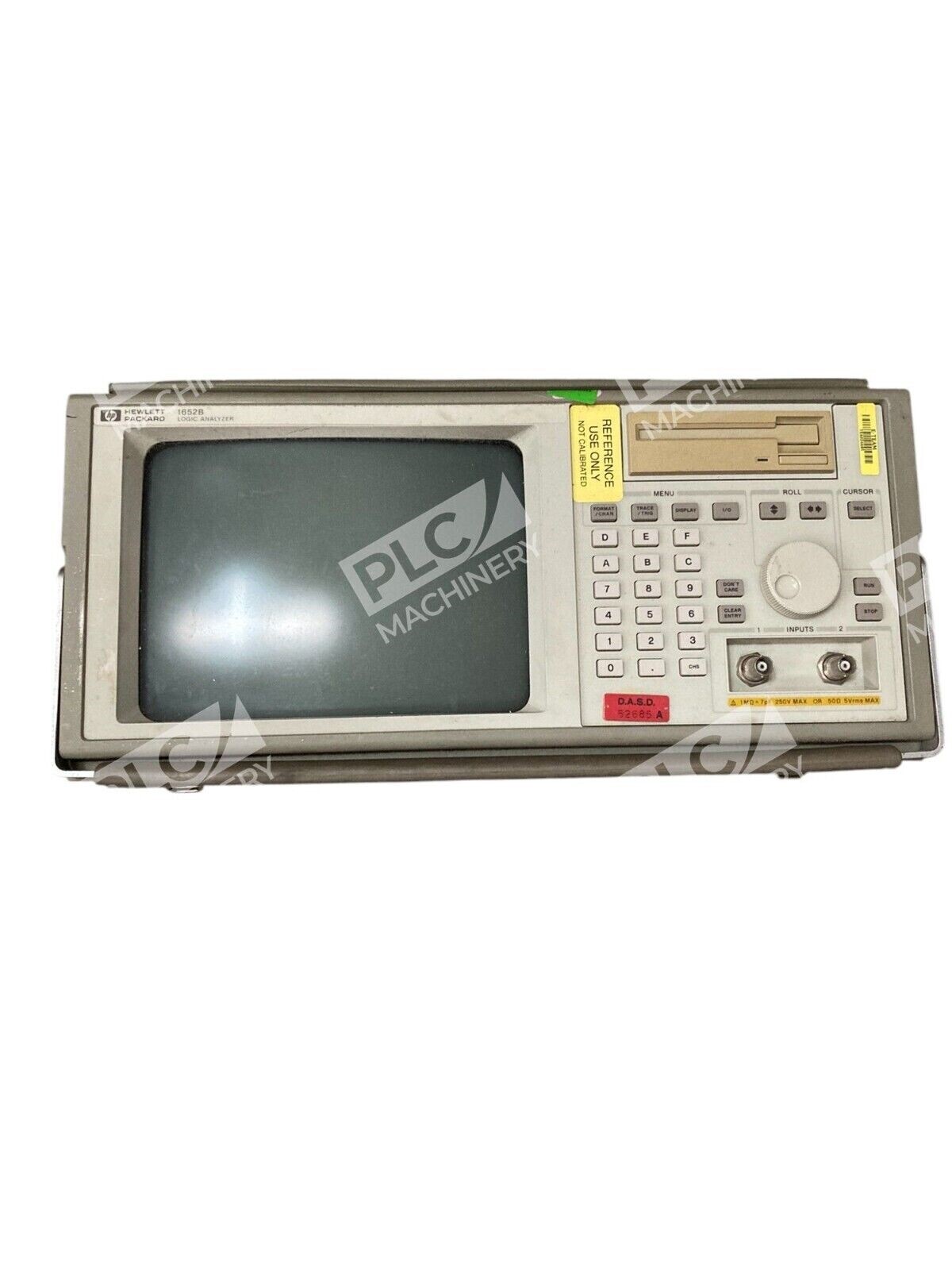

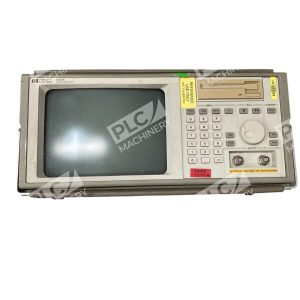

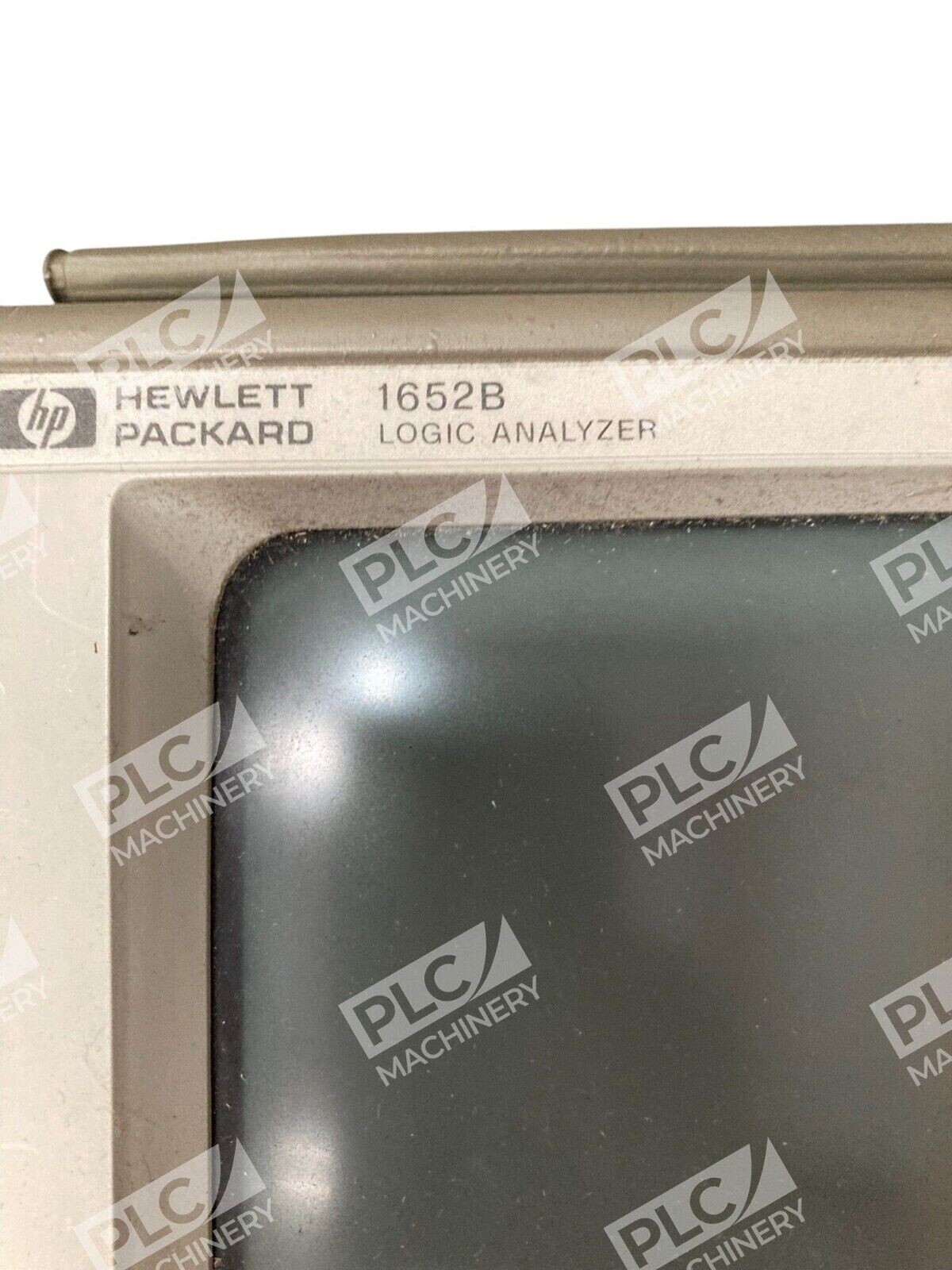

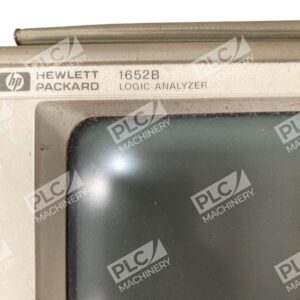

The HP 1652B logic analyzer is a legacy portable test instrument combining a general-purpose logic analyzer with a built-in digitizing oscilloscope. Originally manufactured by Hewlett Packard and now supported by Keysight, the 1652B is widely used in embedded systems development, microprocessor debugging, and digital circuit troubleshooting. This used unit provides cost-effective access to a proven analyzer platform for maintenance, repair, and educational applications.
Key Features
- 80 Data Channels: Timing: 100 MHz all 80 Channels; State: 35 MHz all 80 Channels
- Integrated Oscilloscope: 2 Channels of 400 MS/s Digitizing Oscilloscope for simultaneous analog and digital analysis
- Memory Depth: 1 Kbit/Channel for extended capture windows
- Microprocessor Support: Most 8-, 16- and 32- Bit Microprocessors
- Mixed-Mode Display: Oscilloscope and logic analyzer traces on the same screen for correlated analysis
- Portable Design: Standalone unit with built-in floppy drive for operation and service disk support
Technical Specifications
- Logic Analyzer Channels: 80
- Timing Analysis Speed: 100 MHz (all 80 channels)
- State Analysis Speed: 35 MHz (all 80 channels)
- Memory per Channel: 1 Kbit
- Oscilloscope Channels: 2 analog channels
- Oscilloscope Sampling Rate: 400 MS/s per channel
- Operating Temperature: 0°C to +55°C (32°F to +131°F)
- Interfaces: HPIB & RS-232 ports
- Display: Built-in CRT (standard for era)
- Probes/Pods: Pod-based input architecture for flexible channel configuration
Typical Applications
- Embedded microprocessor debugging (8-bit, 16-bit, and 32-bit systems)
- Digital circuit timing and state analysis
- Protocol verification and bus analysis
- Analog signal correlation with digital events
- Educational demonstrations and lab training
- Legacy system troubleshooting and repair
Compatibility & Replacements
Compatible With
- HPIB (HP-IB / IEEE-488) instrument control
- RS-232 serial interface
- HP/Agilent/Keysight operation and service disk format
- Standard logic analyzer probe pods and cables
- Benchtop and portable measurement environments
Replaces / Drop-In Replacement For
The HP 1652B is a legacy instrument no longer manufactured. The 1652B and 1653B are no longer sold by Keysight. Used units may directly replace other 1652B units in existing setups. For modern applications, consider Keysight (Agilent) Logic Analyzer Series or Lattice FPGA-based equivalents.
Works With
- HP-IB (IEEE-488) host controllers and measurement systems
- Serial port–connected host computers (via RS-232)
- HP DeskJet and compatible printers for hardcopy output
- Standard floppy disk media for operation disk creation
