Overview

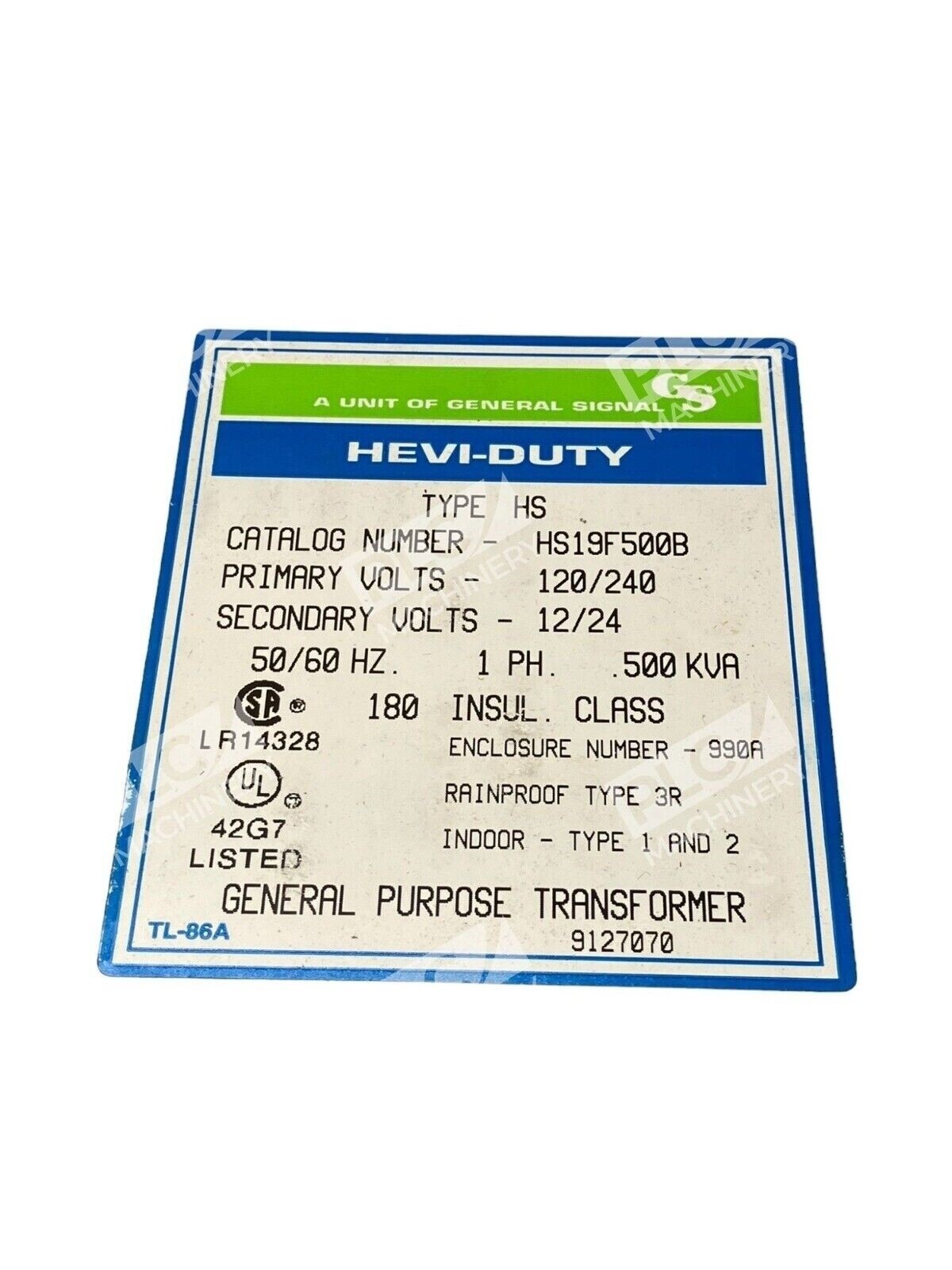

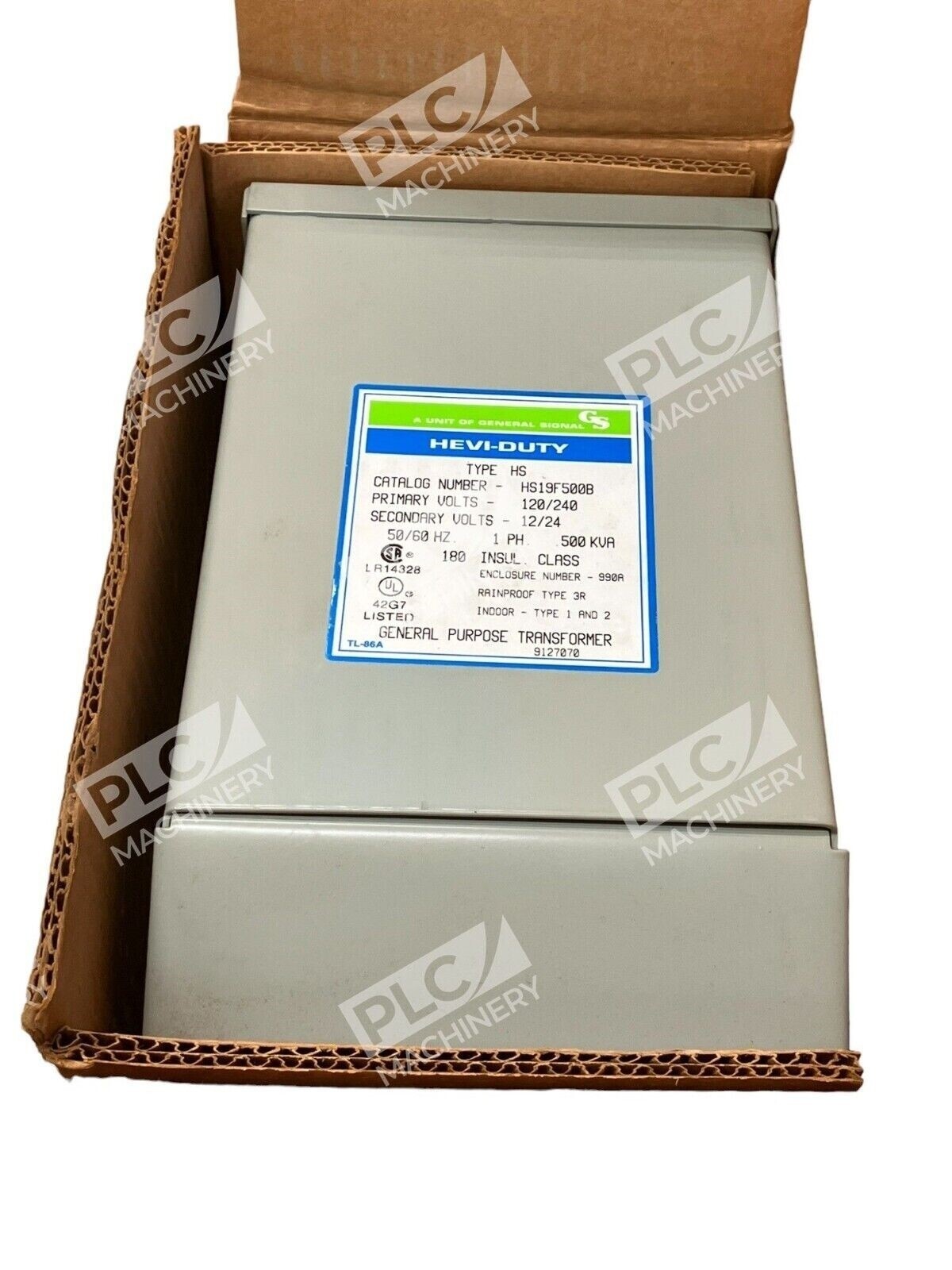

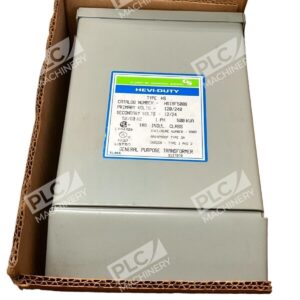

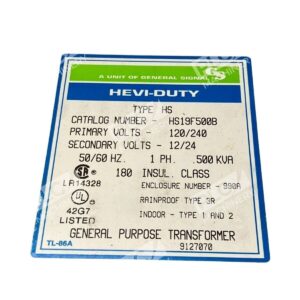

The Sola Hevi-Duty HS19F500B is a proven buck-boost transformer designed for industrial automation and control power applications. 500 VA, 1-Phase, 120 x 240 Primary Volts – 12/24 Secondary Volts, Buck-Boost Transformer, Non-Encapsulated, Indoor/Outdoor, 50/60Hz. This model provides an energy-efficient, low-cost solution for voltage regulation in control panels, lighting systems, and automation equipment where small voltage adjustments are required.
Key Features
- Small, single phase, dry type distribution transformer designed as insulating/isolating transformer with dual voltage primary and dual voltage secondary
- Used to power control panels, landscape lighting and other loads with specific voltage requirements that differ from the available line voltage
- Buck (lower) or boost (raise) the supply voltage a small amount, usually 5 to 27%
- Low cost, compact size and light weight
- Can be connected for a wide range of voltage combinations
- When connected as an autotransformer, can handle loads up to 20 times the nameplate rating
Technical Specifications
- Power Rating: 500 VA (0.5 kVA)
- Phase: Single Phase (1-Phase)
- Primary Voltage: 120/240V
- Secondary Voltage: 12/24V
- Frequency: 50/60 Hz
- Type: Non-Encapsulated Buck-Boost Transformer
- Mounting: Dry Type
- Environment: Indoor/Outdoor Rated
- Primary Current: 22.7/11.4A (calculated at 120/240V)
- Certifications: UL Listed, CSA Certified, CE Marked
Typical Applications
Buck-boost transformers are typically used to power control panels, landscape lighting and other loads with specific voltage requirements that differ from the available line voltage. Common industrial uses include:
- Industrial automation control circuits
- PLC and servo motor control systems
- Facility lighting voltage regulation
- Equipment voltage conditioning
- Low-voltage auxiliary power supplies
Compatibility & Replacements
Compatible With
- 120V/240V single-phase AC power systems
- Control panel installations requiring 12V or 24V auxiliary power
- Automation equipment requiring voltage adjustment or isolation
- Landscape and facility lighting circuits
- Standard electrical panel configurations (NEMA, enclosure-mount)
Replaces / Drop-In Replacement For
- Equivalent 500VA buck-boost transformers in the HS series
- UPC: 78347210062
- Verify specific model compatibility with your system integrator before ordering
Works With
- NEC Article 210.9 compliant field connections (autotransformer configuration)
- Standard electrical codes and standards (UL, CSA, CE)
- Class I, Division 2 rated environments when properly installed per NEC guidelines
- Indoor and outdoor rated enclosures and panel configurations
