Overview

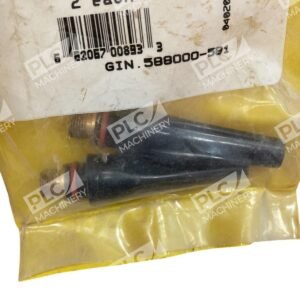

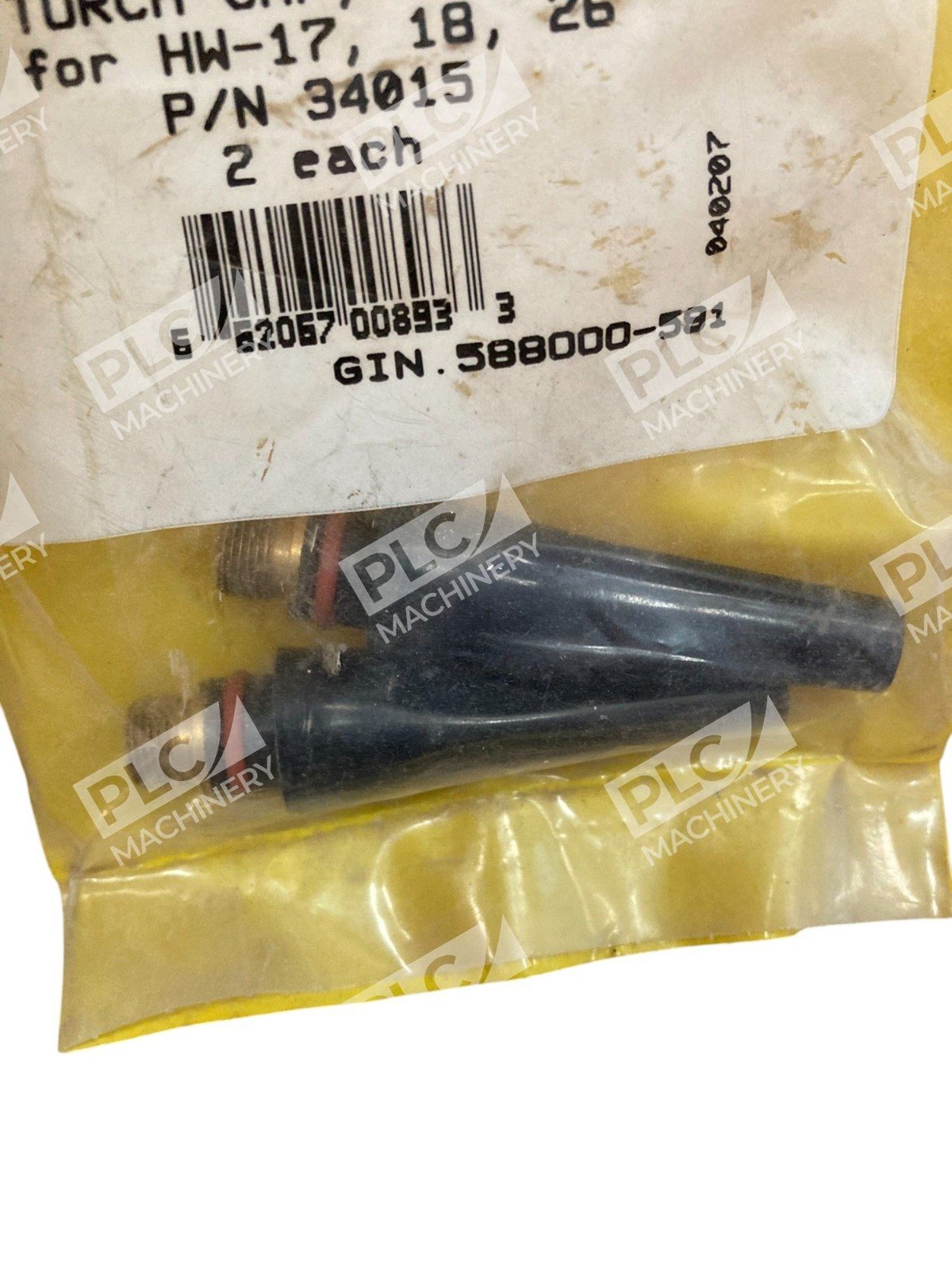

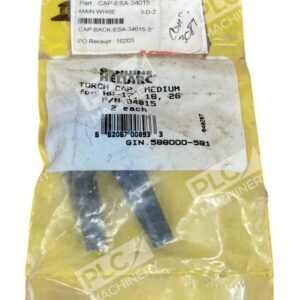

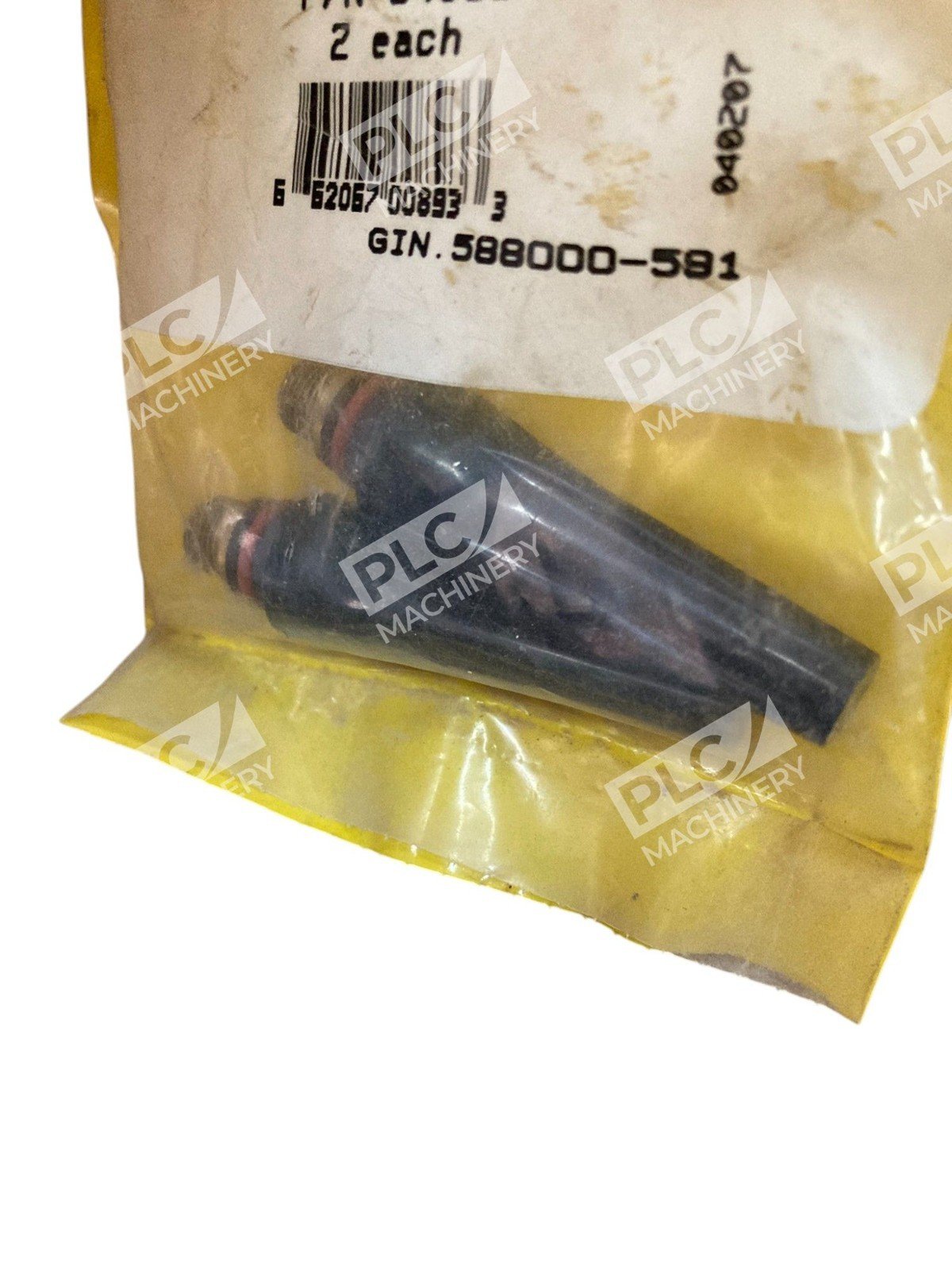

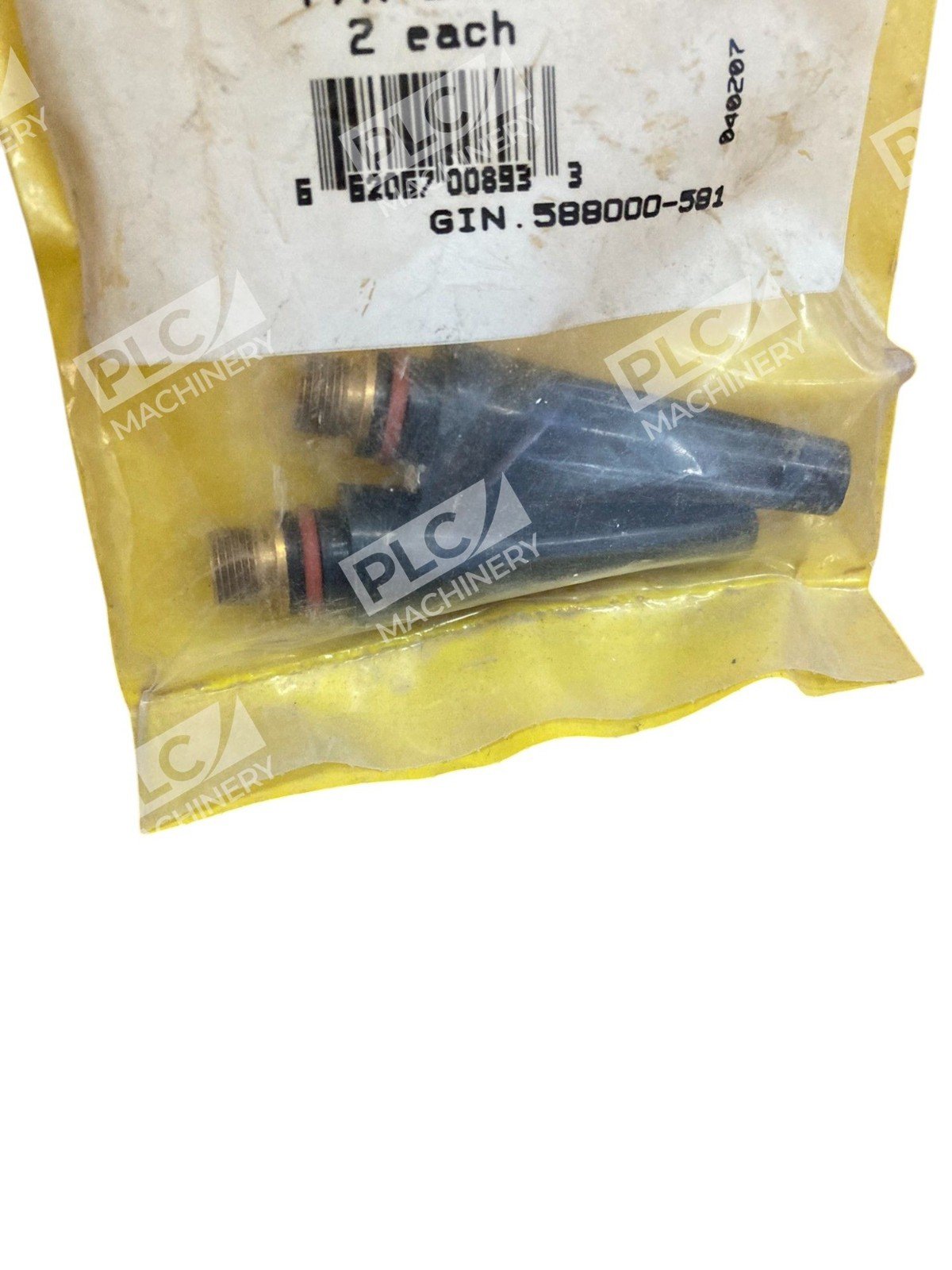

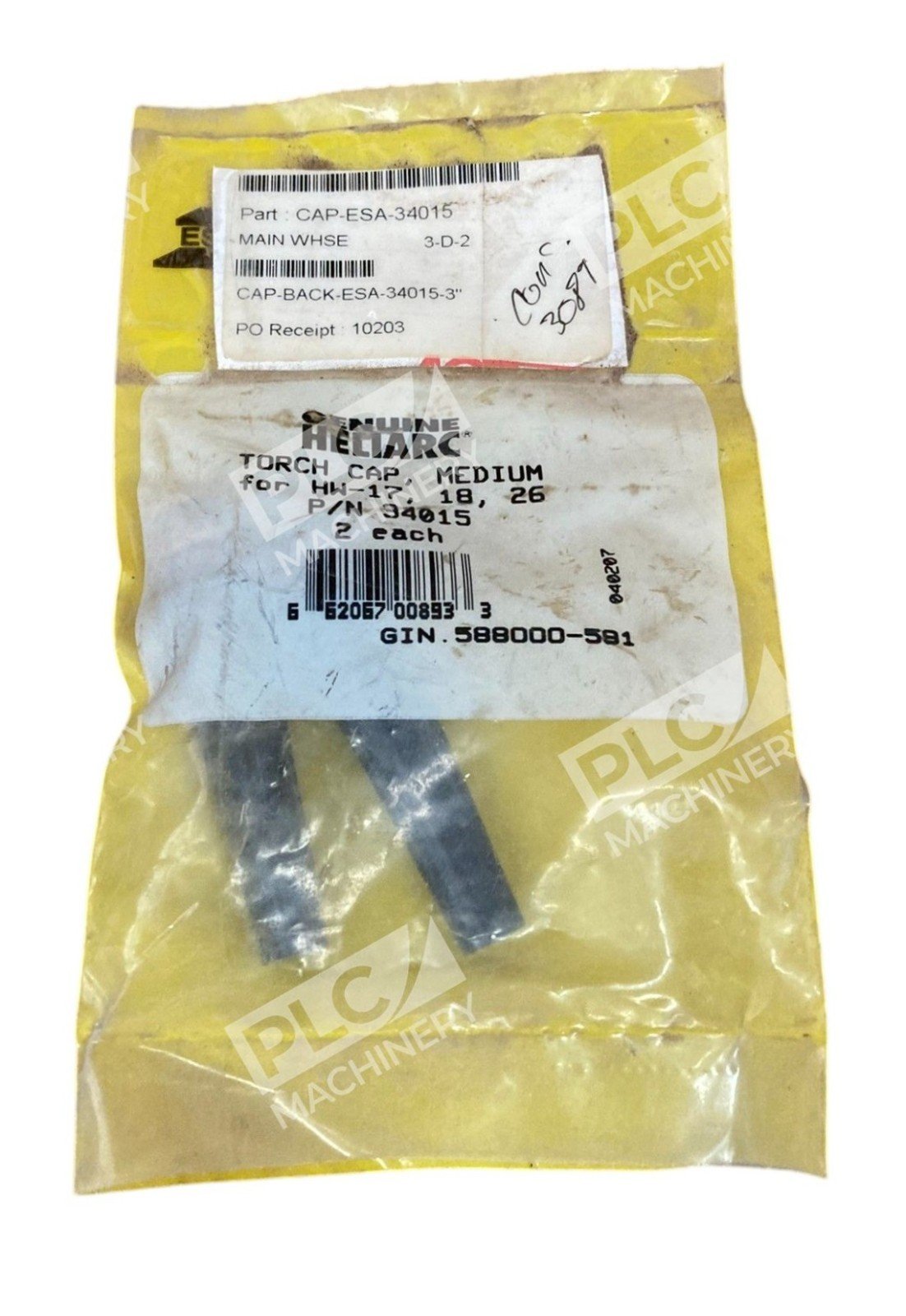

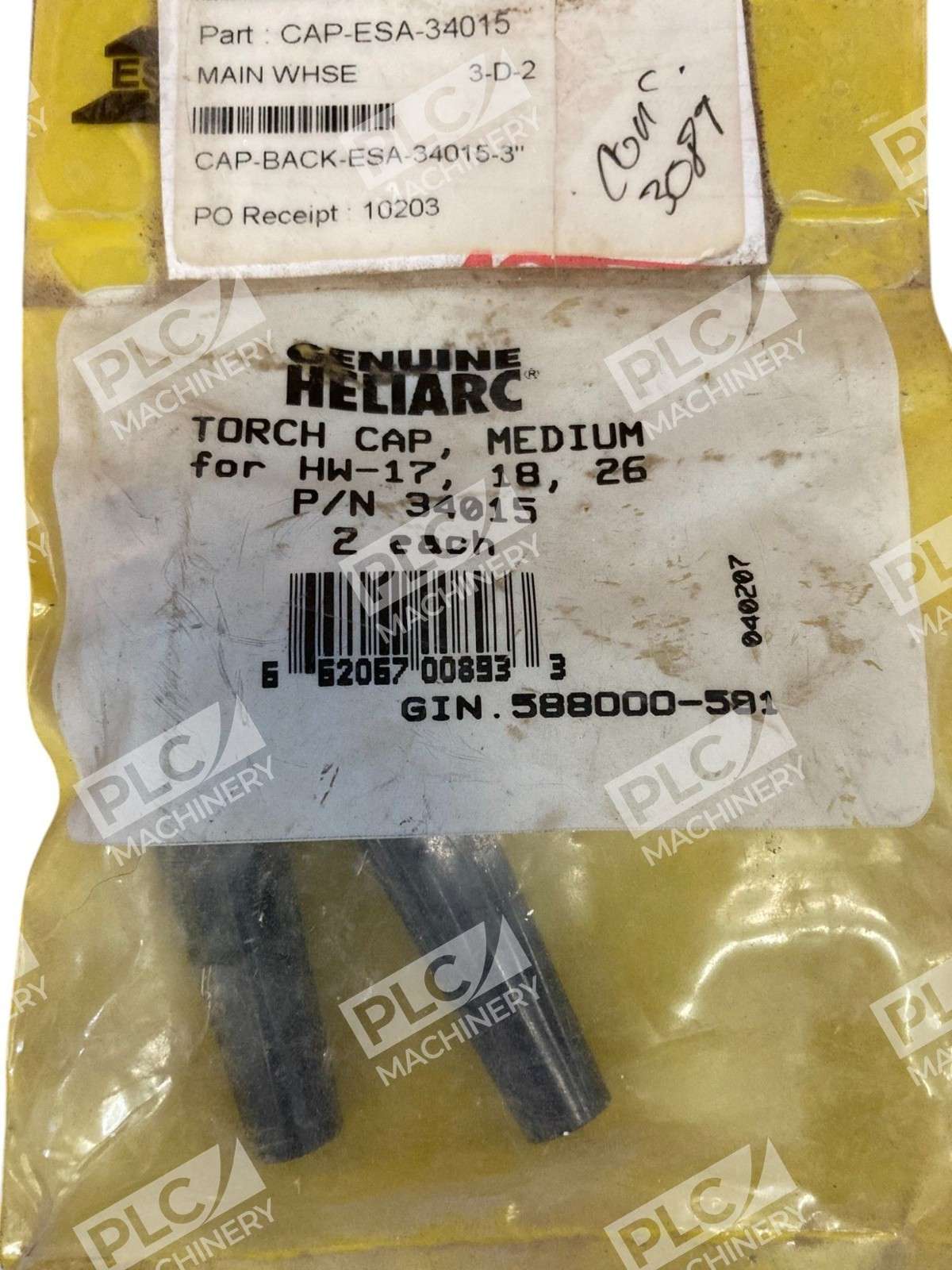

The ESAB Heliarc 34015 medium torch cap is a precision replacement consumable for air and water-cooled TIG welding torches. This medium back cap is suitable for use with Genuine Heliarc HW-17, HW-18 and HW-26 TIG torches. The medium-length back cap holds the tungsten in place and includes an installed O-ring seal, ensuring consistent arc starts and reliable electrode retention during production welding. The product comes packaged with 2 caps per bag, providing stock for backup or multiple torch setups.
Key Features
- Integrated O-ring seal for reliable tungsten retention and gas sealing
- Medium length design accommodates standard 17, 18, and 26 series torch configurations
- Two-pack format reduces reorder frequency on production floors
- OEM ESAB part ensures exact fit and compatibility
- Drop-in replacement—no modification required
Technical Specifications
The 34015 cap is engineered for TIG torches rated up to 150 A (HW-17), 425 A (HW-18), and heavy-duty applications (HW-26). Standard metric and inch dimensions align with industry-standard torch back-end connections. The O-ring material provides thermal and chemical resistance in both air and water-cooled environments.
Typical Applications
- Maintenance and replacement on production TIG welding lines
- Stainless steel, aluminum, and mild steel TIG welding
- Job-shop and contract fabrication operations
- Equipment refresh in manual, semi-automatic, and robotic TIG stations
- Quick-change torch systems requiring consistent consumable stock
Compatibility & Replacements
Compatible With
- ESAB Heliarc HW-17 (150 A air-cooled torch)
- ESAB Heliarc HW-18 (425 A water-cooled torch)
- ESAB Heliarc HW-26 (heavy-duty TIG torch)
- Standard OKC 50 torch connections
- Standard 16 mm (5/8 in.) gas inlet connections
Replaces / Drop-In Replacement For
- ESAB/Heliarc OEM part 34015
- CK Worldwide model 300M (functionally equivalent)
- Weldmark OEM torch cap assemblies for 17/18/26 series
Works With
- Air and water-cooled TIG torch power sources
- ESAB Heliarc SR and HW series torch platforms
- Argon and argon-helium shielding gas systems
- Standard torch consumable kits and spare parts assemblies
