Overview

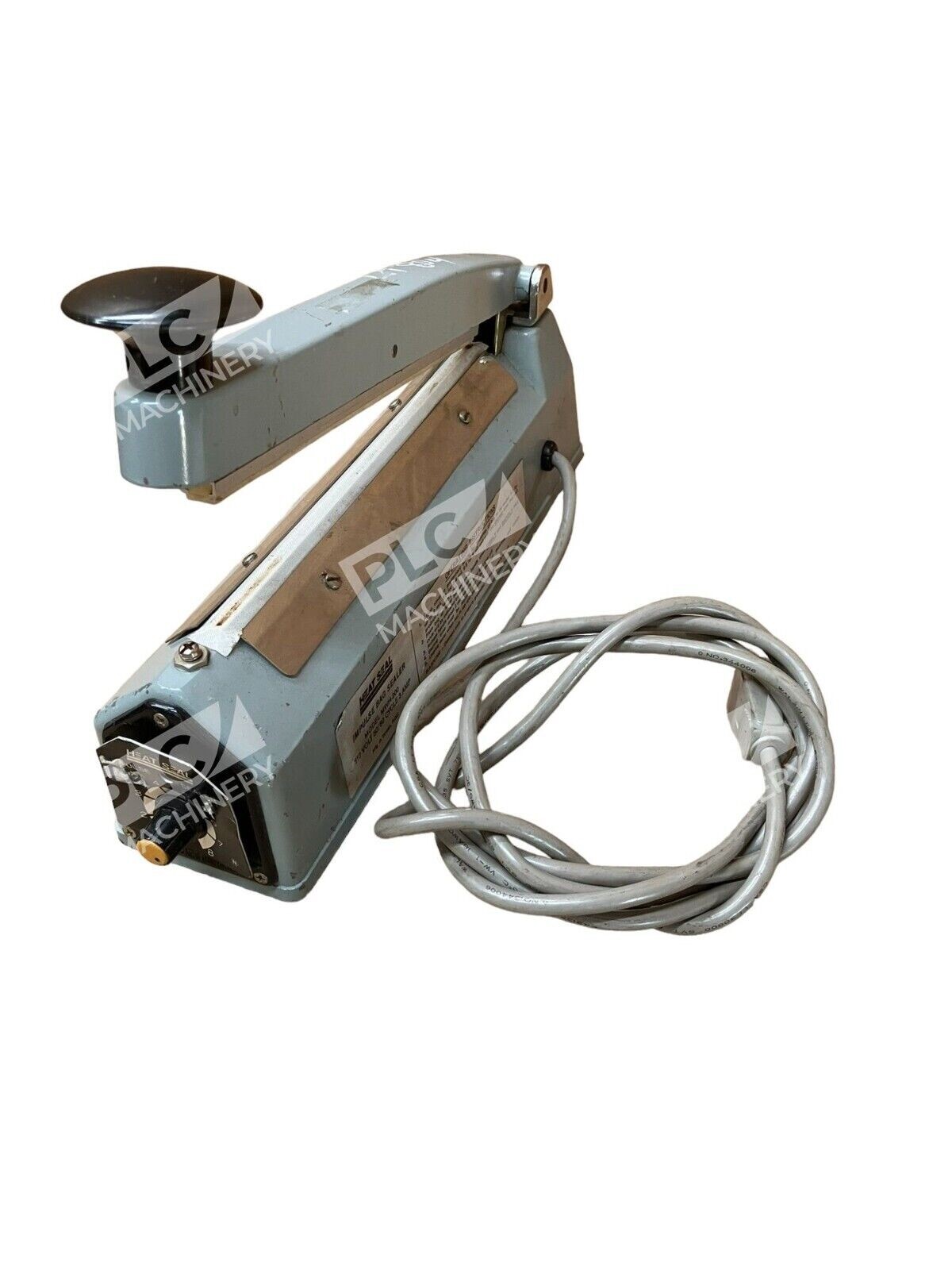

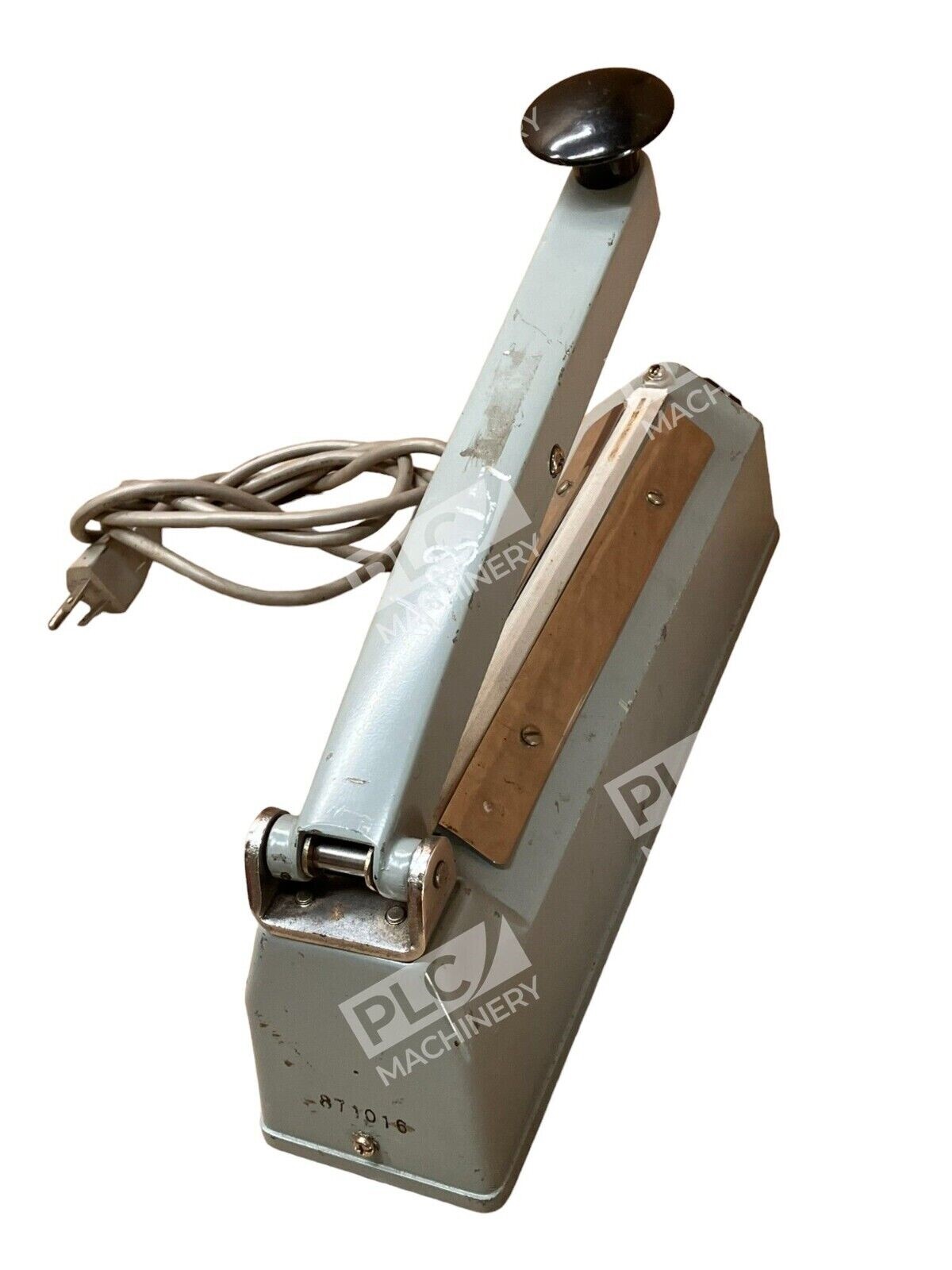

The Heat Seal MWH-200 is a timed impulse bag sealer manufactured by Heat Seal Co., a recognized producer of American-made packaging equipment. This 200mm (8-inch) sealing width impulse sealer is designed for reliable, consistent sealing of thermoplastic bags in industrial, commercial, and light manufacturing environments. The MWH-200 uses electronic timing control to regulate sealing time and heat impulse, eliminating the need for continuous heating and reducing energy consumption.
Key Features
- Timed impulse sealing eliminates constant heating—electrical impulse generated only when handle is engaged
- Adjustable timer settings for variable heat time to accommodate different bag materials and thicknesses
- Compact tabletop design with standard 110V 50/60 Hz power requirement
- Durable metal construction suitable for high-frequency daily use
- No warm-up time required—ready to seal immediately upon power-up
- Compatible with thermosealable plastics: PE, PP, and multi-layer film
Technical Specifications
- Manufacturer: Heat Seal Co.
- Model: MWH-200
- Input Power: 110V 50/60 Hz
- Amperage: 3A
- Sealing Width: 200mm (8 inches)
- Seal Width: Approximately 2mm
- Sealing Mechanism: Timed impulse heating
- Timer Settings: Adjustable (variable heat time for material compatibility)
- Maximum Sealing Thickness: 6–10 mil typical (dependent on material and timer setting)
- Operation: Hand-operated lever activation
- Duty Cycle: Continuous with recommended 3–5 minute cooldown per 30 minutes of operation
Typical Applications
- Food packaging and shelf-stable goods sealing
- Pharmaceutical and medical device packaging
- Retail merchandise bag closure
- Warehouse and shipping operations
- Small-batch and custom packaging runs
- Manufacturing and assembly line material containment
Compatibility & Replacements
Compatible With
- All standard 110V 50/60 Hz AC power outlets (North American industrial wiring)
- PE (polyethylene) films and bags
- PP (polypropylene) bags and film
- Multi-layer laminated films
- Mylar, Polyflex, and heat-sealable thermoplastics
Replaces / Drop-In Replacement For
- Heat Seal Co. MWH-200 units (same-model replacements)
- Other 200mm (8-inch) impulse sealers requiring equivalent voltage and sealing width (verify connector compatibility before ordering)
Works With
- Standard industrial electrical distribution (110V, 50/60 Hz)
- Grounding and circuit protection systems rated for 3A+ continuous load
- Replacement sealing element strips (verify part compatibility with Heat Seal Co.)
