Overview

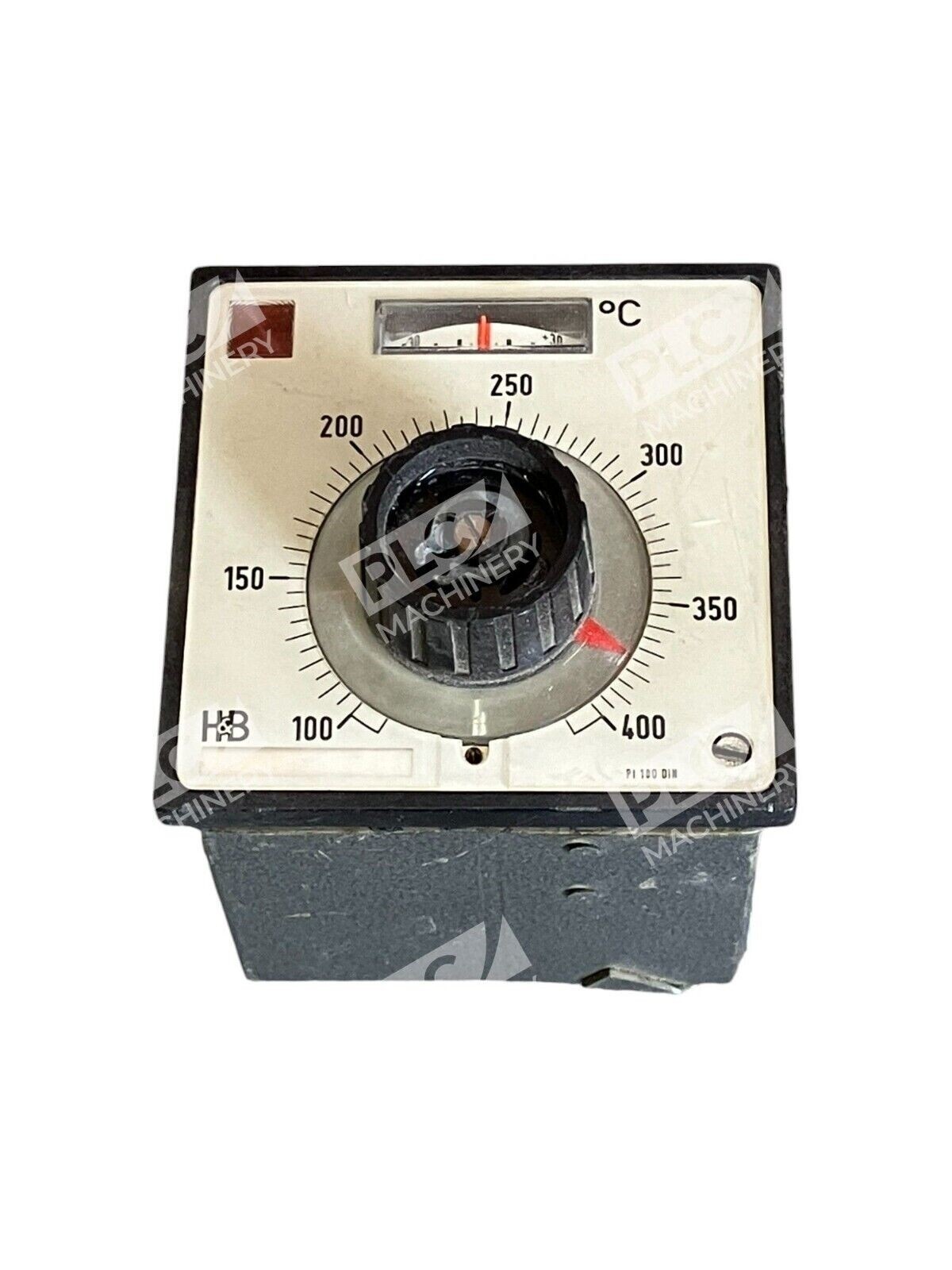

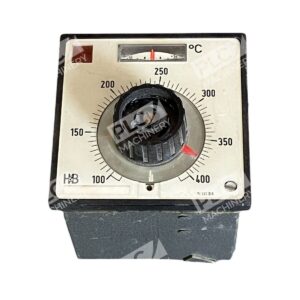

The Hartmann Braun Pt 100 DIN is an industrial-grade temperature controller and sensor interface module designed for precision process control applications. This DIN-standard component interfaces with Pt 100 resistance temperature detector (RTD) sensors and provides accurate temperature measurement and control logic in manufacturing, HVAC, and process automation environments. The Hartmann & Braun brand is recognized in industrial automation for reliable control modules and sensor conditioning devices.
Key Features
- Pt 100 RTD sensor interface compliant with DIN EN 60751 standard
- Precision temperature measurement and control functionality
- Industrial-grade construction for reliable operation in demanding environments
- Compact DIN-rail mounting form factor
- Integration-ready for legacy and distributed control systems
Technical Specifications
This temperature control module supports the Pt 100 RTD sensor standard, which uses a platinum thin-film element with a base resistance of 100 ohms at 0°C. The DIN format ensures mechanical and electrical compatibility with standard European industrial control enclosures. Operating temperature range spans the typical industrial process control window. Weight is approximately 370 grams.
Typical Applications
- HVAC and building automation temperature control loops
- Industrial process heating and cooling systems
- Manufacturing equipment temperature monitoring
- Distributed control system (DCS) sensor input modules
- Legacy PLC and controller retrofit applications
Compatibility & Replacements
Compatible With
- Pt 100 / Pt 1000 RTD sensors (DIN EN 60751)
- Hartmann & Braun Contronic control systems
- ABB industrial automation platforms (post-acquisition)
- Standard DIN-rail mounted control cabinets
- Legacy industrial control networks and protocols
Replaces / Drop-In Replacement For
- Hartmann & Braun Sensycon Pt 100/B/2/DIN (model variants)
- Other Pt 100 DIN-format temperature control modules in equivalent configurations
- Verify part number compatibility with system integrator before installation
Works With
- Pt 100 / Pt 1000 RTD sensors (IEC 751 / DIN 43760 standard)
- Analog input modules on industrial PLCs and PACs
- 4-20mA current loop process control networks
- Standard DIN-format enclosure mounting systems
- Hartmann & Braun and ABB legacy control platforms
