Overview

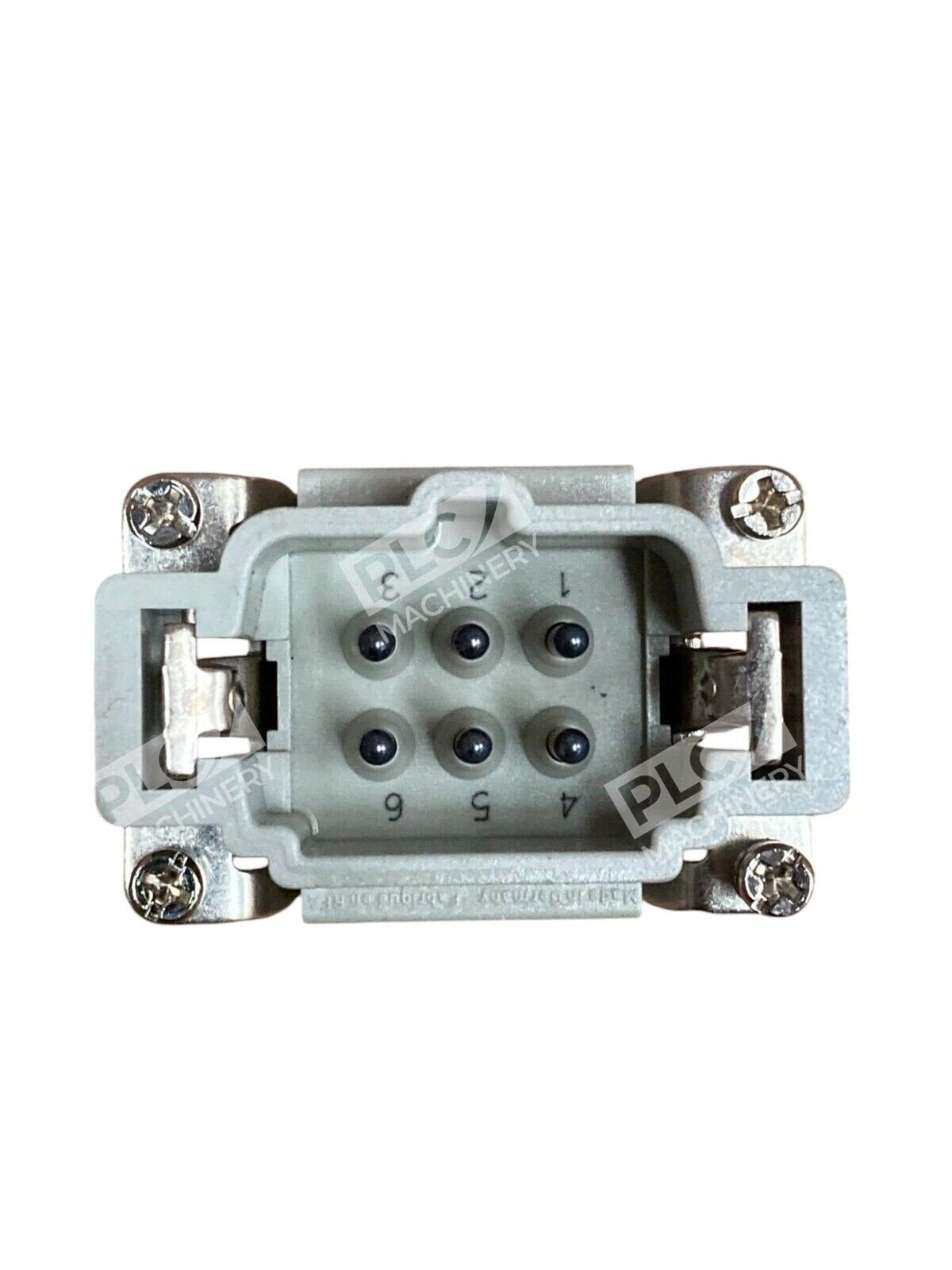

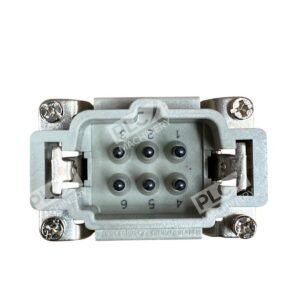

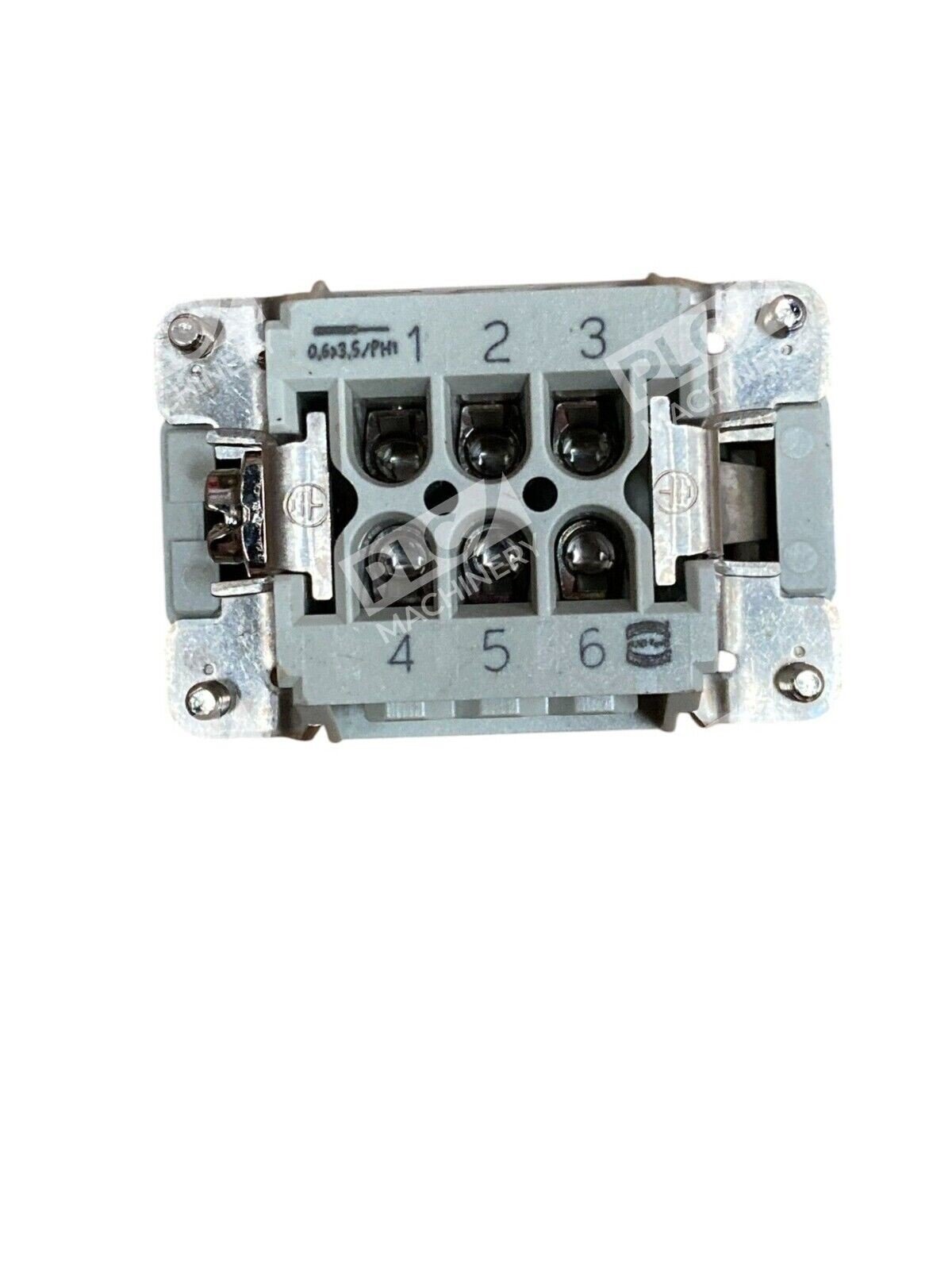

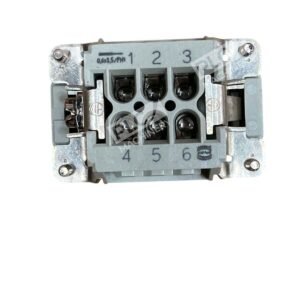

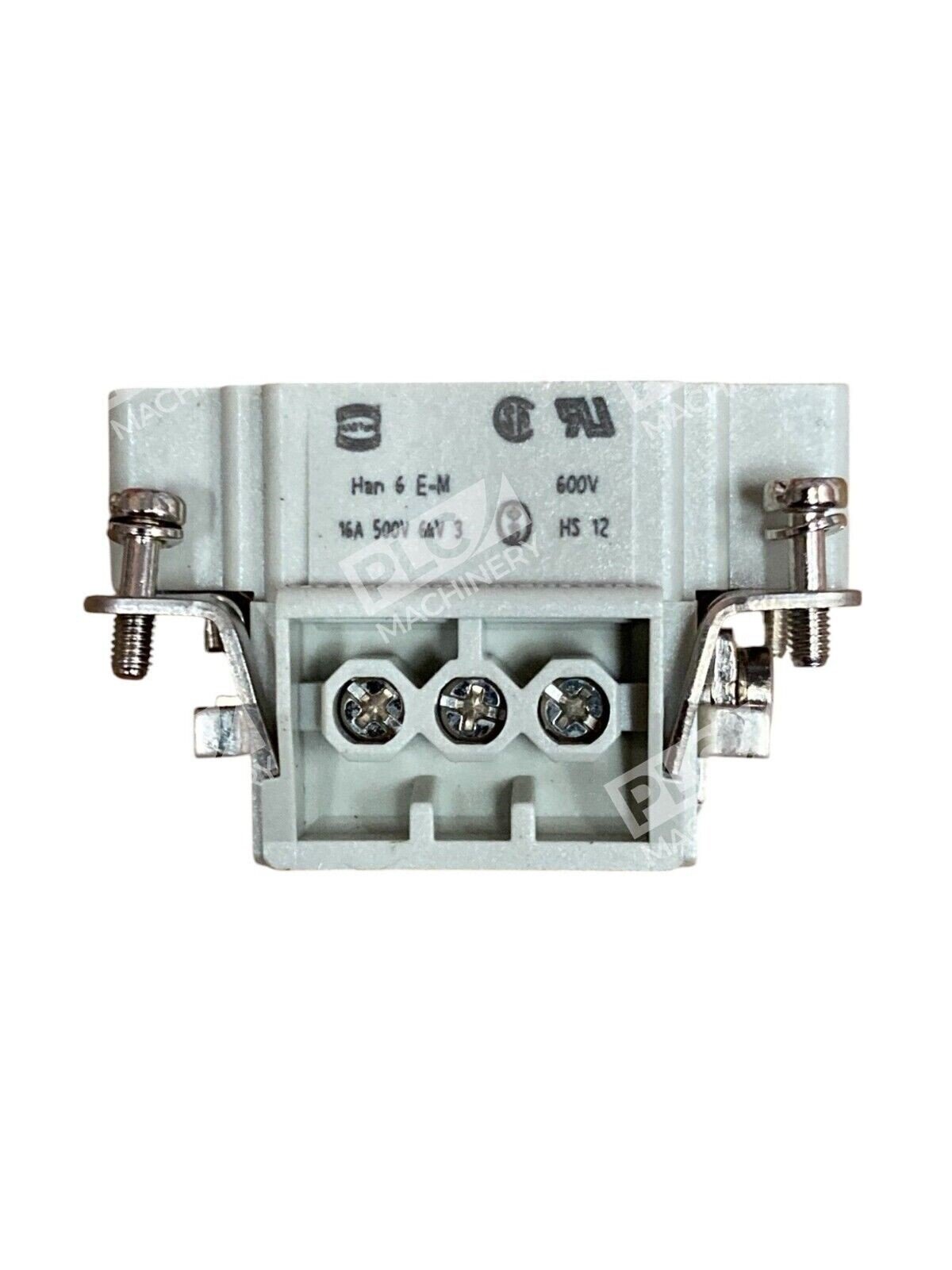

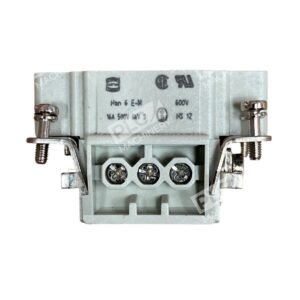

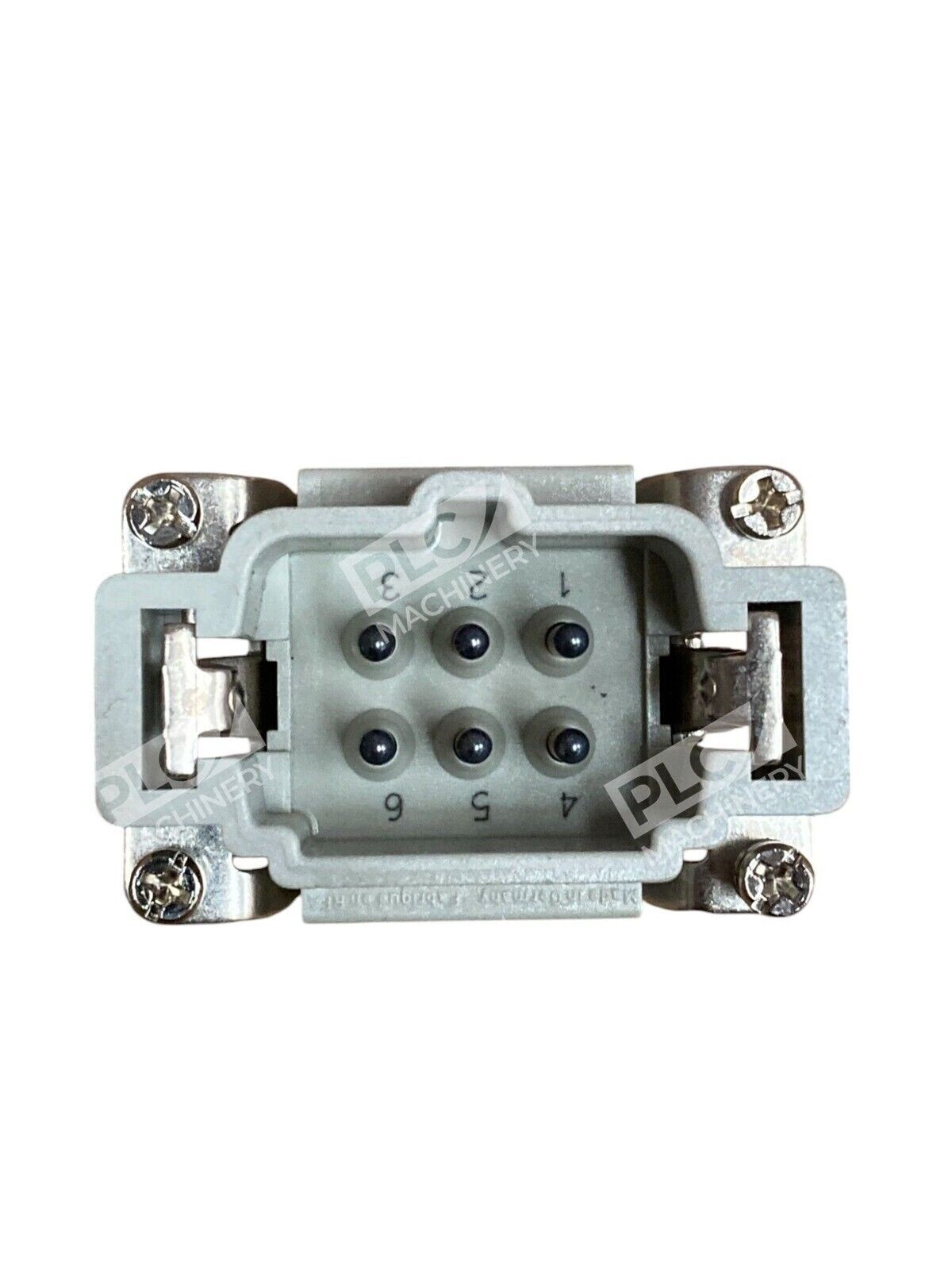

Harting 09330062601 is a Han E 06-position male insert connector featuring screw-terminal technology for industrial automation and machinery applications. This 6B rectangular shell connector delivers rated current capacity of 16A at 500V nominal, with impulse withstand capability of 6kV. The connector is engineered for rapid make/break cycles in harsh factory environments, making it ideal for servo drives, control systems, and power distribution applications.
Key Features
- 6 contacts + PE configuration for power and signal transmission
- 16A rated current with 500V nominal voltage rating and 6kV impulse withstand
- Screw-terminal connection accommodates wire cross-sections up to 2.5 mm² (14 AWG maximum)
- 500+ mating cycles mechanical working life for durability
- Polycarbonate housing in light grey (RAL 7032) for chemical and impact resistance
- RoHS compliant for regulatory compliance
- IP67 rated when mated with compatible housing and protective seals
Technical Specifications
- Series: Han E®
- Part Number: 09330062601
- Contact Configuration: 6-Pin + PE (Earth)
- Shell Size: 6B Rectangular
- Gender: Male Insert (Pin)
- Nominal Voltage: 500V AC
- Rated Current: 16A per contact
- Impulse Withstand: 6kV
- Wire Size: 14–18 AWG (0.5–2.5 mm²)
- Termination: Screw-terminal (tin-plated pins)
- Housing Material: Polycarbonate (PC), light grey
- Operating Temperature: −40 to +125 °C
- Mechanical Life: ≥500 mating cycles
- Compliance: RoHS, IEC/EN 61076-2-109
Typical Applications
The Harting 09330062601 insert is commonly deployed in:
- Servo drive and amplifier enclosures
- Industrial control cabinet interconnections
- Power distribution to three-phase machinery
- Automation equipment field wiring terminals
- Machine tool spindle control circuits
- Mobile and outdoor machinery installations
Compatibility & Replacements
Compatible With
- Han E® Series housings and cable connectors (size 6B)
- Industrial machinery control systems using Han modular connectors
- Servo drives, motor controllers, and power distribution modules
- Harting Han-Modular connector frames and assemblies
- Standard DIN-rail mounted control enclosures
Replaces / Drop-In Replacement For

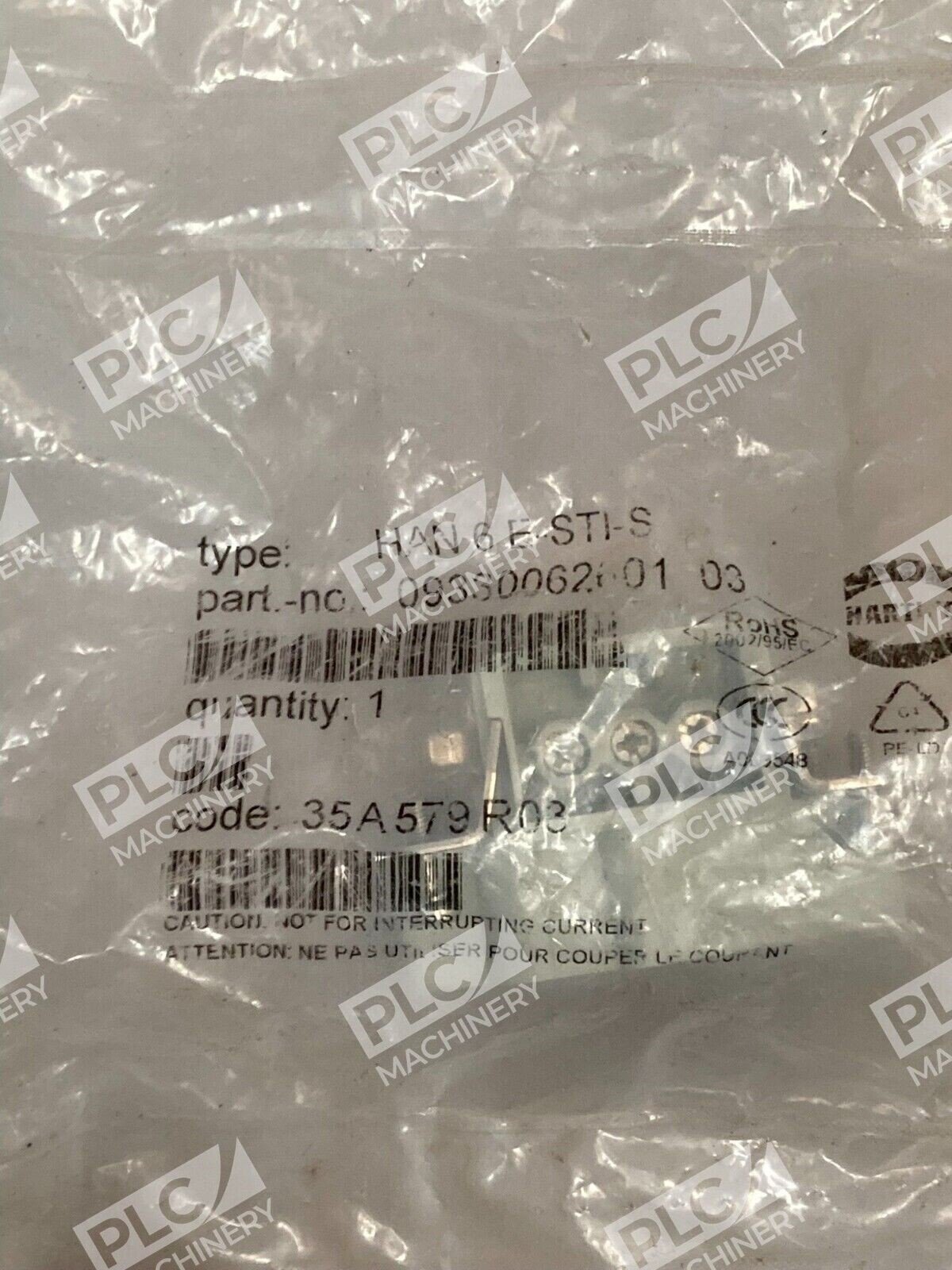

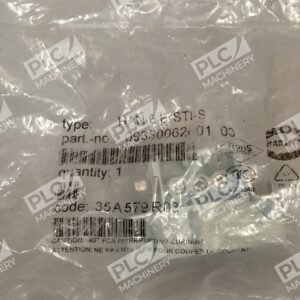

- Harting 09330062601-03 (equivalent alternate designation)
- Harting HAN 6 E-M-S and HAN 6 E-STI-S variants using 6-pin configuration
- Legacy 6-position male screw-terminal inserts requiring 16A/500V ratings
Works With
- Harting Han E® cable sets and pre-assembled harnesses
- PROFINET and EtherCAT industrial networks (when integrated into system housings)
- Allen-Bradley, Siemens, Omron, and Mitsubishi servo drive enclosures supporting Han connectors
- Screw-terminal wiring practices per IEC 61076 connector standards
- Both signal and power distribution architectures in modular automation systems
