Overview

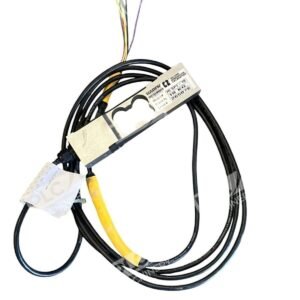

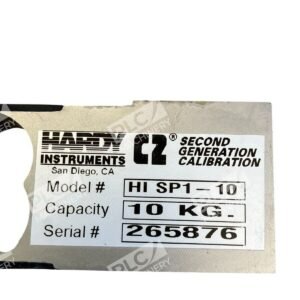

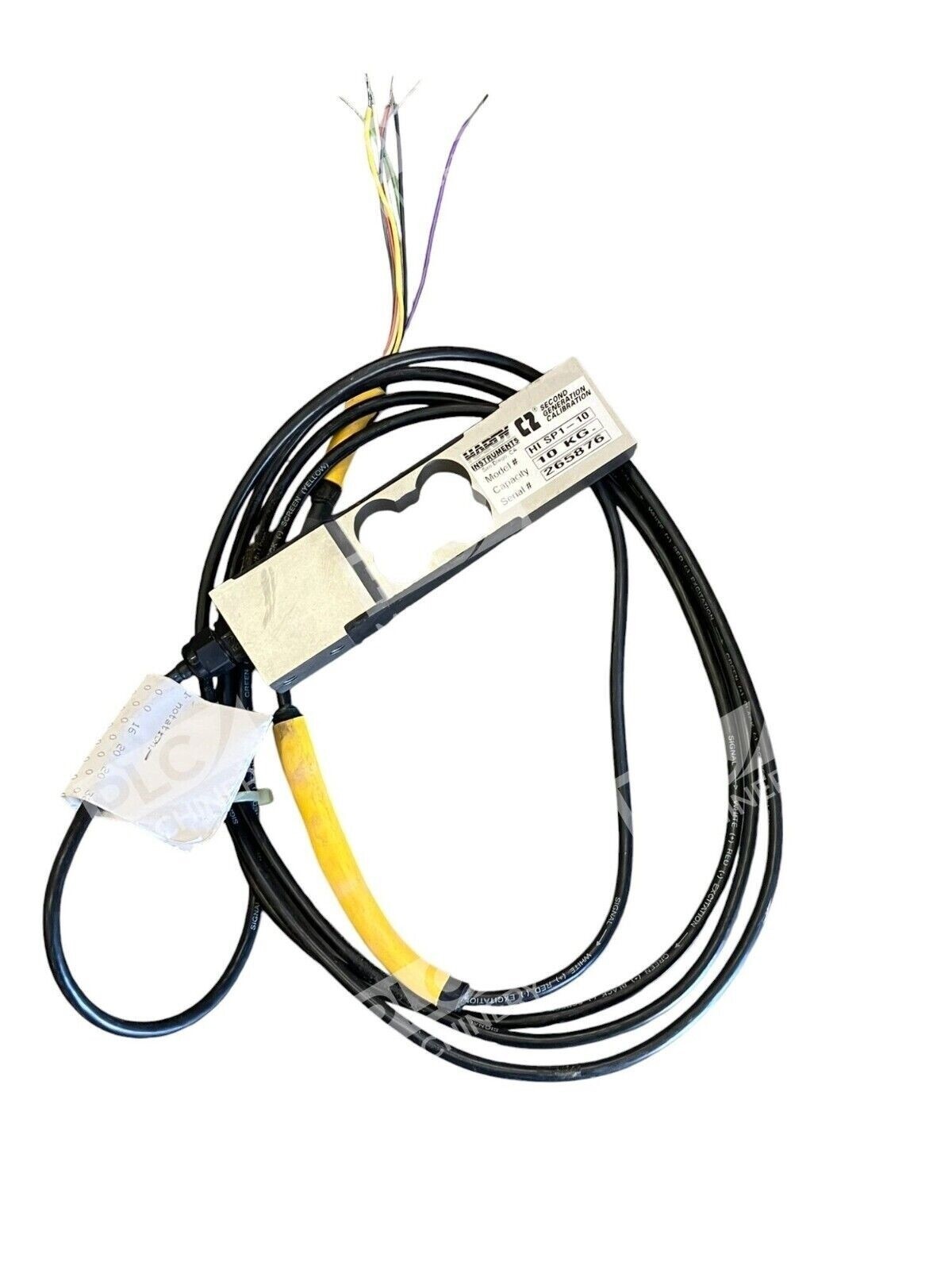

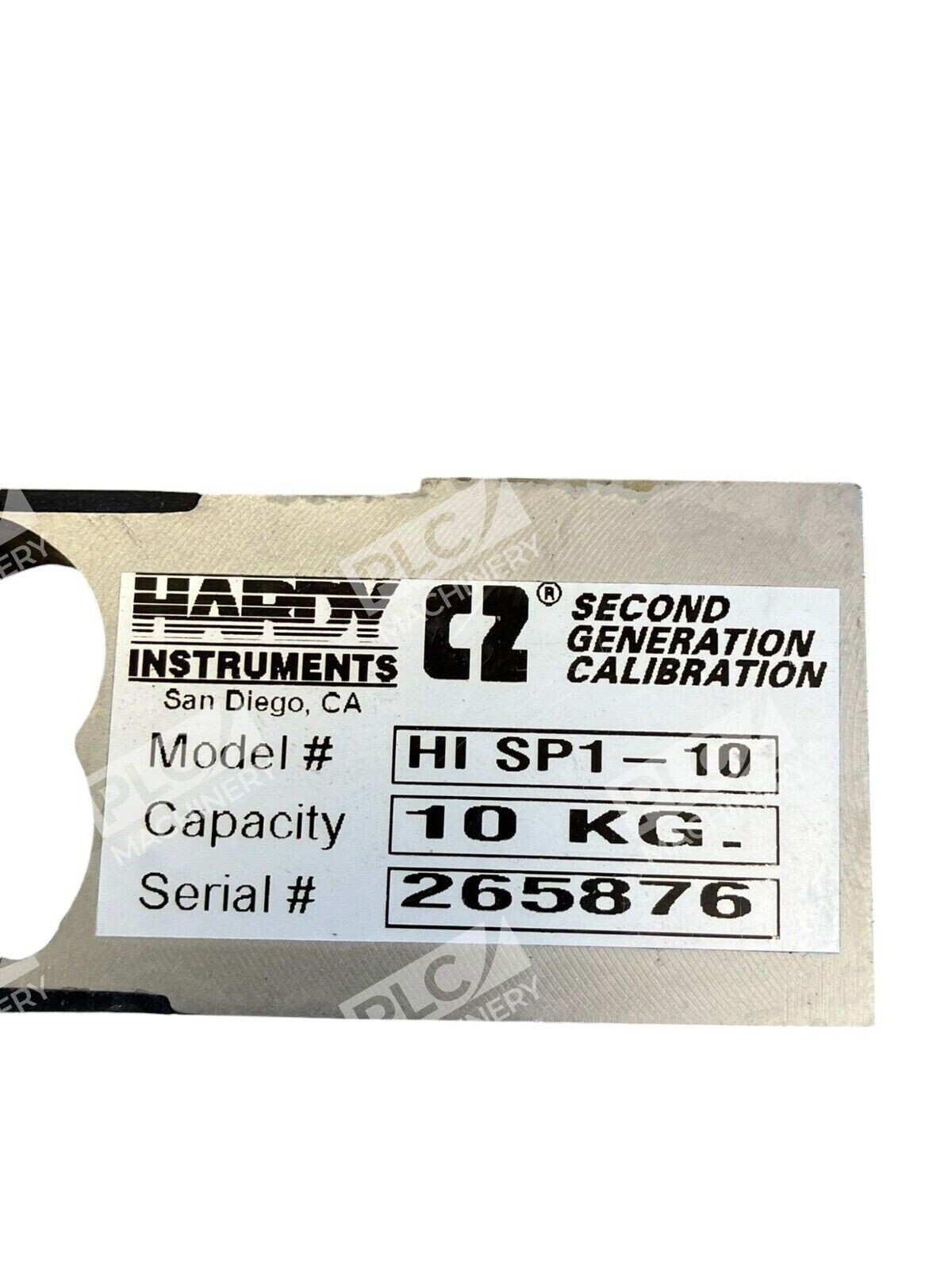

The Hardy Instruments HI SP1-10 is a single point load cell designed for the OEM, conveyor, and bench scale markets, built from 17-4 PH stainless steel with C2® calibration capabilities and 9-10 ft of cable included. The HI SP1-10 has a 10kg capacity and is environmentally protected to IP65. It is built to perform in harsh environments found in the food, chemical and allied industries.
Key Features
- C2® electronic calibration provides quick and easy calibration without heavy test weights, using only ONE reference point instead of five
- Low sensitivity to off-center loads, ideal for bench scales
- 17-4 PH stainless steel construction with C2® capabilities and 3-meter (9-10 ft) cable
- Integral mounting spacer; maximum platform size 600mm x 600mm
- Unlike traditional test weight calibration, C2 systems can be calibrated immediately upon installation without heavy lifting, delivering easier, quicker, and safer calibration
Technical Specifications
- Capacity: 10 kg (22 lbs)
- Material: 17-4 PH Stainless Steel
- IP Rating: IP65 (environmentally protected)
- Cable Length: 3 meters (9-10 feet) standard
- C2 Calibration: Yes, electronic calibration enabled
- Mounting: Integral spacer, max platform 600mm × 600mm
- Output: Load cell (strain gauge)
Typical Applications
- Bench scales and tabletop weighing systems
- OEM and conveyor system integration
- Food and chemical industry weighing
- Laboratory and production floor scales
- Packing and portioning equipment
Compatibility & Replacements
Compatible With
- Hardy Process Solutions instruments and weight processors
- Hardy C2® cable and junction box systems
- Standard 4-20mA load cell instrumentation
- Bench scale platforms up to 600mm × 600mm
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The HI SP1-10 is a specific 10kg capacity model; confirm your application requires this exact capacity range (7.5kg to 200kg range available across the HI SP1 series).
Works With
- Hardy Process Toolbox software and automation features
- Hardy instruments with “THE BUTTON” C2 feature
- Standard industrial scale controllers and weight displays
- C2-certified load point systems and junction boxes
