Overview

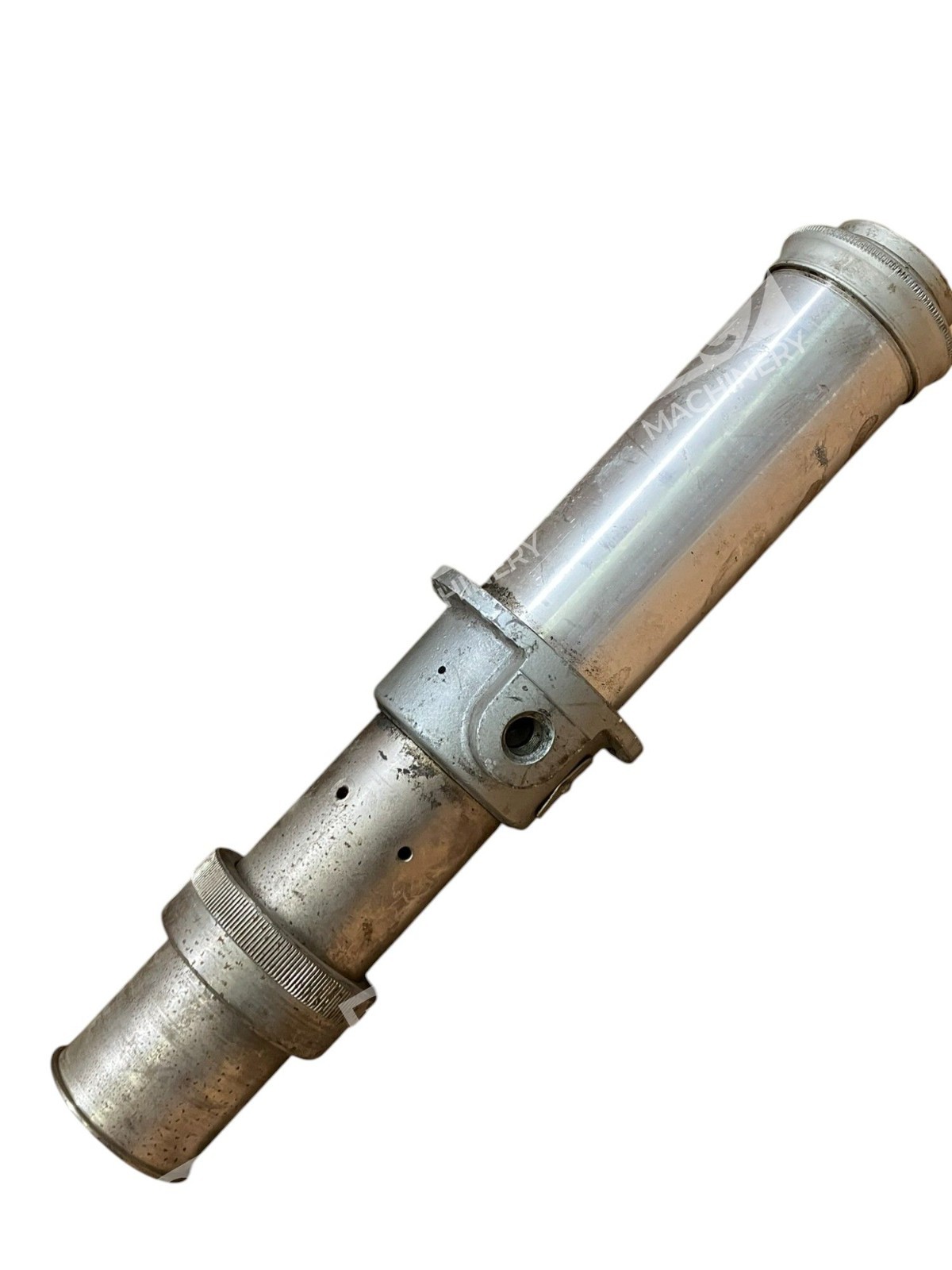

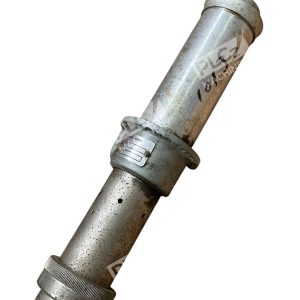

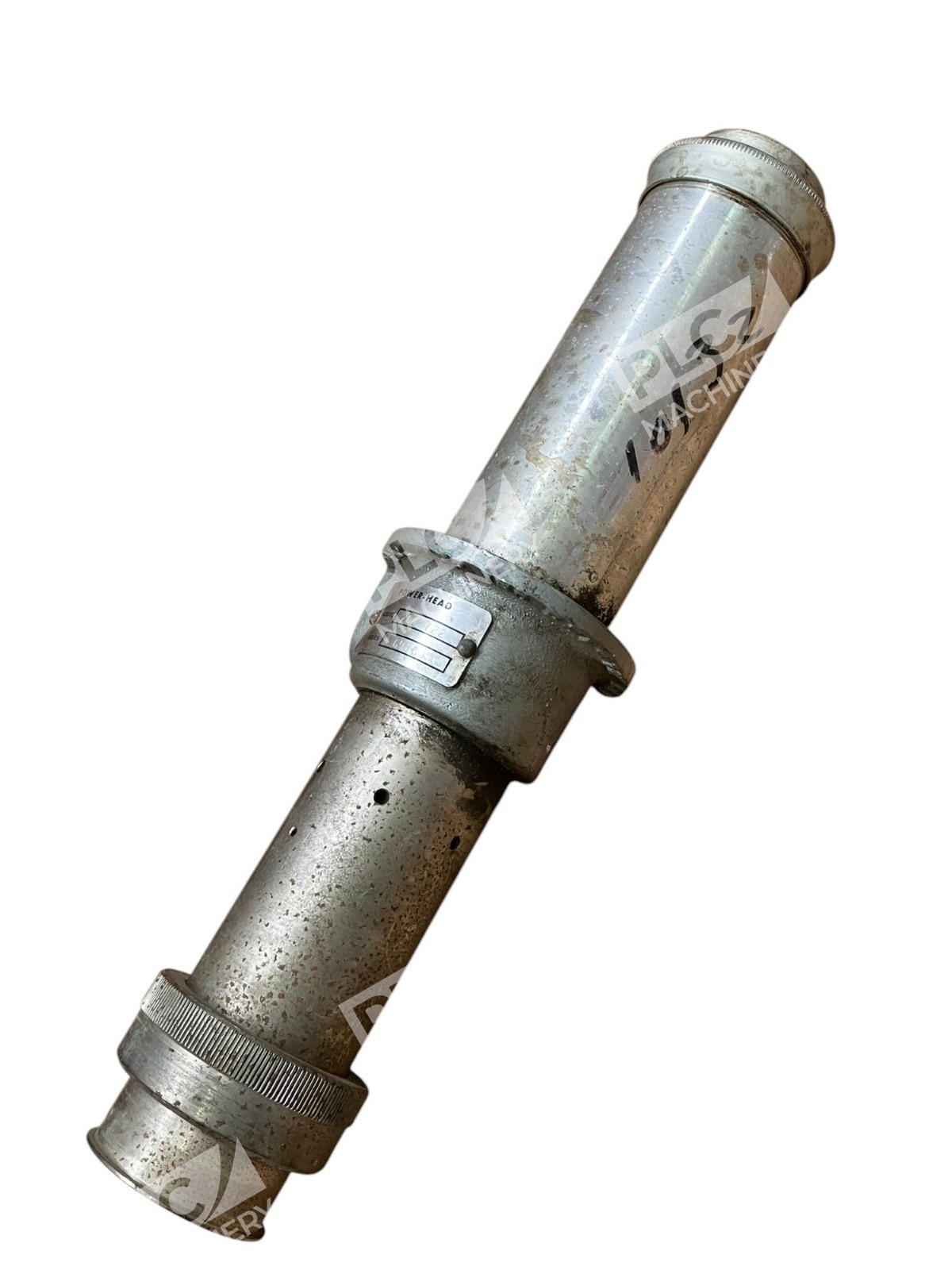

The Graco 204-722 is a proven power-head pump assembly engineered as a standard air motor for 2:1 displacement pump applications. This robust component serves as a replacement or spare part for compatible Graco fluid-handling systems and spray equipment. The unit provides reliable air-driven operation for industrial and commercial painting, coating, and fluid transfer applications.
Key Features
- Standard air motor design optimized for 2:1 pump displacement ratio
- Air-driven operation eliminates need for electric power in hazardous locations
- Compatible with Graco ProXChange sprayer systems and displacement pump assemblies
- Proven industrial-grade construction for continuous duty applications
- Direct replacement component in Graco’s cross-reference catalog
Technical Specifications
The Graco 204-722 operates as a pneumatic motor assembly. Specific technical parameters including displacement, air inlet/outlet sizes, pressure ratings, and motor speed should be verified against the current Graco product documentation or with your system integrator before final integration into your existing equipment.
Typical Applications
- Paint spraying and coatings application equipment
- Fluid transfer and circulation systems
- Industrial maintenance and repair operations
- Replacement pump assemblies for Graco 2:1 displacement pump systems
- Hazardous area applications requiring pneumatic (non-electric) actuation
Compatibility & Replacements
Compatible With
- Graco ProXChange ProX19 spray systems
- Graco ProX21 sprayer units
- Graco ProX17 spray equipment
- Graco 2:1 displacement pump assemblies
- Standard Graco power-head pump circuits and mounting interfaces
Replaces / Drop-In Replacement For
- Graco 24Y-472 (interchangeable part number)
- OEM replacement for original 204-722 pump assemblies
- Direct replacement in Graco cross-reference system
Works With
- Graco fluid-handling pump systems with 2:1 displacement ratio
- Standard pneumatic (compressed air) supply systems
- Graco spray gun and fluid delivery circuits
- Compatible with Graco service and maintenance procedures
