Overview

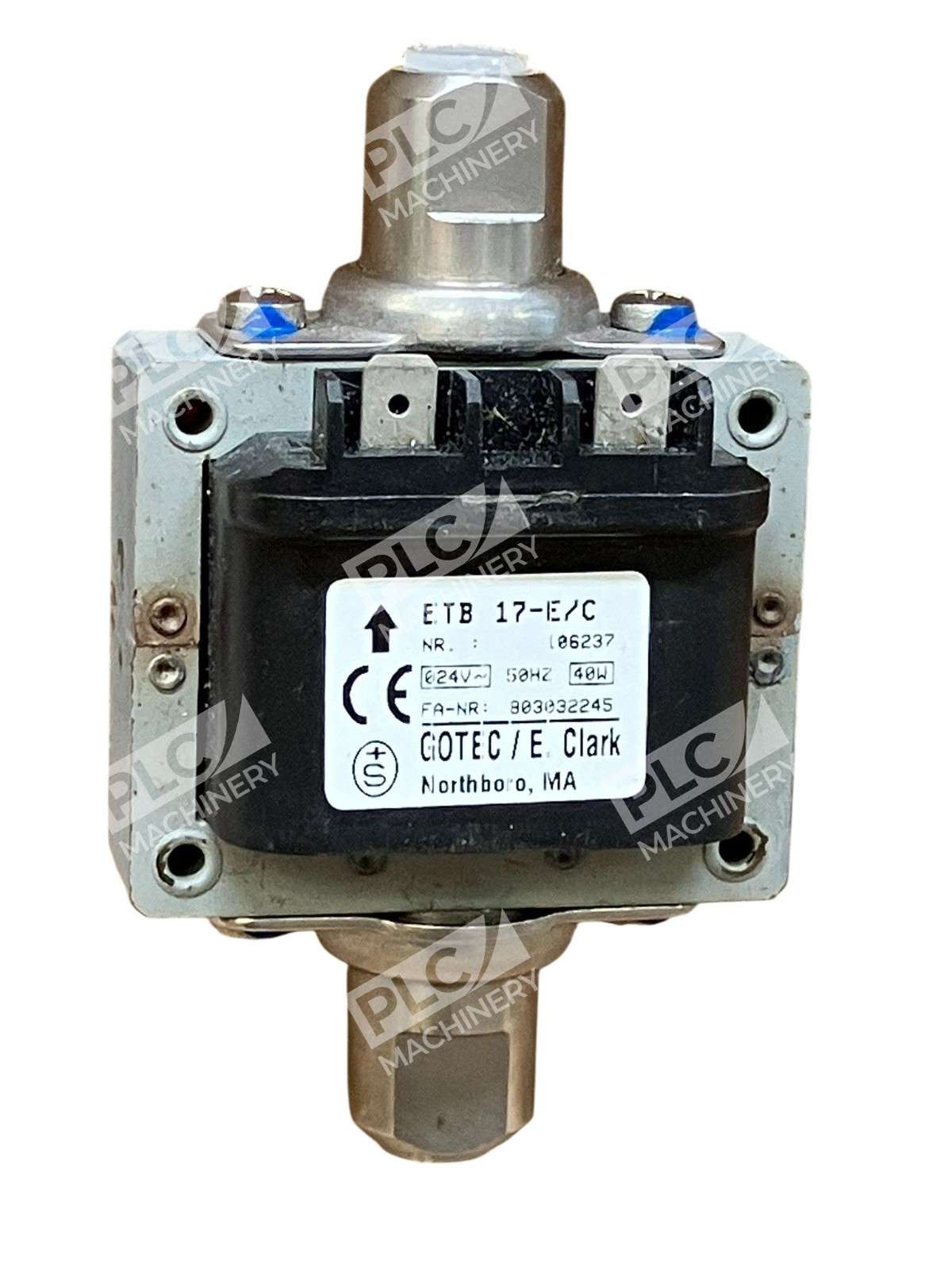

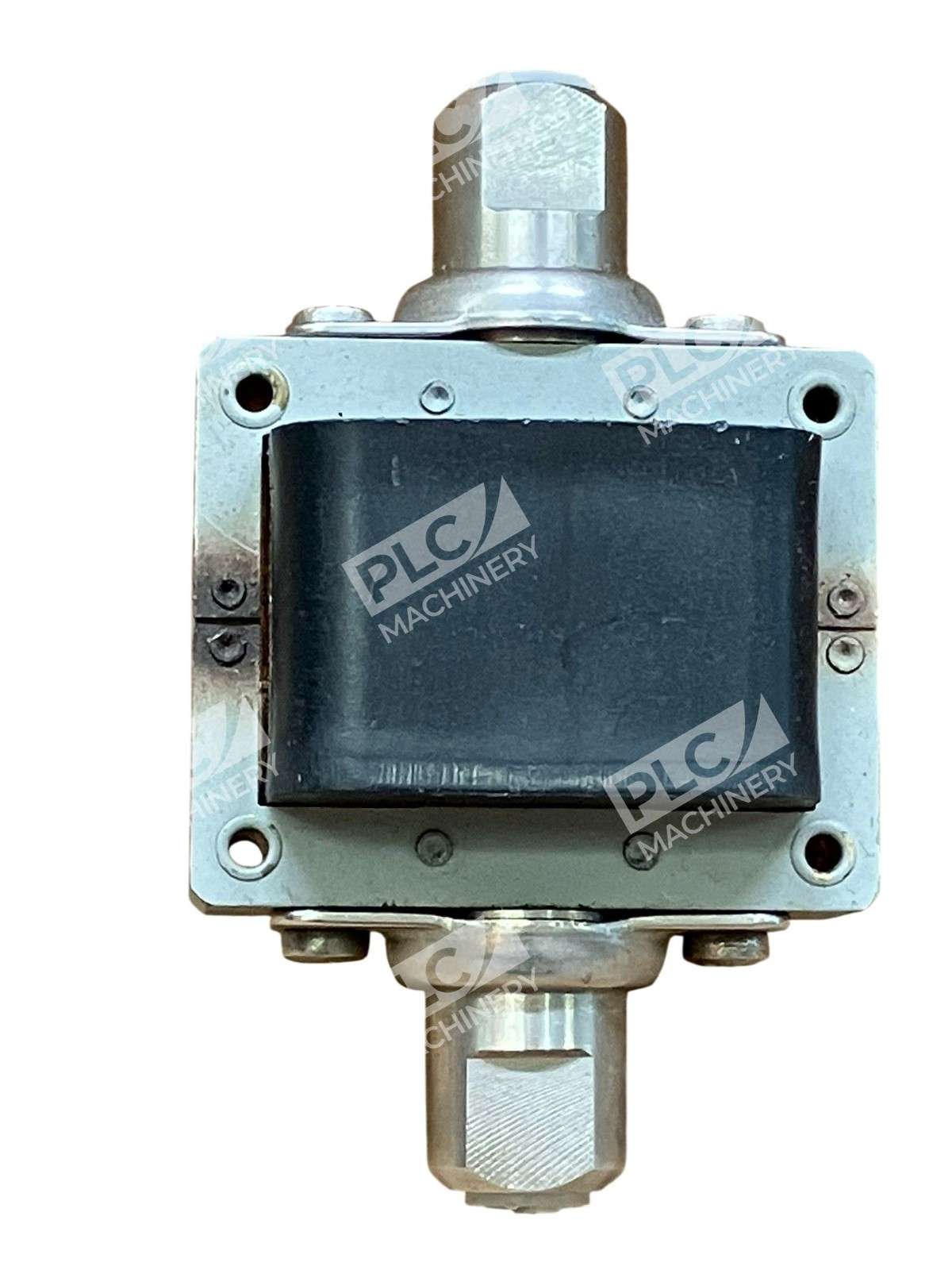

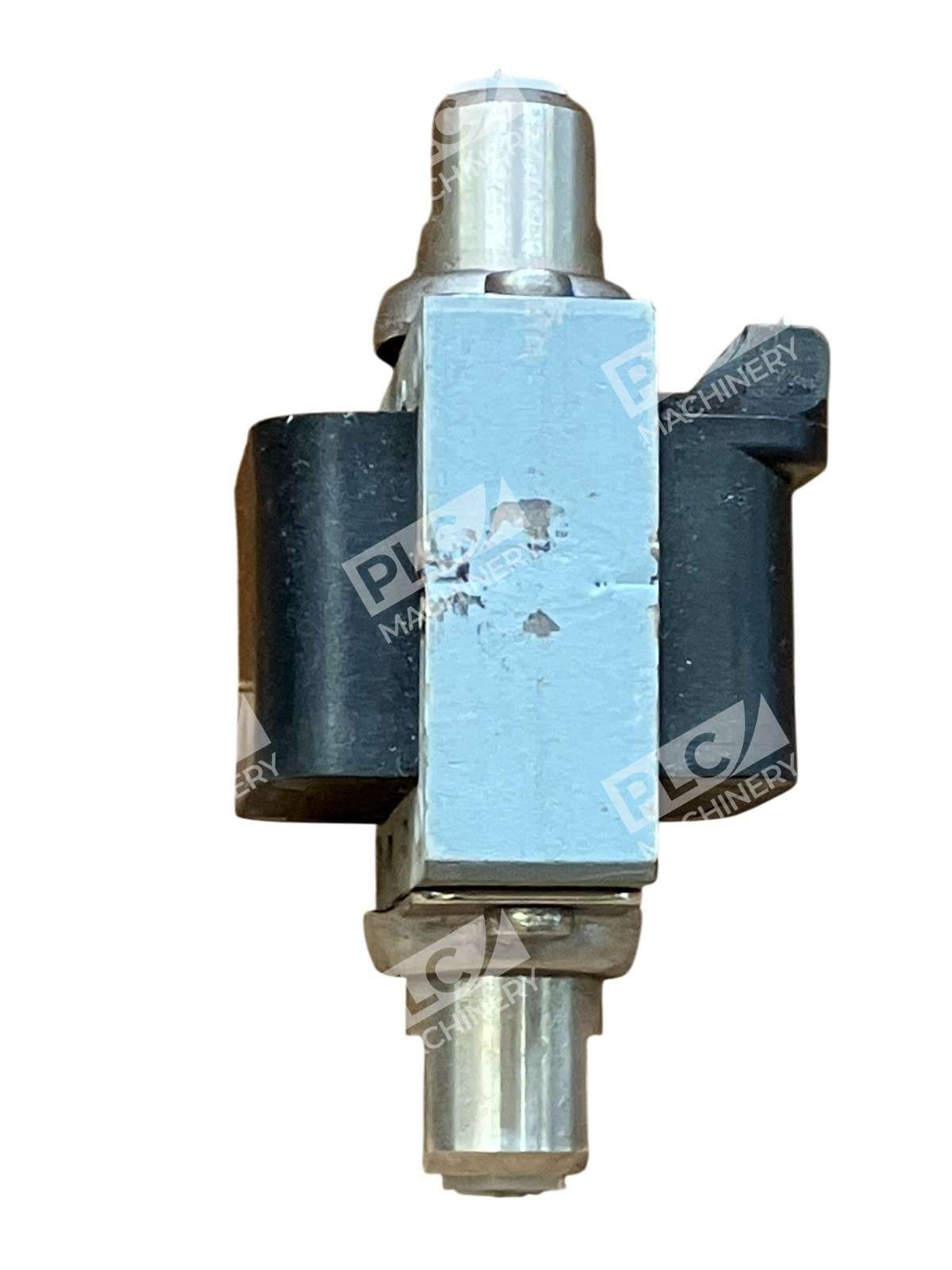

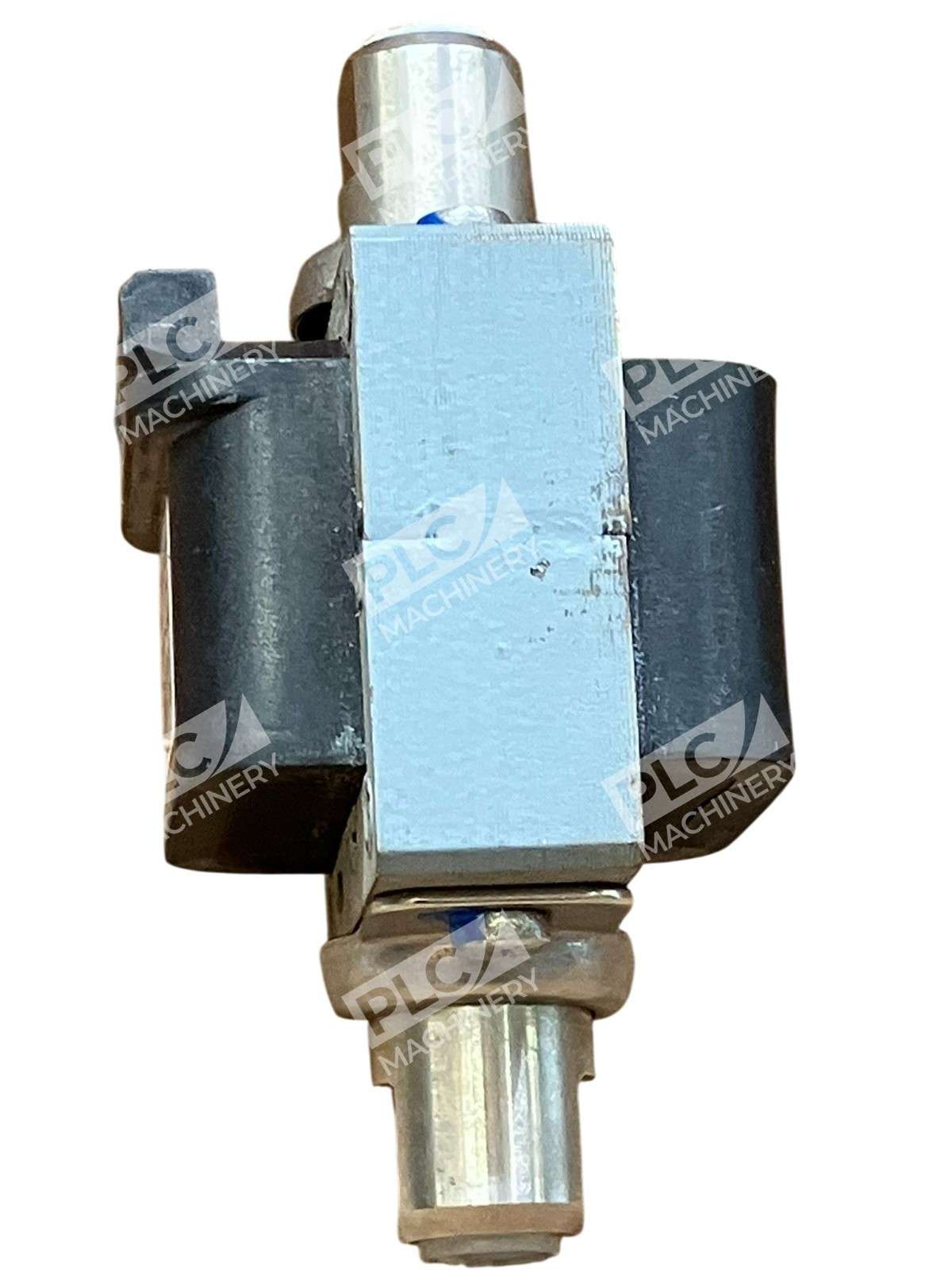

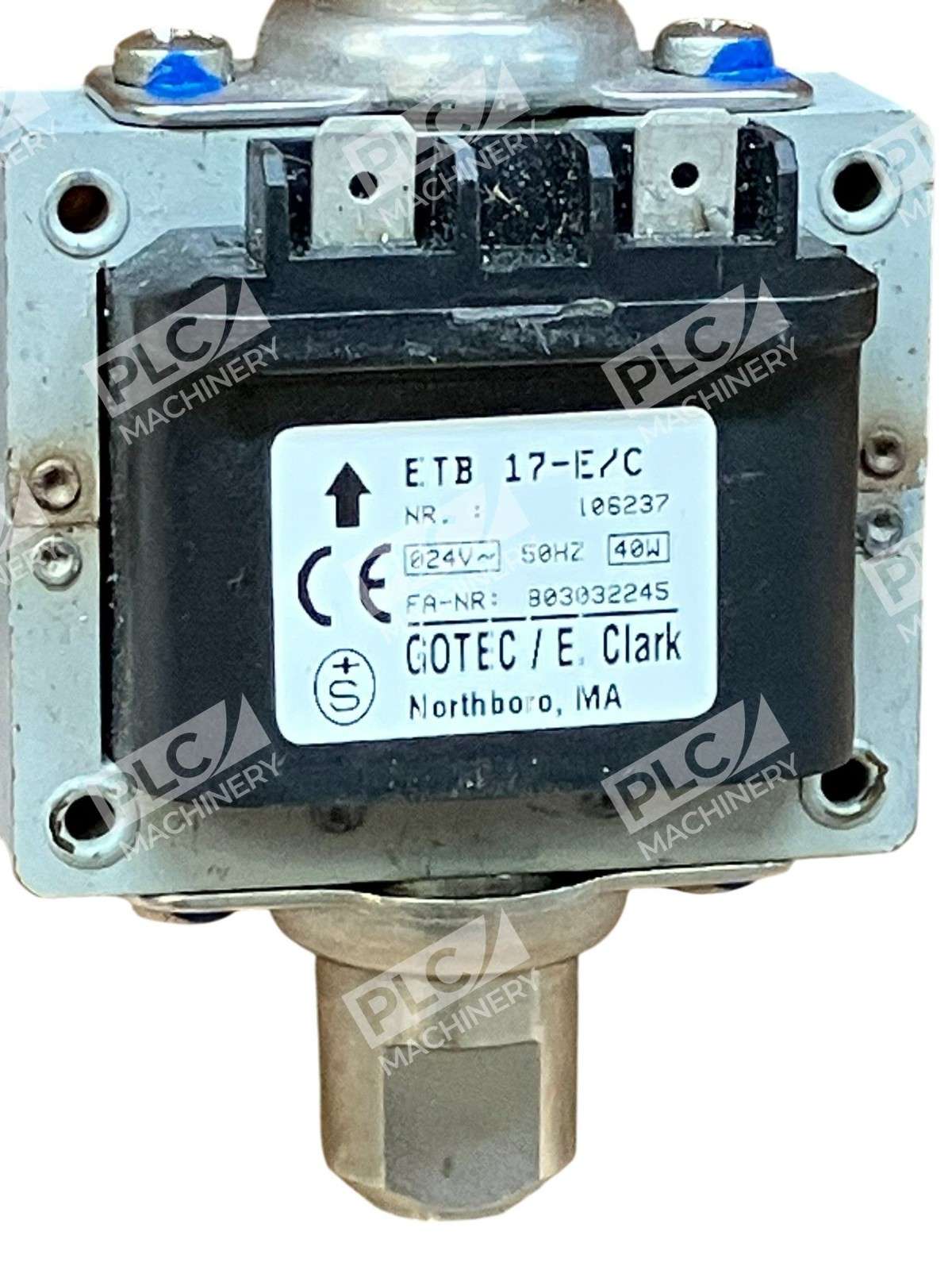

The Gotec ETB 17-E/C solenoid piston pump is a precision-engineered miniature pump designed for low-volume liquid transfer applications. Rated for 24VAC operation at 50/60Hz with 40W power consumption, this pump delivers high output flow relative to its compact size. The ETS 17 models offer high output flow relative to other Gotec pumps and are a great solution for low-volume liquid pumping applications. The ETB 17-E/C integrates the solenoid coil with the pump body in a waterproof assembly requiring minimal maintenance.
Key Features
- Robust and reliable with a minimum of moving parts
- Integrated driving mechanism with no shaft seal required, virtually maintenance-free with very long life expectancy
- Self-priming capability for convenient installation
- Manufactured to ISO 9001, RoHS, and CE standards
- Suitable for food, chemical, and industrial fluid transfer
- 24VAC, 50/60Hz operation with integrated coil
Technical Specifications
The Gotec ETB 17-E/C is configured with the following operational parameters:
- Flow rate: 130 L/h (34.3 GPH)
- Maximum pressure: 2 bar (29 PSI)
- Suction height: Approximately 0.3–1 m
- Power consumption: 40W
- Supply voltage: 24VAC
- Frequency: 50/60Hz
- Coil class: F (155°C) or H (180°C) on request
- Terminal type: AMP style 6.3 x 0.8mm tinned brass tabs
Typical Applications
The ETS 17 pump is suitable for many fluid transfer applications. Common uses include:
- Printing and graphic arts equipment
- Drink dispensing machines (milk, syrup, ketchup)
- Coffee and beverage machines
- Lubrication systems including gear cutting and oil mist sprayers
- Chemical dosing systems
- Cleaning equipment (floor cleaners, carpet cleaning)
- Laboratory and medical dispensing
Compatibility & Replacements
Compatible With
- 24VAC, 50/60Hz electrical supply systems
- Rectified AC signal via inline diode or pulsed DC signal operation
- Various connector types: barbed plastic, brass, or stainless steel fittings
- Internal thread hydraulic connections (G 3/8″ common)
- Applications using compatible liquid types (water, oils, syrups, chemicals with appropriate seal materials)
Replaces / Drop-In Replacement For
The ETB 17-E/C is part of the Gotec ET-series family. For specific replacement compatibility, verify the 6-digit identification number on your existing pump label or consult Gotec directly. Gotec maintains extensive customization records for matching applications.
Works With
- Standard 24VAC control circuits and relay logic systems
- Pulse frequency control for pump performance modulation
- Integrated diode and varistor (Plug & Play on many variants)
- ISO/DIN 43650A electrical connectors (where applicable)
- Generic industrial automation platforms requiring low-voltage solenoid pump actuation
