Overview

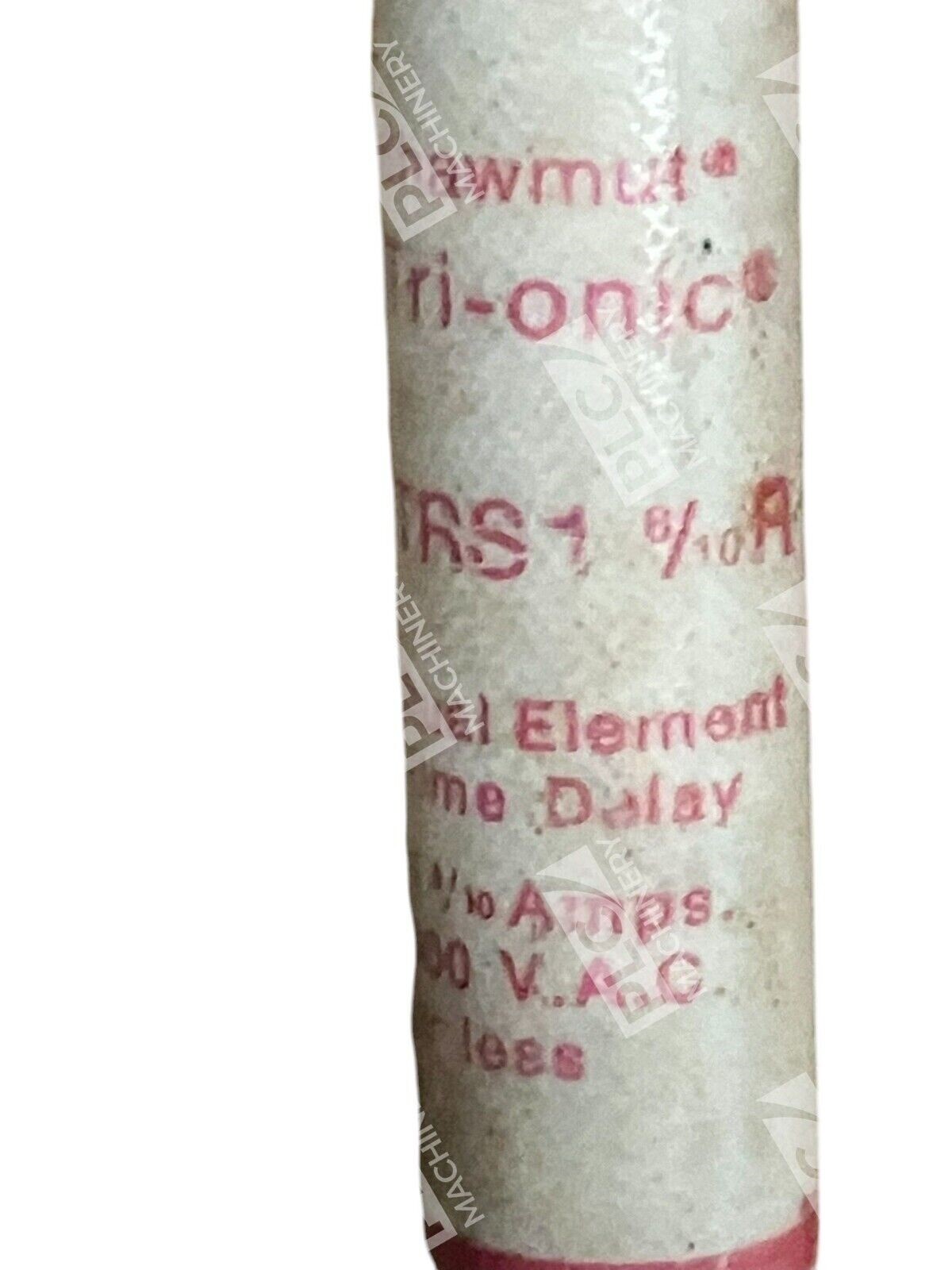

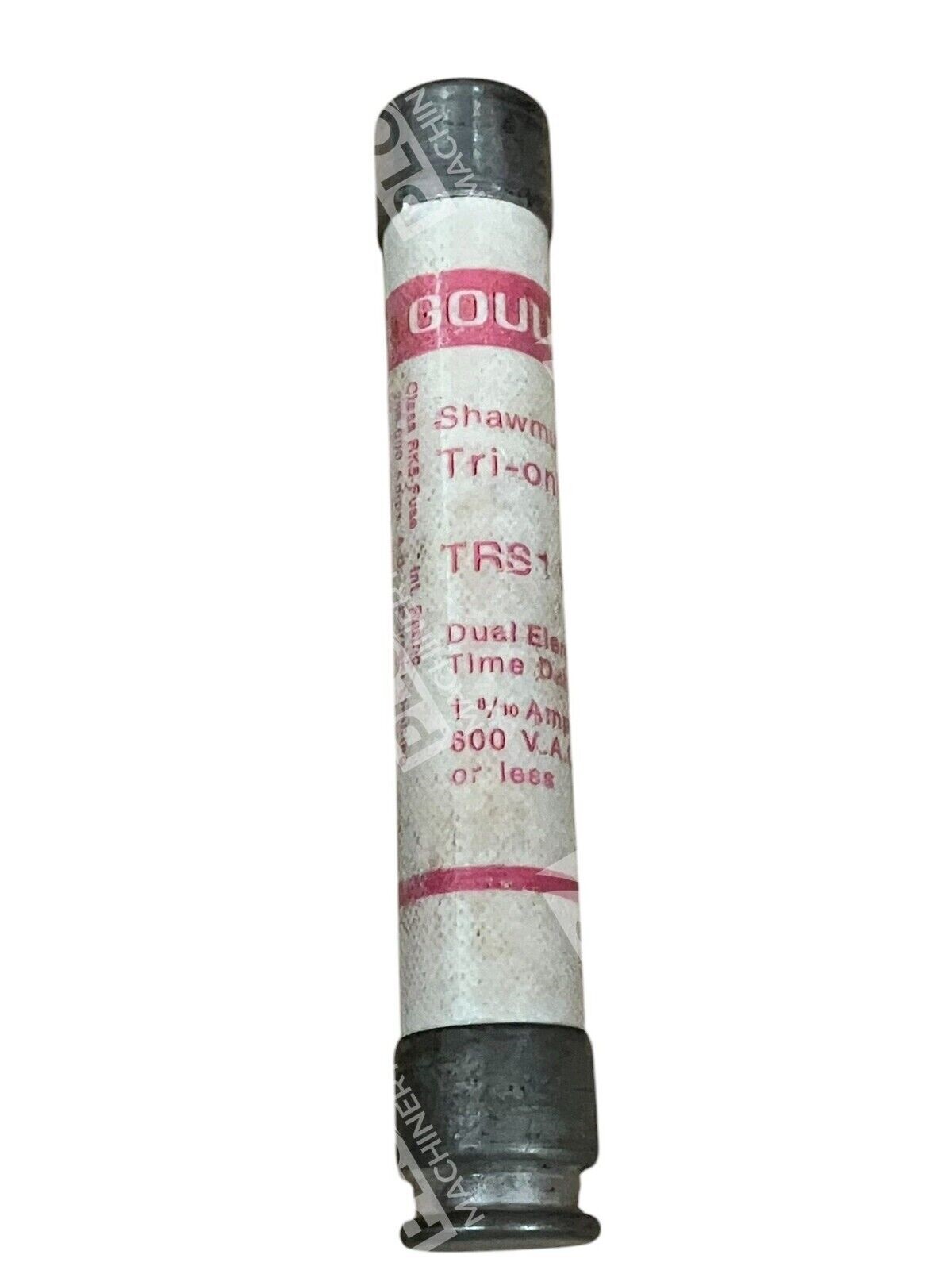

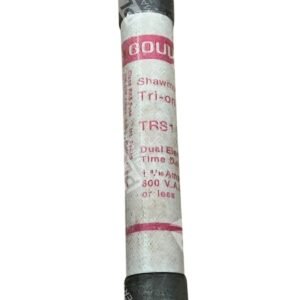

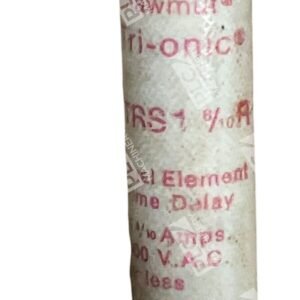

The Gould Shawmut TRS1-8/10R is a Tri-Onic current-limiting time-delay fuse engineered for overcurrent protection in motor circuits, transformers, service entrance equipment, feeder and branch circuits. Rated at 1.8 amperes and 600 volts AC, this Class RK5 fuse combines fast response to faults with tolerance for harmless inrush currents typical in motor applications.
Key Features
- Time-Delay Design: Safely handles motor starting currents and transformer inrush without nuisance trips
- Current-Limiting Technology: Restricts fault current to reduce equipment stress and damage risk
- Class RK5 Rating: UL and CSA certified for industrial and commercial use
- 200kA Interrupting Rating: Provides robust overcurrent protection up to fault levels of 200,000 amperes
- Ferrule Terminal Configuration: Ensures secure insertion and consistent electrical contact in cartridge-style fuse holders
- Non-Indicating Design: Clear indication of fuse status without mechanical failure indicators
Technical Specifications
- Part Number: TRS1-8/10R
- Amperage Rating: 1.8A (displayed as 1-8/10A)
- Voltage Rating: 600VAC
- Interrupting Rating (I.R.): 200,000A @ 600VAC
- Fuse Class: RK5 (Time Delay, Current Limiting)
- Terminal Type: Ferrule
- Agency Approvals: UL 198, CSA C22.2 No. 248.12
- Temperature Range: -40°C to 85°C (operating)
Typical Applications
- Motor branch circuits and motor starters (single and polyphase)
- Transformer primary and secondary protection
- Industrial control circuits requiring time-delay protection
- HVAC equipment and compressor circuits
- Pump and fan motor protection
- General industrial equipment with inductive loads
Compatibility & Replacements
Compatible With
- All standard cartridge-style 600V fuse holders designed for Class RK5 fuses
- Industrial control panels and circuit protection systems rated for 600VAC
- Motor control centers (MCC) using RK5 fuse slots
- OEM equipment manufactured for Tri-Onic fuse compatibility
- Electrical systems requiring UL/CSA-certified overcurrent protection
Replaces / Drop-In Replacement For
The Gould Shawmut TRS1-8/10R directly replaces any equivalent time-delay, current-limiting fuse of the same voltage and amperage rating in Class RK5 cartridge format. Verify compatibility with your system integrator before ordering to ensure holder specifications match this fuse’s ferrule dimensions and voltage rating.
Works With
- 600V industrial motor circuits and equipment (IEC and NEMA standards)
- Time-delay protection schemes in AC induction motors
- Current-limiting systems designed to minimize arc flash hazards
- Maintenance and replacement in existing Tri-Onic fuse installations
- Legacy and modern industrial control systems using ferrule-type fuse holders
