Overview

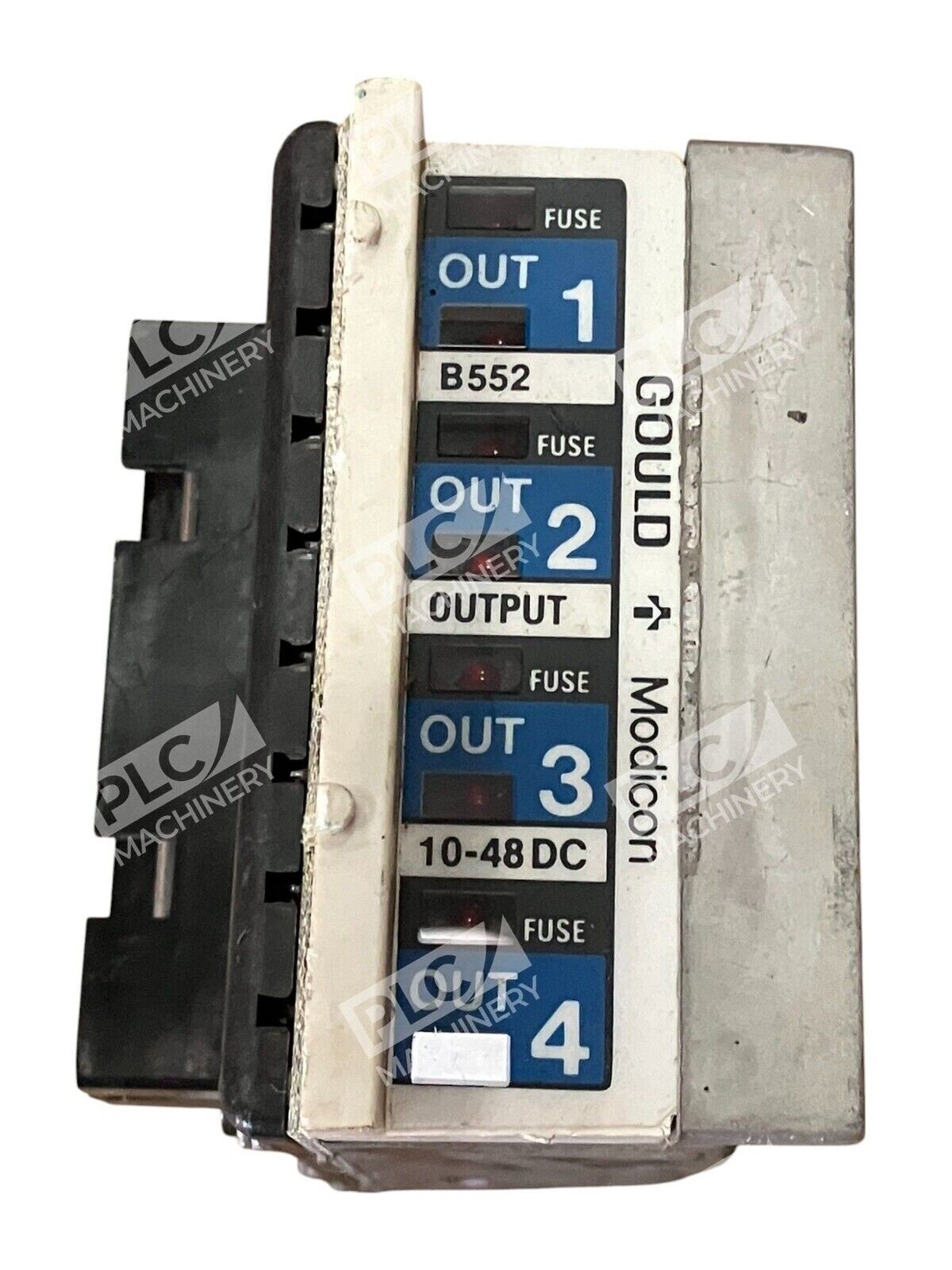

The Gould Modicon B552 is a Universal DC Output Module designed for legacy Modicon PLC systems. This discrete output card conditions four independently useable DC output signals, sharing common source and return connections to signals used internally in the controller. The B552 provides the capability of using discrete output voltages varying from 10-48VDC, making it suitable for industrial control applications requiring reliable discrete DC outputs.
Key Features
- Four independent DC output channels with shared common and return
- Supports 10-48VDC output voltage range
- Universal signal conditioning for discrete control applications
- Designed for Modicon 500 series and compatible legacy platforms
- Compact module format for standard slot mounting
Technical Specifications
The B552 output module is engineered for industrial MRO applications where discrete DC outputs are required for relay coils, solenoids, indicator lights, and similar low-voltage control devices.
Typical Applications
- Legacy Modicon 500 series PLC system expansions
- Discrete DC output control for industrial machinery
- System upgrades and field replacements in existing automation installations
- Control of solenoids, relay coils, and low-voltage indicator devices
Compatibility & Replacements
Compatible With
- Modicon 500 series PLC controllers
- Legacy Modicon-based automation systems
- Standard 16-pin module slot configurations
Replaces / Drop-In Replacement For
- Gould Modicon B552 (exact replacement for failed units)
- AS-B552-001 equivalent modules
Works With
- Modicon Ladder Logic programming environment
- Discrete 10-48VDC control circuits
- Standard PLC output module communication protocols used in legacy systems
