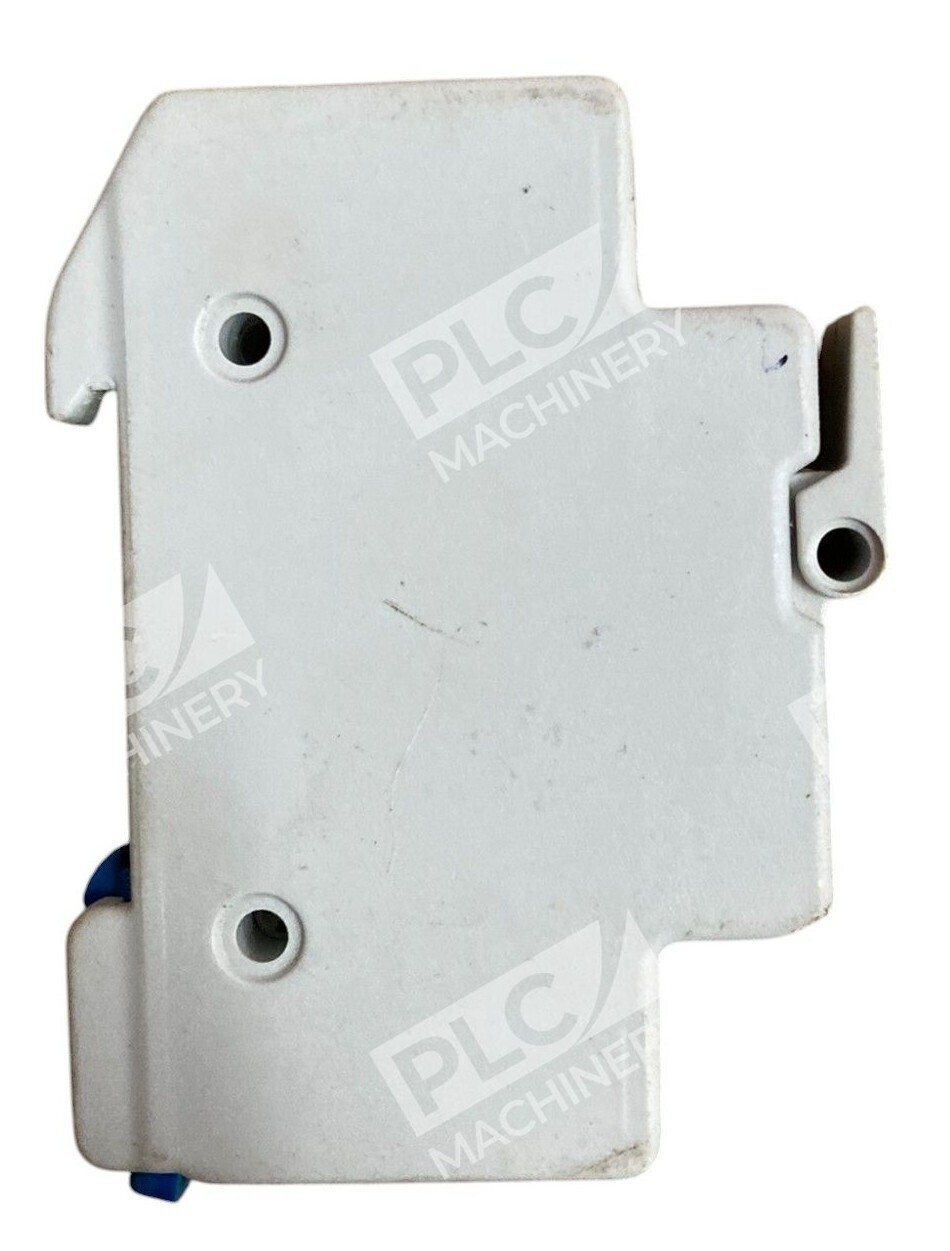

Overview

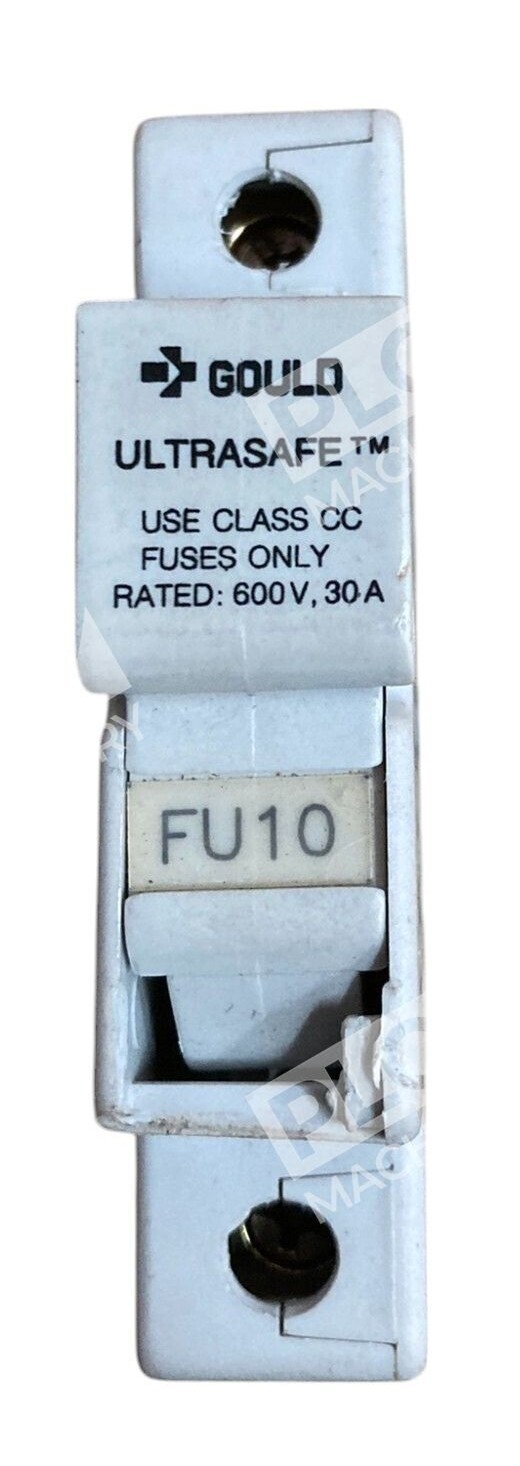

The Mersen USCC1 Class CC UltraSafe fuse holder is a modular, single-pole fuseholder designed for Class CC and midget fuses up to 30 amperes. It qualifies as “fingersafe” under IEC and DIN standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). This holder provides Type “2” no-damage protection—one of the safest fuse protection packages in industrial control and electrical distribution applications.
Key Features
- Tough and durable polyamide body with exceptional insulating properties
- Finger-safe design with IP20 protection rating under IEC and DIN standards
- Saves up to 15% mounting space and snaps onto 35mm DIN rail for faster panel assembly
- Single-pole, no-indicator configuration for clean panel layouts
- Supports Class CC and 1-1/2″ x 13/32″ midget fuses
- Field-expandable: multiple units can be stacked and secured with pin-tie handles

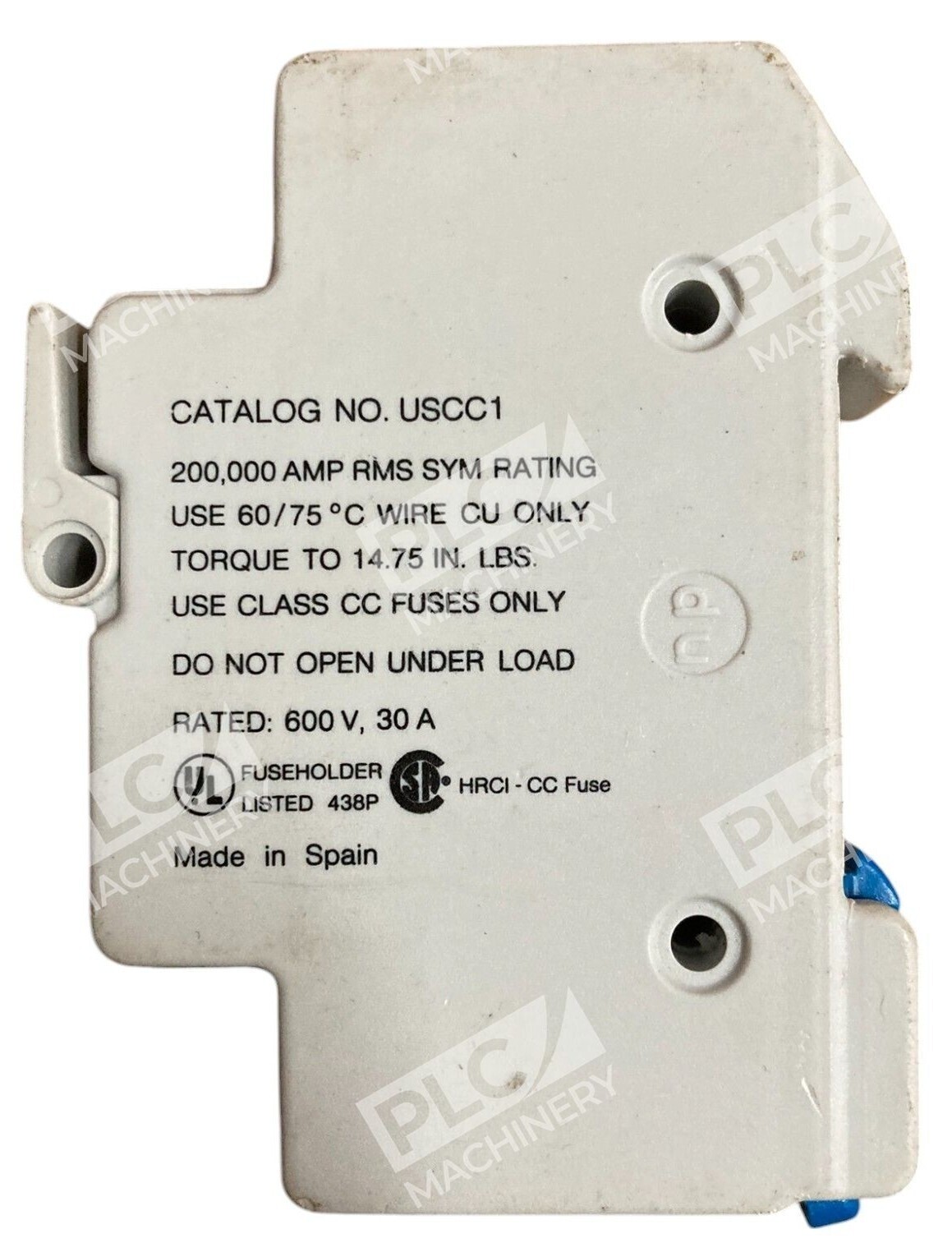

Technical Specifications
- Voltage Rating: 600V AC/DC
- Current Rating: 30A
- Configuration: 1-pole, no indicator
- Fuse Type: Class CC or Midget (1-1/2″ × 13/32″)
- Protection Class: Type “2” No-Damage
- Safety Standard: IEC and DIN finger-safe, IP20
- Wire Range: 14 to 6 AWG
- Mounting: 35mm DIN rail snap-on
- Material: Polyamide (thermoplastic)
- Operating Temperature: -40°C to +85°C
- UPC: 782001829865
Typical Applications
The USCC1 is commonly used in industrial control cabinets, motor starter panels, PLC input/output circuits, and process automation equipment. It provides arc-free fuse protection in crowded panel environments where space savings and worker safety are priorities. Typical installations include machine tool controls, HVAC panels, and packaged equipment protection circuits.
Compatibility & Replacements
Compatible With
- 35mm DIN rail (metric and standard profiles)
- Class CC fuses (limiting type, for Type “2” protection)
- Midget fuses 1-1/2″ × 13/32″ format
- Ferraz Shawmut and Mersen fuse product lines
- Standard industrial control panel wiring (14–6 AWG)
Replaces / Drop-In Replacement For
- Gould USCC1 (original OEM distributor branding)
- Ferraz Shawmut USCC1 (legacy manufacturer name)
- Earlier open-frame Class CC holders where finger-safe design is required
Works With
- ATDR, ATMR, and ATQR series Class CC fuses
- Multi-pole assemblies via pin-tie handles and field stacking
- DIN rail-mounted control circuit protection schemes
- Enclosed and semi-enclosed industrial panel designs
