Overview

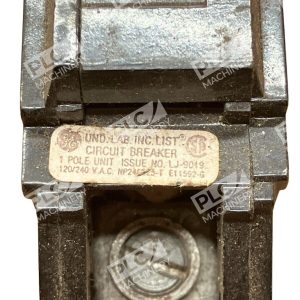

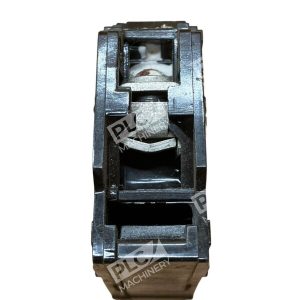

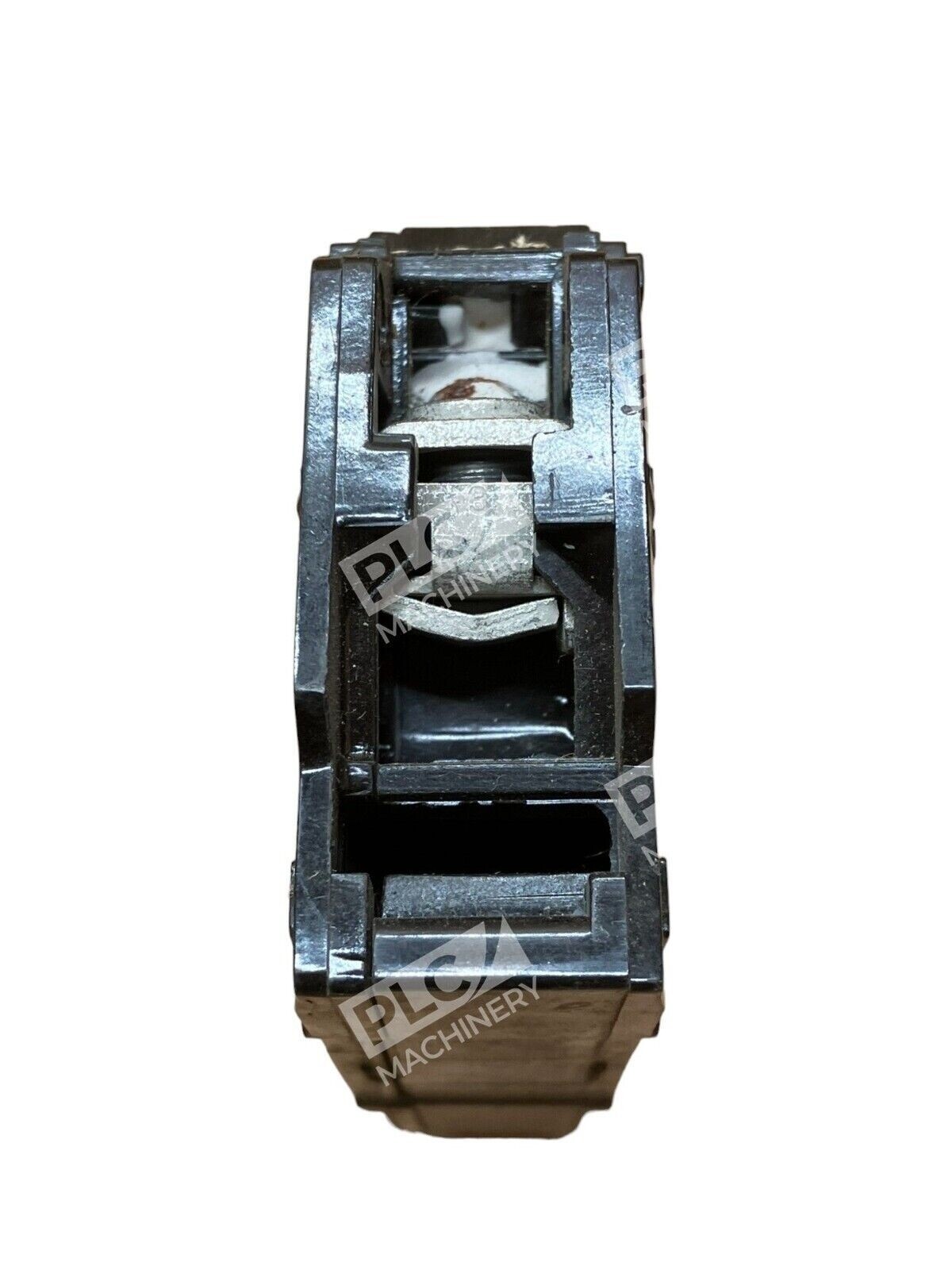

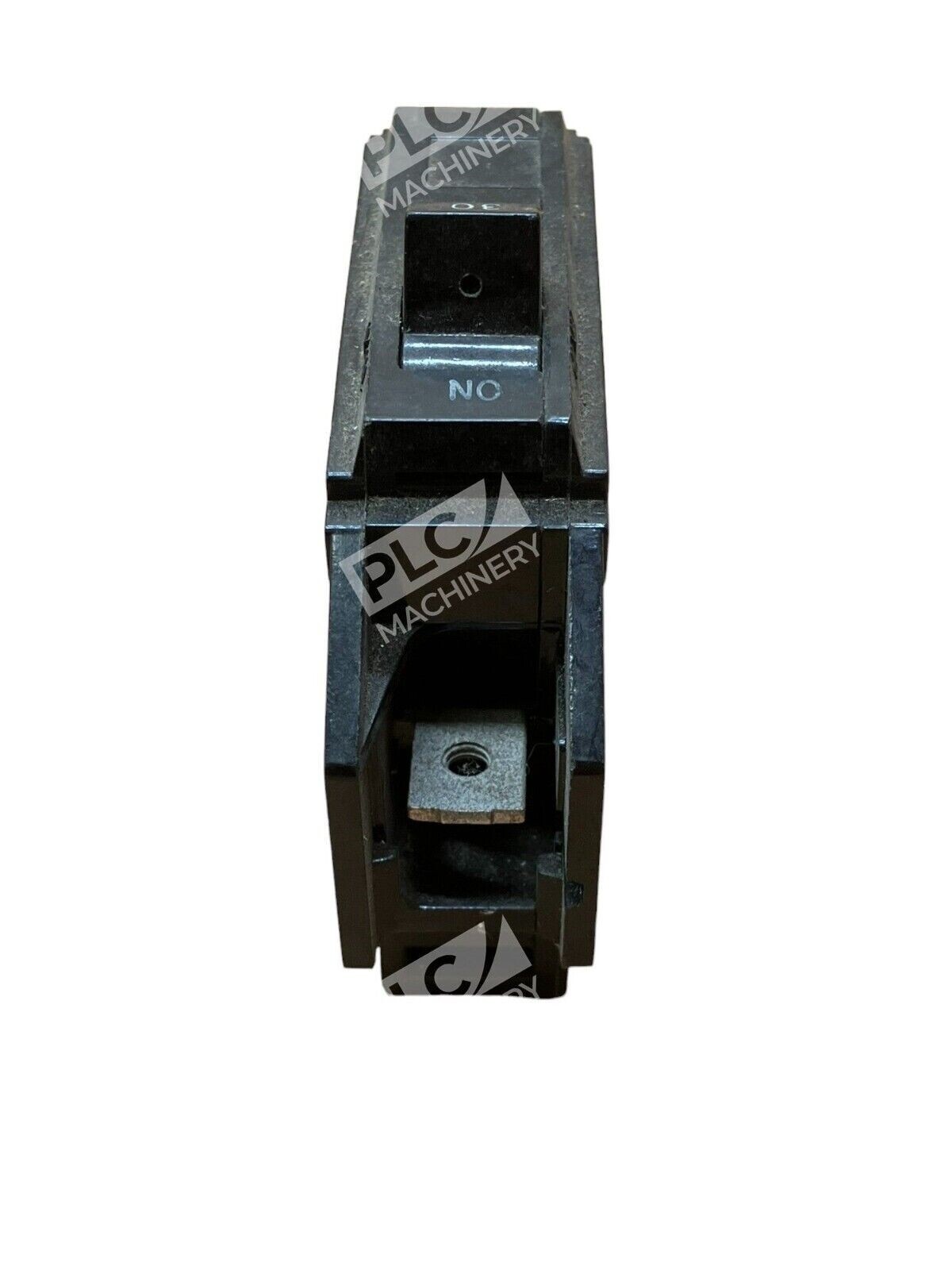

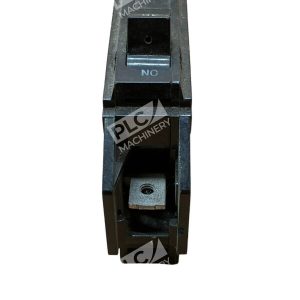

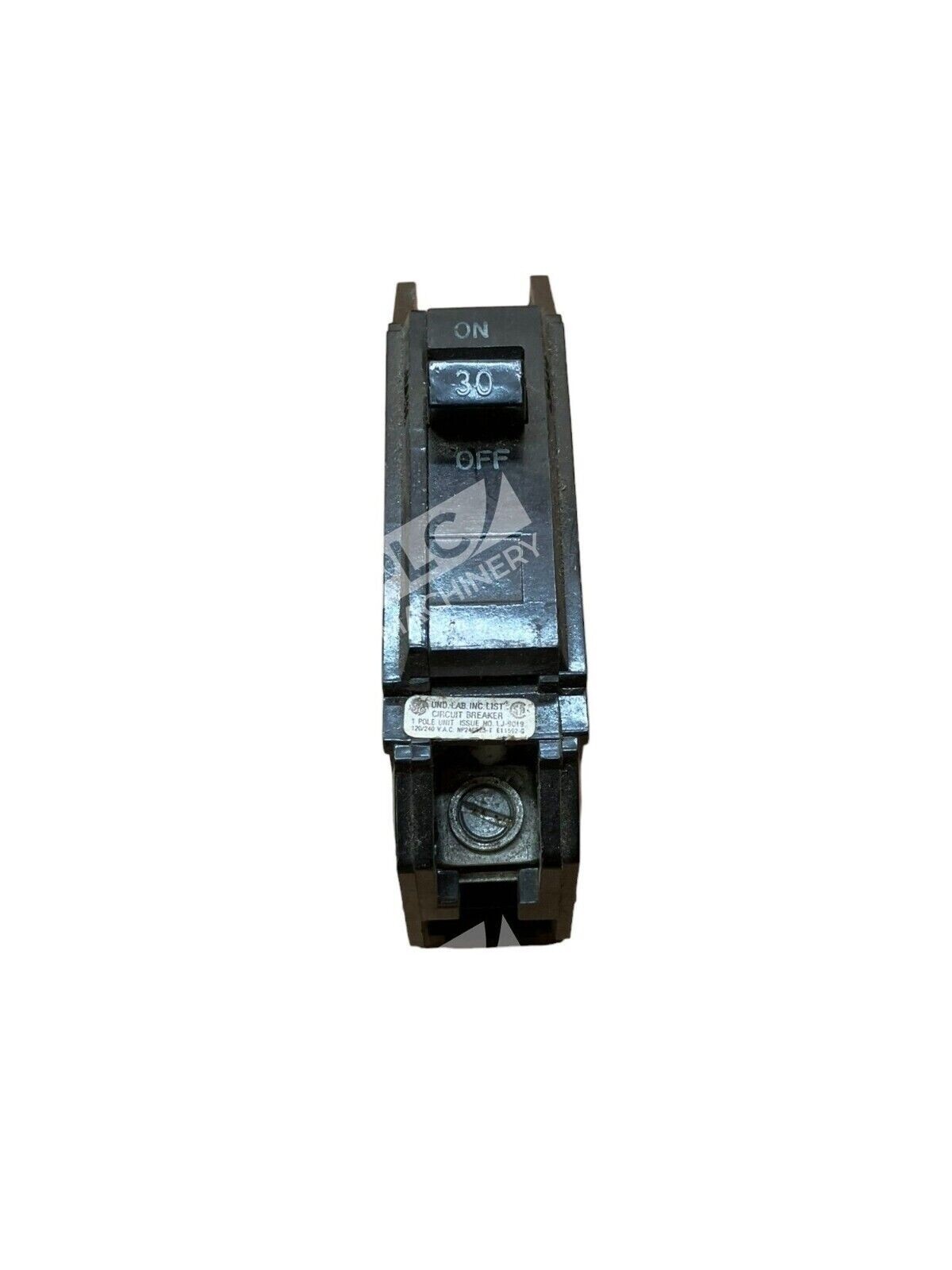

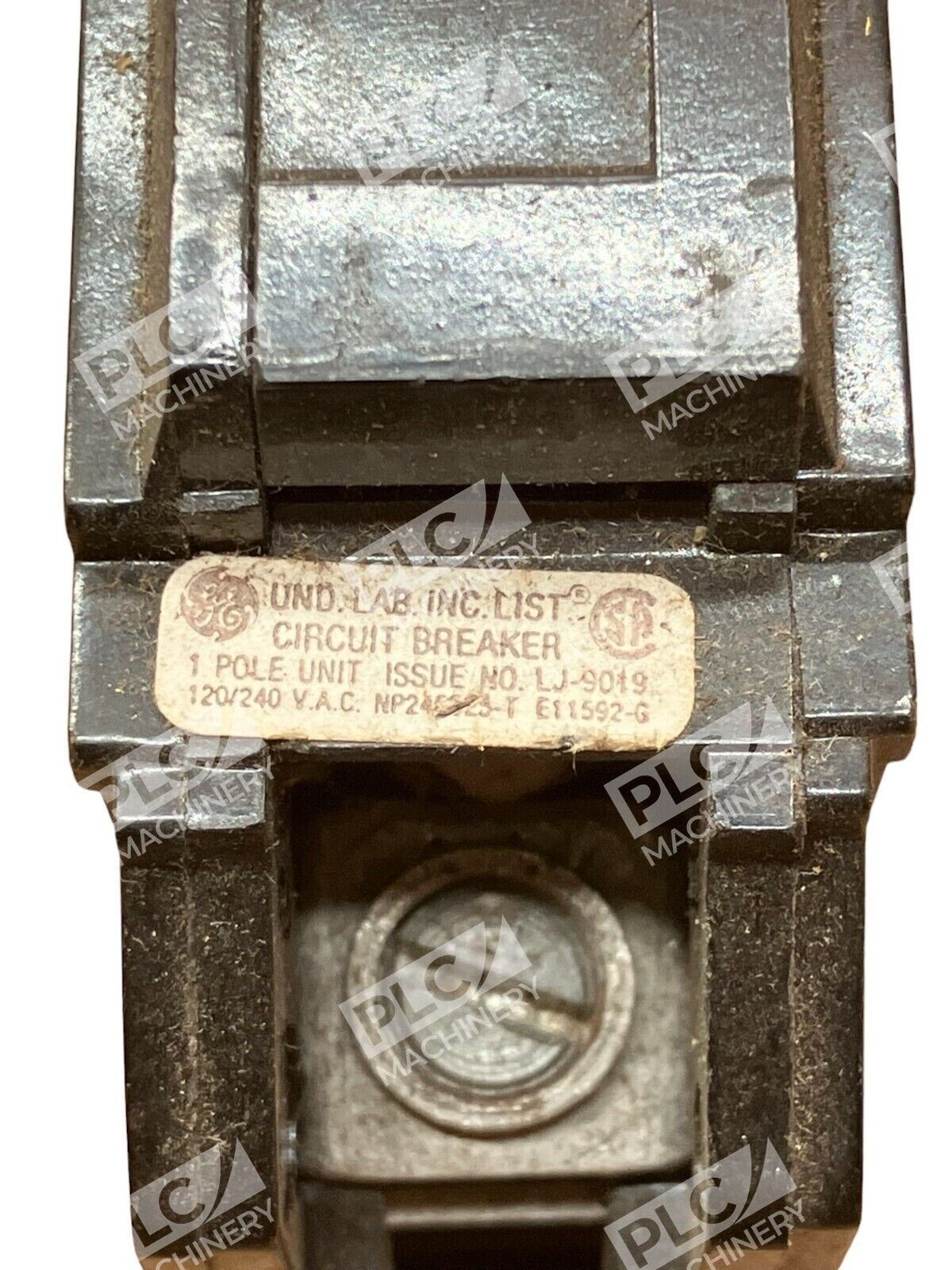

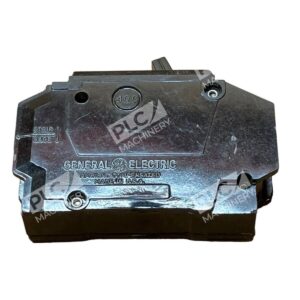

The General Electric LJ-9019 is a 30-ampere, single-pole miniature circuit breaker engineered for residential and light commercial electrical systems. This UL-listed breaker provides dependable thermal-magnetic protection against overcurrent conditions and is designed for plug-on mounting in compatible GE panelboards. The LJ-9019 delivers the safety and reliability expected from General Electric’s established circuit breaker lineup.
Key Features
- Single-pole (1P) configuration for single-phase applications
- 30-ampere rating with thermal-magnetic trip mechanism
- Plug-on (clip-on) mounting design for standard GE panelboards
- UL-listed to UL 489 standards for safety compliance
- Manual reset with visual trip indicator
- Compact design fits standard breaker spaces
Technical Specifications
| Ampere Rating | 30A |
| Number of Poles | 1 (Single Pole) |
| Voltage Rating | 120/240V AC |
| Interruption Rating | 10,000 AIC (at 120V) |
| Trip Type | Thermal-Magnetic |
| Mounting Style | Plug-On (DIN Rail Compatible) |
| Certifications | UL Listed (UL 489) |
| Manual Reset | Yes |
| Wire Connection | Screw Terminal |
Typical Applications
- Residential branch circuit protection
- Light commercial lighting and receptacle circuits
- HVAC compressor circuits (20–30A range)
- Water heater circuits
- General purpose load center protection
Compatibility & Replacements
Compatible With
- General Electric load centers and panelboards
- GE TL (TQL), THQL, and THQB-compatible panel designs
- Standard 120/240V single-phase residential/light commercial panels
- North American electrical codes (NEC compliance)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This unit is designed as a direct replacement for OEM GE LJ-series breakers in compatible panelboards.
Works With
- GE residential load centers and panelboards
- Standard manual switch-operated disconnect equipment
- Residential electrical panel upgrades and retrofits
