Overview

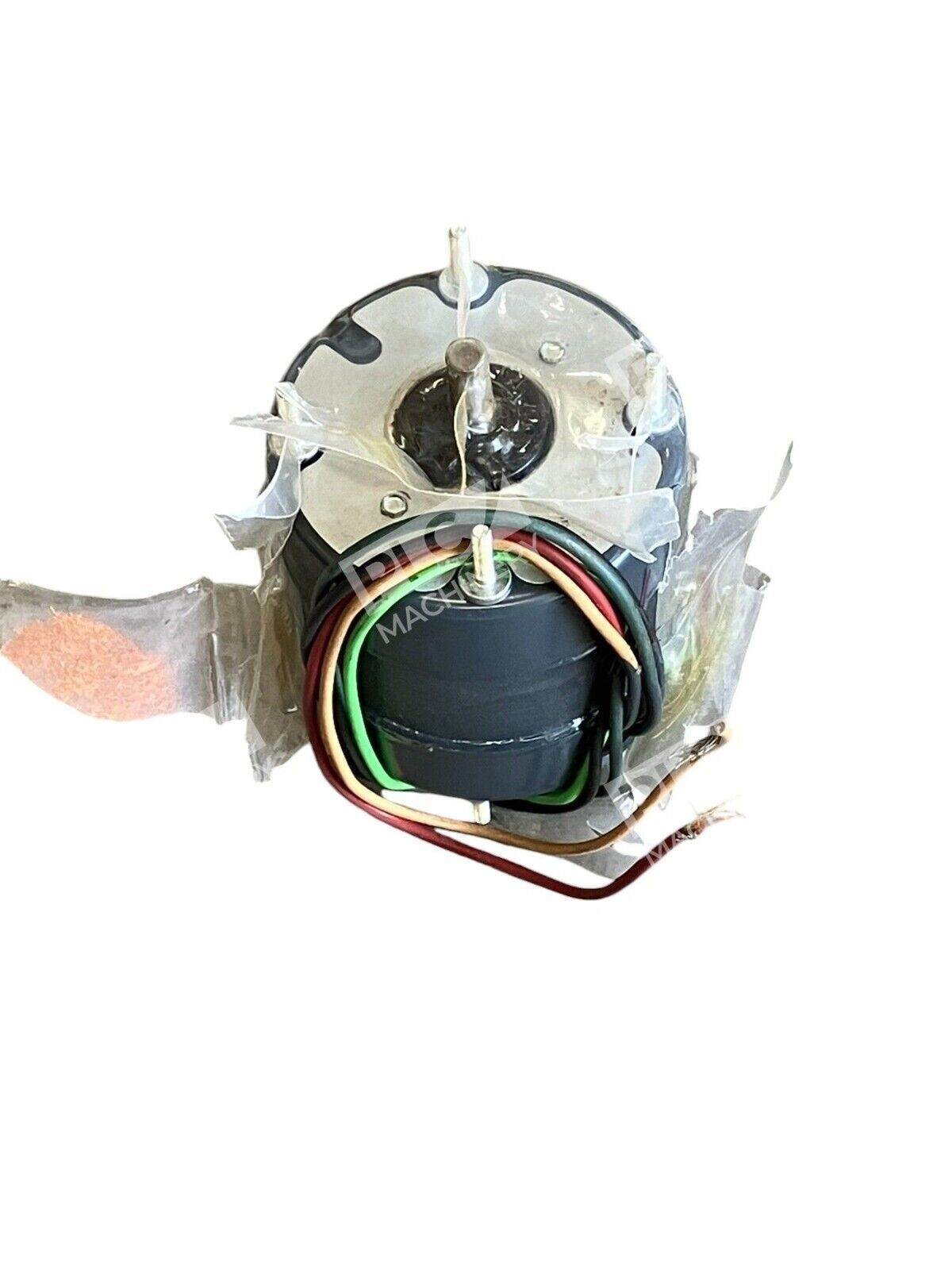

The General Electric 5KSM59LS1628T is a single-phase induction motor engineered for HVAC and refrigeration duty. With a 1/20 HP nameplate and 1.7 ampere rating at 60 Hz, this motor delivers 1550 RPM synchronous output, making it suitable for compressor drives, fan assemblies, and pump applications in both residential and light commercial cooling systems.
Key Features
- Single-phase 60 Hz design for standard North American electrical systems
- 1/20 HP capacity with 1.7 A continuous current rating
- 1550 RPM shaft speed for efficient HVAC and refrigeration operation
- Compact footprint ideal for tight equipment spaces
- General Electric OEM quality and proven reliability across thousands of installations
Technical Specifications
- Manufacturer: General Electric (GE)
- Part Number: 5KSM59LS1628T
- Horsepower: 1/20 HP
- Phase: Single Phase
- Current Rating: 1.7 Amps
- Frequency: 60 Hz
- Speed: 1550 RPM
- Enclosure Type: Open Drip-Proof (typical for 5KSM series)
- Bearing Type: Ball bearings (standard GE construction)
Typical Applications
The 5KSM59LS1628T is commonly found in:
- Residential and light commercial air conditioning units
- Refrigeration equipment and walk-in coolers
- Condenser fan motors
- Evaporator blower applications
- Pump drive duty in cooling circuits
Compatibility & Replacements
Compatible With
- Standard 120 V single-phase 60 Hz circuits
- HVAC systems from major manufacturers: Carrier, Goodman, Trane, York, Lennox, and others
- Refrigeration equipment requiring 1/20 HP fractional motor duty
- Fan and pump assemblies with 1550 RPM speed requirement
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Original equipment manufacturer part numbers and cross-references are available upon request.
Works With
- Capacitor-start designs typical of single-phase HVAC motors
- Standard run capacitors and overload protection circuits
- HVAC control systems and thermostats
- Compressor-mounted or remote motor mounting configurations
