Overview

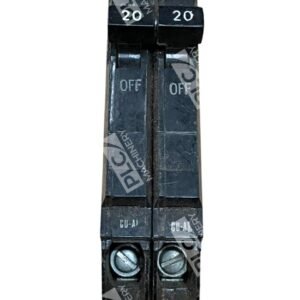

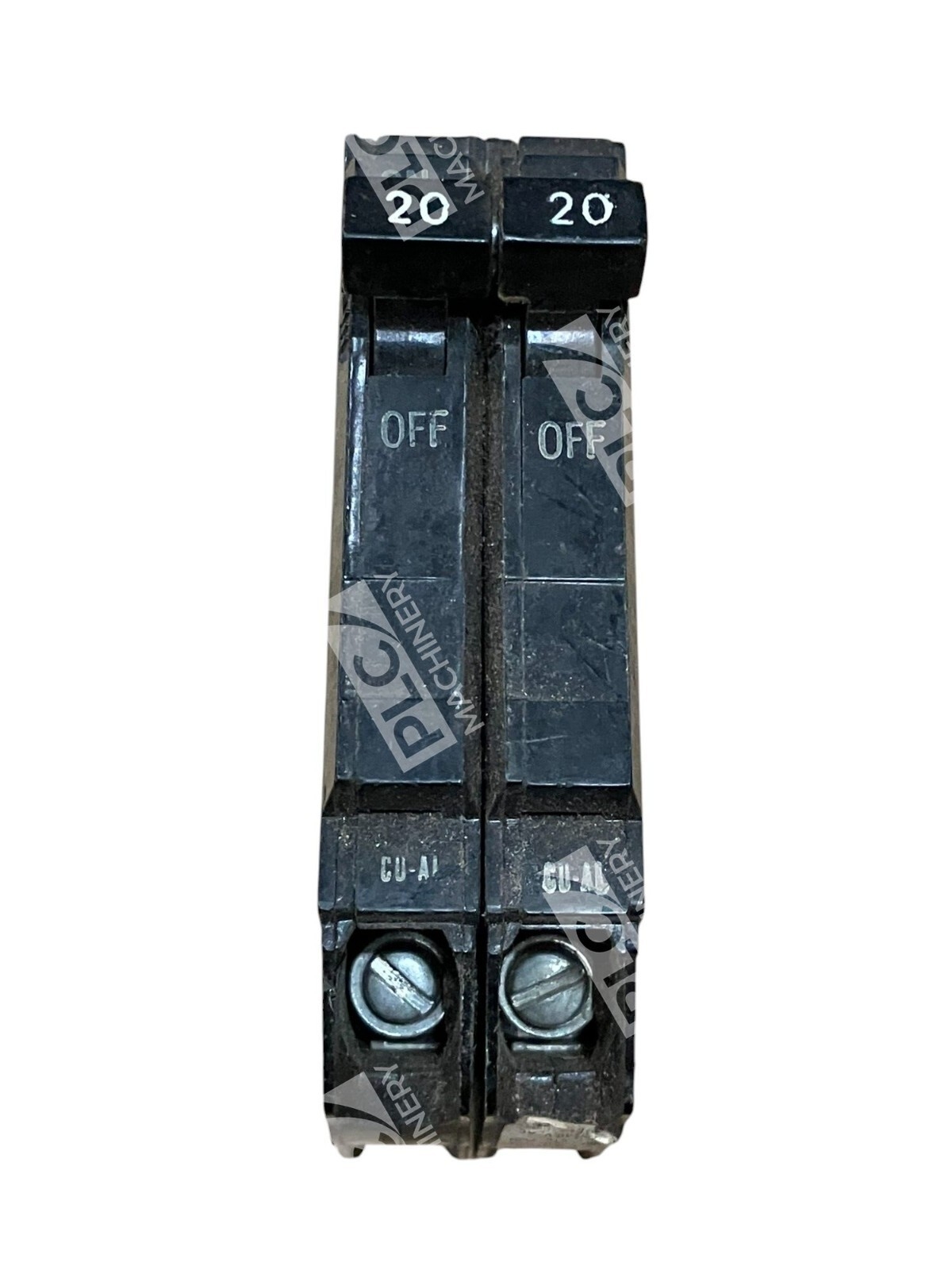

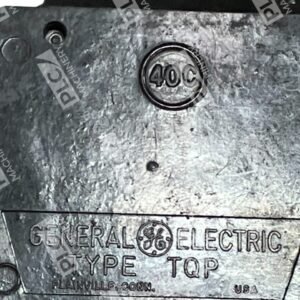

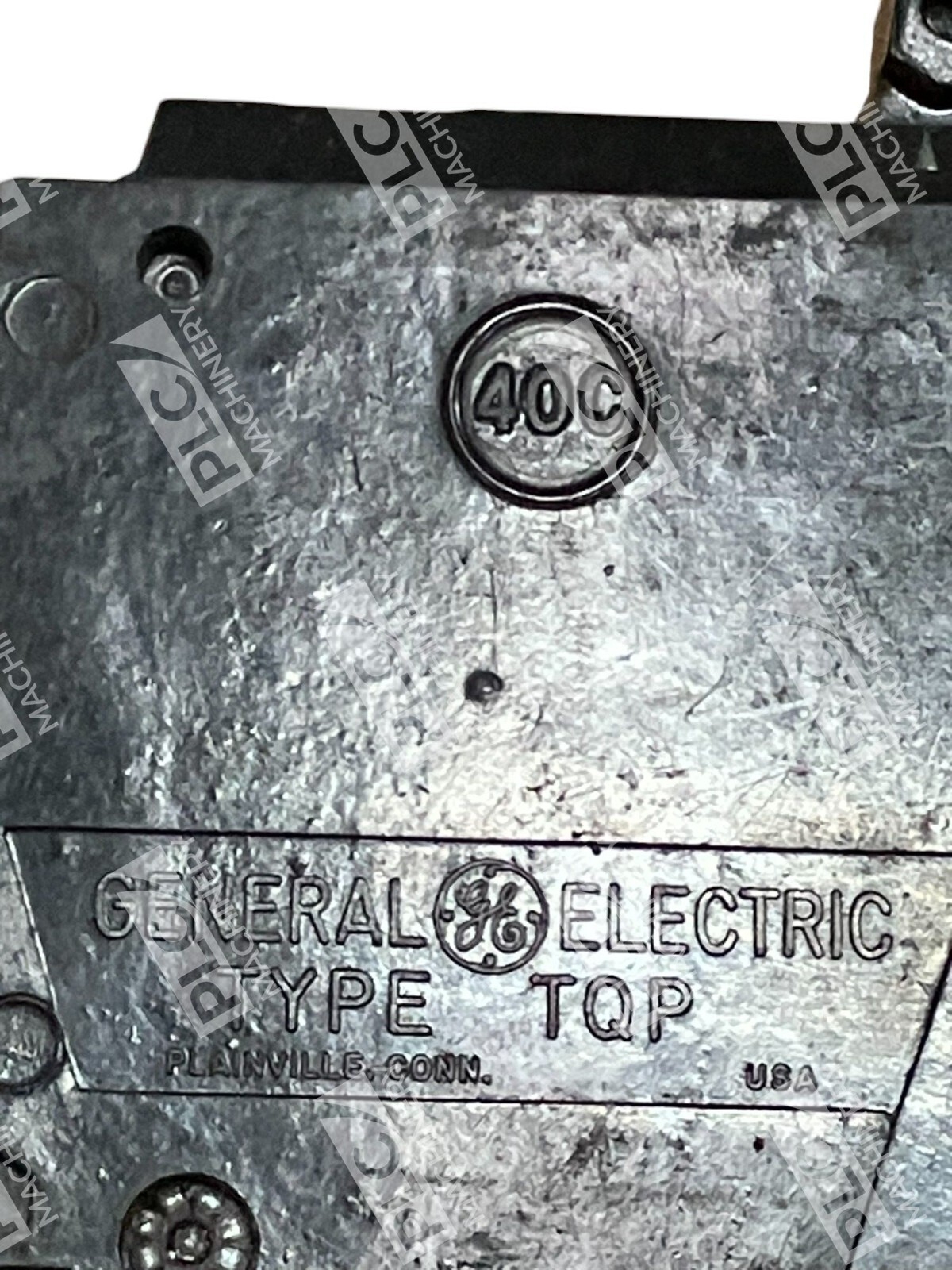

The General Electric THQP220 is a 2-pole, 20-amp molded-case circuit breaker designed for residential and light commercial electrical systems operating at 120/240V. This breaker combines thermal and magnetic trip elements to detect both overload and short-circuit conditions, disconnecting power instantly when faults occur. THQP breakers are a smaller, smarter solution that are half the width of standard breakers and allow the use of smaller load centers. The THQP220 delivers consistent, dependable protection with UL-listed thermal-magnetic technology.
Key Features
- Two breakers fit in the place of one full-size unit — compact 1-inch width design saves space in load centers
- Supports 14 to 8 AWG copper or 12 to 8 AWG aluminum wire for flexible installation
- Printed face designation simplifies circuit tracking and maintenance
- Plug-in mounting for quick, tool-free installation and replacement
- Internal common trip for synchronized 2-pole operation

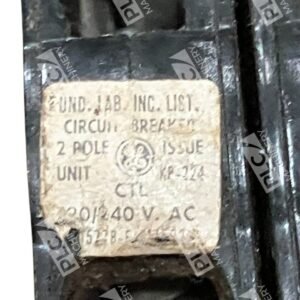

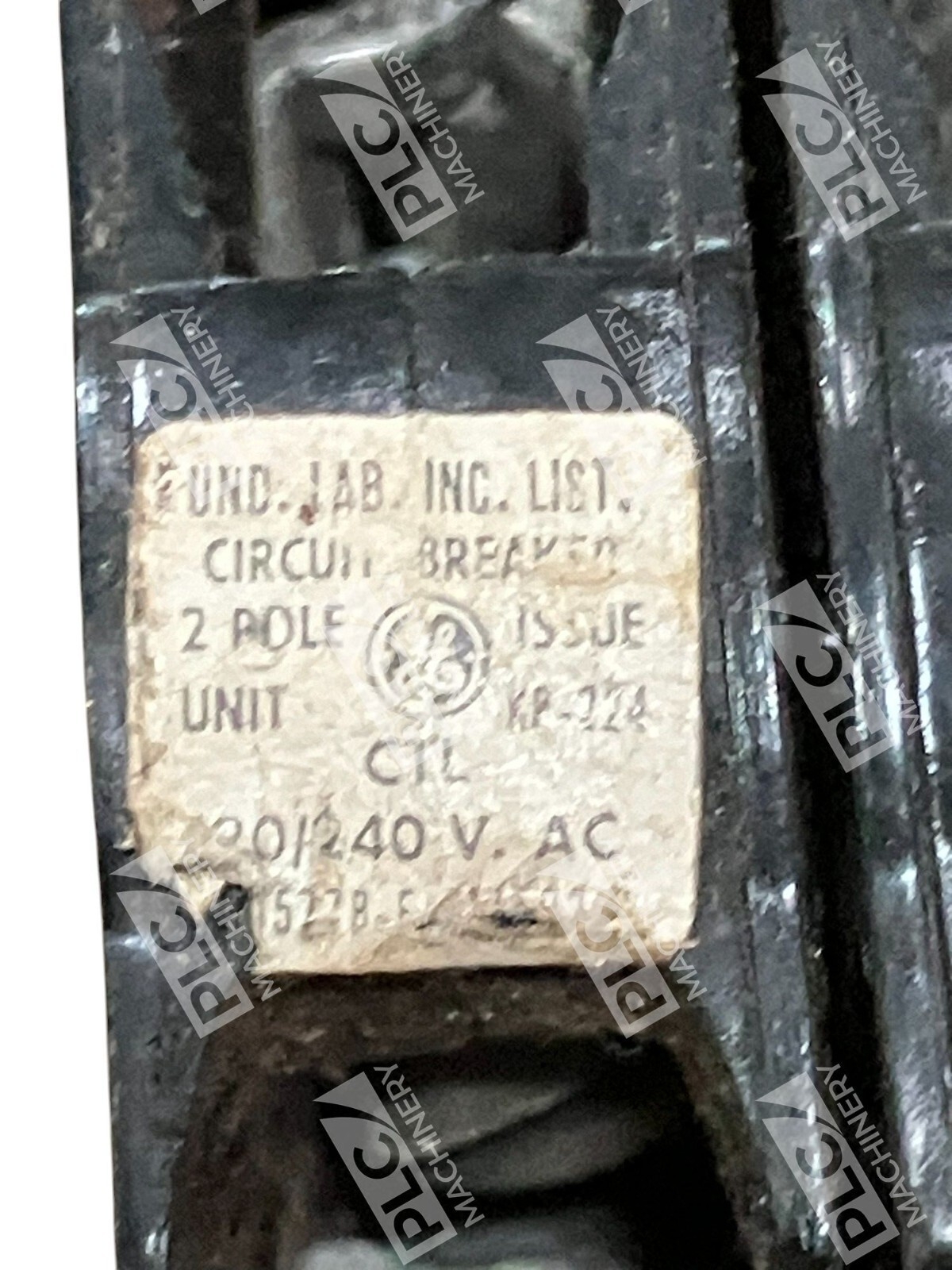

- UL listed and CSA approved for safety compliance
Technical Specifications
- 2-Pole configuration with 20-amp rating
- Voltage: 120/240V AC, single-phase
- 10,000 Ampere interrupting rating
- Dimensions: 1 in. W × 2⅜ in. D × 3⁹⁄₃₂ in. H
- Trip type: Thermal-magnetic with long-time and instantaneous functions
- Connection: Plug-in, box lug load terminal
- Wire gauge: 14–8 AWG copper; 12–8 AWG aluminum
- Series: THQP (Spacesaver/Half-Size)
Typical Applications
Ideal for heating, air conditioning, and refrigeration systems. The THQP220 is suitable for branch circuits in residential panels, light commercial installations, and renovations where space constraints favor compact breaker designs. Common uses include protecting circuits for lighting, receptacles, and small motor loads in 120/240V single-phase distribution panels.
Compatibility & Replacements
Compatible With
- General Electric residential load centers and panels
- GE PowerMark circuit breaker enclosures
- 120/240V single-phase electrical systems
- Standard 3-wire services (two hot legs + neutral)
Replaces / Drop-In Replacement For
- General Electric TQP220 (original standard-width model)
- Other GE 20A 2-pole breakers requiring half-size form factor
Works With
- GE residential and light commercial load centers rated for THQP series breakers
- Standard thermal-magnetic trip protection ecosystems
- All line voltage monitoring and overcurrent protection systems compatible with 120/240V service entrance equipment
