Overview

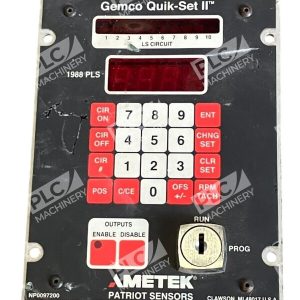

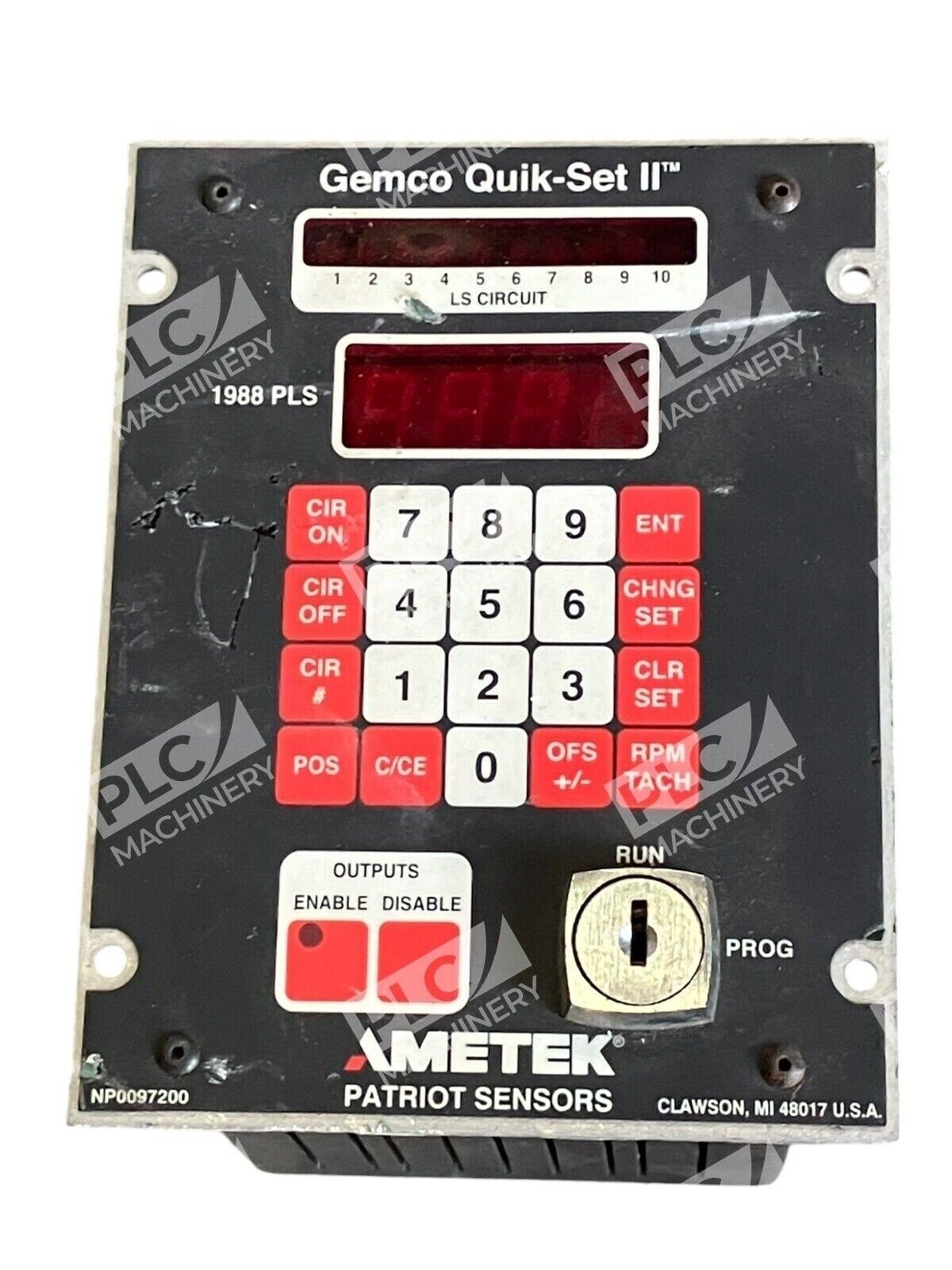

The Gemco 1988-M-10-XL1 is a Quik-Set II PLS (Position and Limit Switch) module part of Gemco’s legacy positioning control platform. Built by Gemco McGraw Edison, the 1988 series was designed to process resolver feedback and execute precise positioning in industrial machine control applications. This unit is discontinued but remains available in the surplus market for legacy system repairs and replacements.
Key Features
- Quik-Set II platform—proven industrial positioning module
- Resolver feedback input support (standard Gemco output compatible)
- Electronic control module for position and limit switching
- Modular design integrates with Gemco control networks
- Discontinued model—available only through surplus and refurbished inventory
Technical Specifications
- Manufacturer: Gemco McGraw Edison
- Product Line: Quik-Set II PLS

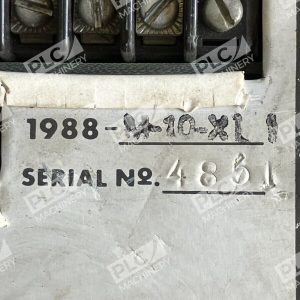

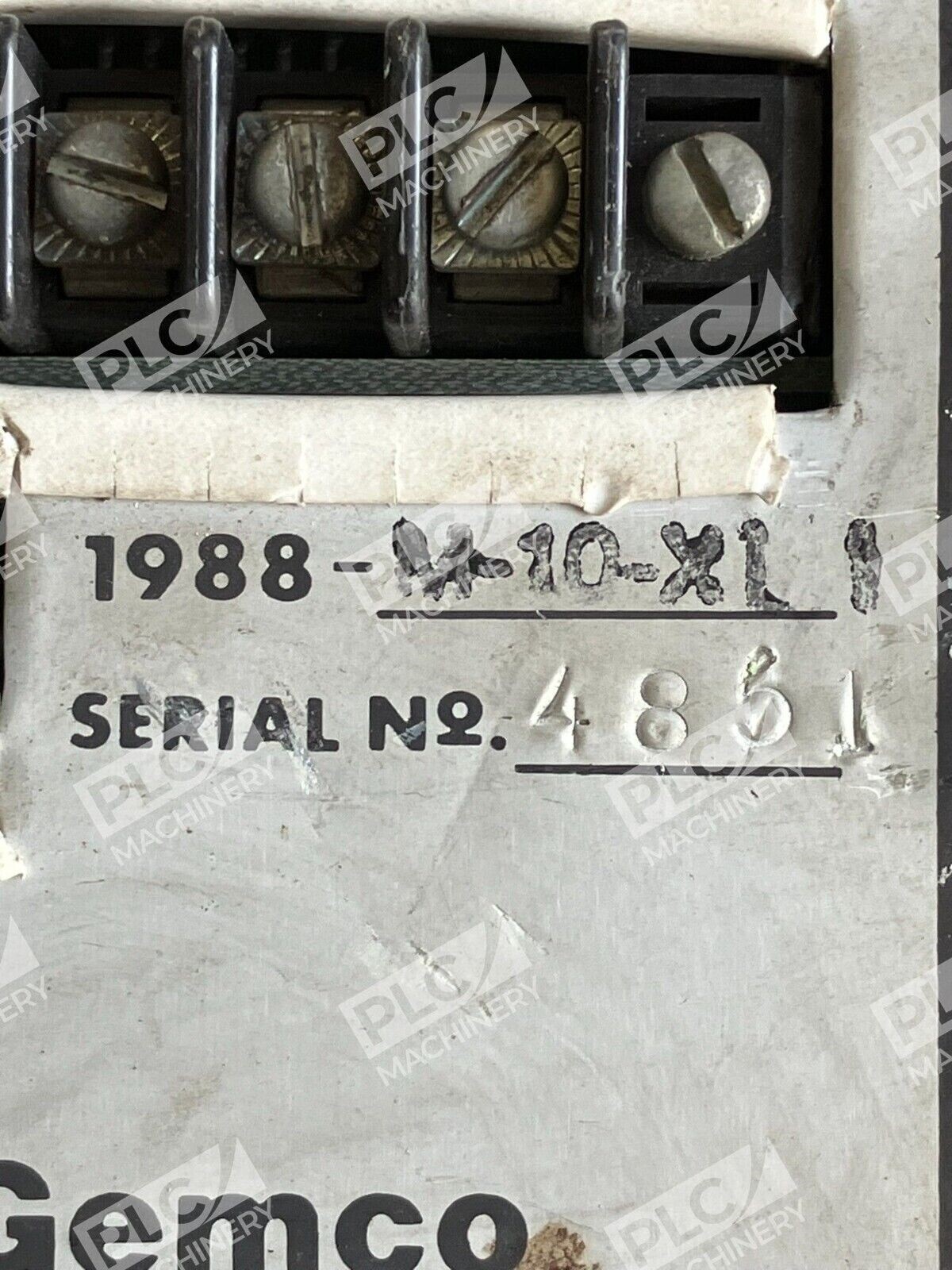

- Model Number: 1988-M-10-XL1
- Part Category: Positioning & Limit Switch Module
- Function: Resolver input processing, position feedback
- Status: Discontinued by manufacturer
- Compatible Resolvers: Gemco standard resolver output modules
- Typical Application Voltage: Varies by circuit integration (verify datasheet)
Typical Applications
The Gemco 1988 PLS module is used in legacy industrial automation systems requiring precise position feedback and limit switching. Common applications include:
- CNC machining centers and turning centers
- Automated assembly and material handling systems
- Packaging machinery with resolver-based position sensing
- Multi-axis motion control platforms
- Replacement of failed units in existing Gemco Quik-Set II systems
Compatibility & Replacements
Compatible With
- Gemco Quik-Set II control system networks
- Standard Gemco resolver feedback cables (straight and right-angle connectors available)
- Gemco 1989, 1991, 1992 PLS modules (system integration)
- Legacy industrial motion control platforms using Gemco modules
Replaces / Drop-In Replacement For
- Gemco 1988-M-10-XL1 (exact model replacement)
- Other 1988 series variants in Quik-Set II systems
Works With
- Gemco resolver modules and feedback systems
- Standard resolver cables with Gemco connector pinout
- Quik-Set II platform infrastructure and power supplies
- Legacy industrial control networks integrating Gemco PLS modules
- Note: Verify compatibility with your system integrator or OEM before ordering. This is a discontinued product; documentation may be limited.
