Overview

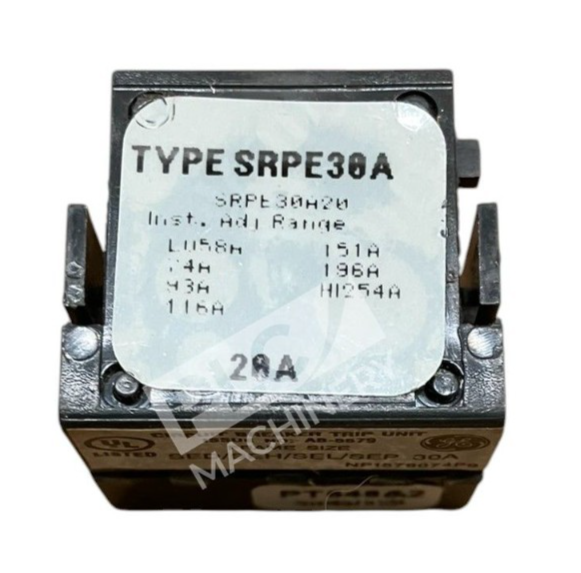

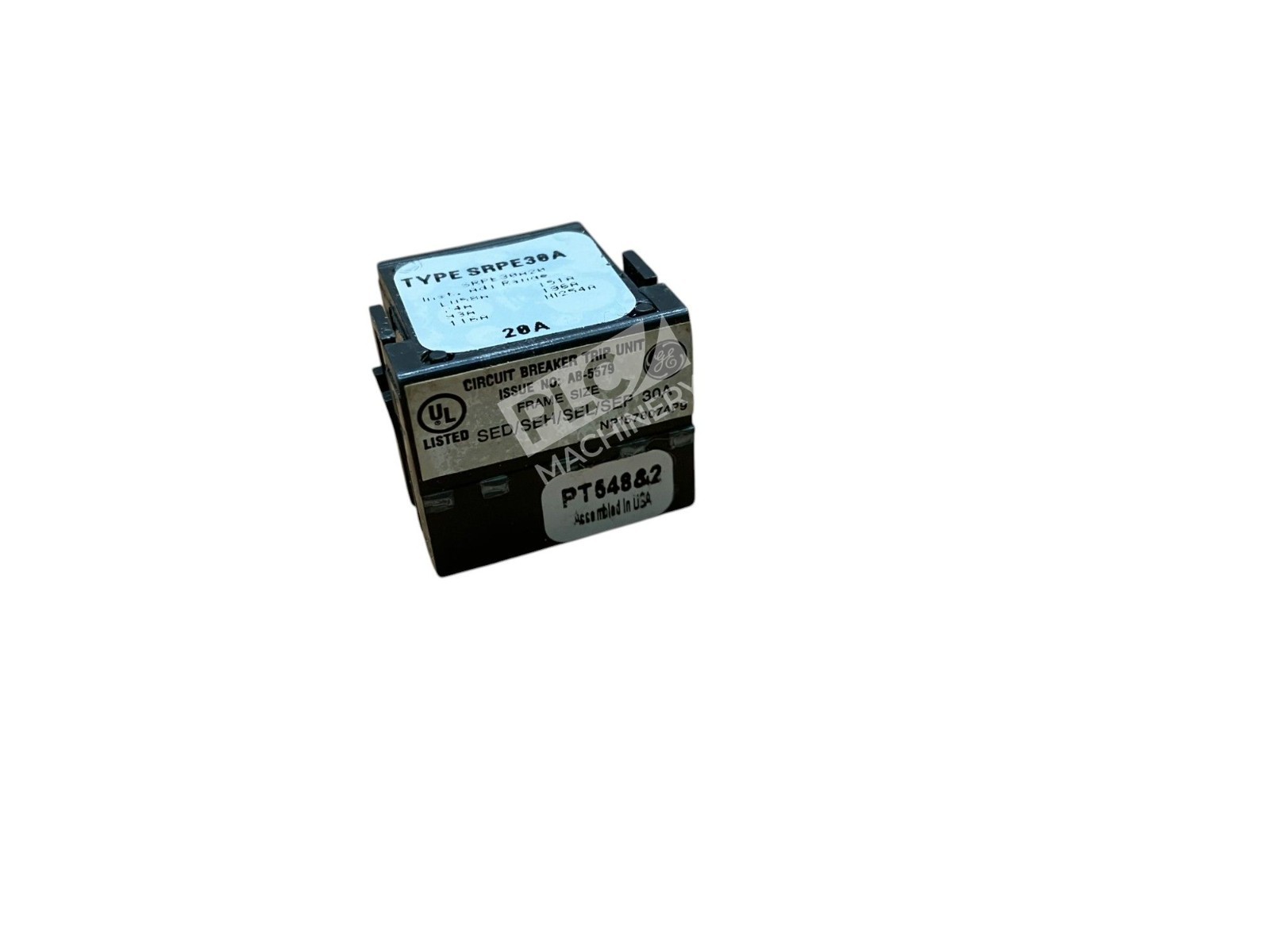

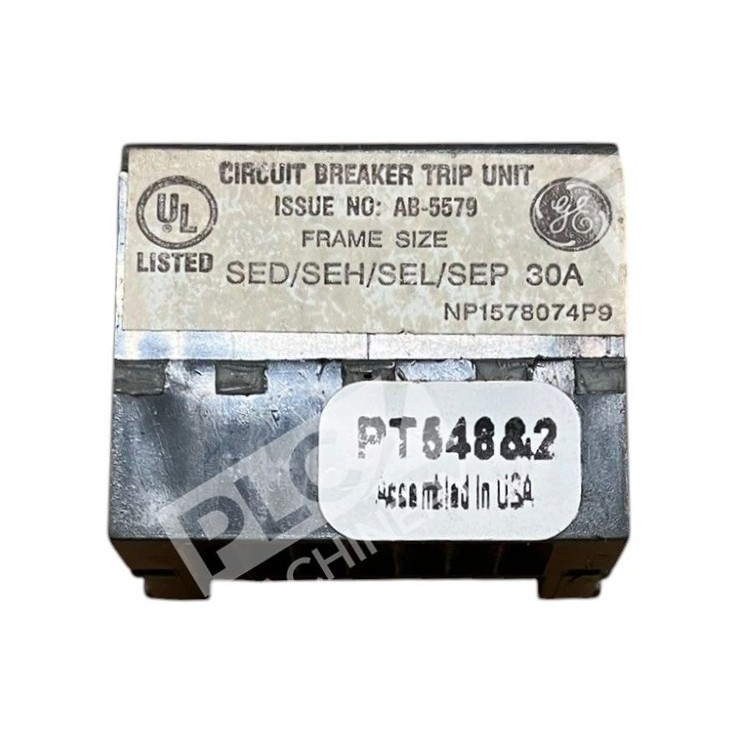

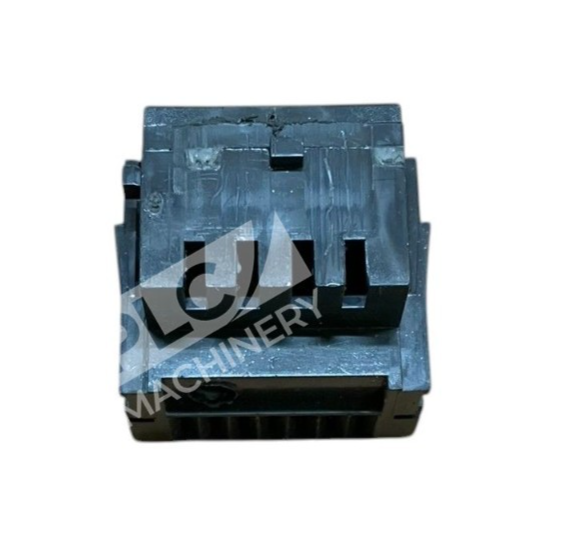

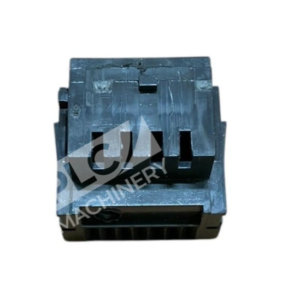

The GE SRPE30A20 is an interchangeable rating plug designed for Spectra RMS and Power Break II circuit breakers. This SRPE-type rating plug is rated for 20A and suitable for use with the 30A sensor rating on SE series SEDA, SEHA, SELA, SEPA molded case circuit breaker frame types. All Spectra, Power Break, and Power Break II circuit breakers use UL-listed interchangeable rating plugs to establish or change the long time trip point of the circuit breaker.
Key Features
- UL-listed interchangeable rating plugs can be easily swapped across different permissible current ratings within a circuit breaker frame, allowing for quick adjustments and enhanced operational efficiency
- 480VAC rating with 58–254A adjustable instantaneous trip range
- Compatible with all MICROVERSATRIP-PLUS and MICROVERSATRIP-PM trip units
- Solid state electronic trip element for reliable protection against overloads and short circuits
- The installed rating plug establishes the ampere rating of the breaker; the National Electric Code allows cable size to be matched to the ampere rating established by the rating plug
Technical Specifications
- Plug Current Rating: 20A
- Maximum Breaker Current: 30A
- Voltage Rating: 600VAC
- Adjustable Instantaneous Trip Range: 58 to 254 amperes
- Frame Type: SE150
- Series: Spectra RMS
- Trip Type: Electronic (MICROVERSATRIP-PLUS, MICROVERSATRIP-PM)
- Approvals: UL, CSA
- Weight: 0.01 lbs
Typical Applications
The SRPE30A20 is suitable for commercial, industrial, and residential applications where circuit breakers must accommodate varying electrical loads and ensure the integrity of the electrical system. This rating plug is ideal for facilities requiring flexible, adjustable circuit protection with the ability to change ampere ratings without replacing the entire breaker assembly.
Compatibility & Replacements
Compatible With
- GE Spectra RMS circuit breakers
- GE Power Break II circuit breakers
- SE series molded case breaker frames: SEDA, SEHA, SELA, SEPA
- SE150 frame type breakers
- EtherNet/IP and industrial automation networks
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The SRPE30A20 is a 20A rating plug assembly; confirm your breaker frame accepts SR-series rating plugs before purchase.
Works With
- MICROVERSATRIP-PLUS solid state electronic trip units
- MICROVERSATRIP-PM trip units
- GE Spectra RMS breaker line
- Power Break and Power Break II breaker families
