Overview

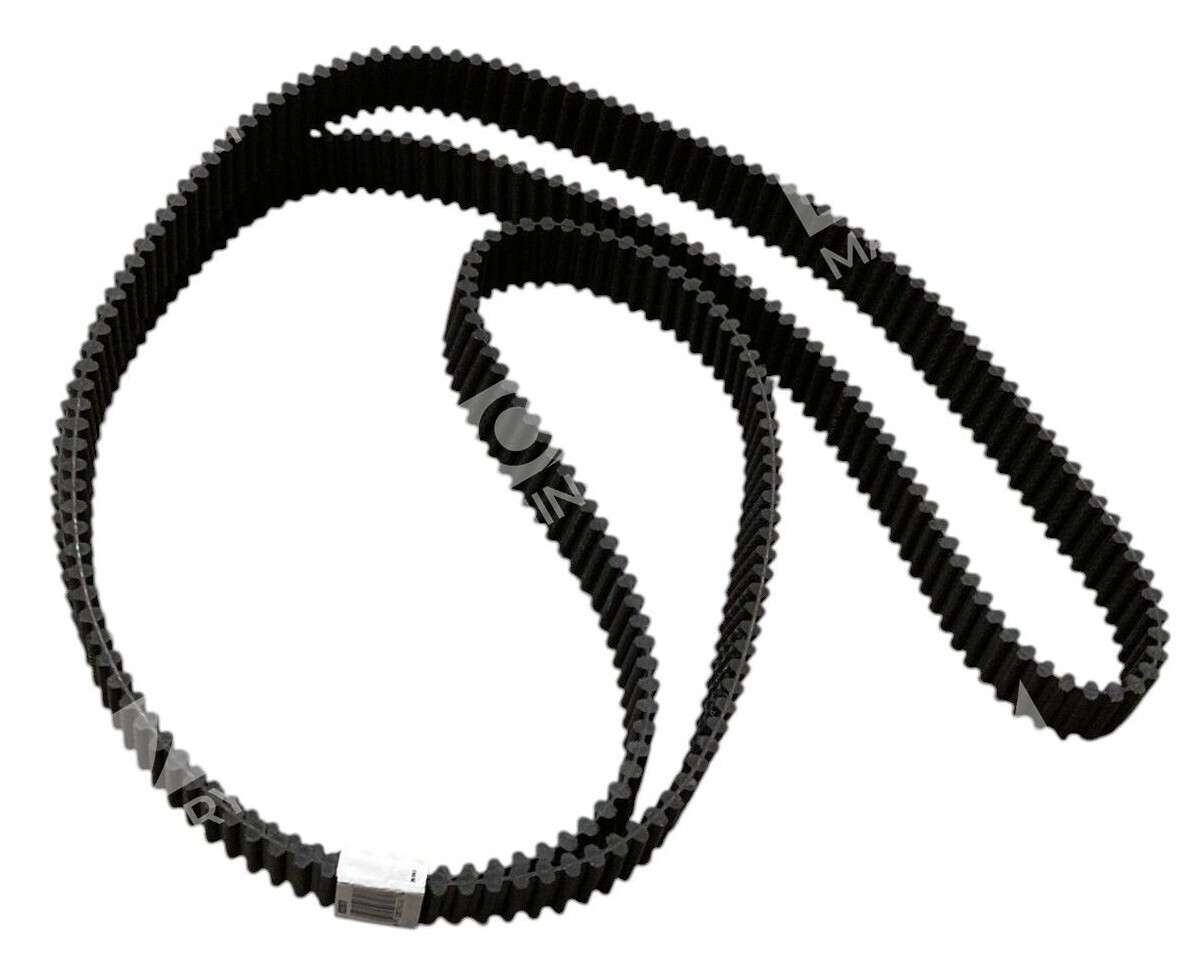

The Gates TP2450-08M timing belt is part of the PowerGrip GT2 series, a proven line of synchronous belts engineered for high-precision motion control in industrial and automation systems. PowerGrip GT2 Twin Power Belts feature dual-sided teeth to provide equal load carrying capacity on either belt surface, enabling synchronization from both driving surfaces. This design allows operators to run the belt in either direction, making it ideal for bidirectional drive systems.
Key Features
- Designed to perform at high speeds and characterized by low-running noise, with a larger tooth profile for increased performance capacity
- Fiberglass tensile cord provides high strength and high stretch resistance with double loading capacity over equivalent Twin Power PowerGrip HTD
- Neoprene body resists moisture and contaminants
- Deep, modified curvilinear tooth profile increases the contact area between the belt and pulley, improving load distribution and reducing the chance of ratcheting
- Fully operational in temperature extremes of -22°F / -30°C to +212°F / +100°C
- No lubrication required—reduces maintenance versus chain or gear drives
Technical Specifications
- Belt Length: 2450 mm
- Belt Width: 8 mm
- Tooth Pitch: 2 mm (GT2 standard)
- Belt Type: Dual-sided PowerGrip GT2
- Material: Neoprene body with fiberglass tensile cord
- Operating Temperature: -22°F to +212°F (-30°C to +100°C)
- Manufacturer Part Number: 92320070
Typical Applications
Ideal for applications requiring a strong balance of torque transmission and accurate positioning, including:
- Robotic and automation equipment
- Printing and packaging machinery
- Linear motion drives
- Precision indexing systems
- CNC routing and motion control tables
- Food processing and industrial conveyor systems
Compatibility & Replacements
Compatible With
- Gates PowerGrip GT2 2mm-pitch sprockets and pulleys
- Gates GT2 and GT3 series components
- Standard GT2 synchronous drive systems
- Dual-direction drive configurations
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This specific belt dimension (2450 x 8mm) may be a custom or specialty order—consult manufacturer documentation or your controls technician to confirm replacement compatibility with your system.
Works With
- Gates PowerGrip sprocket tooling and drive design software
- Standard GT2 tensioning and idler systems
- Any motion control application using 2mm-pitch synchronous belts
- Chains and gear replacements in bidirectional drive systems
