Overview

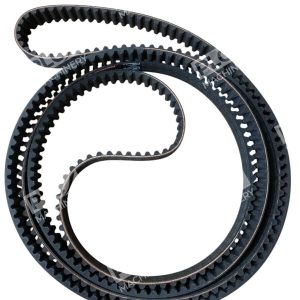

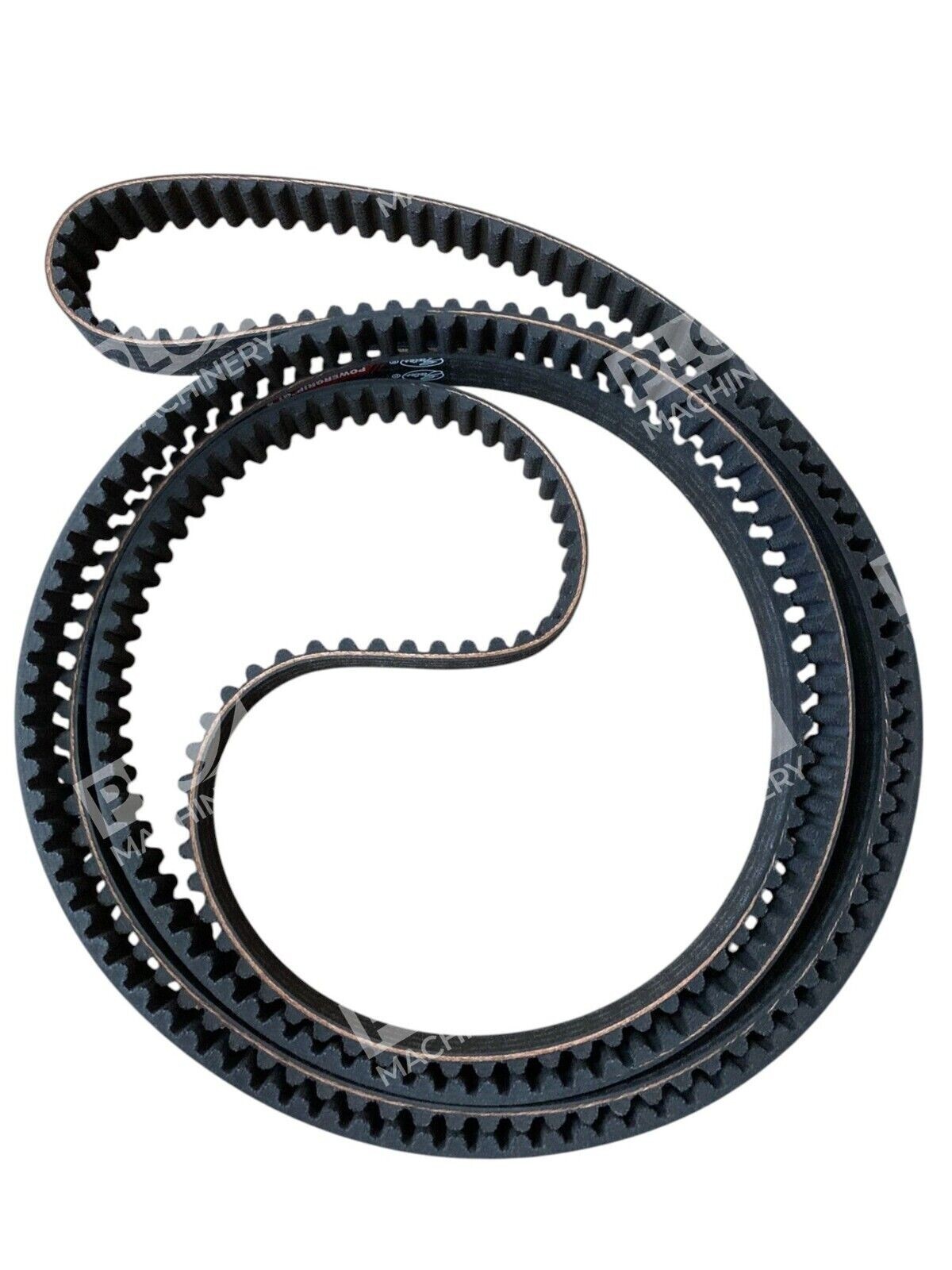

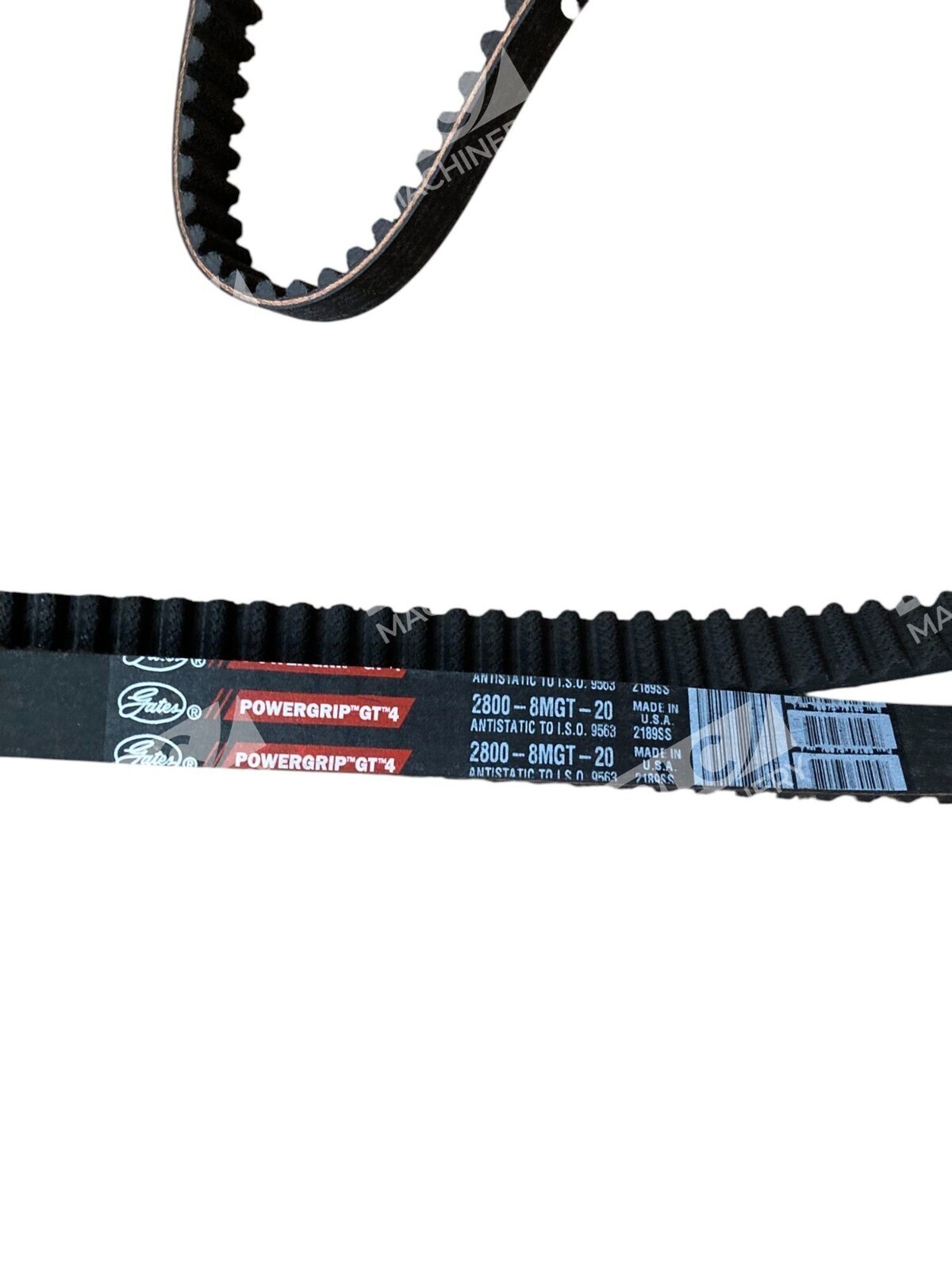

The Gates 2800-8MGT-20 is a precision synchronous timing belt engineered for demanding industrial automation and motion control applications. This PowerGrip GT4 belt delivers the highest power-carrying capacity in its class with increased chemical resistance and larger temperature range capability. With a length of 2800 mm and 8mm pitch profile, this belt provides reliable, low-maintenance power transmission across a broad range of industrial equipment.
Key Features
- Modified curvilinear (GT) tooth profile for increased power capacity and improved tooth shear resistance
- Neoprene body compound with fiberglass cord tensile members and nylon tooth facing
- Eliminates the need for lubrication and re-tensioning, reducing maintenance
- Optimum choice for high-performance drives in machine tool, paper, and textile industries
- Operating temperature range -30°F to 185°F
Technical Specifications
- Belt Type: Synchronous Timing Belt (GT4)
- Pitch Profile: 8MGT
- Pitch: 8 mm
- Length: 2800 mm
- Width: 20 mm
- Number of Teeth: 350
- Pitch Length: 110.24 inches
- Body Material: Neoprene
- Reinforcement: Fiberglass cord
- Tooth Facing: Nylon
- Color: Black
- Temperature Range: -30°F to 185°F
Typical Applications
This PowerGrip timing belt is suitable for many applications such as HVAC systems, pumps, compressors, centrifuges, machine tools, food processors, conveyors, packaging systems, laundry equipment, pulp and paper processors, and agricultural equipment. The 8MGT pitch is particularly valued in industries requiring high-performance drives with minimal maintenance downtime.
Compatibility & Replacements
Compatible With
- Gates PowerGrip GT2 and GT4 sprockets (8mm pitch groove profile)
- Industrial synchronous belt drive systems
- Standard timing belt pulleys with 8MGT tooth profile
- Machine tool and automation drive systems
Replaces / Drop-In Replacement For
- 2800-8MGT-20 (exact part match)
- Other Gates 2800mm synchronous belts with same specifications upon verification
Works With
- Gates PowerGrip GT2 and GT4 sprocket systems
- Standard industrial synchronous belt drive assemblies
- HVAC, conveyor, and manufacturing automation equipment
- Paper processing and textile machinery
