Overview

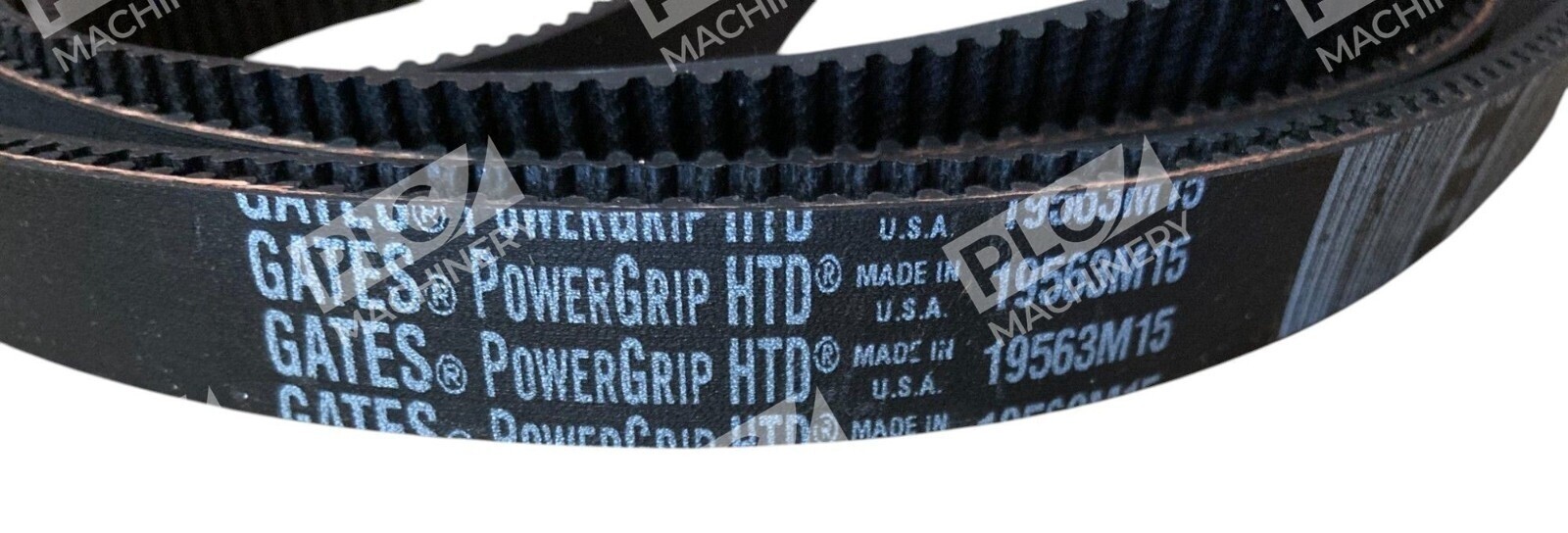

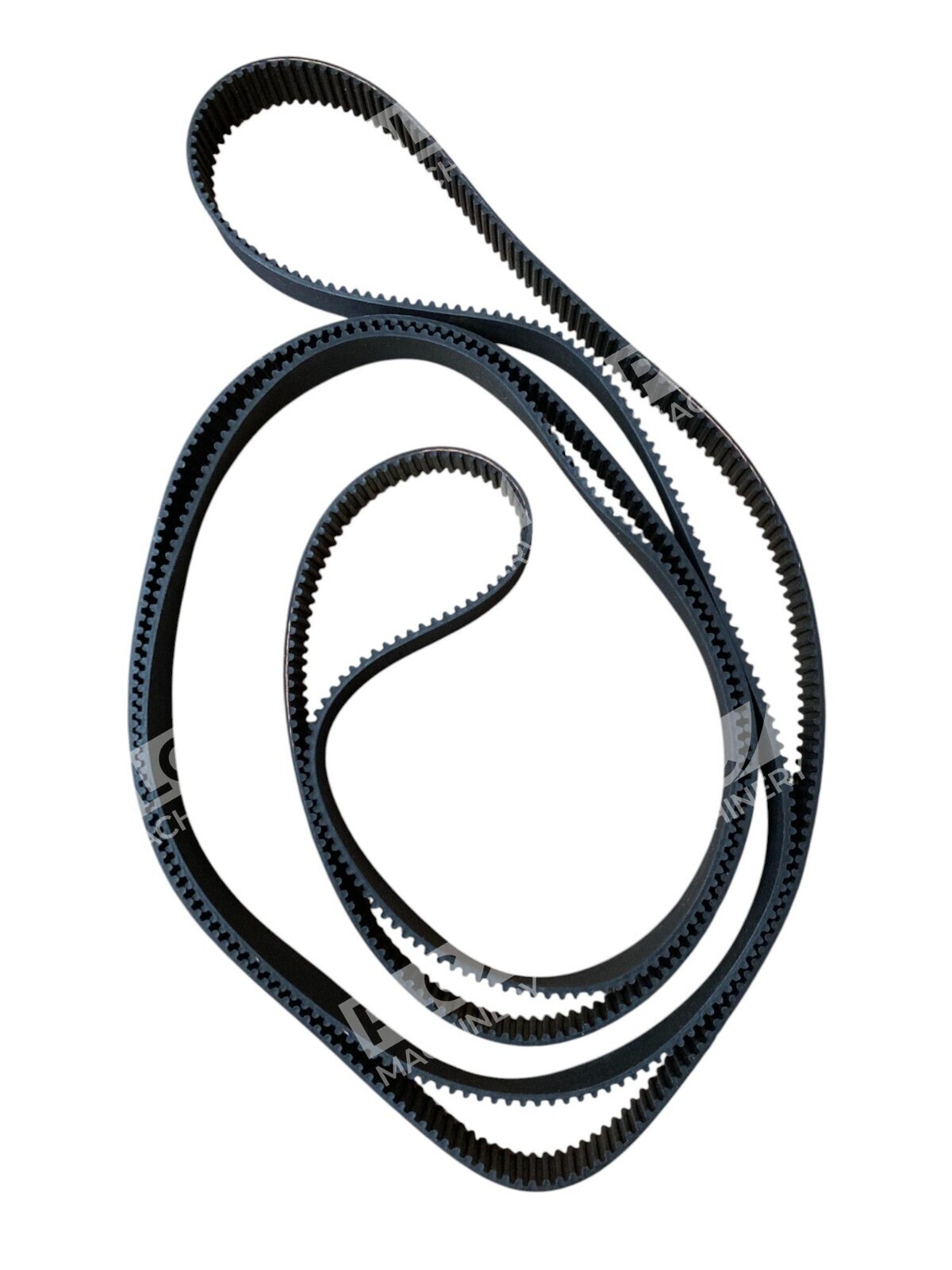

The Gates 19563M15 is a PowerGrip HTD (High Torque Drive) synchronous timing belt designed for synchronized, slip-free power transmission in industrial machinery and automation systems. Belts conform to ISO13050:2014 with load capacities up to 1,000 kW, making it suitable for demanding applications requiring consistent speed and reliable torque delivery.
Key Features
- No slippage, high mechanical efficiency, constant driven speeds, and long trouble-free service life
- Fiberglass tensile cord provides required strength combined with excellent flex life and high resistance to elongation
- Neoprene body provides protection against grime, grease, oil and moisture
- Nylon tooth facing provides a durable wear surface for long service life
- Eliminates lubrication and re-tensioning to reduce maintenance and labor required on drives
- Curvilinear PowerGrip HTD tooth geometry eliminates stress concentration at tooth roots, allowing for higher power capacity and longer service life
Technical Specifications
Verify specific dimensions, pitch, width, and tooth count for model 19563M15 with your Gates distributor or system integrator before ordering, as this model number requires confirmation against current Gates catalog specifications.
Typical Applications
HTD 8M, 14M and 20M belts are used in high-performance drives in the machine tool, paper and textile industries where durability and low maintenance are required. HTD timing belts are ideal for applications that demand reliable torque transfer, long service life, and efficient operation—making them well-suited for industries such as automation, machine tools, robotics, and more.
Compatibility & Replacements
Compatible With
- Gates PowerGrip HTD pulley systems (standard HTD profile)
- Industrial automation and motion control equipment
- Machine tool drives
- Textile and paper processing machinery
Replaces / Drop-In Replacement For
Verify specific model equivalencies and cross-references with your system integrator before ordering. Do not assume interchangeability without confirming pitch, width, and tooth count.
Works With
- HTD profile pulleys
- Standard HTD timing belt drives and conveyor systems
- Precision positioning and synchronous motion control applications
