Overview

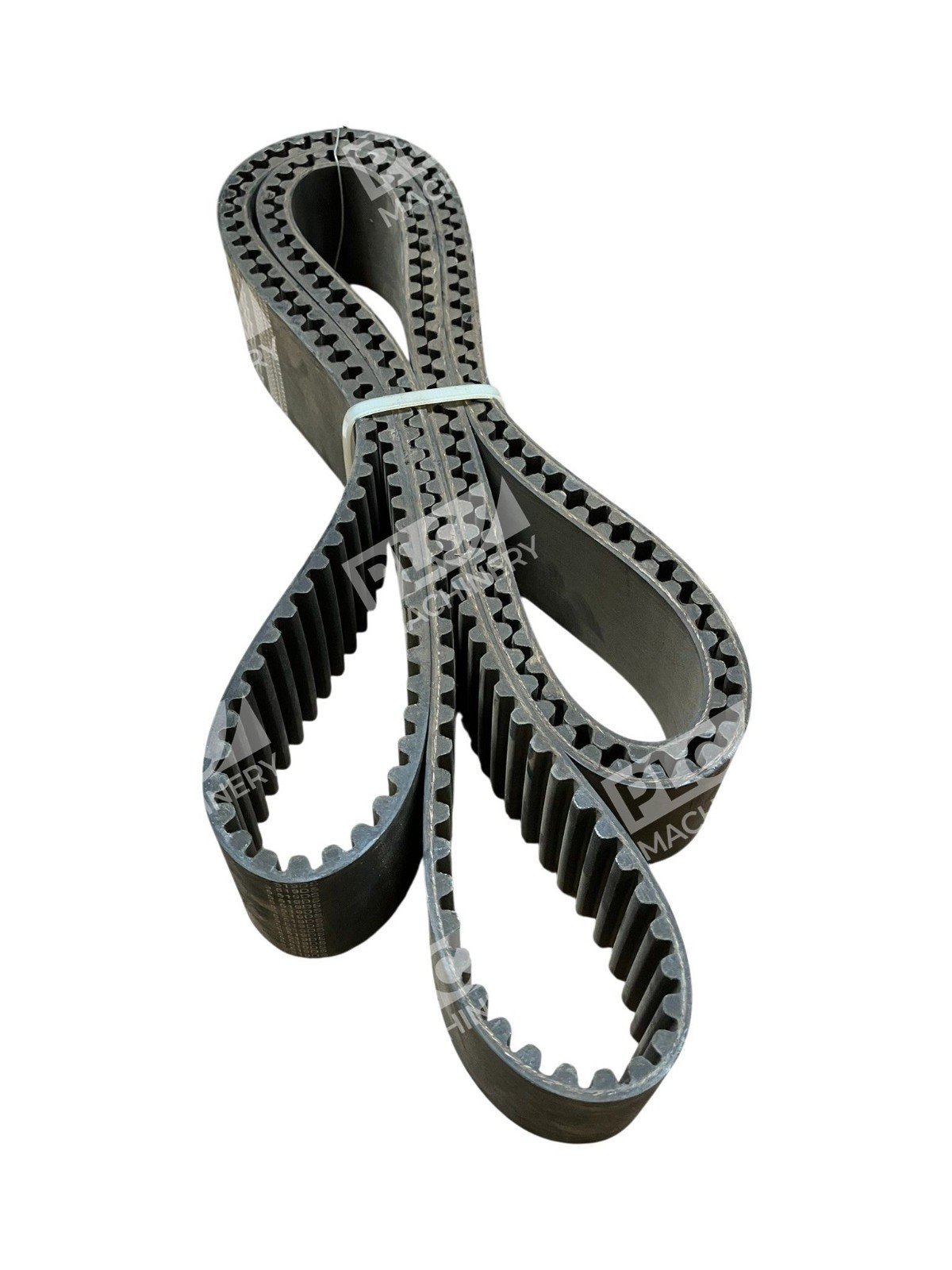

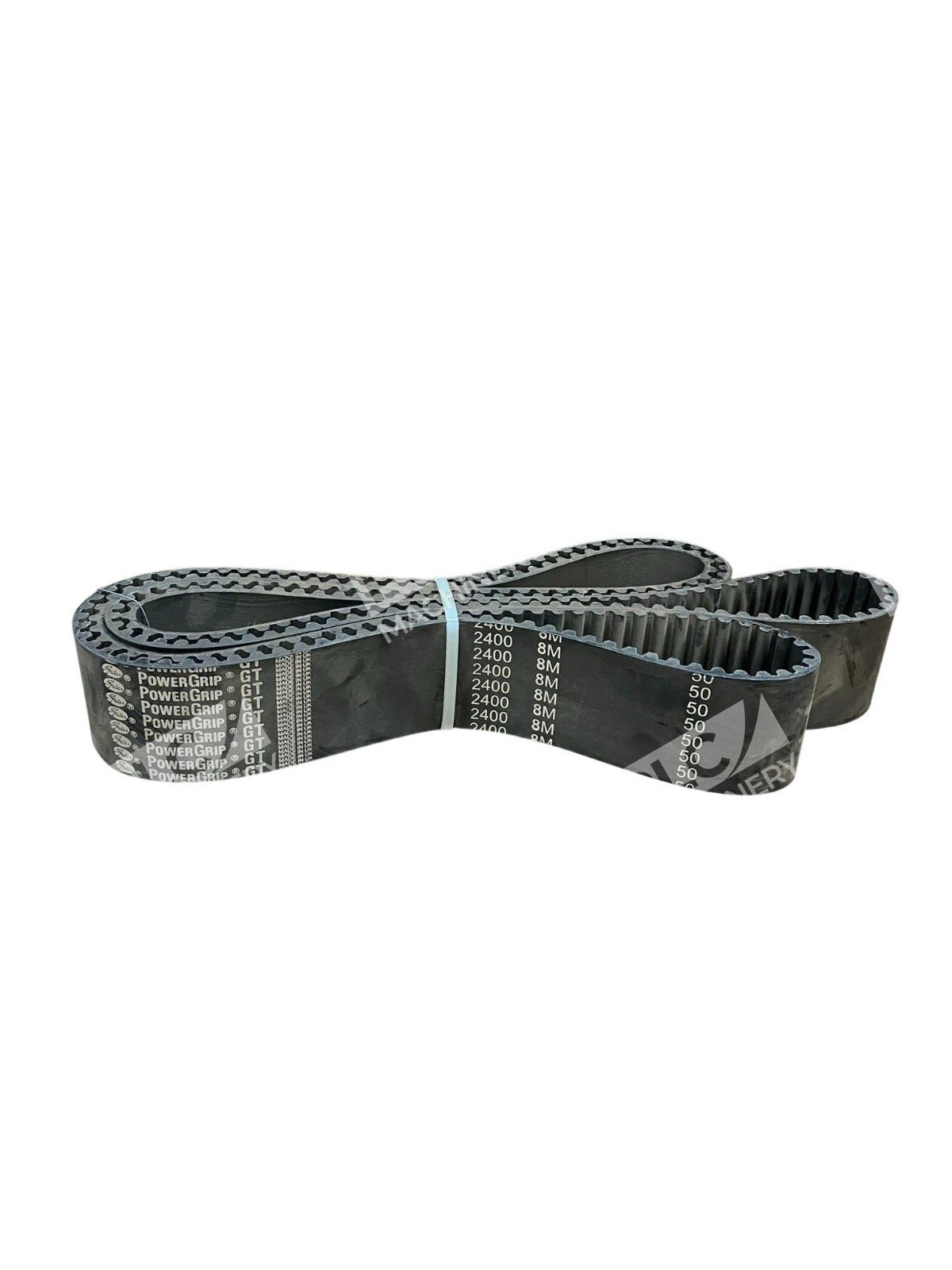

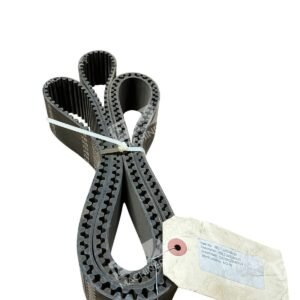

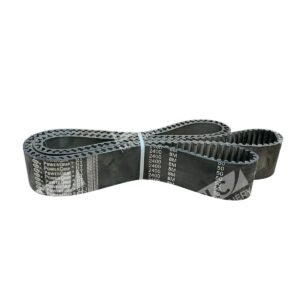

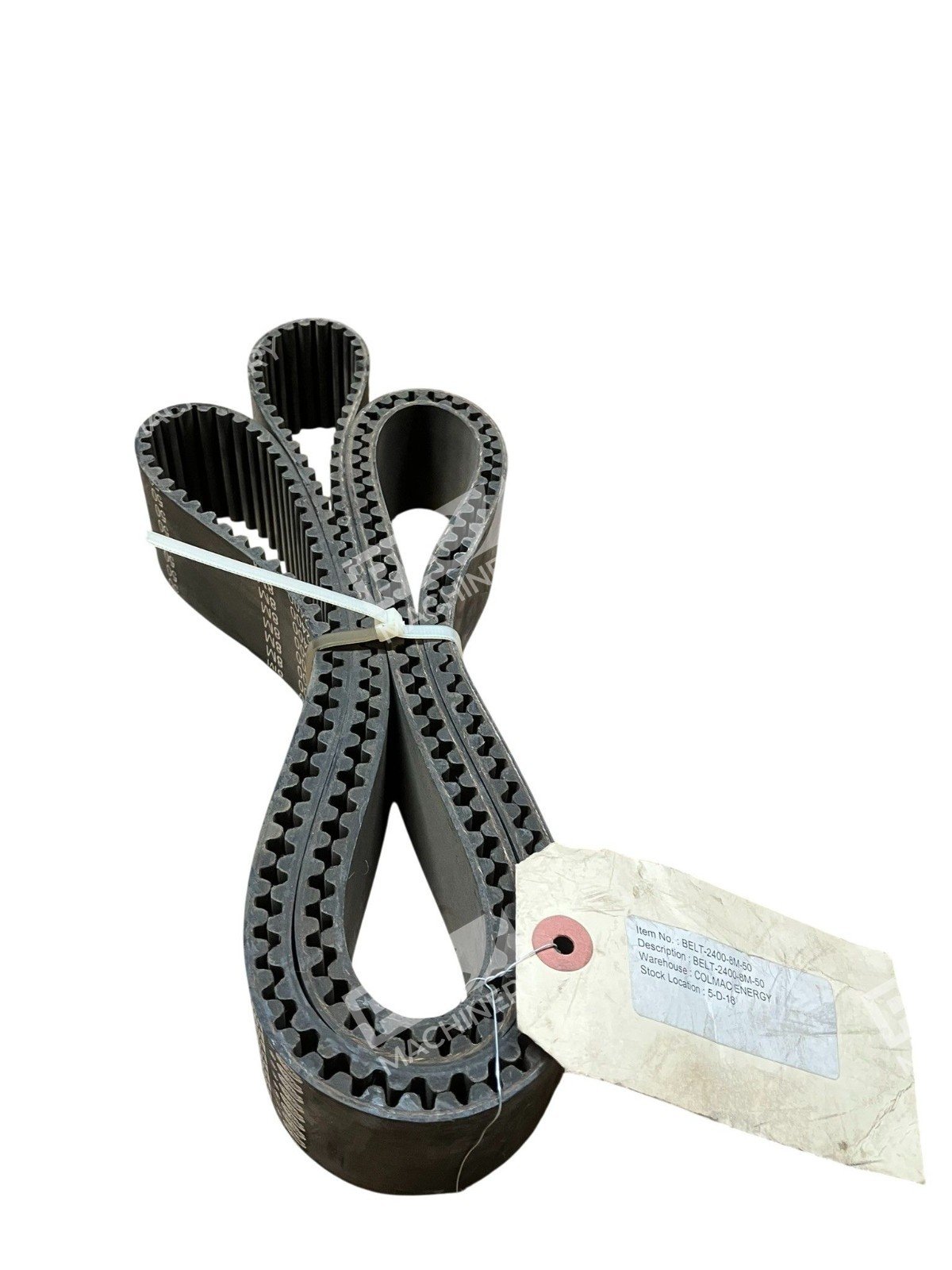

The Gates 2400-8M-50 PowerGrip GT is a synchronous timing belt designed for high-performance industrial drives requiring precise power transmission and durability. This belt combines Gates’ proprietary modified curvilinear GT tooth profile with heavy-duty construction, making it suitable for machine tool, paper, textile, and general manufacturing applications where reliable torque delivery and low maintenance are critical.
Key Features
- Modified Curvilinear (GT) Tooth Profile: Eliminates stress concentration at tooth roots for higher power capacity and improved tooth shear resistance compared to standard HTD belts
- Fiberglass Tensile Reinforcement: High-strength fiberglass cords deliver excellent flex life and resistance to elongation under load
- Neoprene Body Compound: Protects against grime, grease, oil, moisture, and environmental contaminants
- Nylon Tooth Facing: Provides durable wear surface for extended service life and reduced noise
- No Lubrication Required: Maintenance-free operation eliminates the need for chain-drive lubrication schedules
Technical Specifications
- Pitch Profile: 8M (8 mm pitch)
- Belt Length: 2400 mm
- Width: 50 mm
- Tooth Count: 300 teeth
- Tooth Profile: Modified Curved (GT)
- Body Material: Neoprene (Polychloroprene)
- Tensile Member: Fiberglass cord
- Temperature Range: -30°C to +100°C (-22°F to +212°F)
- Color: Black
Typical Applications
The Gates 2400-8M-50 excels in high-torque, high-speed industrial drives including:
- Machine tool drives and CNC equipment
- Paper and textile mill machinery
- Packaging and material handling systems
- Industrial automation drives requiring precise synchronization
- Roller chain replacement applications seeking maintenance-free operation
Compatibility & Replacements
Compatible With
- Standard HTD 8M pitch pulleys (Gates and universal compatibility)
- High-torque drive systems rated for GT profile belts
- Machinery configured for 2400 mm belt length and 50 mm width
- Applications requiring neoprene and fiberglass construction
Replaces / Drop-In Replacement For
- Other 8M pitch synchronous belts of equivalent 2400 mm length and 50 mm width
- Chain drives in high-torque applications seeking silent, maintenance-free alternatives
- Verify compatibility with your specific pulley set before ordering
Works With
- Standard HTD 8M profile pulleys and sprockets
- Industrial motor drives and VFD systems
- High-speed synchronous transmission systems
- Enclosed and open drive environments (neoprene body resists contaminants)
