Overview

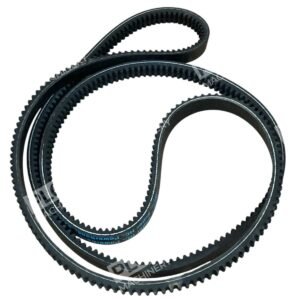

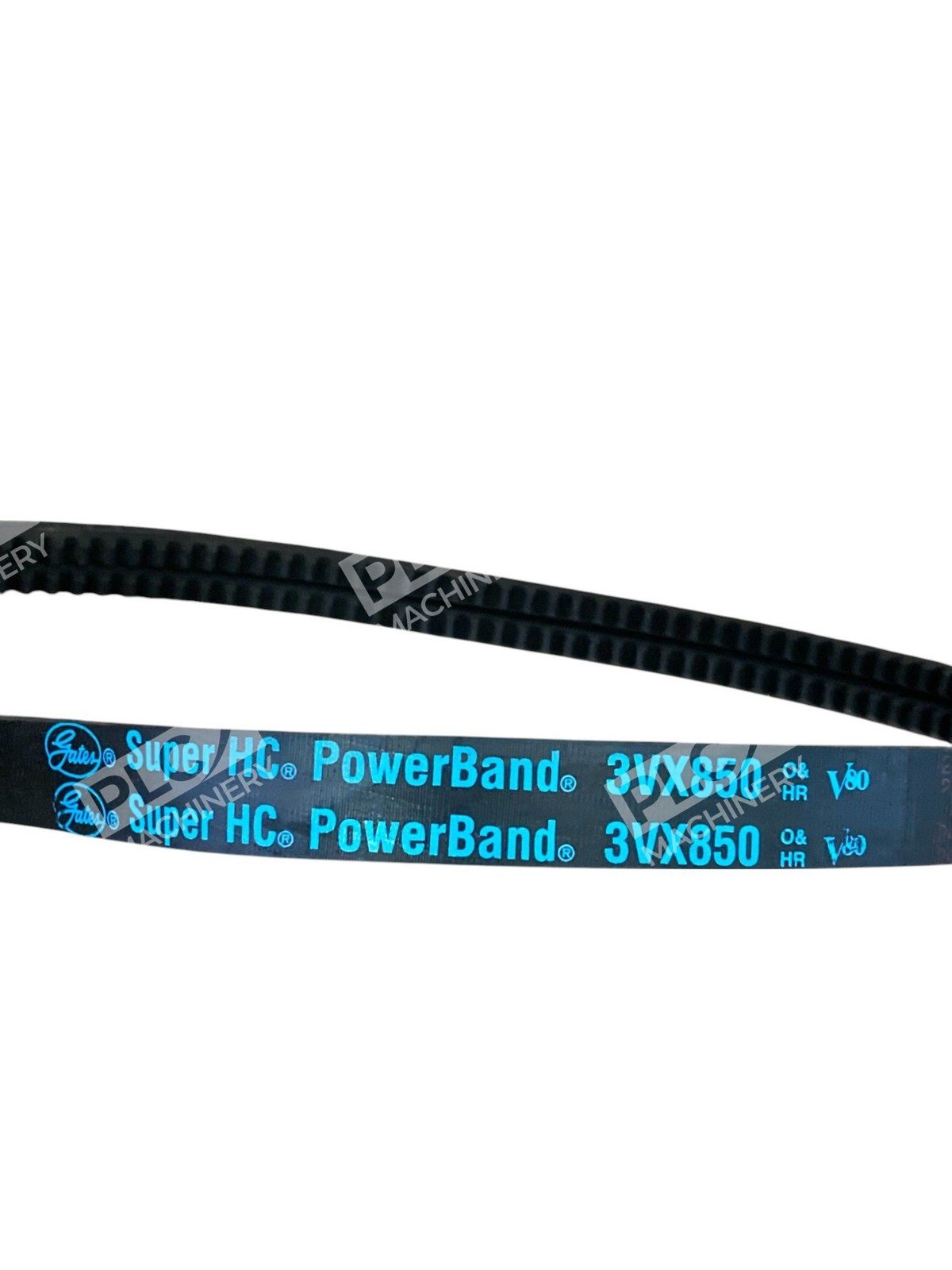

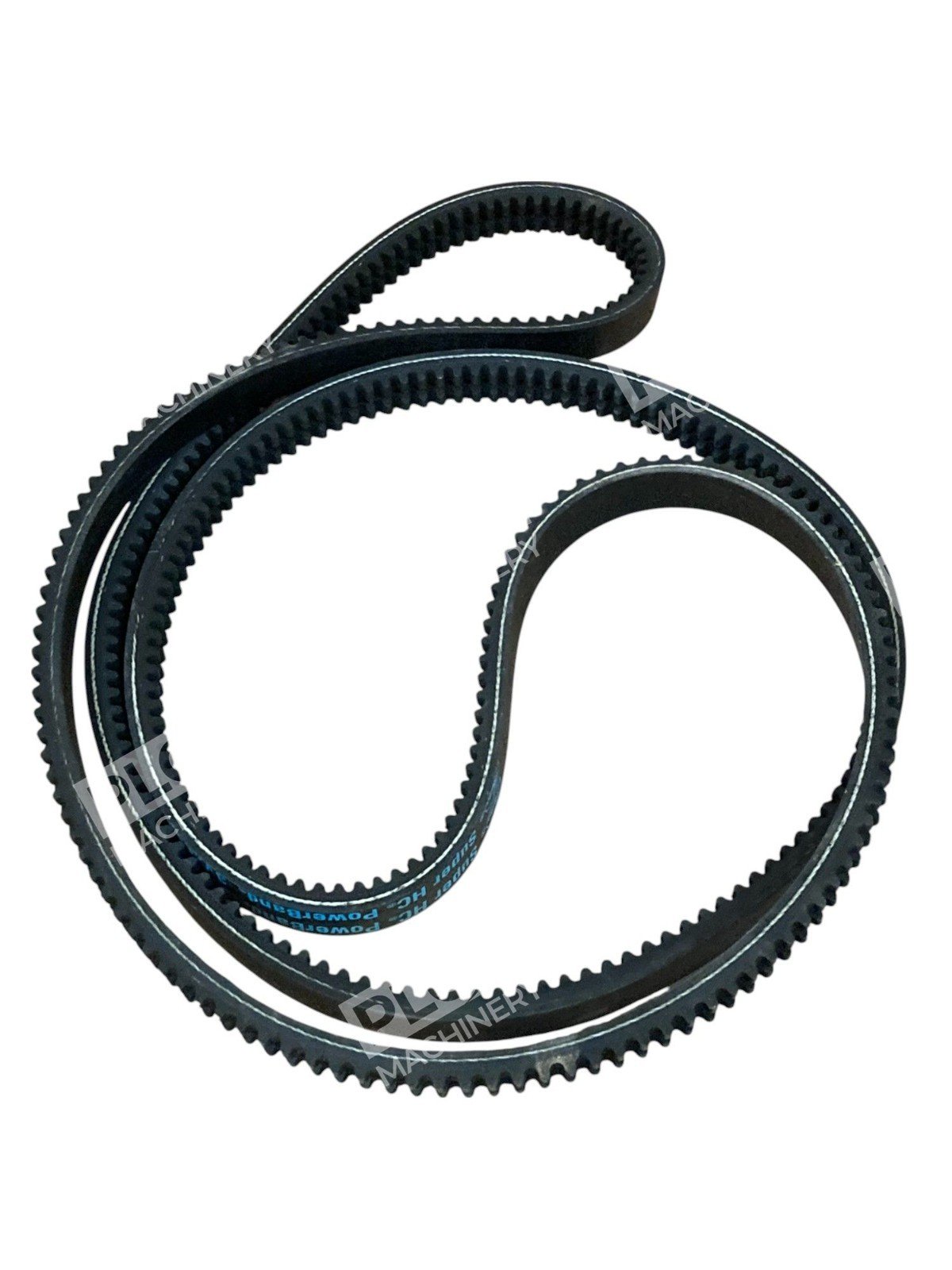

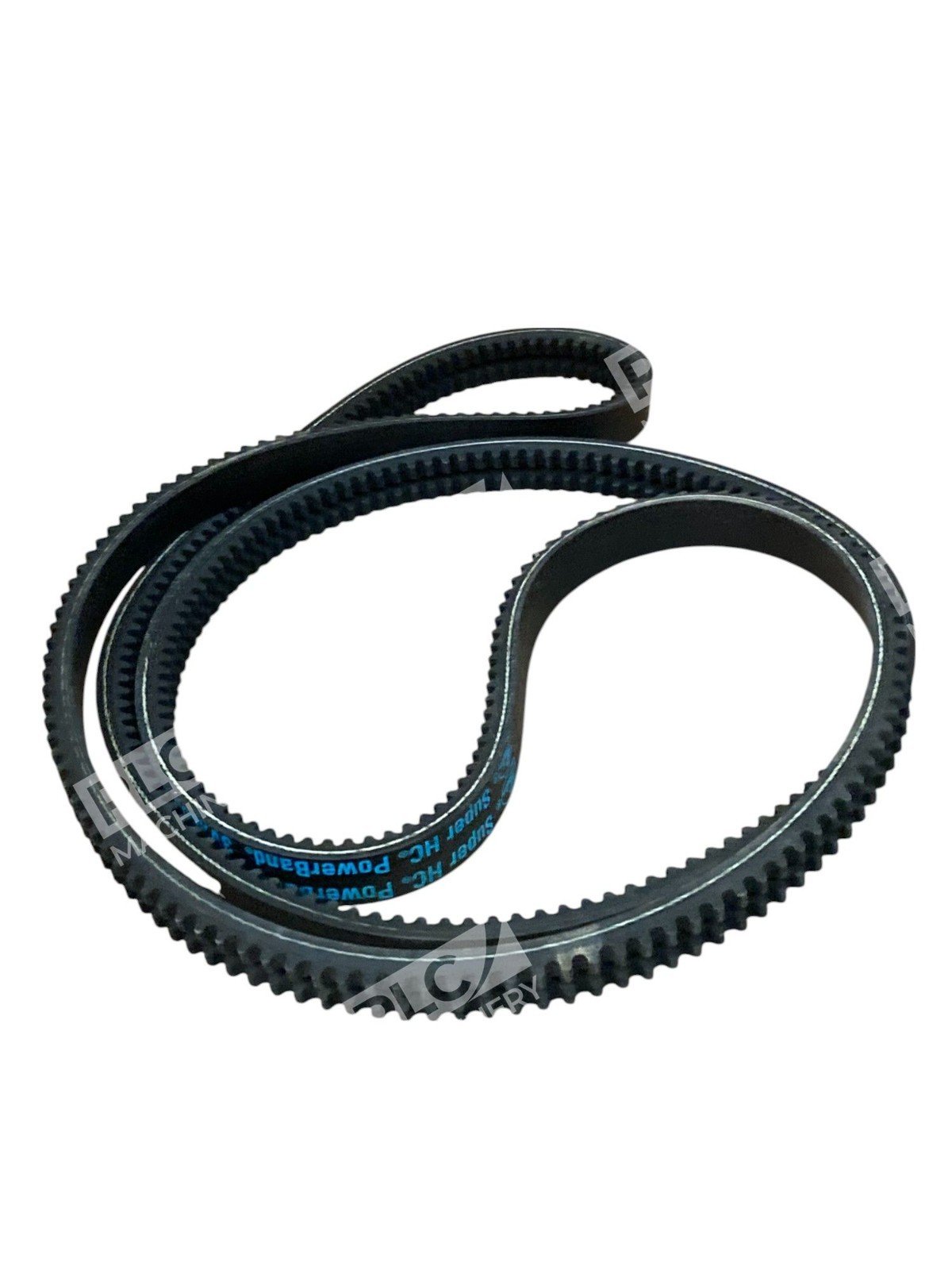

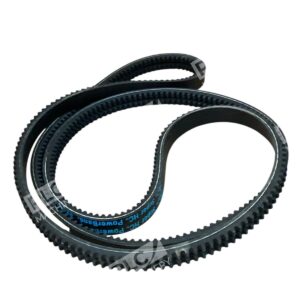

The Gates 9388-2085 2/3VX850 Super HC PowerBand is a two-strand 3VX molded notch V-belt engineered for heavy-duty industrial applications requiring precise power transmission and load sharing. This Gates Super HC PowerBand configuration delivers the reliability and efficiency needed in compact pulley systems where space constraints demand smaller sheaves without sacrificing performance.
Key Features
- PowerBand® Construction: Multiple belts function as a single unit with even load distribution and each strand fits securely in the sheave groove
- Molded Notch Design: Notches molded into the belt during manufacturing increase flexibility making this belt well suited for drives with smaller diameter sheaves
- Flex-Bonded Polyester Cord: Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
- EPDM Compound: Fibre-loaded EPDM resists high heat, ozone, and sunlight exposure with enhanced cord support
- Extended Temperature Range: -60 to 250 deg F operating temperature capability
- Tie-Band Lateral Rigidity: Integrated tie band guides the belt in a straight line and prevents belt slip-off
Technical Specifications
- Part Number: 9388-2085
- Belt Code: 2/3VX850
- Section: 3VX (Narrow Section)
- Strands: 2
- Outside Length: 85 inches
- Top Width: 3/8 inch (per 3VX section standard)
- Thickness: 21/64 inch
- Pitch: 10.32 mm
- Ribs: 2
- Minimum Pulley Diameter: 3.82 inches
- Material: EPDM, Flex-Bonded Polyester Reinforced
- Series: Gates 9388 Super HC PowerBand
- Temperature Range: -60 to +250°F
- Application: Heavy-Duty Industrial Power Transmission
Typical Applications
- Compact pulley drives requiring space-efficient configurations
- Industrial conveyors, fans, and pumps with moderate to heavy loads
- Agricultural and construction equipment power transmission
- Manufacturing machinery requiring synchronized belt operation
- High-temperature or extreme cold industrial environments
- Systems requiring minimal belt maintenance and extended service life
Compatibility & Replacements
Compatible With
- 3VX standard pulley sheaves and groove profiles
- Industrial motor and engine-driven systems
- Multi-strand belt drive assemblies
- Compact center-distance pulley configurations
- Heavy-duty industrial machinery platforms
Replaces / Drop-In Replacement For
- Original Gates 9388-2085 stock and equivalent OEM specifications
- Legacy 2-strand 3VX850 molded notch belt configurations
- Non-PowerBand 2/3VX850 belt designs (verify groove compatibility before ordering)
Works With
- Gates 3VX pulley systems and sheave assemblies
- Industrial variable frequency drive (VFD) systems
- Standard V-belt tensioners and alignment tools
- Multi-belt drive system assemblies requiring synchronized operation
- Both AC and DC motor-driven applications within temperature range
