Overview

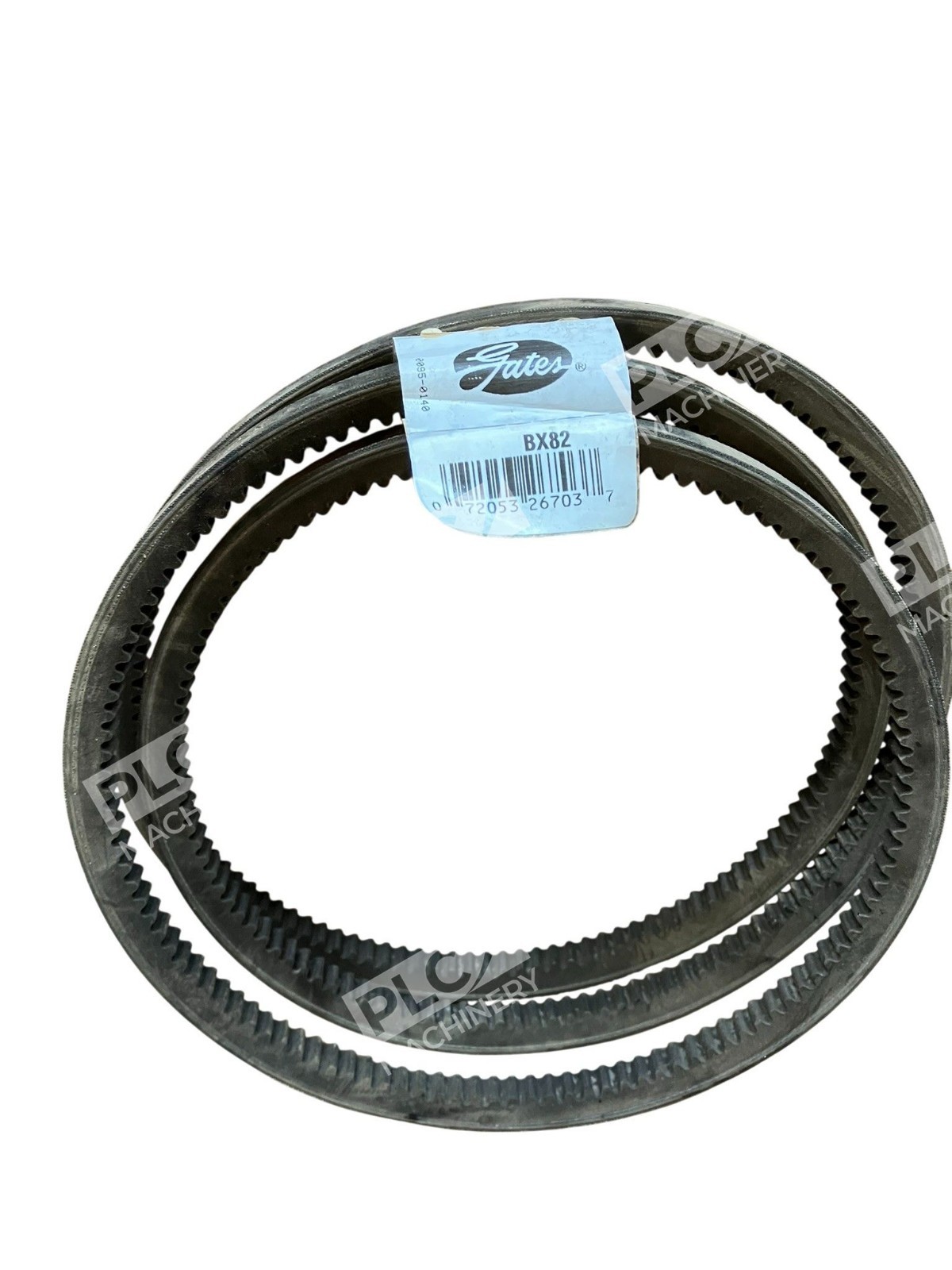

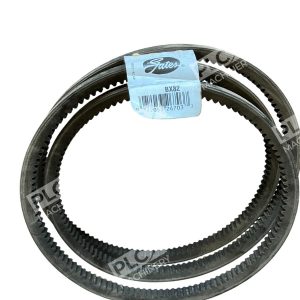

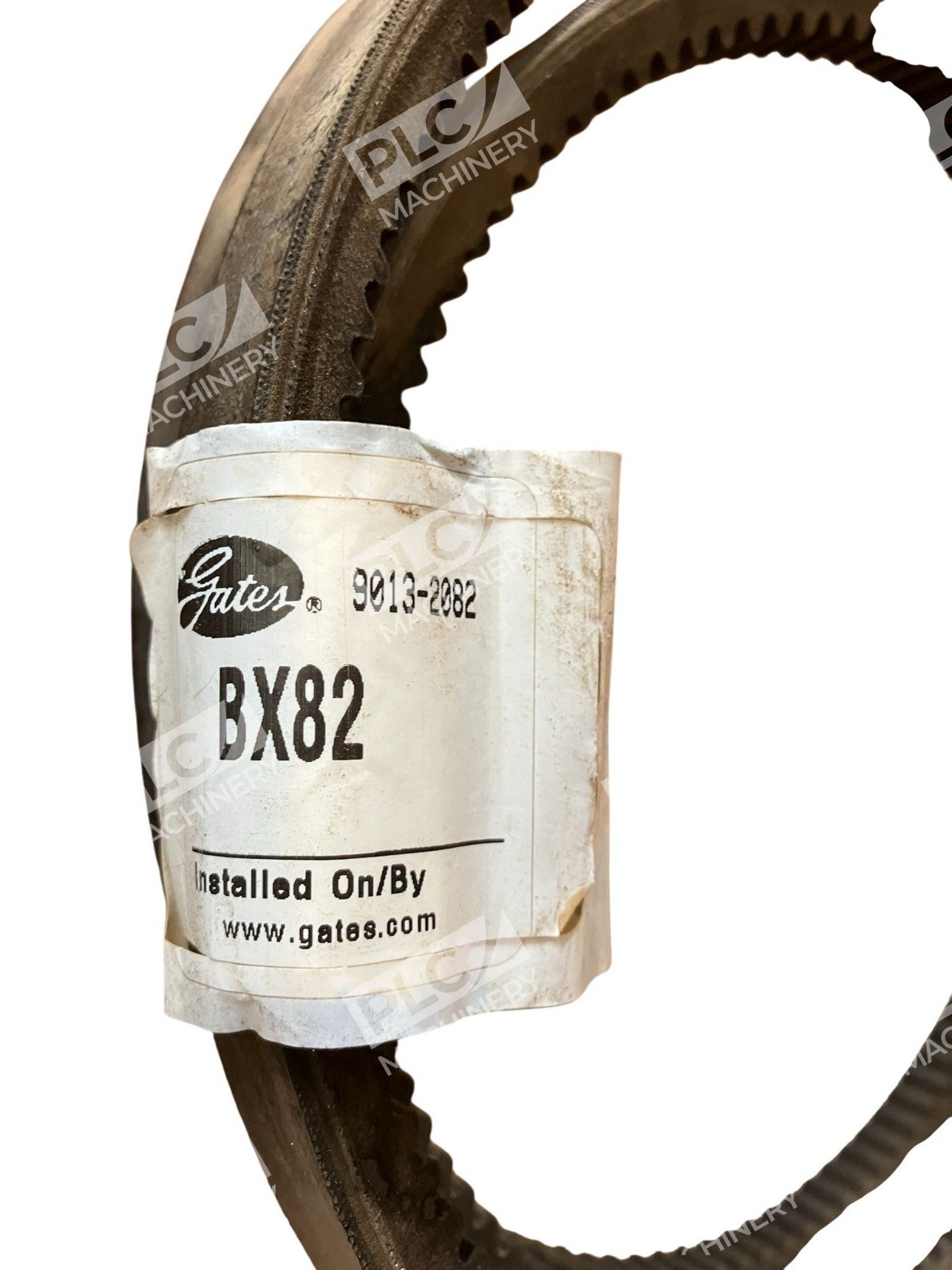

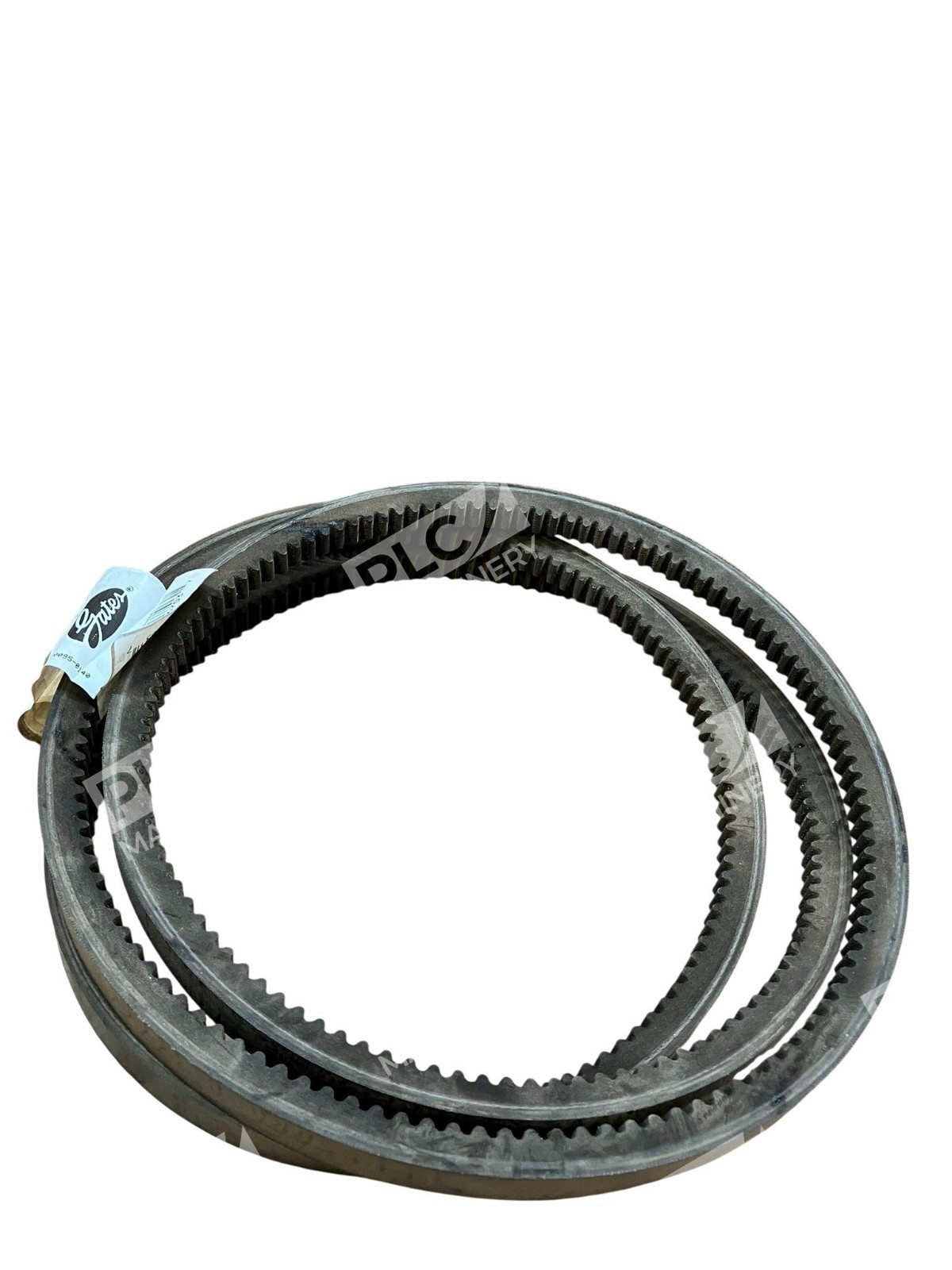

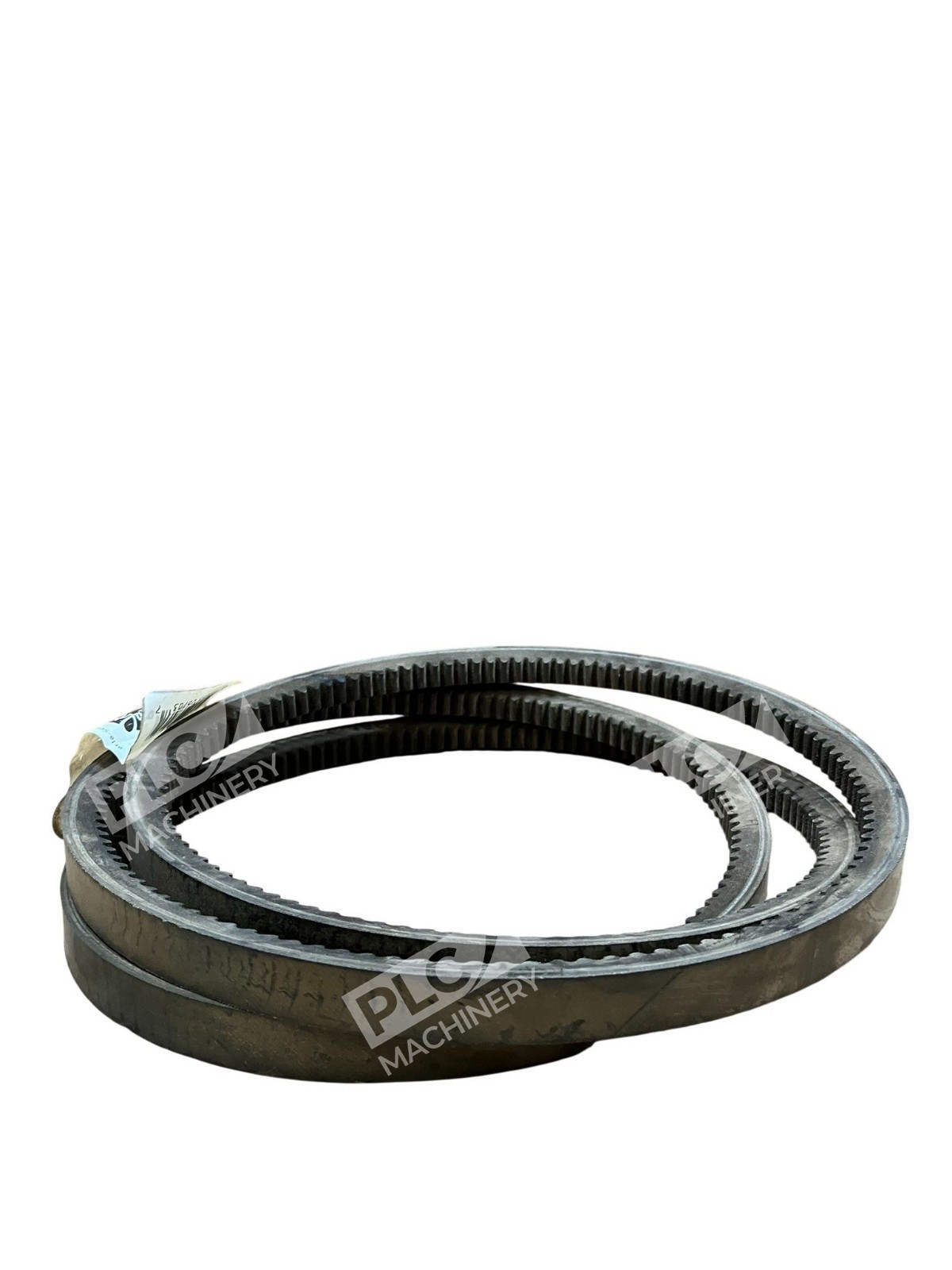

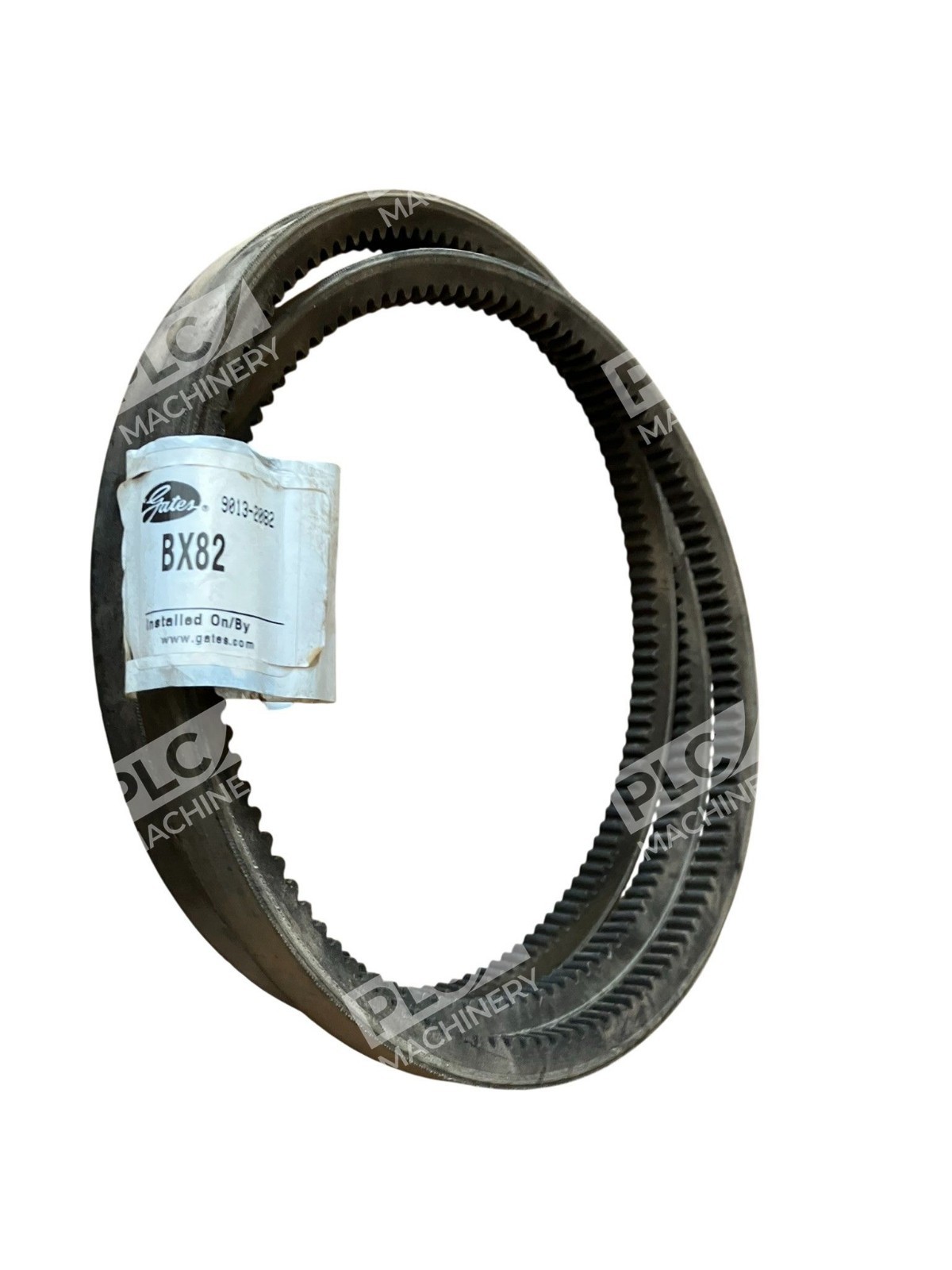

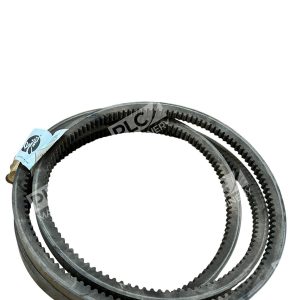

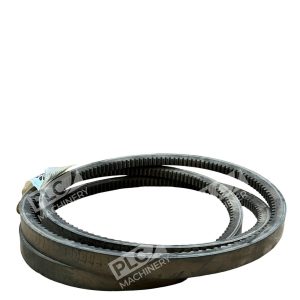

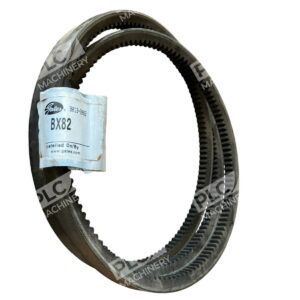

The Gates 9013-2082 Belt BX82 Tri-Power V-belt is built for superior performance on heavy-duty drives requiring classical cross-section dimensions. This belt features a Tri-Power design with 85-inch length (2159 mm), 0.66-inch top belt width per strand (17 mm), and nominal thickness of 0.41 inches (10 mm). The raw edge construction and special notch design makes BX82 Tri-Power belt especially suited for drives requiring small diameter pulleys and back idlers.
Key Features
- Patented ethylene EPDM compound construction allows the belt to resist cracking and handle extreme temperatures
- Belt edge is machined for even sheave groove contact, resulting in smoother running, less slip, and wear
- Cross-oriented fiber-loaded rubber compound for flexibility and stability
- Notched (cogged) construction for improved flexibility, better heat dissipation, and higher efficiency on smaller pulleys
- Suitable for all industrial applications, particularly where small or sub-minimal sheave diameters are required
Technical Specifications
- Belt Section: BX (classical)
- Part Number: 9013-2082
- Belt Length: 85 inches (2159 mm)
- Top Width per Strand: 0.66 inches / 21/32 inches (17 mm)
- Nominal Thickness: 0.41 inches / 13/32 inches (10 mm)
- Belt Style: Tri-Power Cogged V-Belt
- Construction: Raw edge with molded notches
- Material: Ethylene EPDM compound with polyester cord reinforcement
- Temperature Range: −50°C to +120°C (−58°F to +248°F)
- Weight: 0.75 lbs
- Operating Characteristics: Oil and heat resistant
Typical Applications
The Gates BX82 Tri-Power belt is ideal for industrial equipment including agricultural machinery, HVAC systems, compressors, pumps, fans, and other machinery requiring reliable power transmission. Its cogged construction makes it especially valuable in applications with constrained space or small-diameter pulley requirements, where traditional V-belts may slip or experience premature wear.
Compatibility & Replacements
Compatible With
- Small-diameter pulley drives
- Classical BX cross-section sheaves
- Back-idler drive systems
- Heavy-duty industrial equipment requiring BX-section V-belts
- Systems requiring oil and heat resistance
Replaces / Drop-In Replacement For
- Dayco 22T843, Dayco 432840, Dayco 43924
- Caterpillar 7N4148, Caterpillar 7N6602
- Continental Belt 1/BX82
- Thermo-King 2020B40G08, Thermo-King 2020B40H57, Thermo-King 242025B82A, Thermo-King 780261
- Alliance Truck Parts GTBX82
- Reliance Electric 108706
- PIX A-BX82
Works With
- Classical BX cross-section pulley systems
- Heavy-duty industrial drive systems
- Equipment with extreme temperature or oil-exposure requirements
- All standard shaft and bearing configurations compatible with BX-section belts
