Overview

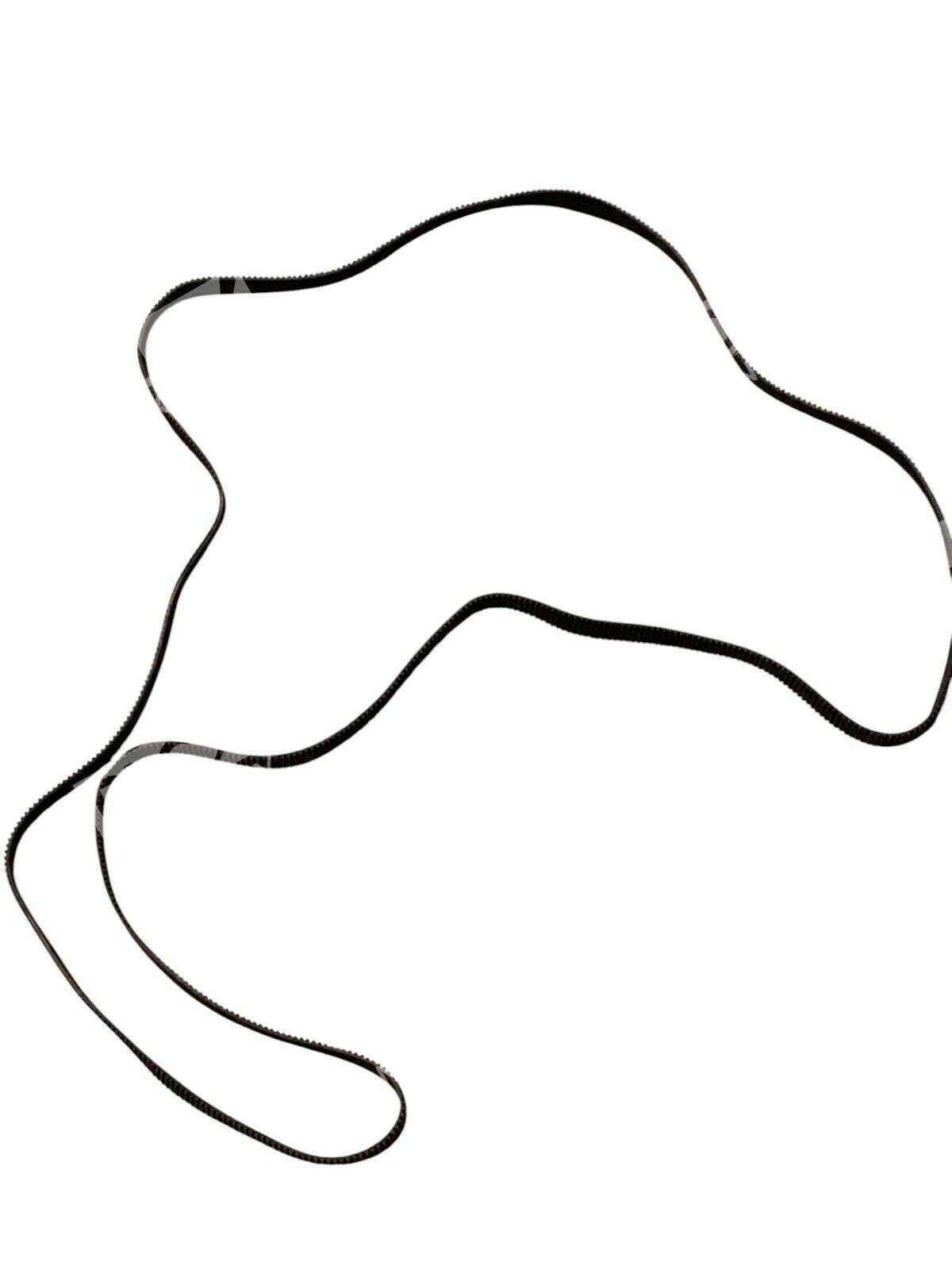

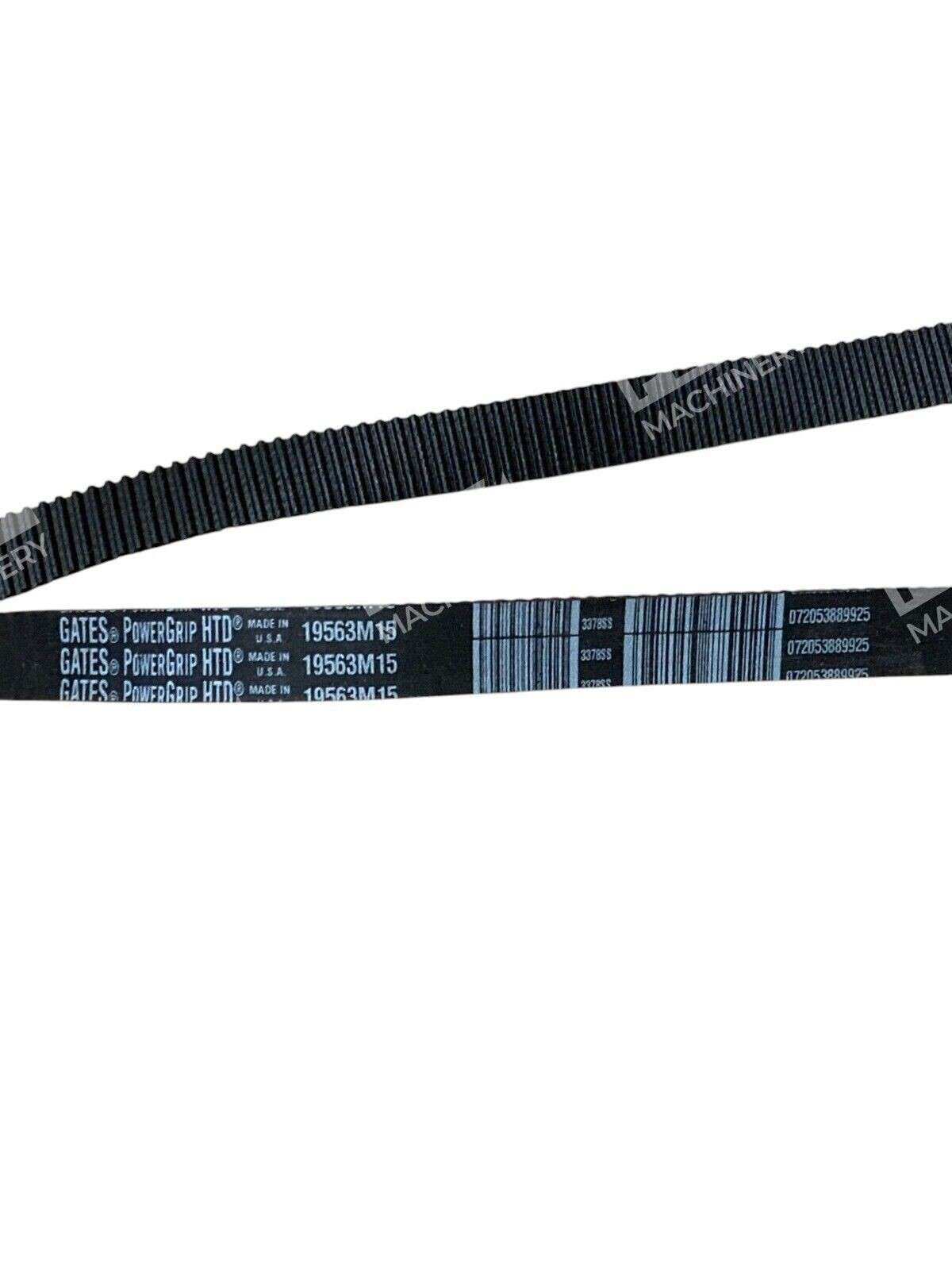

The Gates 19563M15 PowerGrip HTD timing belt combines precision synchronous drive technology with robust construction for reliable power transmission in industrial automation systems. Gates PowerGrip HTD Timing Belts are high-performance power transmission belts designed for precision industrial applications. This 3mm pitch model features a 15mm top width and 77-inch length, delivering consistent engagement with HTD profile pulleys in machine tools, packaging equipment, and precision positioning systems.
Key Features
- Curvilinear Tooth Geometry: The unique curvilinear tooth geometry optimises load distribution and eliminates stress concentration at tooth roots, enabling higher power capacity and extended service life.
- Fiberglass Tensile Cords: Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation.
- Neoprene Body: Neoprene body provides protection against grime, grease, oil and moisture.
- Nylon Tooth Facing: Nylon tooth facing provides a durable wear surface for long service life.
- Maintenance-Free Operation: Maintenance-free, clean solution for roller chain drive conversion. No lubrication or retensioning required.
Technical Specifications
- Pitch: 3mm (3M)
- Top Width: 15mm (9/16 inches)
- Tooth Count: 652
- Belt Length: 77 inches
- Tooth Profile: HTD (Curvilinear)
- Body Material: Neoprene
- Tensile Member: Fiberglass cord
- Tooth Facing: Nylon
- Temperature Range: -30°C to +100°C (-22°F to +212°F)
- Standards Compliance: ISO 13050
Typical Applications
3M and 5M belts are suitable for domestic appliances, office machines, electric hand tools and for applications in the processing and chemical industry. The Gates 19563M15 is commonly used in:
- Packaging and labeling machinery
- Automated assembly systems
- Food and beverage processing equipment
- Textile and paper handling systems
- Precision positioning drives
- Office equipment and peripherals
Compatibility & Replacements
Compatible With
- HTD synchronous pulley systems (3mm pitch)
- Industrial automation and motion control drives
- Mechanical power transmission systems requiring positive, slip-free engagement
- Systems designed for belt-to-chain conversion
Replaces / Drop-In Replacement For
The Gates 19563M15 is designed as a direct replacement for equivalent 3mm pitch, 15mm wide HTD timing belts with 652 teeth. Verify compatibility with your system integrator before ordering to ensure pulley pitch and width specifications match.
Works With
- HTD 3mm profile pulleys and sprockets
- Standard industrial motion control systems
- Chain drive conversion applications
- Synchronous drive systems requiring low-maintenance, precision positioning
