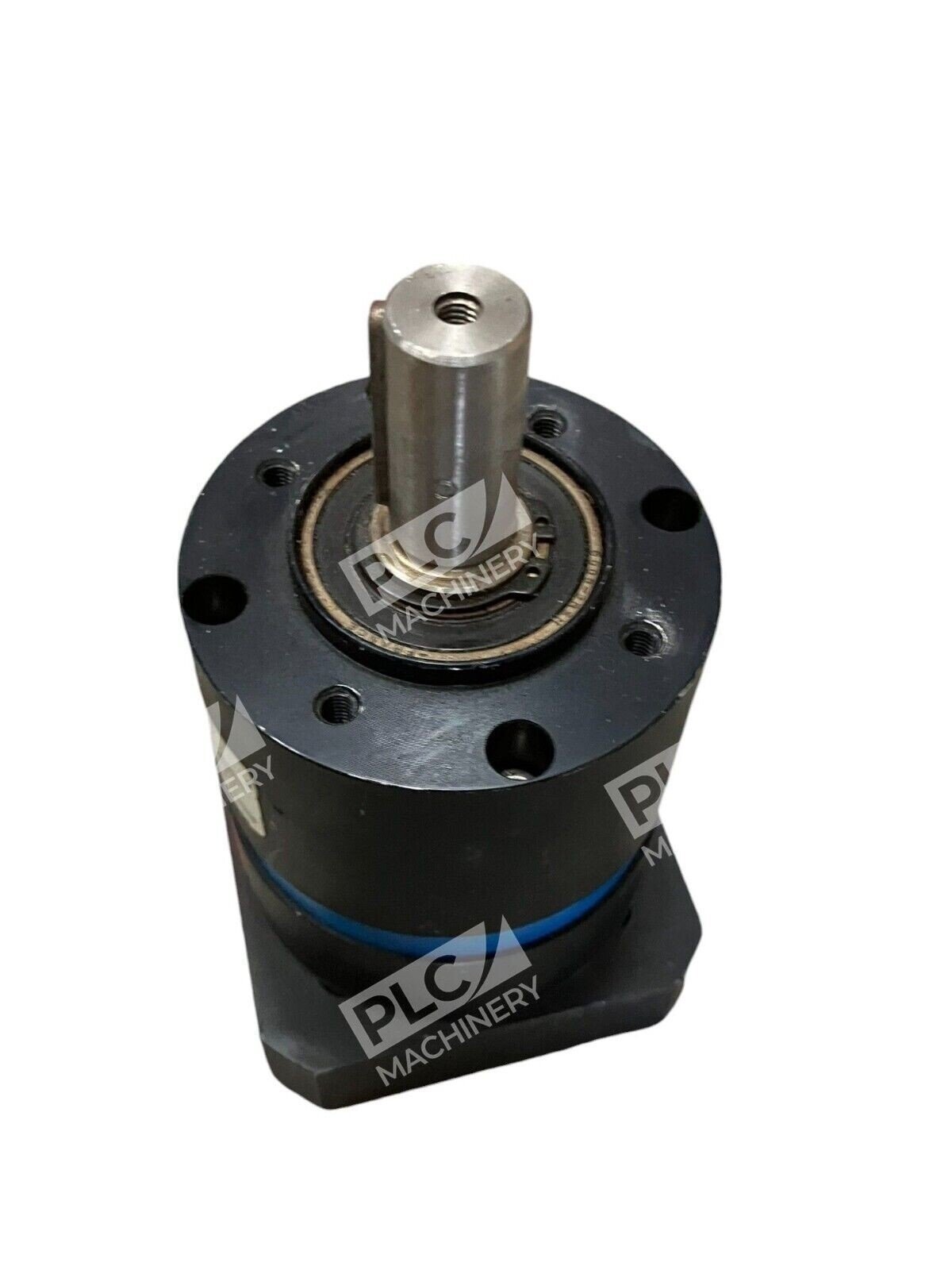

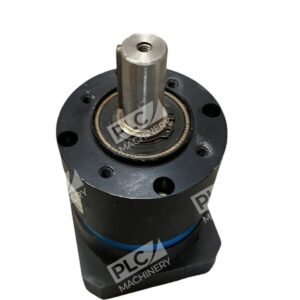

GAM Gear EPL-W-084-005G-[070-B03]-S558 EPL Series 700600

Overview

The GAM EPL-W-084-005G is a precision inline planetary gearbox engineered for servo-motor applications requiring reliable torque multiplication and speed reduction. The EPL Series combines high-precision gearing with compact design, making it a top choice for motion control, robotics, and industrial automation. Metric shaft output with keyed interface ensures compatibility with standard servo motors and encoders.

Key Features

• 5:1 reduction ratio for balanced speed and torque output
• Precision servo-grade construction with straight-tooth planetary gearing
• Keyed metric shaft output for secure motor coupling
• Size 084 frame—compact inline design for space-constrained installations
• Efficient power transmission with minimal backlash
• Broad motor compatibility across multiple frame sizes

Technical Specifications

Typical EPL-W-084-005G configuration details:

• Series: EPL inline planetary
• Frame Size: 084
• Gear Ratio: 5:1
• Output Shaft: Keyed metric shaft
• Configuration Code: [070-B03]-S558 (indicates specific mounting, input, and output flange)
• Application: Servo motor speed reduction and torque multiplication
• Gearing Type: Straight-tooth planetary (high precision)

Typical Applications

• Servo-motor driven linear actuators and motion stages
• Robotic arm joints and multi-axis positioning systems
• Precision conveyor and indexing systems
• Medical and laboratory automation equipment
• CNC and manufacturing automation
• Test and measurement instrumentation

Compatibility & Replacements

Compatible With

• Servo motors with standard motor frame interfaces
• Metric-shaft servo encoders and feedback devices
• Standard industrial control systems and motion controllers
• Flexible couplings and motor-mount assemblies

Replaces / Drop-In Replacement For

The GAM EPL-W-084-005G with configuration [070-B03]-S558 may directly replace other EPL-W-084-005G units with the same flange and shaft configuration. Verify compatibility with your system integrator before ordering, as mounting interfaces and output flange orientation vary by configuration code.

Works With

• Servo drive systems from Kollmorgen, Elmo, Parker, and other major motion-control manufacturers
• Industrial communication protocols: EtherCAT, PROFINET, CANopen, Modbus
• Motor-control software: Mach3, LinuxCNC, Galil, and proprietary motion-control platforms
• Standard power transmission couplings and shaft adapters
