Overview

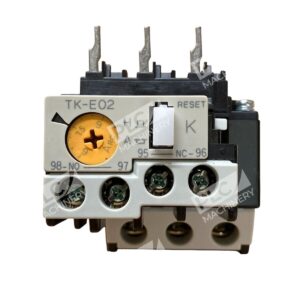

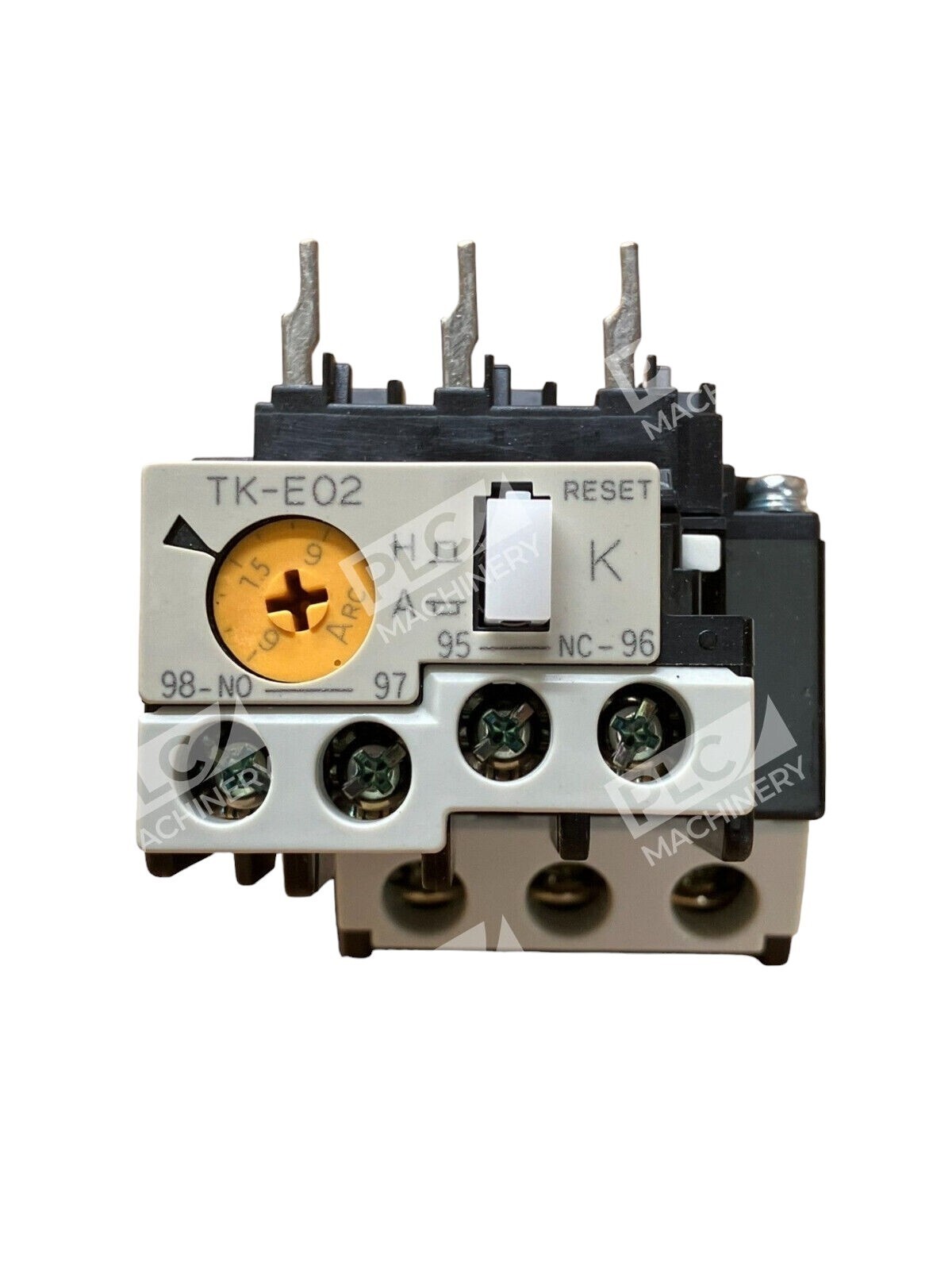

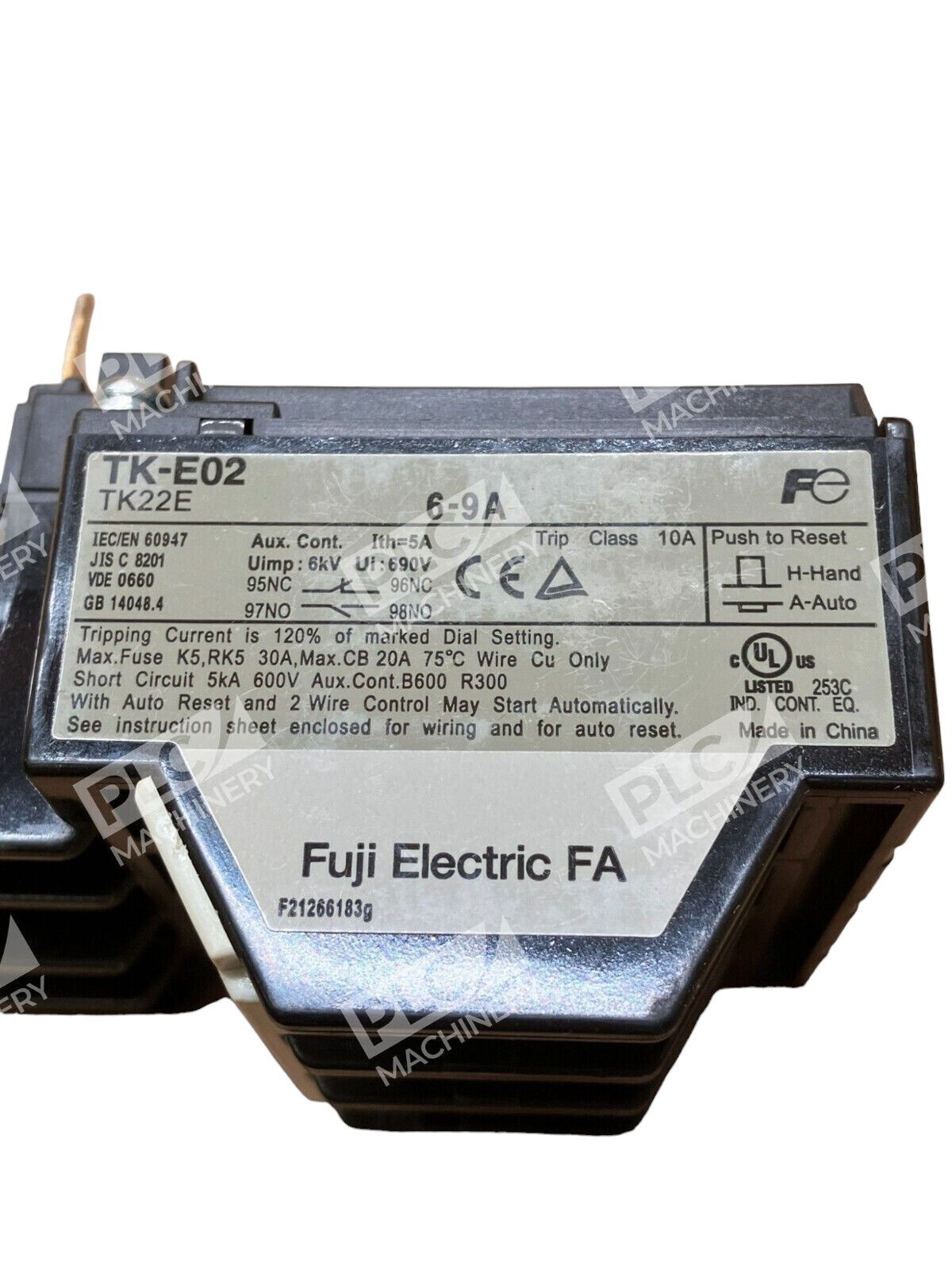

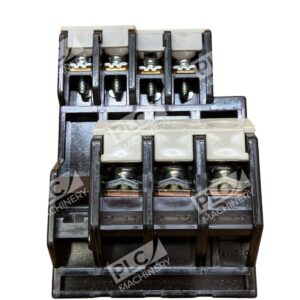

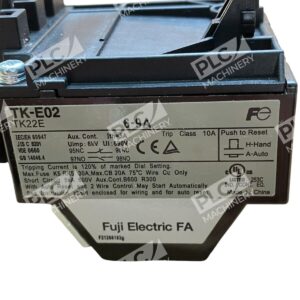

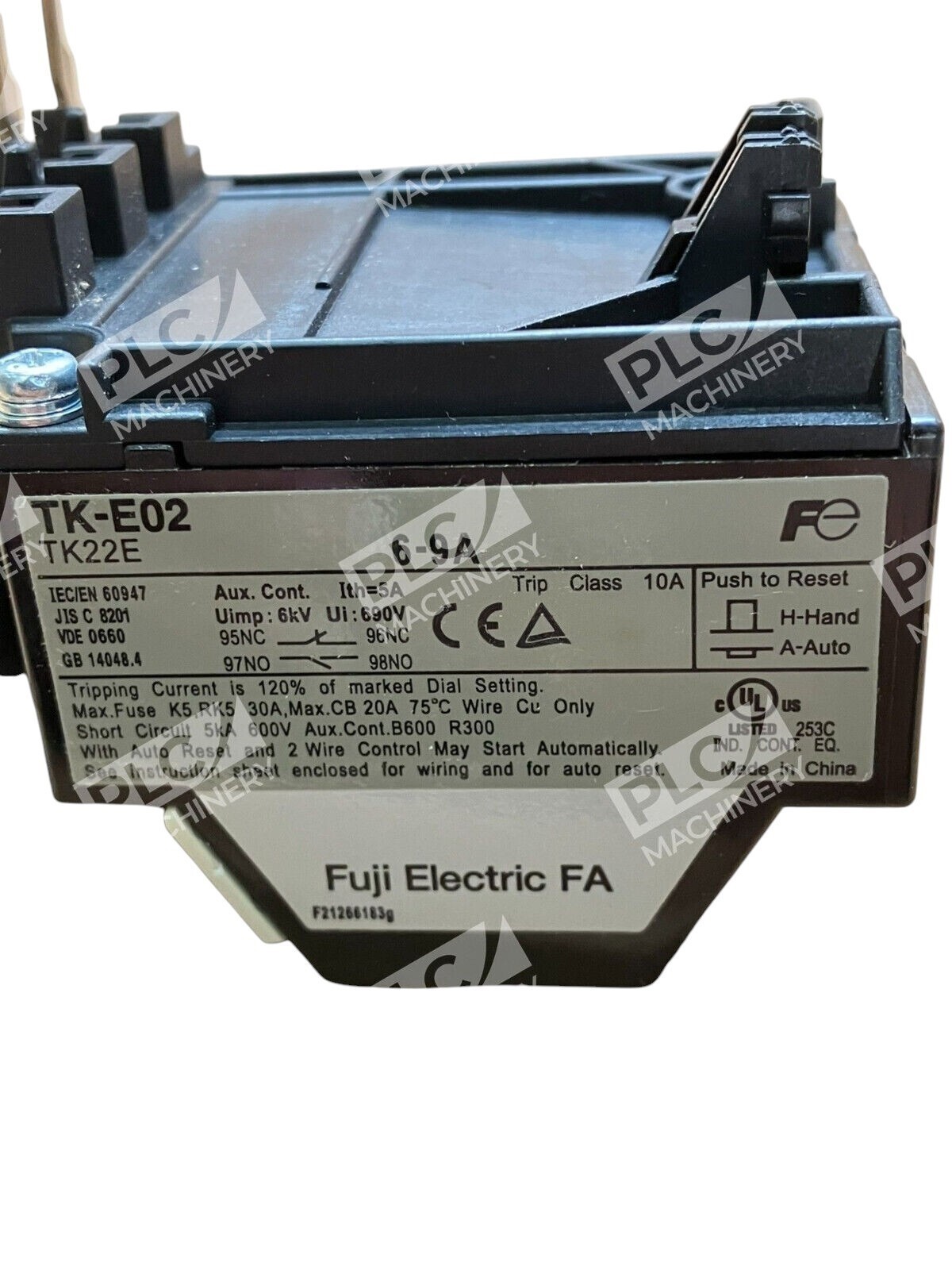

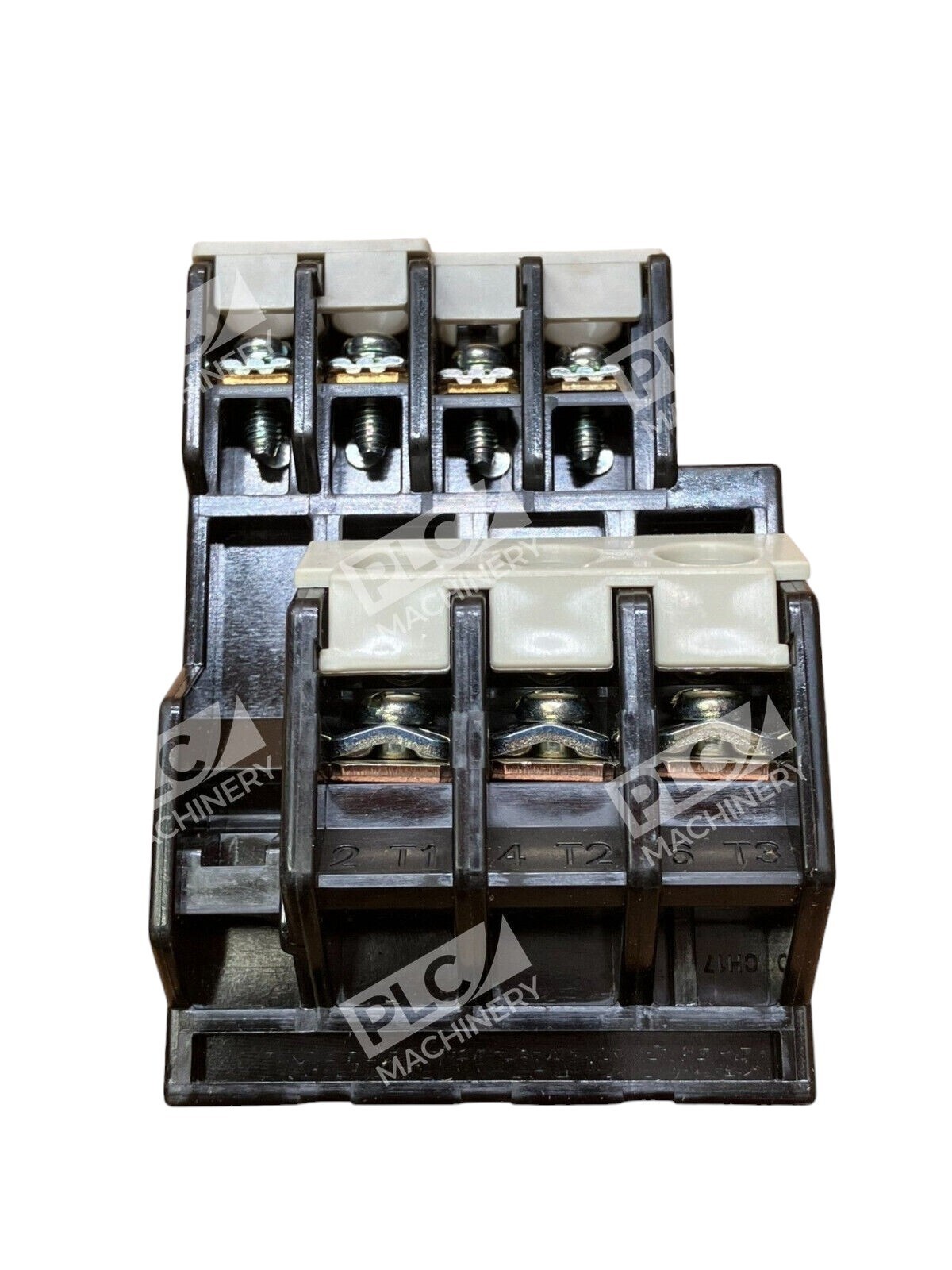

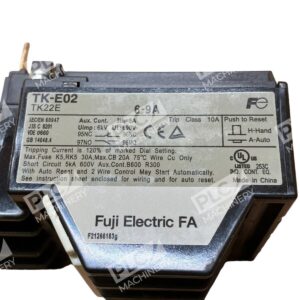

The Fuji Electric TK-E02 thermal overload relay is a compact, adjustable protection device designed for use with Fuji SC-E02(G) through SC-E05(G) series contactors. This relay combines bi-metallic overload and phase-loss detection into a single direct-mount unit, making it a standard choice for motor control circuits in industrial automation, manufacturing, and process control applications.
Key Features
- Adjustable current range: Multiple ratings available (0.15–0.24A, 0.95–1.45A, 1.7–2.6A, 2.2–3.4A, 2.8–4.2A, and higher options)
- Bi-metallic element: Provides consistent, reliable overload trip performance across temperature variations
- Dual contact configuration: 1 NO (normally open) + 1 NC (normally closed) for flexible control logic
- Manual and auto-reset modes: Choose the reset behavior that matches your circuit requirements
- Phase-loss protection: Detects and responds to single-phase loss conditions
- Direct-mount design: Mounts directly to compatible Fuji contactors without additional hardware
Technical Specifications
- Series: TK-E (Fuji Duo thermal overload relay series)
- Contact arrangement: 1 NO + 1 NC
- Trip category: 10 A (per IEC standards)
- Operating principle: Bi-metallic thermal element with phase-loss detection
- Current adjustment: Adjustable over specified range (model-dependent)
- Reset options: Manual and automatic reset selectable
- Mounting: Direct mount to SC-E02(G), SC-E03(G), SC-E04(G), SC-E05(G) contactors
- Voltage rating: 120–440 VAC (typical industrial range)
Typical Applications
- Motor protection in pump and fan systems
- Industrial conveyor belt drive protection
- Machinery startup and shutdown circuits
- HVAC and compressor protection
- General-purpose load protection in control panels
- OEM equipment and automation assemblies
Compatibility & Replacements
Compatible With
- Fuji SC-E02(G) contactor
- Fuji SC-E03(G) contactor
- Fuji SC-E04(G) contactor
- Fuji SC-E05(G) contactor
- IEC 60947-4-1 compliant motor control circuits (120–440 VAC)
Replaces / Drop-In Replacement For
- Earlier Fuji TK-E series thermal overload relays with the same current rating and contactor compatibility
- Verify compatibility with your system integrator before ordering to ensure exact model match for your contactor size and application.
Works With
- Fuji SC-E series contactors (43 mm frame size)
- IEC-compliant motor starters and control systems
- Manual and programmable motor control logic
- Standard industrial power distribution and panel assembly
