<h2>Overview</h2>

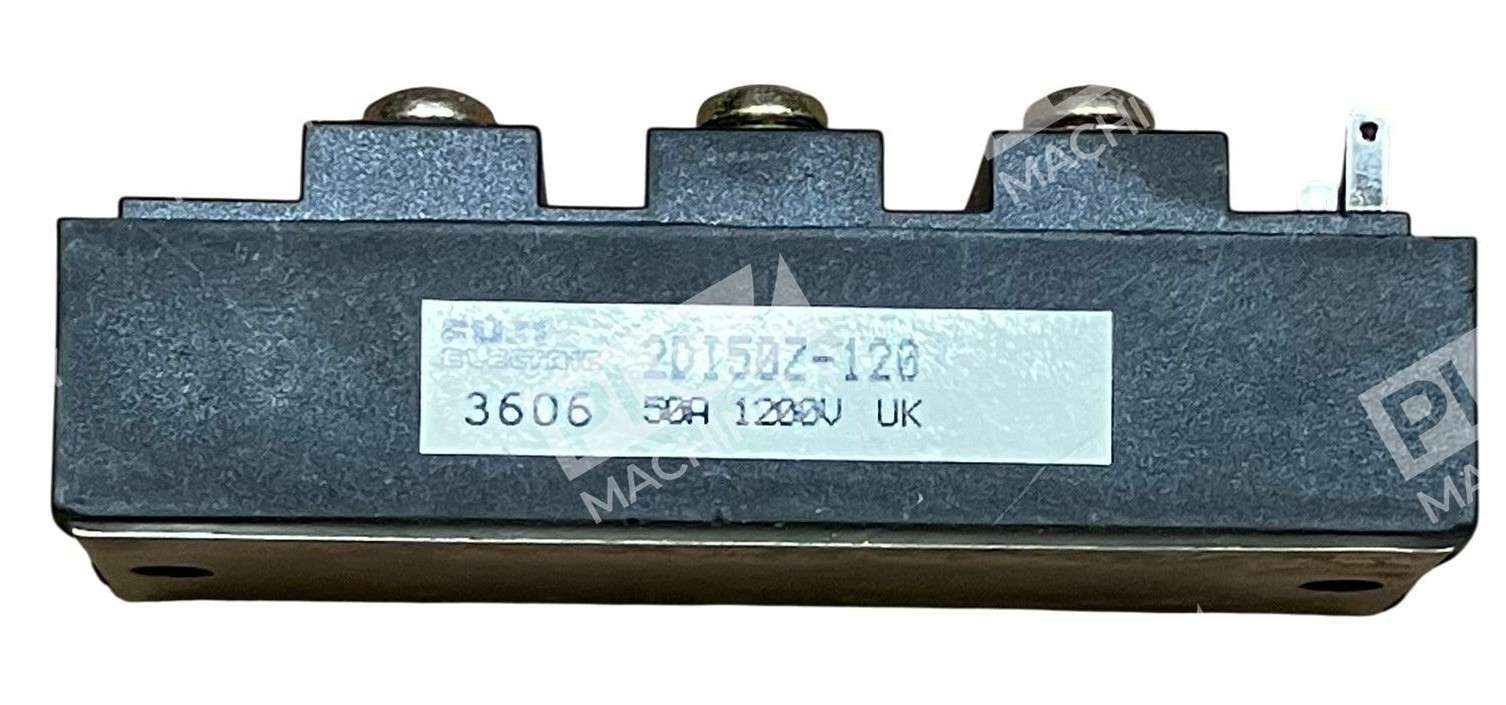

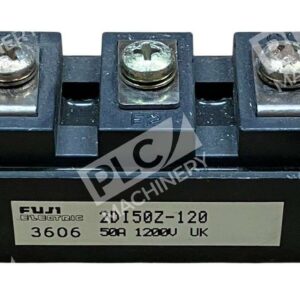

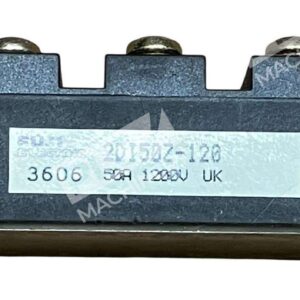

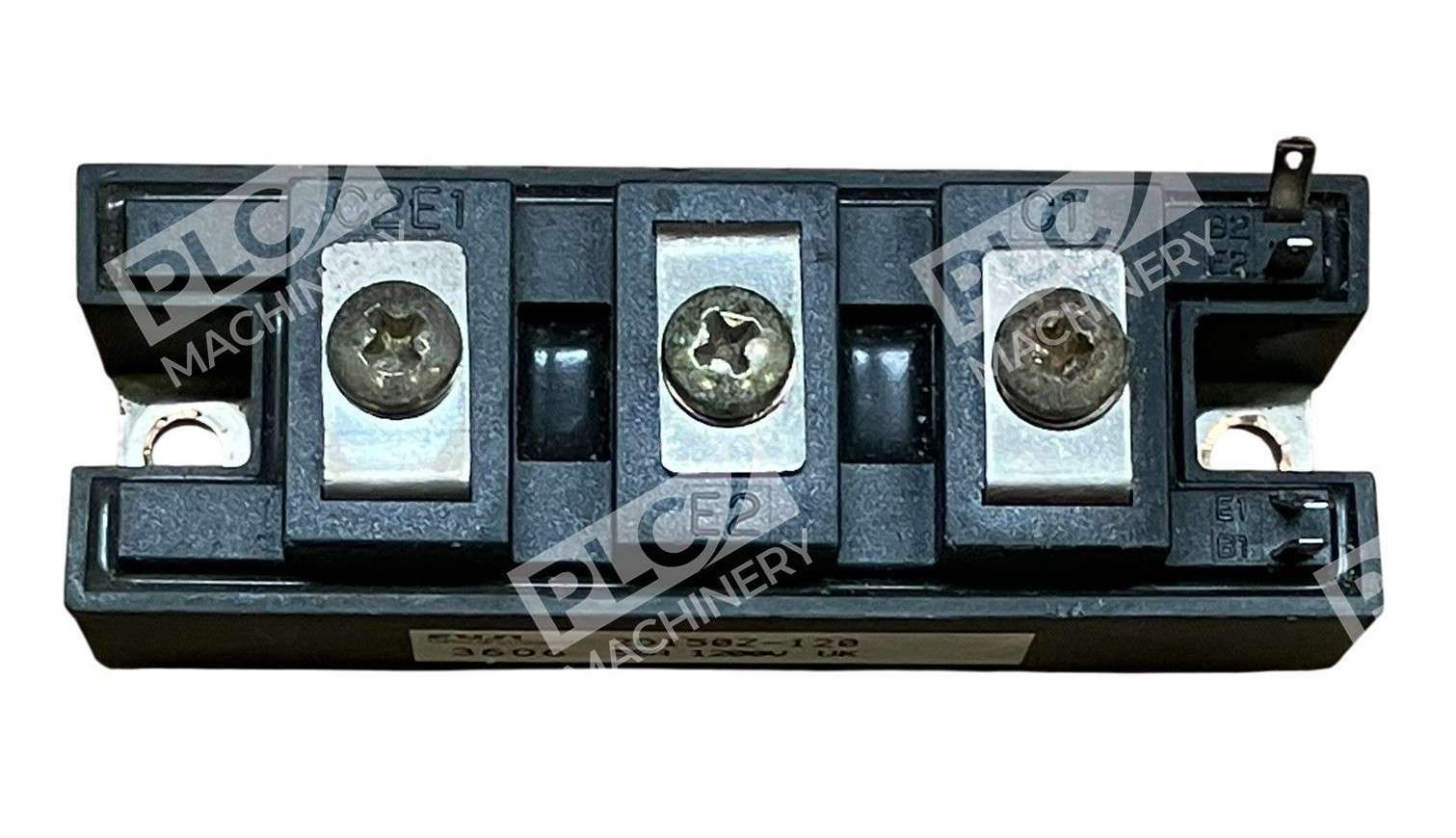

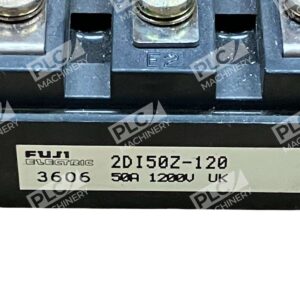

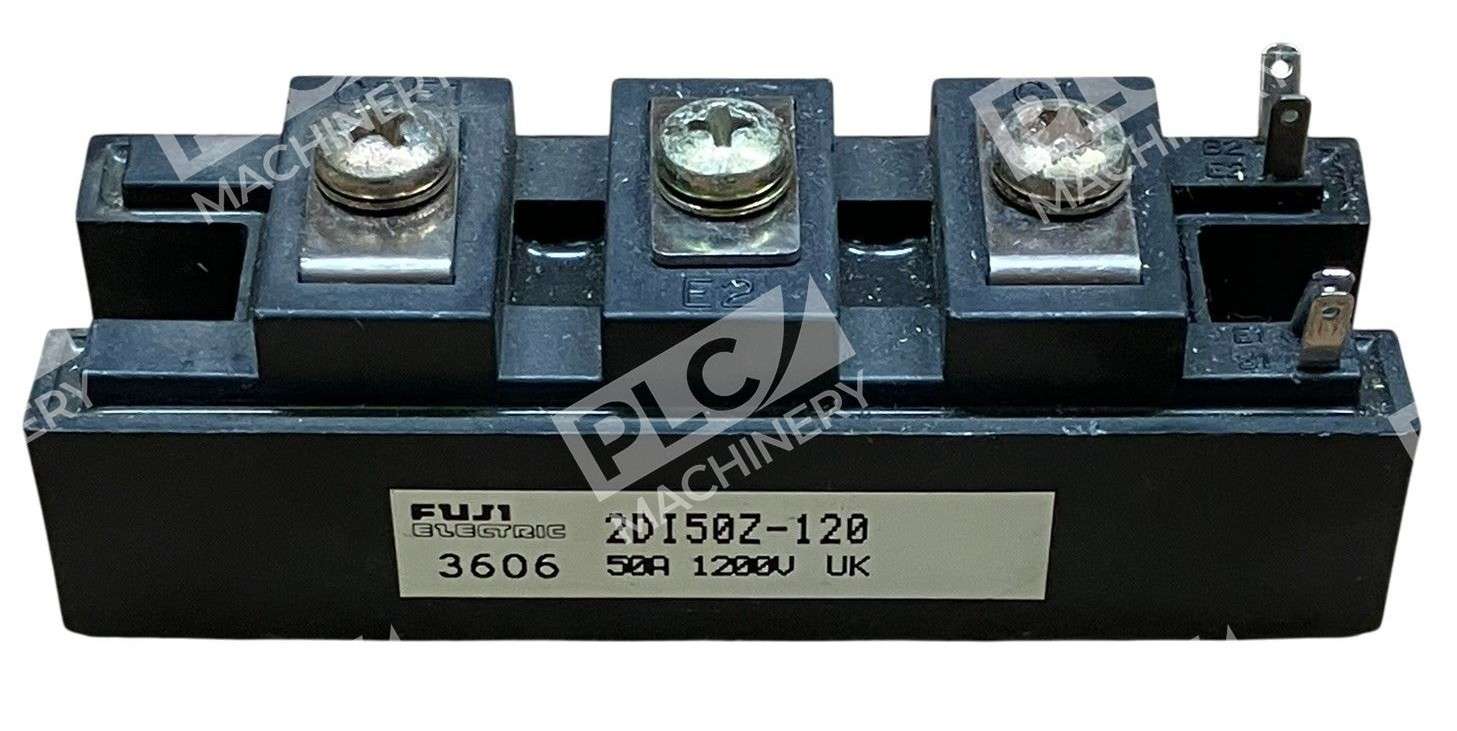

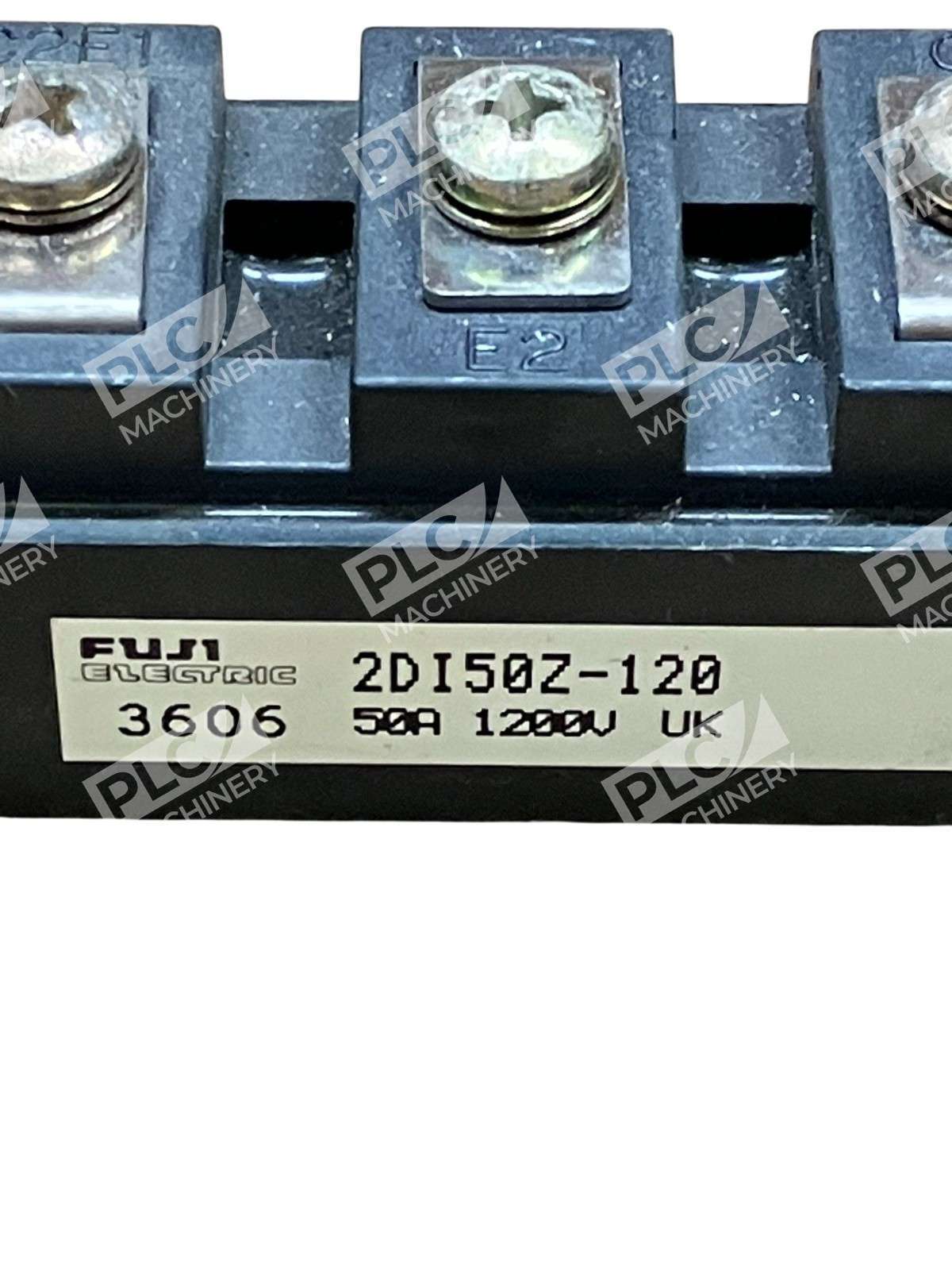

<p>The <strong>Fuji Electric 2DI50Z-120</strong> is a compact IGBT transistor block module engineered for demanding industrial switching applications. This dual-channel power semiconductor delivers reliable performance in high-power circuits requiring efficient gate control and fast switching transitions. The module’s proven design supports motor drives, uninterruptible power supplies (UPS), inverter systems, and renewable energy converters.</p>
<h2>Key Features</h2>
<ul>
<li>Dual IGBT (Insulated Gate Bipolar Transistor) configuration for parallel or bridge-leg switching</li>
<li>1200V voltage rating supports medium-voltage industrial applications</li>
<li>50A continuous current capacity with efficient power handling</li>
<li>Integrated protection circuitry for overcurrent, overvoltage, and short-circuit events</li>
<li>Low switching loss design reduces thermal stress and cooling requirements</li>
<li>Compact case format for easy integration into control cabinets</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Part Number:</strong> 2DI50Z-120</li>
<li><strong>IGBT Configuration:</strong> Dual channel (2-in-1)</li>
<li><strong>Voltage Rating (V):</strong> 1200V</li>
<li><strong>Current Rating (A):</strong> 50A per channel</li>
<li><strong>Module Weight:</strong> 190g</li>
<li><strong>Protection Features:</strong> Built-in overcurrent, overvoltage, and short-circuit protection</li>
<li><strong>Mounting:</strong> M3/M4 screw terminals for gate and collector connections</li>
</ul>
<h2>Typical Applications</h2>
<ul>
<li><strong>Motor Drives:</strong> Variable-frequency drives (VFDs) and soft-starter circuits for AC induction motors</li>
<li><strong>UPS Systems:</strong> Uninterruptible power supplies requiring high-efficiency inverter switching</li>
<li><strong>Renewable Energy:</strong> Wind turbine converters, solar inverters, and energy storage DC-DC converters</li>
<li><strong>Industrial Welders:</strong> Pulse-width-modulated switching in medium-power welding equipment</li>
<li><strong>Power Supplies:</strong> Switching regulators and DC-DC converters in industrial process control</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Industrial motor control systems and frequency converters</li>
<li>3-phase inverter and chopper circuits</li>
<li>Gate-drive isolation circuits with 15V gate-source rated supplies</li>
<li>Thermal management solutions (base-plate-mounted heatsink systems)</li>
<li>Protection relay and overcurrent detection networks</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<ul>
<li>Verify compatibility with your system integrator before ordering; part substitution requires matching voltage and current ratings plus gate-control architecture review</li>
</ul>
<h3>Works With</h3>
<ul>
<li>Standard industrial IGBT gate-driver ICs (e.g., 6-channel PWM controllers)</li>
<li>Snubber and clamp circuits for overvoltage transient suppression</li>
<li>Shunt-resistor current-sensing for feedback and protection logic</li>
<li>PLC and motion-control systems via analog or PWM command signals</li>
</ul>
