Overview

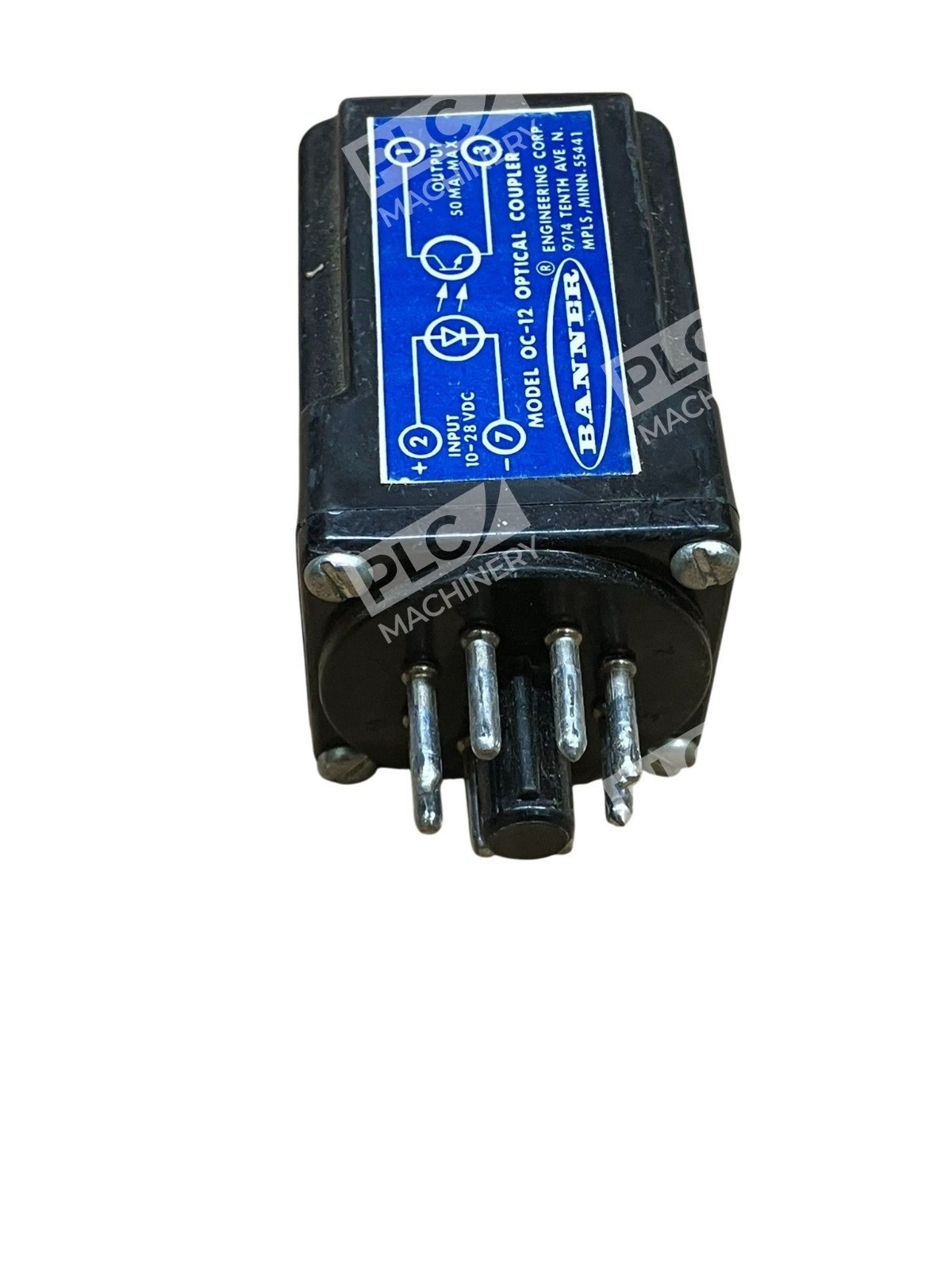

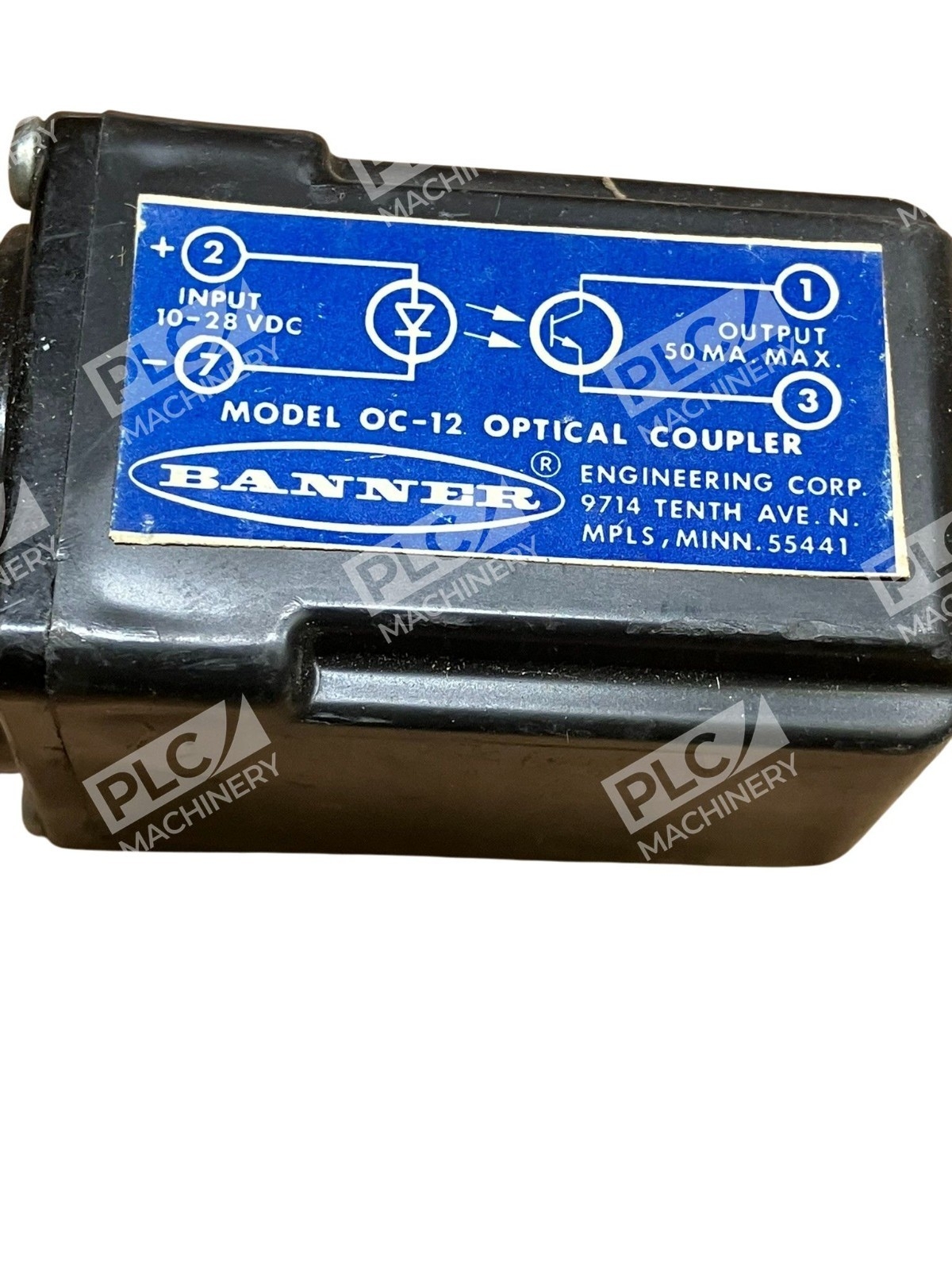

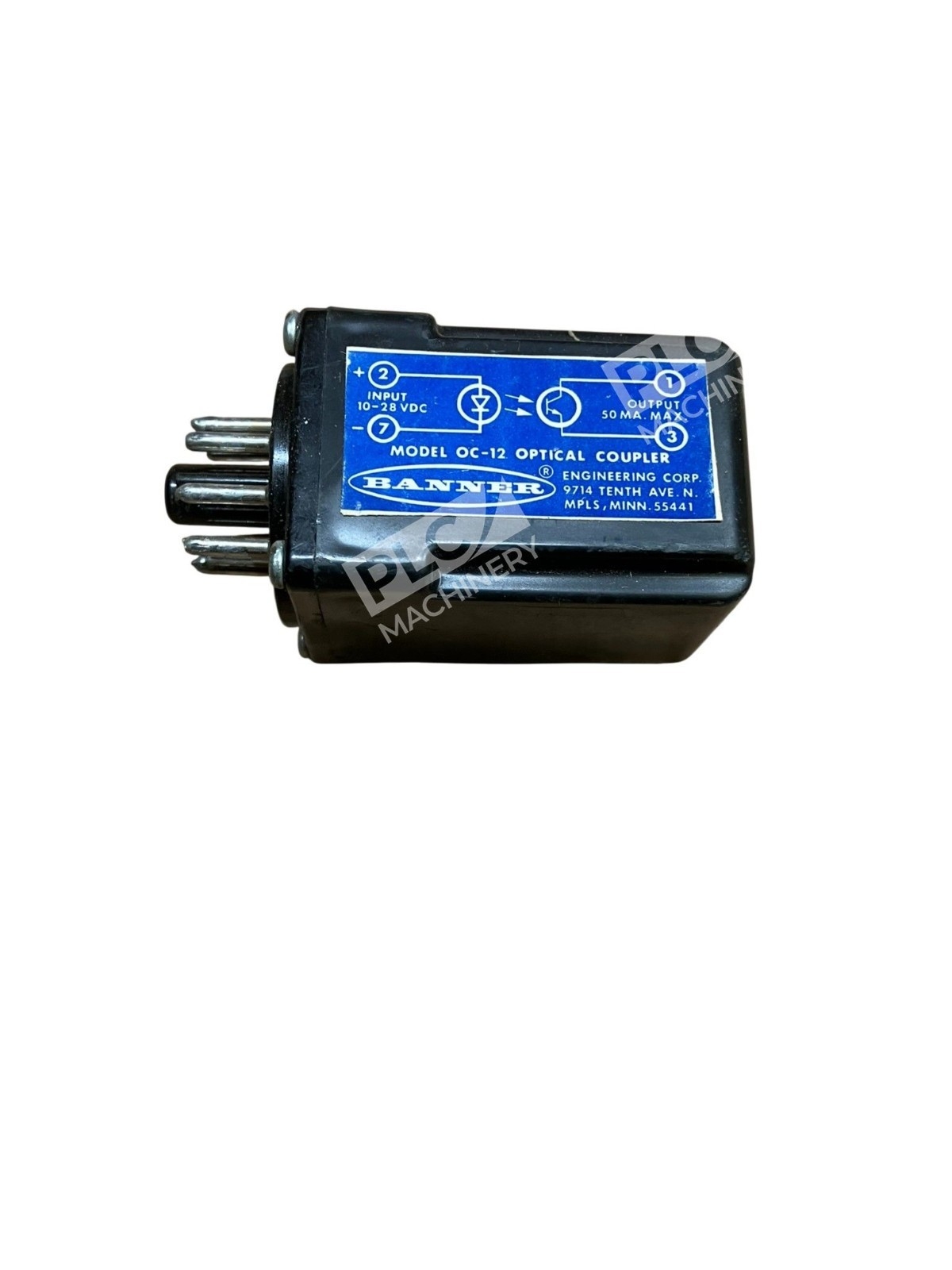

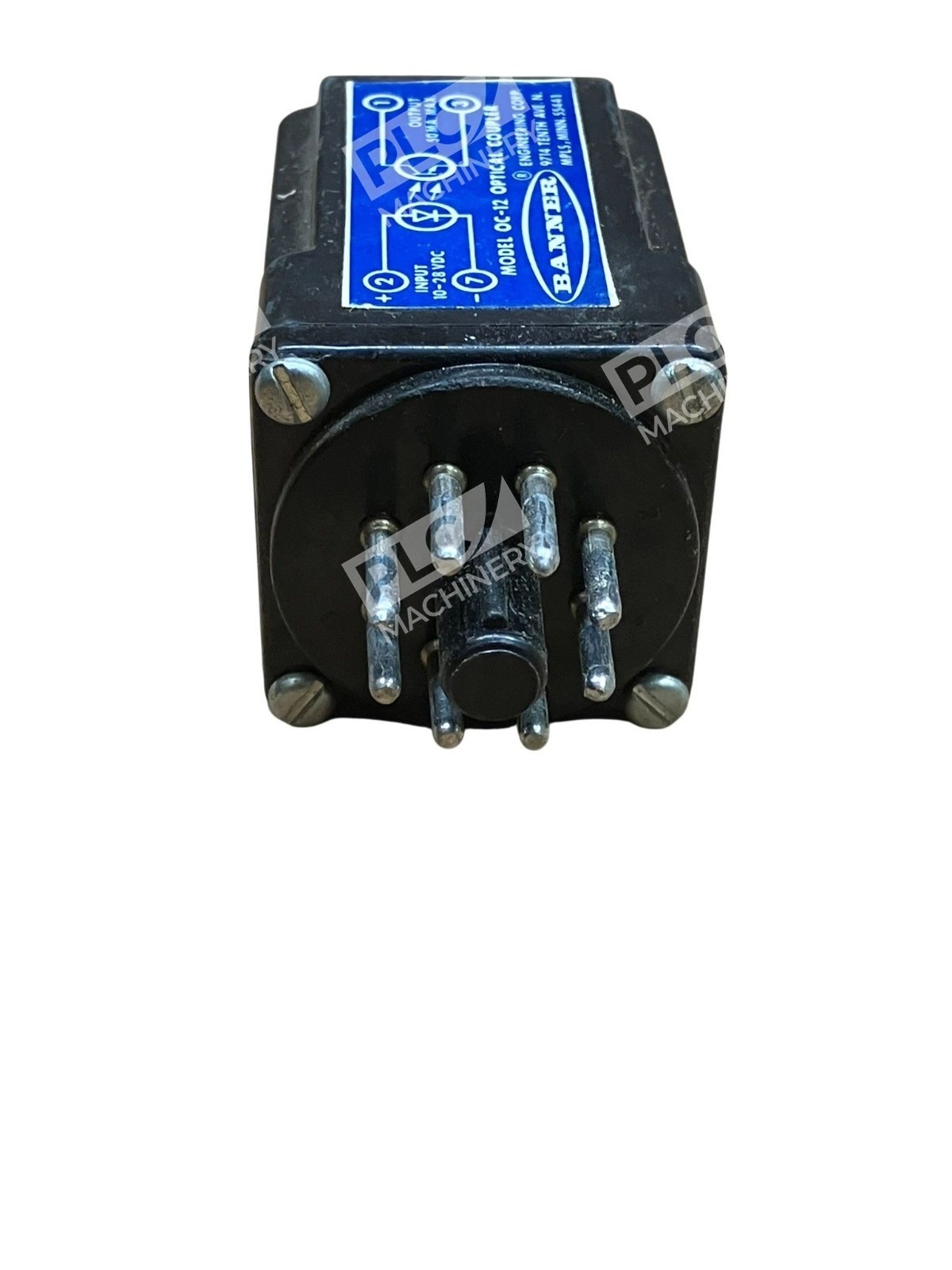

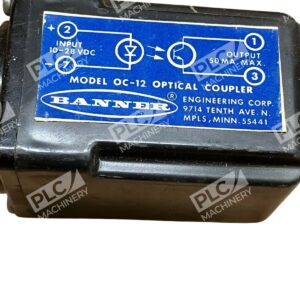

The Banner Engineering OC-12 is an optical coupler signal isolator module designed for systems requiring electrical isolation between input and output circuits. This optical coupler module accepts 10-30V DC input and delivers optically coupled, normally-open NPN output. The OC-12 serves as a signal interface device in industrial automation, motion control, and sensor applications where galvanic isolation is critical for noise immunity and circuit protection.
Key Features
- Optically Coupled Output: Normally-open NPN output for reliable signal isolation
- Wide Input Voltage Range: 10-30V DC input accommodates diverse power supplies
- DIP Socket Interface: 8-pin configuration with standard socket mounting
- Industrial Grade: Compact design suitable for control cabinets and panel integration
Technical Specifications
- Input Voltage: 10-30V DC
- Output Type: Optically coupled normally-open NPN
- Maximum Output Current: 50mA
- Pin Configuration: 8-pin DIP
- Socket Requirement: Requires OS-8 socket
- Manufacturer Part Number: 16373
- Product Category: Optical Coupler Module
- Status: Discontinued; contact Banner Engineering for replacement options
Typical Applications
- Signal isolation in PLC input modules and interface cards
- Sensor output buffering and level translation
- Motor control system signal conditioning
- Industrial automation cabinet integration where noise immunity is required
- Existing MICRO-AMP series system upgrades
Compatibility & Replacements
Compatible With
- Banner MICRO-AMP series amplifier and sensor systems
- OS-8 DIP socket carriers
- 24V DC and 10-30V DC control systems
- Industrial automation control cabinets requiring optical isolation
Replaces / Drop-In Replacement For
- Banner Engineering OC-12 (Part 16373) — original equipment spare
- Verify compatibility with your system integrator before ordering, as this is a discontinued component.
Works With
- OS-8 socket modules and carriers
- NPN logic circuits and industrial control systems
- 5V CMOS or complementary PNP/NPN input stages
- Standard 10-30V DC industrial power supplies
