Overview

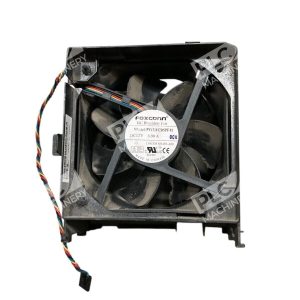

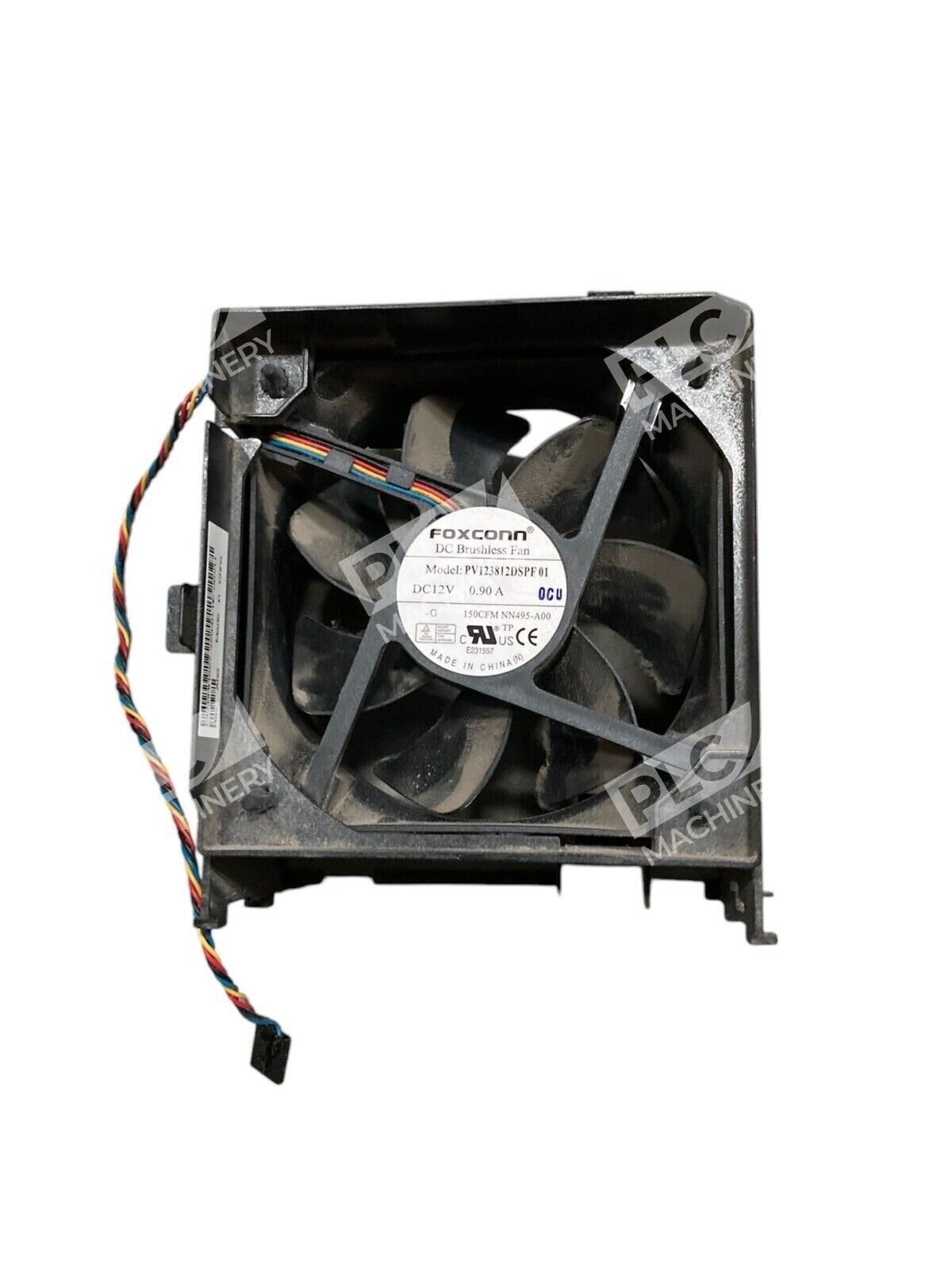

The Foxconn PV123812DSPF01 is a high-performance 12VDC brushless axial fan engineered for reliable thermal management in desktop and server environments. Operating at 12 volts with a current draw of 0.90A, this fan delivers robust cooling performance through efficient brushless DC motor technology. Originally manufactured as OEM equipment for Dell systems, it has become a trusted replacement and upgrade component across various computing platforms.
Key Features
- 12VDC operating voltage with 0.90A rated current draw
- High airflow capacity of 150 CFM (approximately 255 m³/h)
- Brushless DC motor technology for long-term reliability
- Double ball bearing system ensures durability and low vibration
- Compact 120mm × 120mm × 38mm form factor
- 4-wire connector for flexible integration
- Maximum rotational speed of 4,500 RPM
Technical Specifications

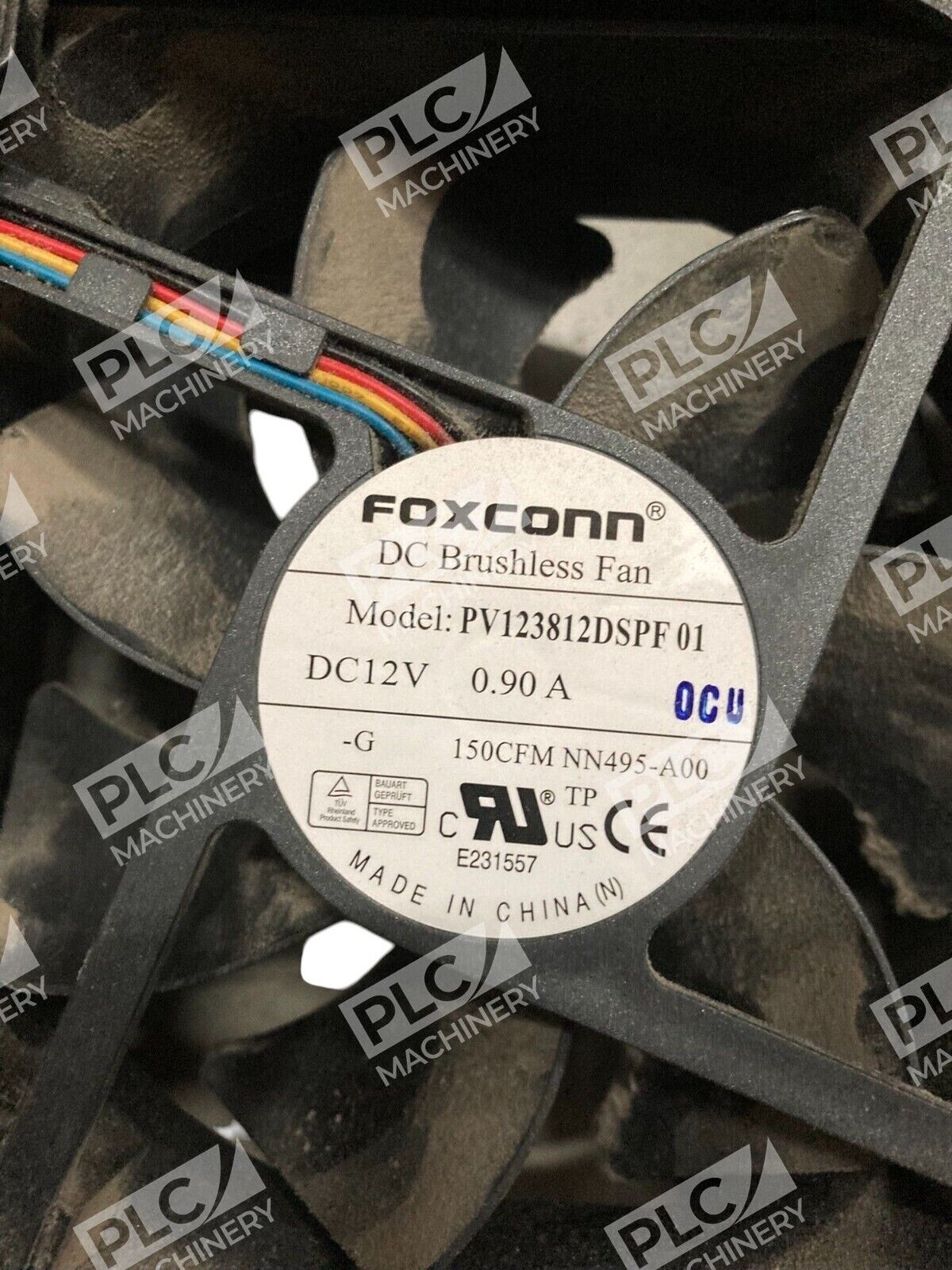

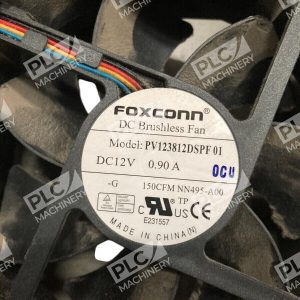

- Model: PV123812DSPF01
- Manufacturer: Foxconn
- Fan Type: DC Axial Brushless
- Voltage: 12VDC
- Current: 0.90A
- Airflow: 150 CFM (255 m³/h)
- Speed: 4,500 RPM maximum
- Dimensions: 120mm × 120mm × 38mm
- Bearing Type: Double Ball Bearing
- Connector: 4-wire (5-pin terminal compatible)
- Weight: Approximately 1.0 lb
Typical Applications
The Foxconn PV123812DSPF01 is commonly deployed in:
- Dell OptiPlex desktop systems — CPU and case cooling
- Dell Dimension series workstations
- OEM server thermal management
- Computer case exhaust and intake configurations
- Systems requiring focused airflow over high-heat components
- Industrial and commercial computing platforms
Compatibility & Replacements
Compatible With
- Dell OptiPlex desktop and workstation series
- Dell Dimension systems
- Various OEM server platforms
- Any cooling application requiring 12VDC axial fan mounting with 120mm form factor
- Standard 5-pin connector-based thermal management systems
Replaces / Drop-In Replacement For
- Dell OEM cooling fans in OptiPlex and Dimension chassis
- NN495 (alternate Dell part number designation)
- Equivalent 120mm 12V brushless cooling fans in Dell systems
Works With
- Standard 12VDC power supplies and chassis power distribution
- 4-wire PWM speed control (if controller-compatible)
- Thermal management software in Dell systems
- Any host system with available 12VDC fan connector
