Overview

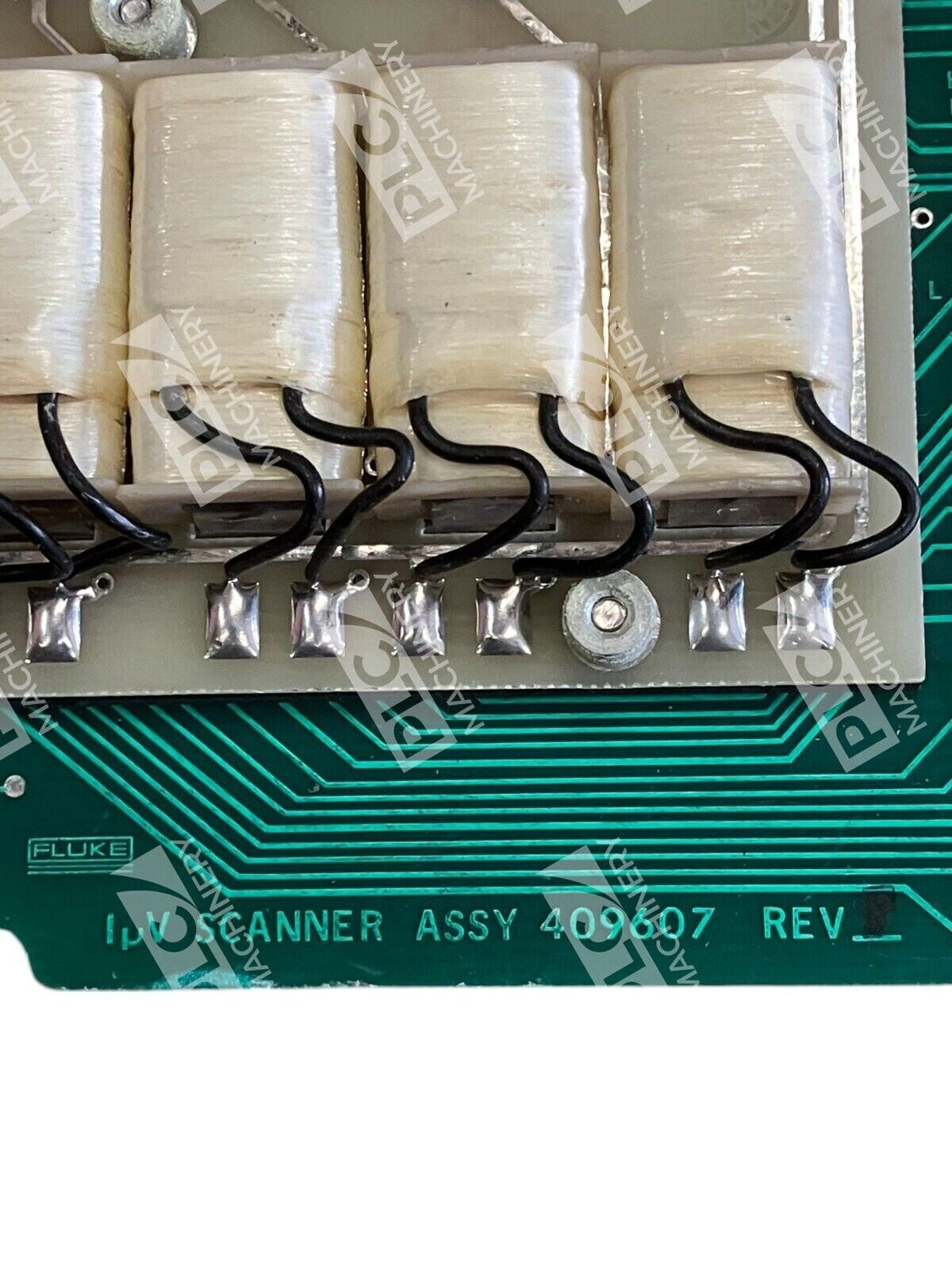

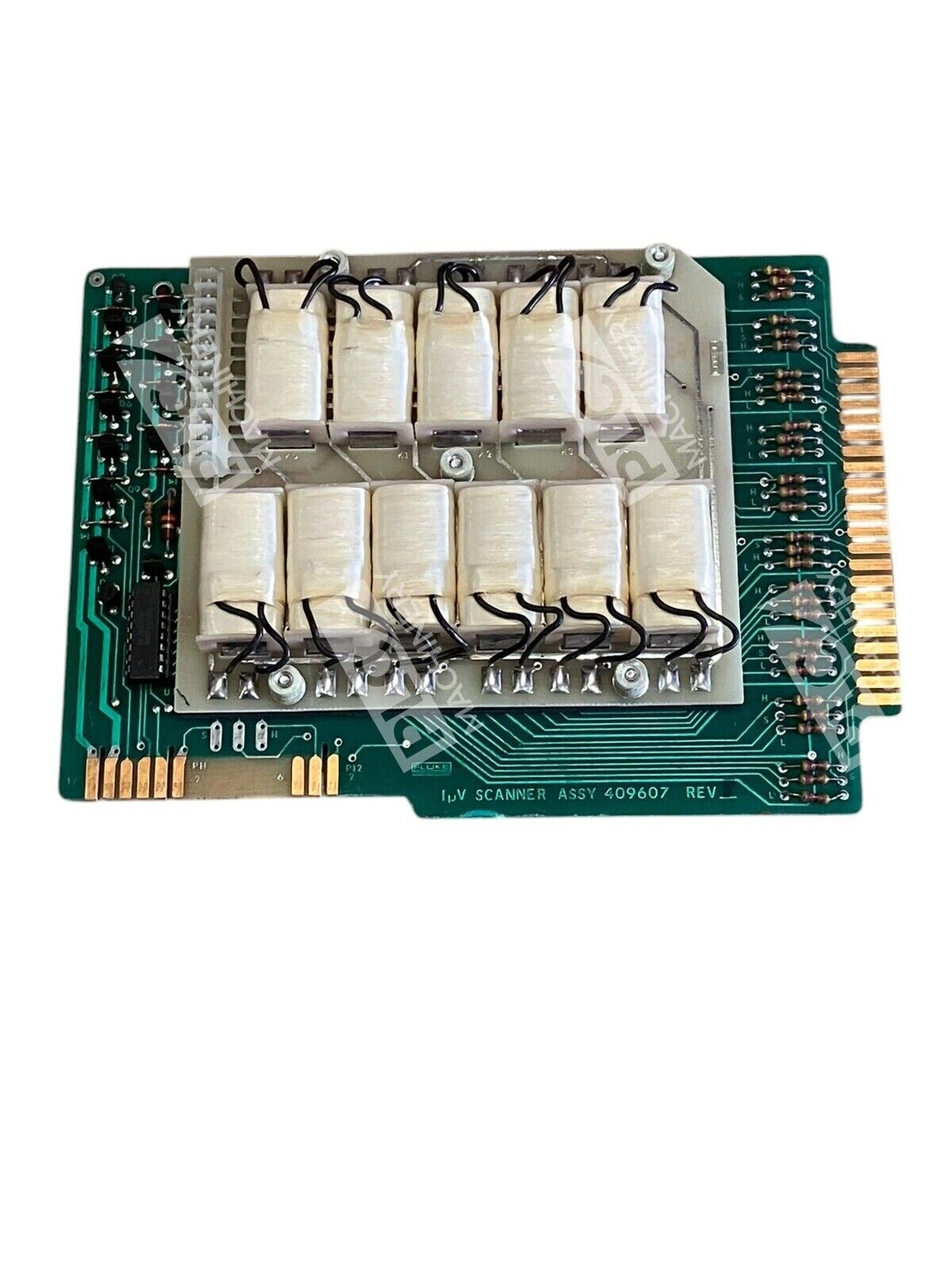

The Fluke 409607 Rev F is a luv scanner assembly circuit board that serves as a critical component in Fluke 2200A-3020 systems. This scanner assembly manages input signal acquisition and processing for industrial automation and control applications. The board features Rev H design specifications and is manufactured to Fluke’s original equipment standards.
Key Features
- Genuine Fluke replacement component (Part No. 409607)
- Designed for Fluke 2200A-3020 temperature controllers and measurement systems
- Rev F revision provides enhanced reliability and performance
- Industrial-grade circuit board assembly
- Drop-in replacement for obsolete or damaged luv scanner modules
Technical Specifications
- Manufacturer: Fluke Corporation
- Part Number: 409607 Rev F

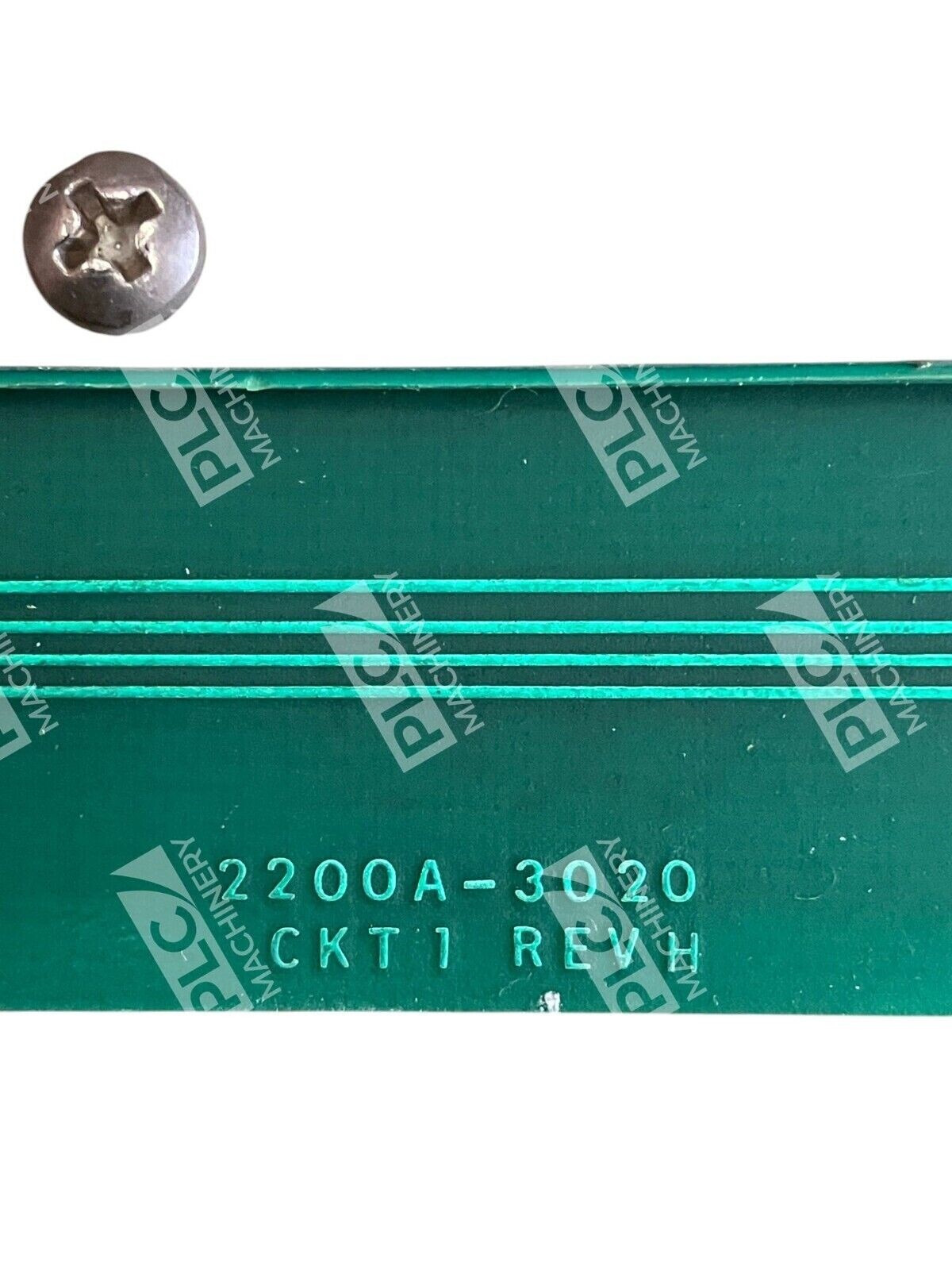

- Related Assembly: 2200A-3020 CKT1 Rev H
- Board Type: Luv Scanner Assembly
- Application: Industrial automation and temperature control systems
- Standard: Fluke OEM specifications
Typical Applications
- Fluke 2200A series temperature control systems
- Industrial measurement and data acquisition platforms
- Sensor signal conditioning and multiplexing
- Automation and process control infrastructure
- Equipment repair and refurbishment projects
Compatibility & Replacements
Compatible With
- Fluke 2200A-3020 temperature controllers
- Fluke 2200 series measurement systems
- Industrial automation platforms requiring signal acquisition
Replaces / Drop-In Replacement For
- Fluke 409607 (all earlier revisions)
- Original luv scanner assemblies in 2200A-3020 systems
- Verify compatibility with your system integrator before ordering
Works With
- Fluke 2200A series controllers
- Standard industrial control architectures
- Fluke calibration and measurement platforms
