<h2>Overview</h2>

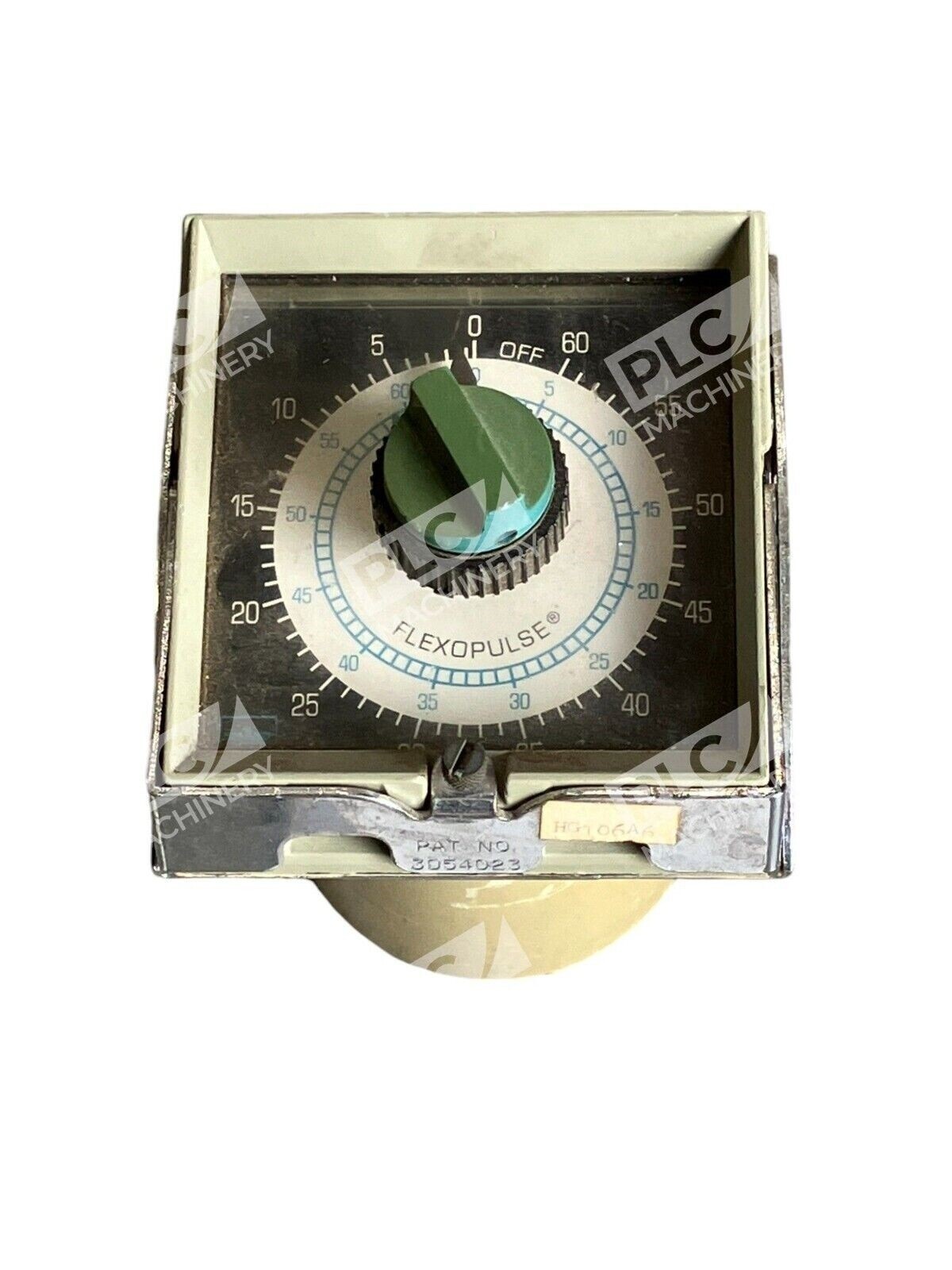

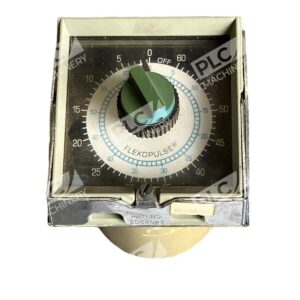

<p>The <strong>Eagle Signal HG106A6</strong> timer is a <strong>repeat cycle, two-circuit timer</strong> from the Flexopulse HG1 series. Manufactured by Danaher Controls, this workhorse electromechanical timer provides precise ON/OFF cycle control in industrial and manufacturing environments. It is housed in the popular Cycle-Flex plug-in case, making it a drop-in solution for legacy and modern control panels.</p>
<h2>Key Features</h2>
<ul>
<li>Adjustable 0–60 minute dial range with 1-minute minimum resolution</li>
<li>Supports both symmetrical and asymmetrical repeat cycles</li>
<li>Two independent output circuits for simultaneous control</li>
<li>Dual concentric dials for independent ON and OFF time settings</li>
<li>Compact, rugged design suitable for harsh industrial environments</li>
<li>Low power consumption (motor burden: 2.5 VAC)</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Supply Voltage:</strong> 120 VAC</li>
<li><strong>Frequency:</strong> 60 Hz</li>
<li><strong>Motor Burden:</strong> 2.5 VAC</li>
<li><strong>Time Range:</strong> 0–60 minutes</li>
<li><strong>Minimum Time Setting:</strong> 1 minute</li>
<li><strong>Maximum Dwell/Overlap:</strong> 1 minute</li>
<li><strong>Output Circuits:</strong> Two independent circuits</li>
<li><strong>Type:</strong> Repeat cycle timer (ON/OFF)</li>
<li><strong>Series:</strong> HG1 Flexopulse</li>
<li><strong>Case Style:</strong> Cycle-Flex plug-in case</li>
<li><strong>Manufacturer:</strong> Danaher Controls / Eagle Signal</li>
<li><strong>Status:</strong> Discontinued by manufacturer</li>
</ul>
<h2>Typical Applications</h2>
<p>The HG106A6 is ideal for machinery and processes requiring precision timing:</p>
<ul>
<li>Production and manufacturing line automation</li>
<li>HVAC and climate control cycling</li>
<li>Pump and motor start/stop sequencing</li>
<li>Conveyor belt timing and coordination</li>
<li>Industrial process control and synchronization</li>
<li>Legacy equipment retrofit and repair</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>General Purpose Relays and contactor logic</li>
<li>120VAC control circuits (50/60 Hz systems)</li>
<li>Cycle-Flex plug-in relay sockets</li>
<li>NEMA and IEC industrial control panels</li>
<li>Legacy electromechanical control systems</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<ul>
<li>Eagle Signal HG106A6 (exact replacement)</li>
<li>Other HG1 Flexopulse 60-minute variants (verify socket compatibility)</li>
</ul>
<h3>Works With</h3>
<ul>
<li>Direct-acting relay circuits and ladder logic</li>
<li>120VAC coil-operated contactors and solenoids</li>
<li>Two-wire and three-wire industrial motor control systems</li>
<li>Cycle-Flex accessory modules and auxiliary switches</li>
</ul>
