Overview

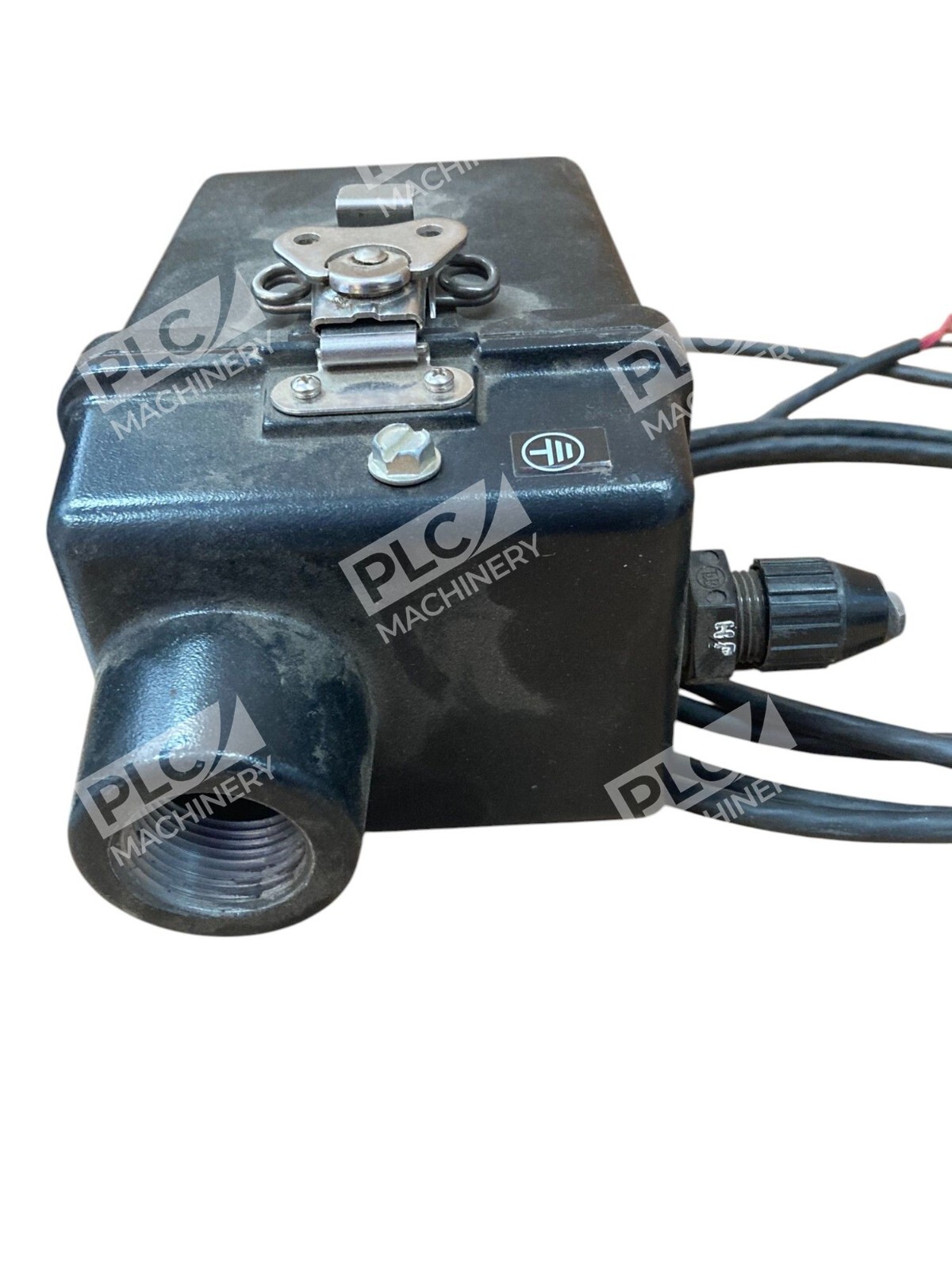

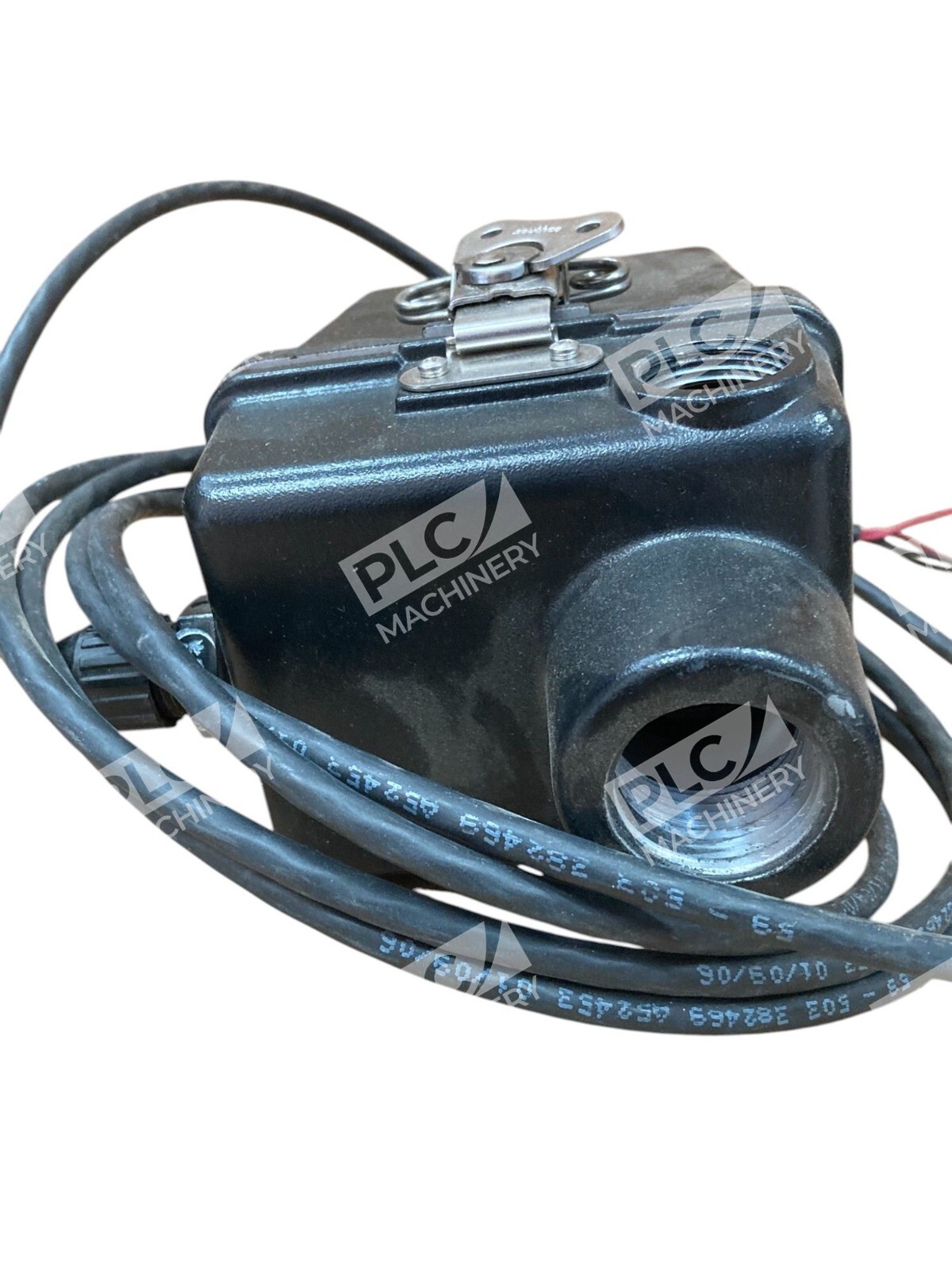

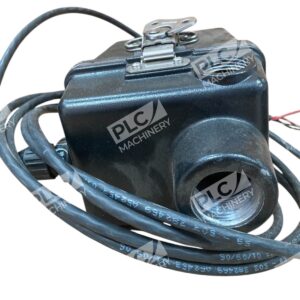

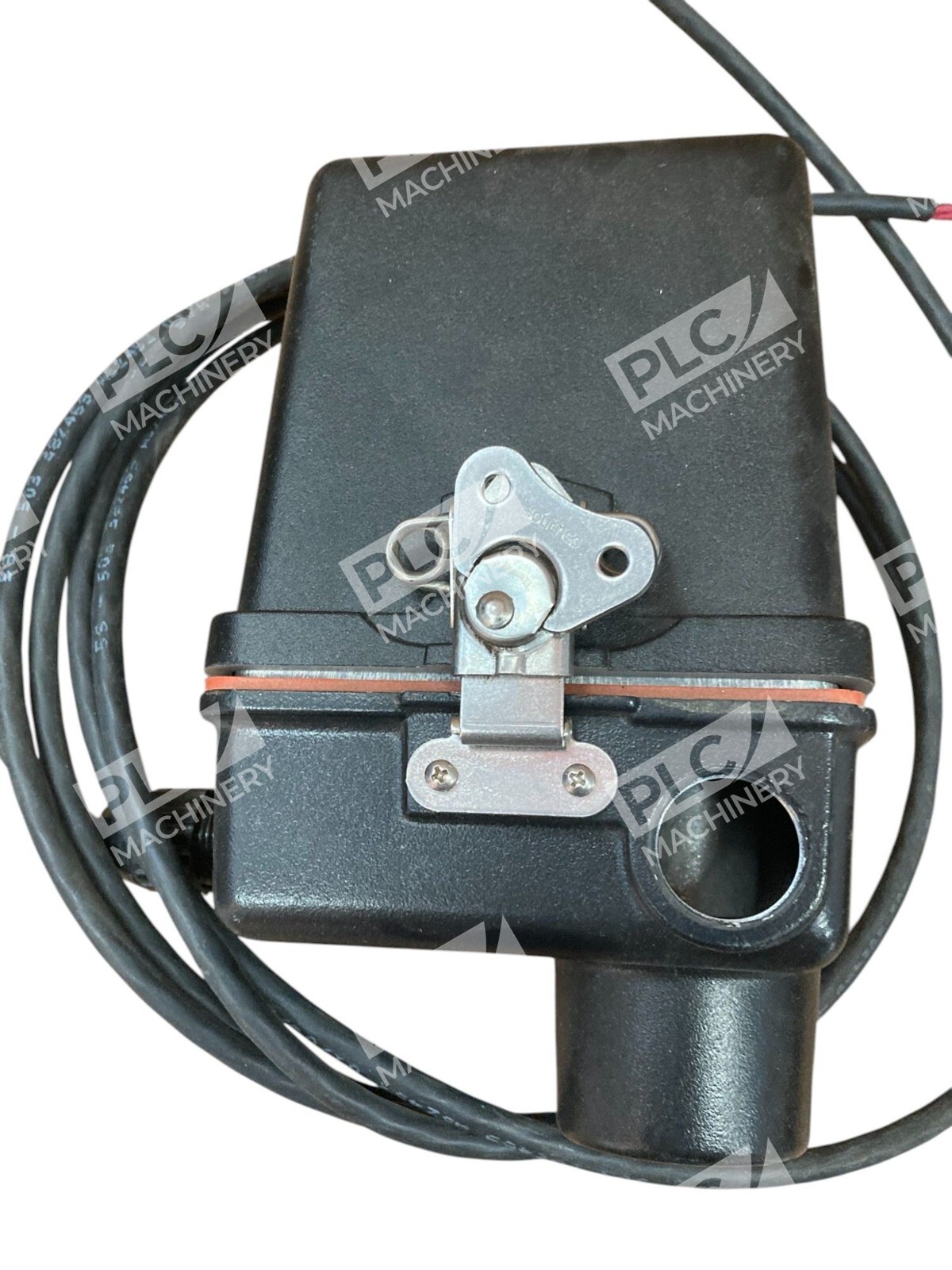

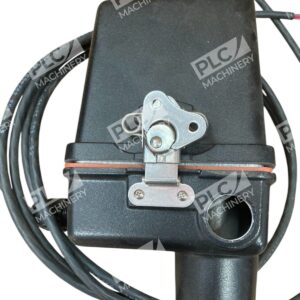

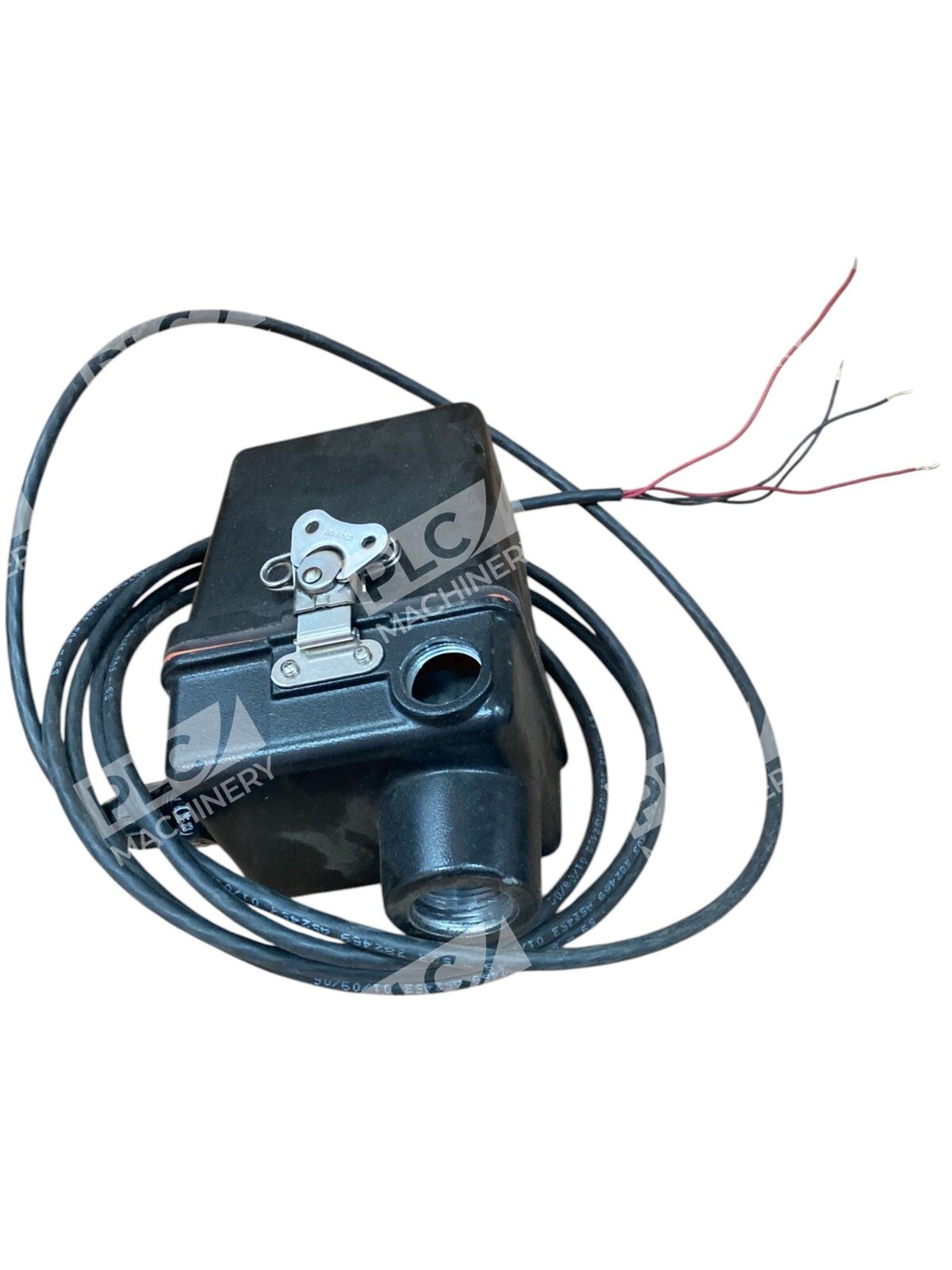

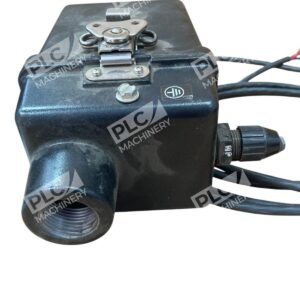

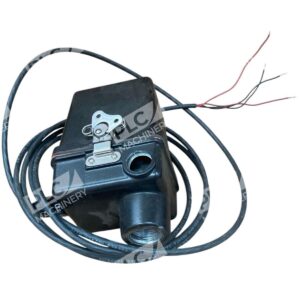

The Fireye 65UV5-1000 is a unitized, integrated flame scanner part of Fireye’s Simplicity line. This self-checking scanner detects ultraviolet emissions from fossil fuel flames such as natural gas, coke oven gas, propane, methane, butane, kerosene, light petroleum distillates and diesel fuels. The 65UV5 flame scanner is a microprocessor-based flame scanner utilizing an ultraviolet tube-type sensor and an electro-mechanical self-checking shutter mechanism. The Fireye 65UV5 flame scanner incorporates an internal flame relay with a fixed ON/OFF threshold thereby eliminating the need for an external flame amplifier.
Key Features
- Self-Checking Design: Electro-mechanical shutter mechanism provides proof-of-operation diagnostics
- Internal Flame Relay: Fixed ON/OFF threshold eliminates need for external amplifier
- UV-Eye Detector: Uses a UV-eye detector—a sealed, gas-filled, UV-sensitive tube containing two electrodes connected to a DC voltage source.
- Microprocessor-Based: Provides reliable flame signal processing and monitoring
- Industrial Rating: NEMA 4x / IP66 rating suitable for use in Class I Division II, Group A, B, C, & D hazardous environments.
- Status Indication: Two-color internal LED indicates flame status (off/on) and alarm condition.

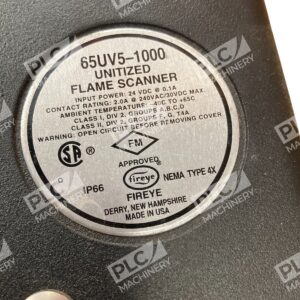

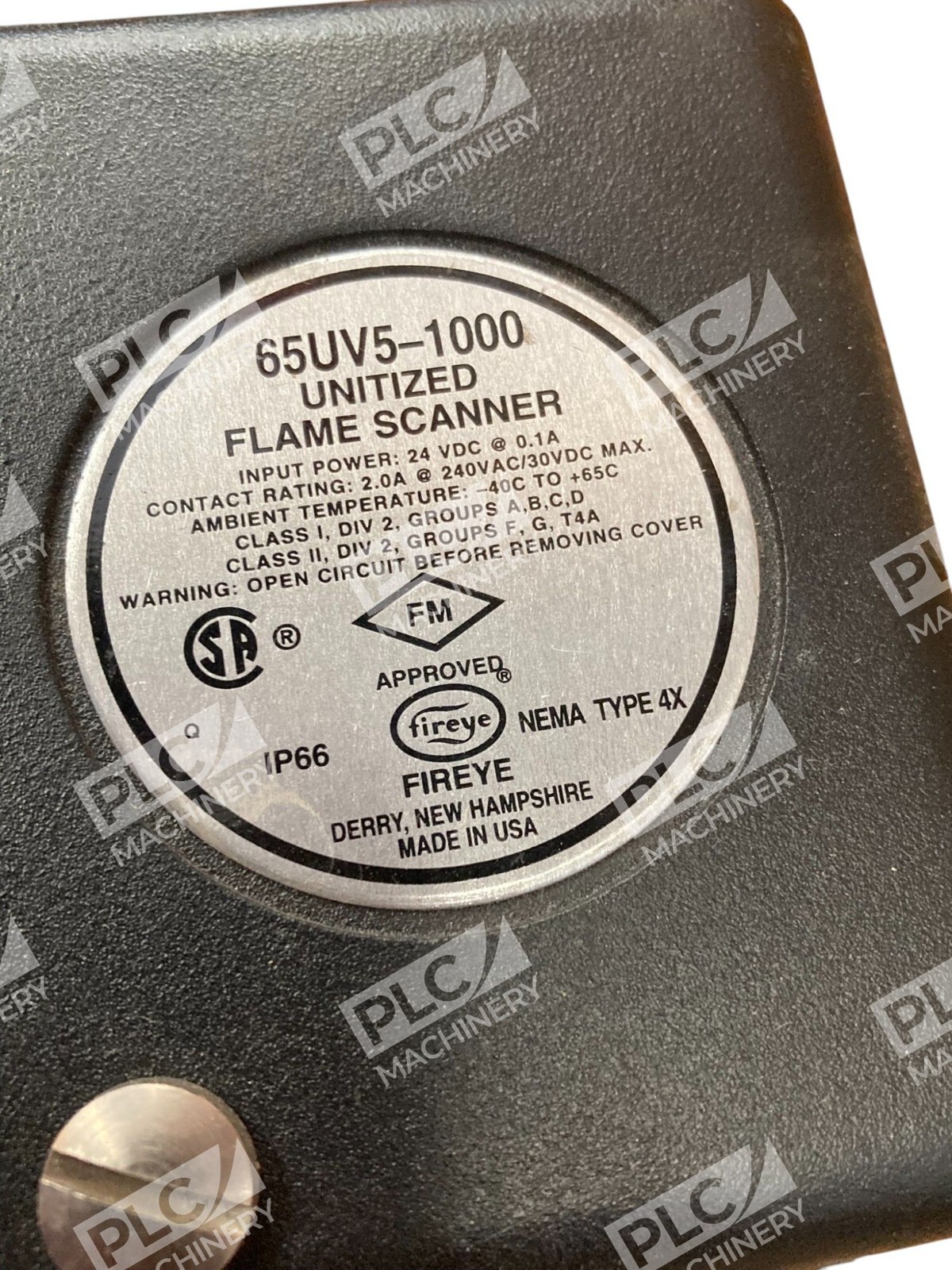

Technical Specifications
- Detector Type: UV-eye tube sensor (sealed, gas-filled)
- Hazard Rating: NEMA 4x / IP66; Class I Division II, Groups A, B, C, D
- Housing Material: Aluminum
- Internal Relay: Single pole, single throw (SPST), normally open
- Self-Check: Electro-mechanical shutter mechanism
- Flame Detection Capability: Detects UV radiation from fossil fuel flames
- Purge/Cooling Air: 4 SCFM (113 l/min) minimum at 3/4″ threaded mounting flange or 1 inch “Y” fitting.
- Operating Temperature Range: -40°F to +150°F (-40°C to +65°C) maximum.
- Housing Weight: 6.6 lbs (2.99 kg)
Typical Applications
The Fireye 65UV5-1000 is suitable for:
- Natural gas and propane burner management systems
- Industrial boiler flame monitoring
- Furnace combustion control and safety
- Hazardous location flame detection (Class I Division II)
- Petrochemical and refinery burner applications
- Commercial heating and process heating systems
Compatibility & Replacements
Compatible With
- Fireye burner management and flame safeguard control systems
- 24 VDC control circuits
- Flame monitoring and combustion control networks
- Industrial burner controls utilizing UV flame detection
- NEMA 4x enclosure installations
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or Fireye controls before ordering. The 65UV5-1000 is part of Fireye’s Simplicity integrated scanner line; cross-reference model variants (such as 65UV5-1004, 65UV5-1004E) for specific mounting, FFRT, and output configurations.
Works With
- Fireye Simplicity integrated flame scanner control modules
- Burner management systems (BMS) accepting UV flame input
- Flame signal processing circuits and relay logic controllers
- Purge/cooling air supply systems (4 SCFM minimum)
- Industrial automation and safety control platforms
