Overview

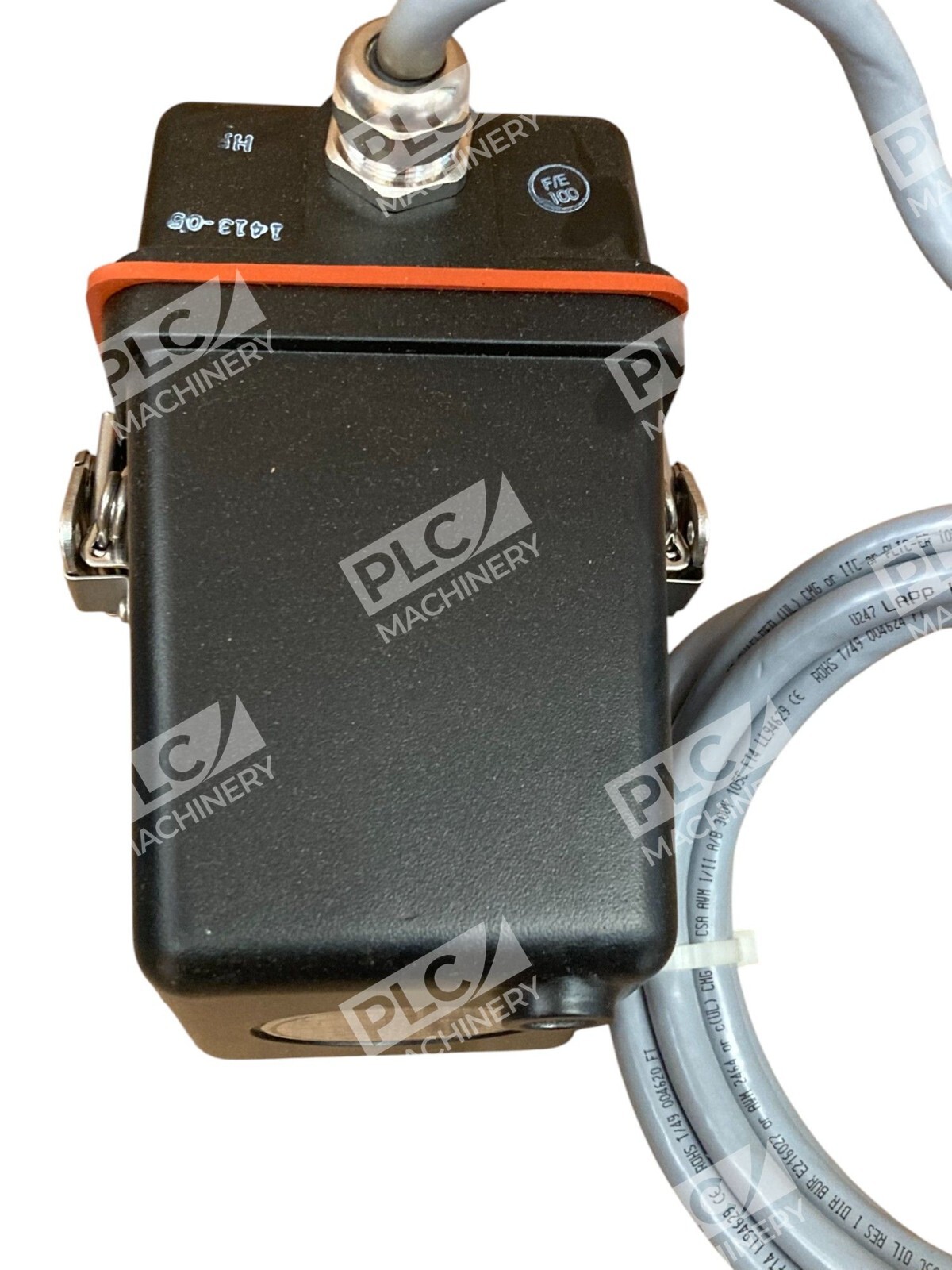

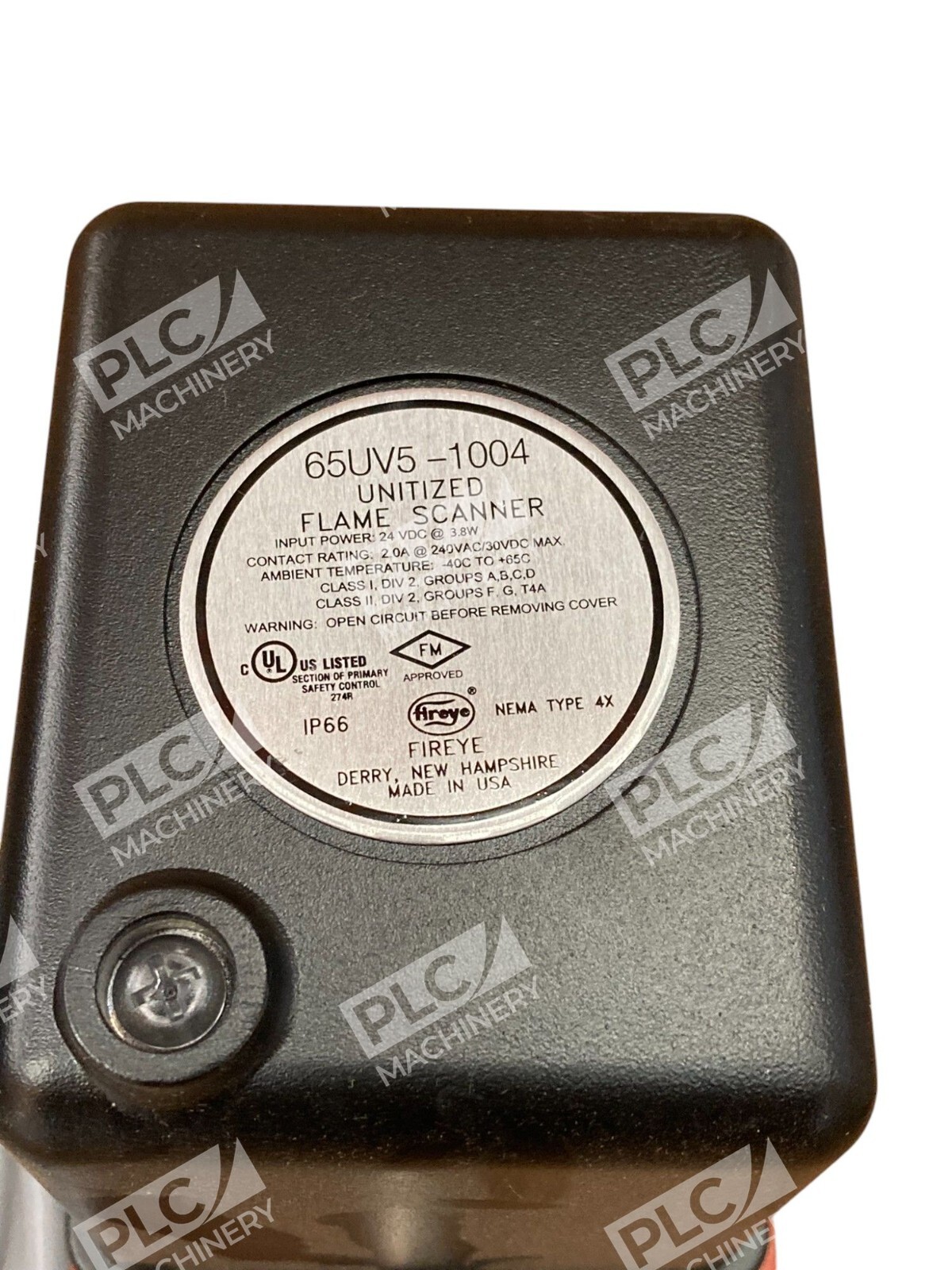

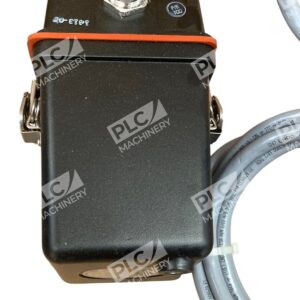

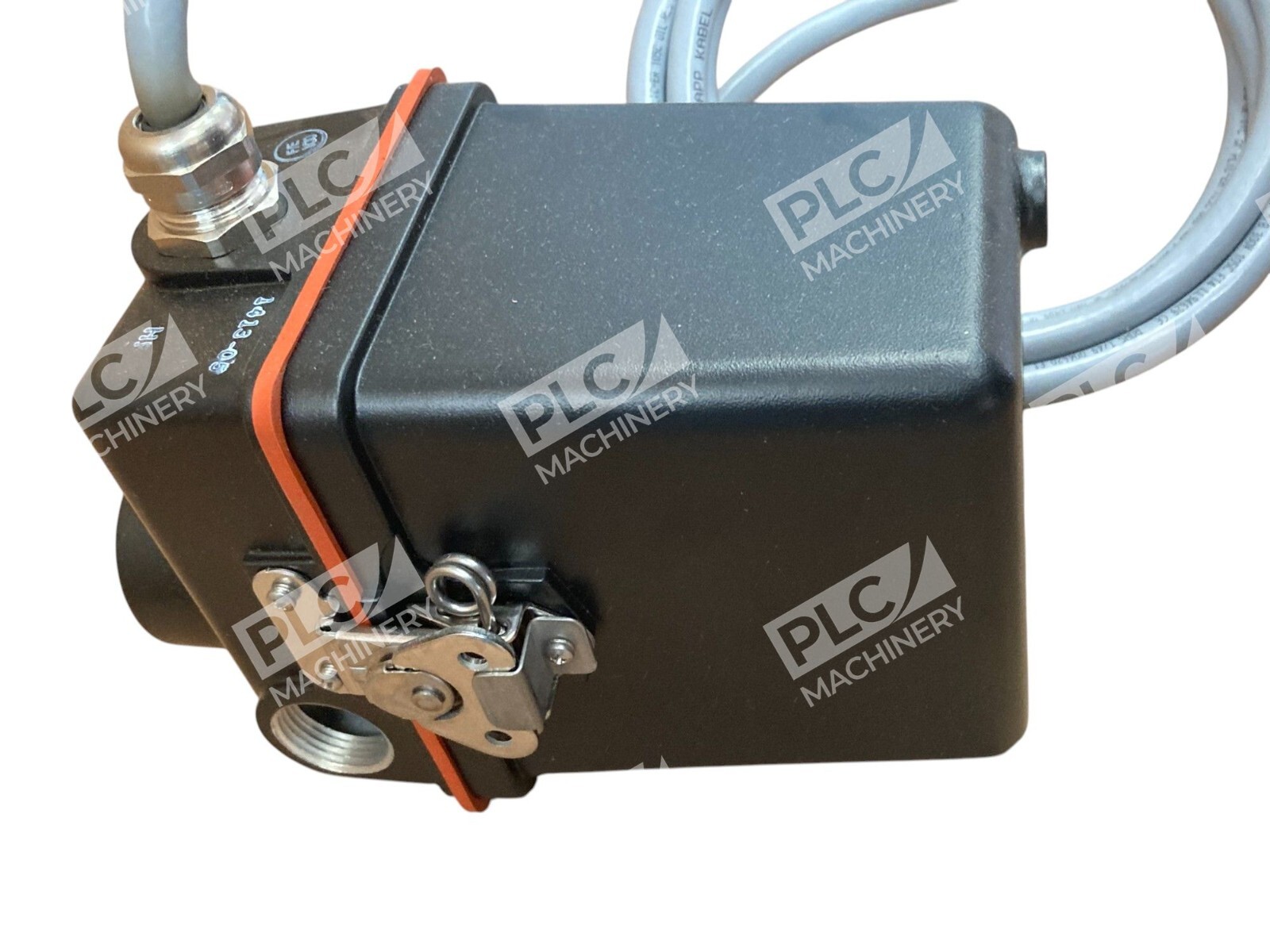

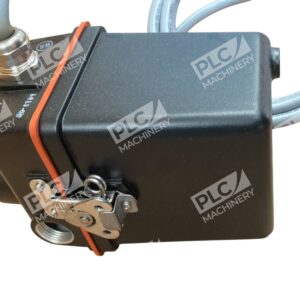

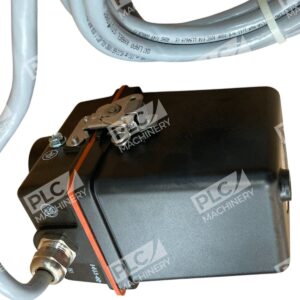

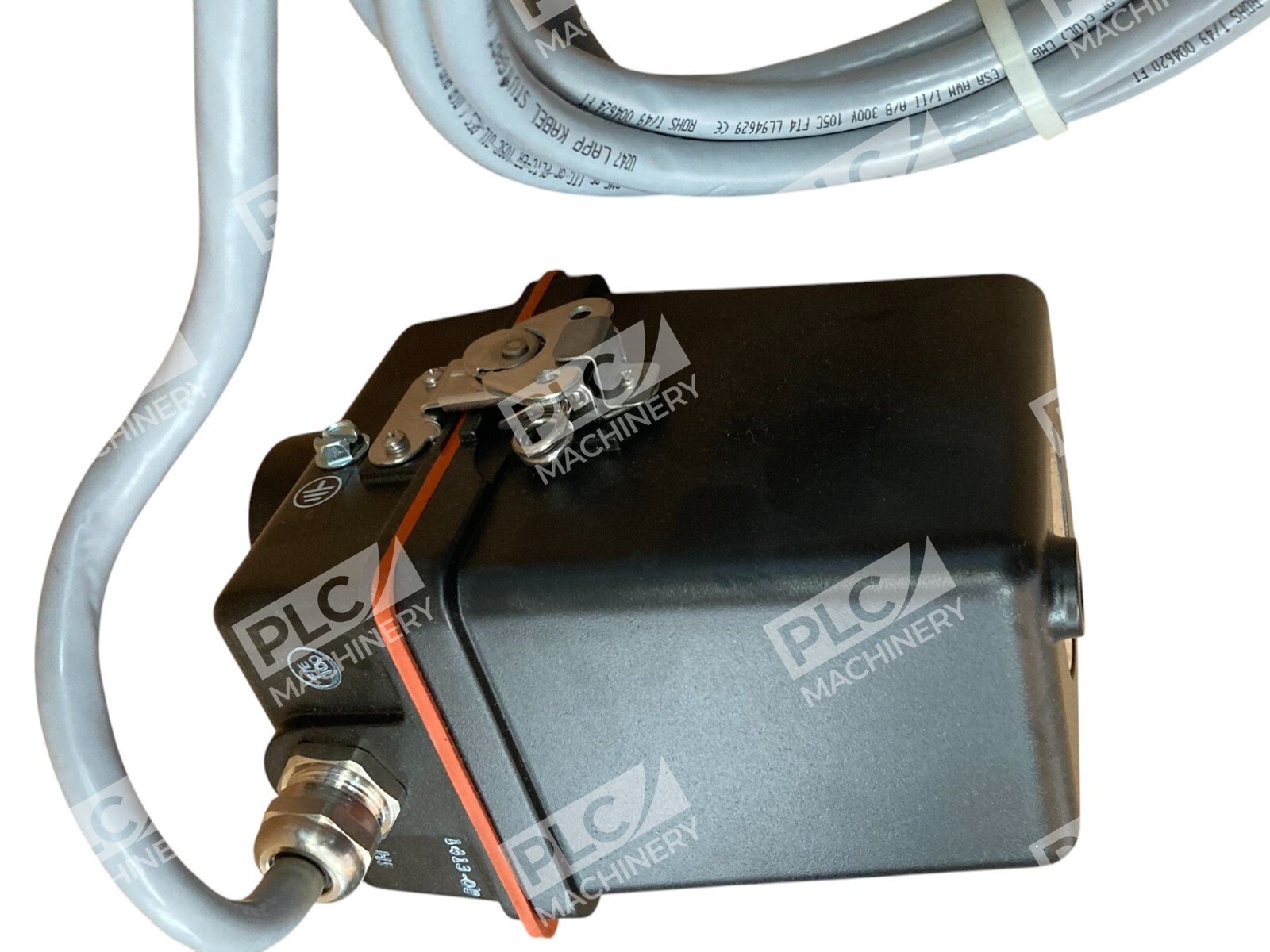

The Fireye 65UV5-1004 is a self-checking ultraviolet integrated flame scanner designed for reliable flame detection in industrial burner applications. This microprocessor-based unit features an internal flame relay with fixed ON/OFF threshold, eliminating the need for an external flame amplifier. The 65UV5 detects ultraviolet emissions from fossil fuel flames such as natural gas, coke oven gas, propane, methane, butane, kerosene, light petroleum distillates and diesel fuels.
Key Features
- Microprocessor-based flame scanner with internal single pole, single throw (normally open) flame relay and electromechanical self-checking shutter mechanism
- NEMA 4X / IP66 rated housing, suitable for Class I Division II, Group A, B, C, & D hazardous environments
- Provides 4-20 mA analog output for remote indication of flame signal strength

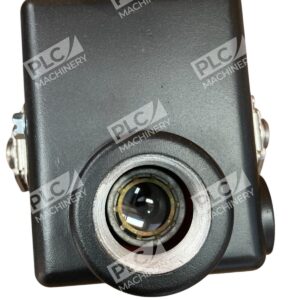

- Two-color internal LED indicates flame status (off/on) and alarm condition, viewable through rear viewing lens
- Internal single pole, single throw (normally open) flame relay with fixed on/off threshold eliminates the need for an external flame amplifier
Technical Specifications
- Sensor Type: Ultraviolet tube
- Power Supply: 24 VDC

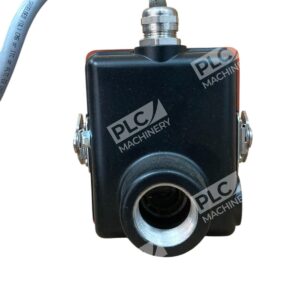

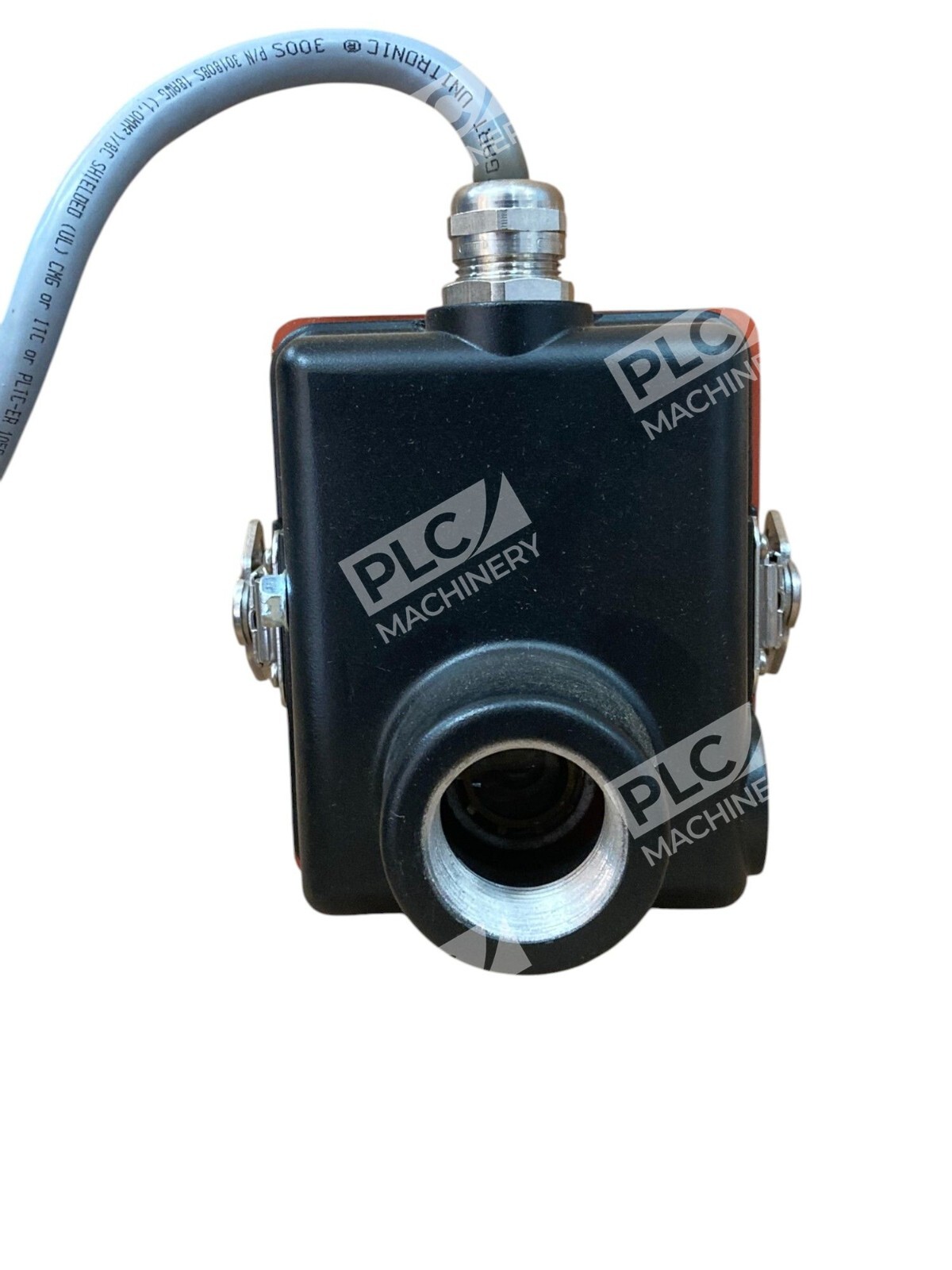

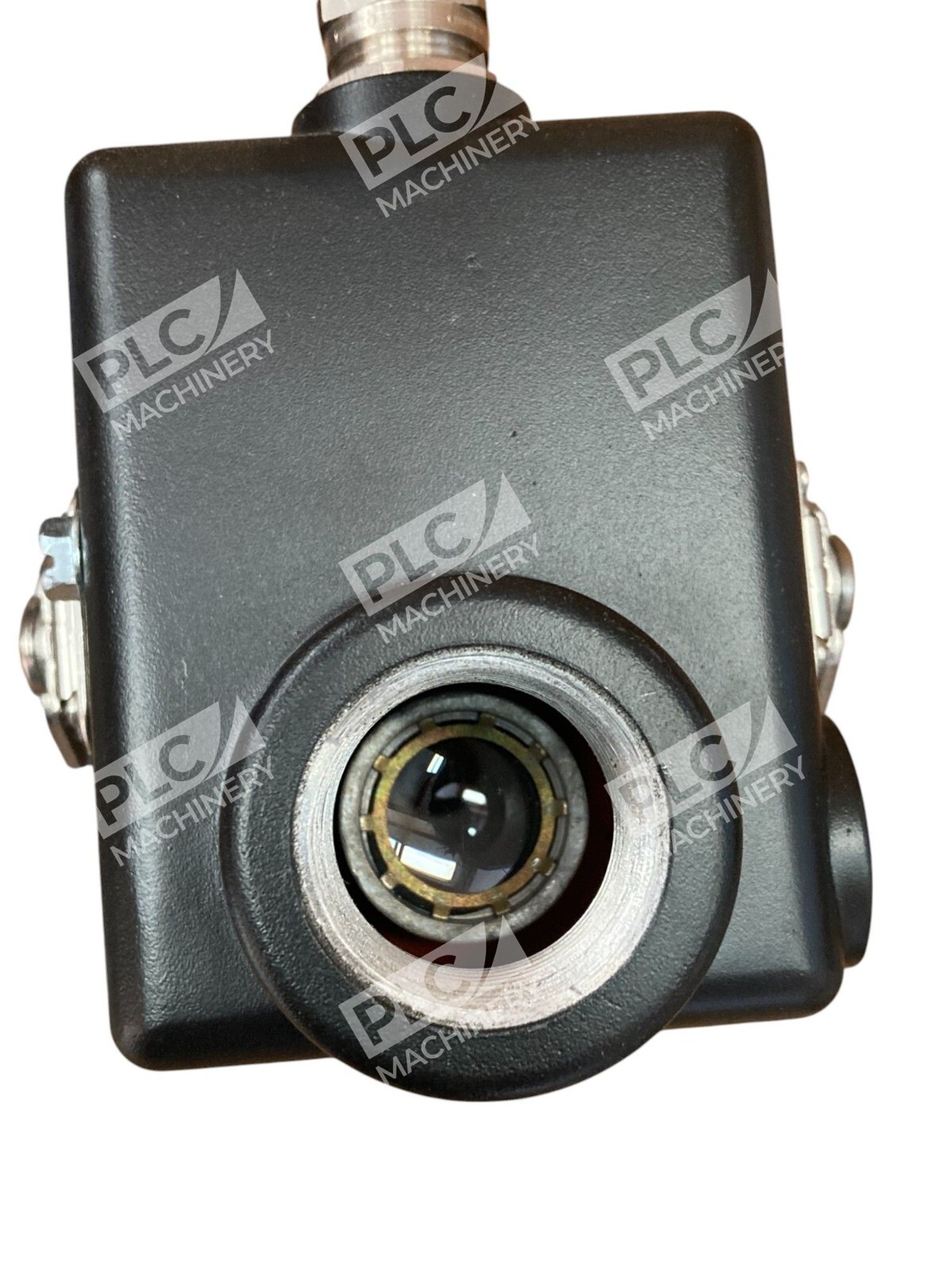

- Mounting: 1″ NPT
- Flame Failure Response Time (FFRT): 4 seconds
- Analog Output: 4-20 mA

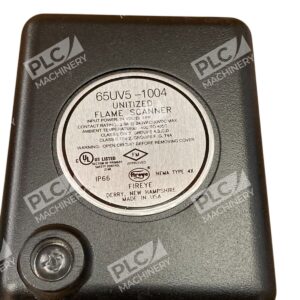

- Rating: NEMA 4X / IP66
- Housing Weight: 6.6 lbs (2.99 kg)
- Operating Temperature: -40°F to +150°F (-40°C to +65°C)
- Purge Air Requirement: 4 SCFM minimum (clean, dry air)

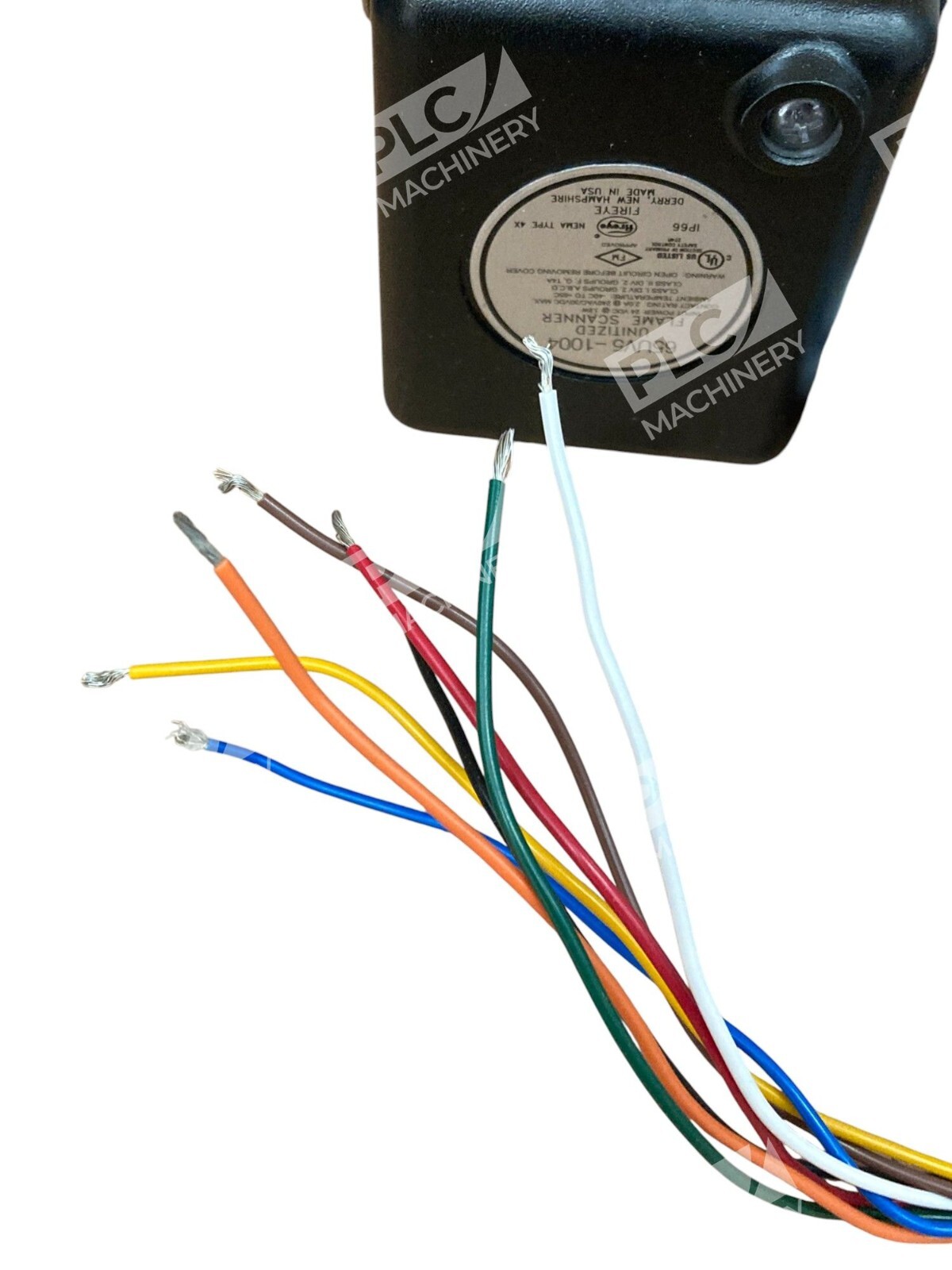

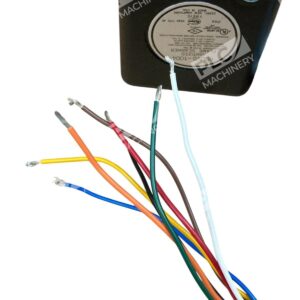

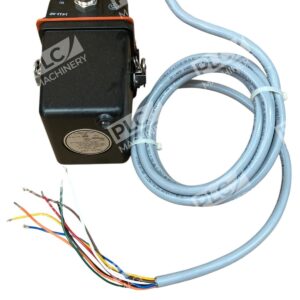

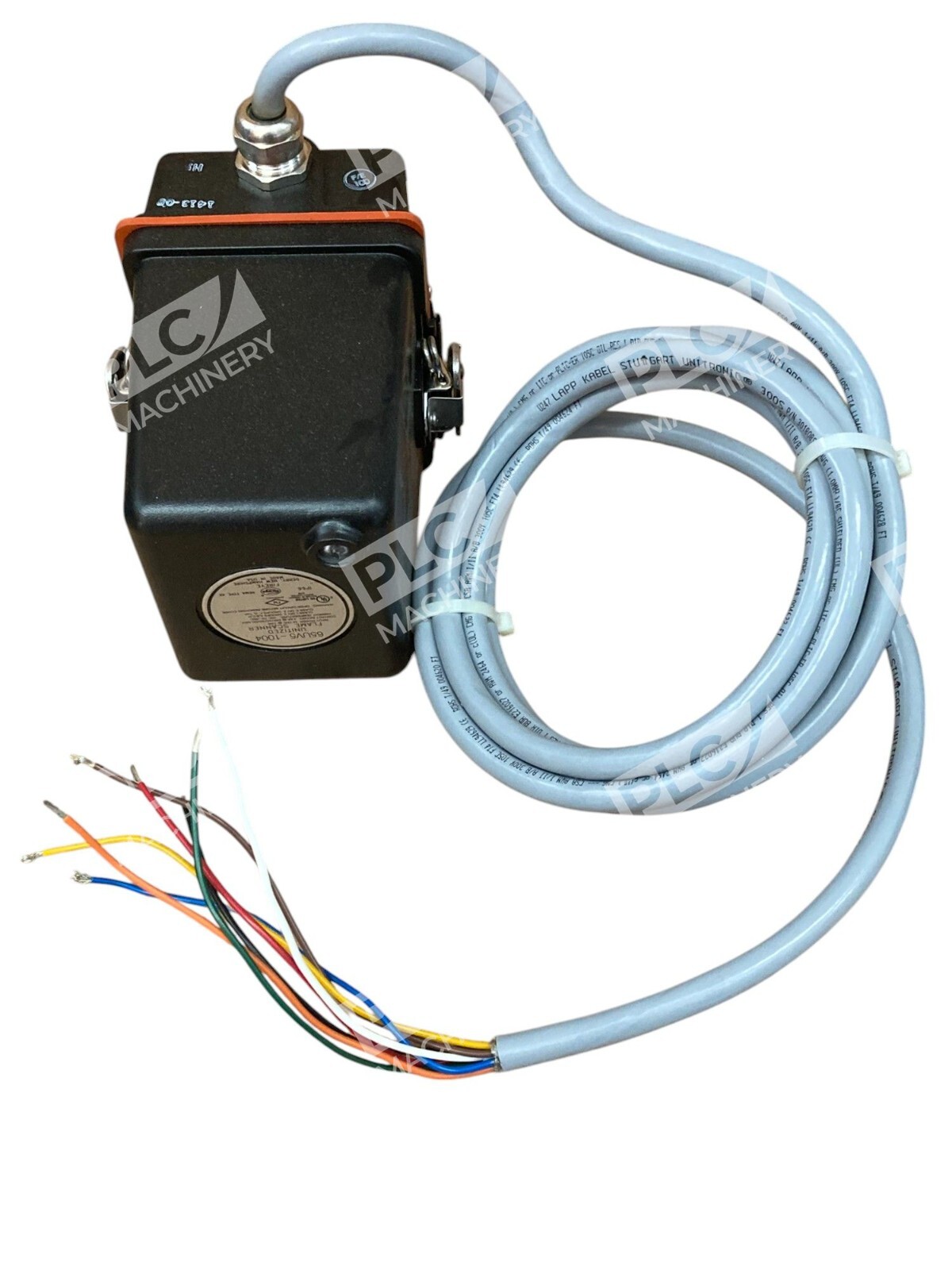

- Cable: 8-conductor, color-coded with braided shield
Typical Applications
The Fireye 65UV5-1004 is widely used in industrial heating systems, boiler burner controls, furnace flame safety interlocks, and fuel-fired equipment requiring reliable proof-of-flame detection. Its self-checking design and internal relay make it ideal for legacy burner control upgrades and new installations where external flame amplifiers cannot be used.
Compatibility & Replacements
Compatible With
- Allen-Bradley ControlLogix and CompactLogix controllers with analog input modules
- Siemens S7-1200, S7-1500 PLC with 4-20 mA analog inputs
- Honeywell burner control systems
- Industry-standard DCS with 4-20 mA flame monitoring capability
- Flame safety circuits requiring normally-open relay contact closure
Replaces / Drop-In Replacement For
- Fireye 65UV5-1004 (standard 4-second FFRT version)
- Legacy Fireye flame scanners requiring 1″ NPT mounting interface
Works With
- Fireye cable assemblies (part 59-598-xx series)
- Standard 4-20 mA analog input modules
- Relay logic control circuits
- SCADA and burner management systems with analog flame signal inputs
