Overview

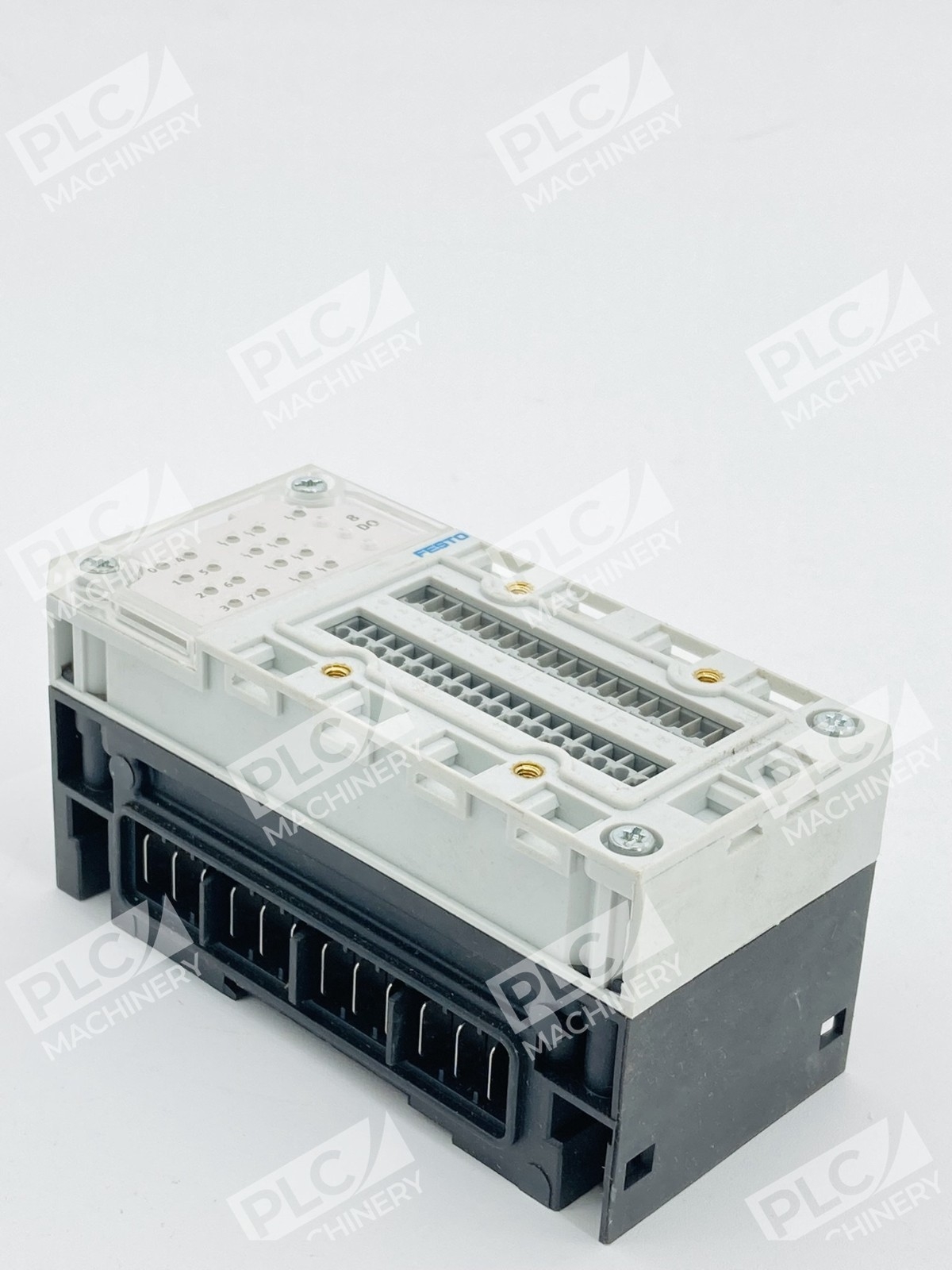

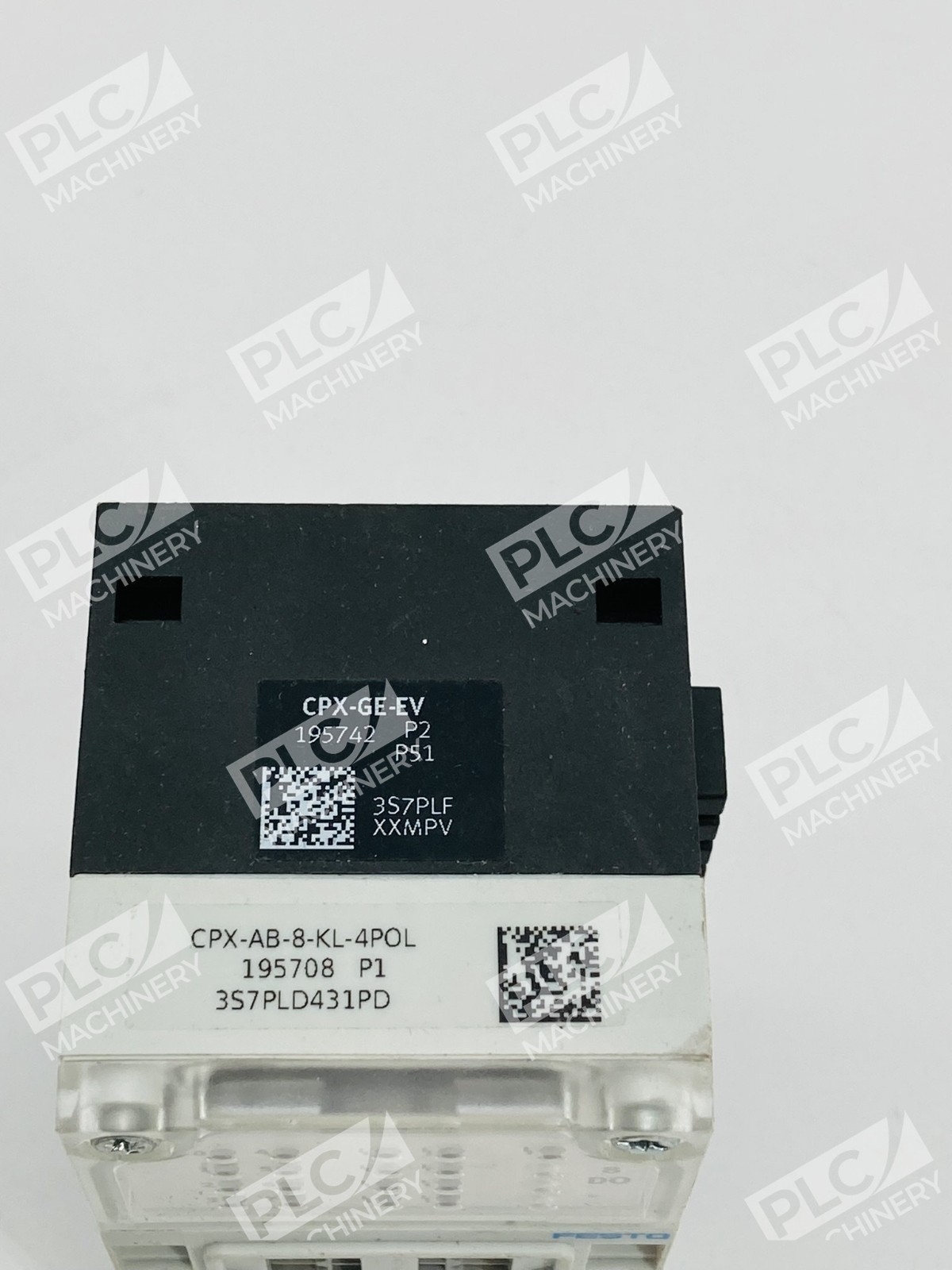

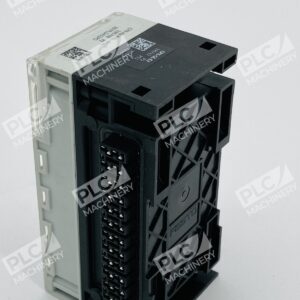

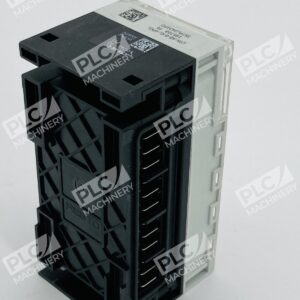

The Festo CPX-AB-8-KL-4POL connection block is an individual component designed for the modular CPX electrical terminal system. This connection block provides eight 4-pin cage clamp spring-loaded terminal channels, creating a compact and reliable wiring interface for pneumatic and electrical control applications. Manufactured to ISO standards and built with PA/PC composite housing, the CPX-AB-8-KL-4POL delivers fast, repeatable connections in control cabinet environments.
Key Features
- 32 spring-loaded terminals (4 terminals per channel × 8 channels)
- Quick-connection technology for rapid assembly in control cabinets
- Supports wire cross-sections from 0.05 to 1.5 mm²
- IP20 protection class with corrosion resistance rating CRC=1
- PA and PC housing materials for durability and chemical resistance
- Optional cover with fittings available for IP65/67 upgrade
- Eight M9 through-holes and one M16 through-hole for mounting flexibility
Technical Specifications
- Electrical Connection: 2× terminal strips; 4× 4-pin cage clamp connectors
- Terminal Configuration: 32 spring-loaded terminals total
- Wire Cross-Section Range: 0.05–1.5 mm²
- Protection Class: IP20
- Corrosion Resistance: CRC=1 (low corrosion stress)
- Housing Material: PA (polyamide) and PC (polycarbonate)
- Weight: 75 grams
- Certifications: RoHS-compliant; VDMA24364-B2-L conformity
- Manufacturer Part Number: 195708
Typical Applications
- Modular electrical terminals in pneumatic control systems
- Industrial automation control cabinets and junction boxes
- Sensor and actuator signal distribution
- I/O wiring consolidation in manufacturing and process control
- Multi-channel pneumatic valve control interfaces
- OEM machine builder terminal block requirements
Compatibility & Replacements
Compatible With
- Festo CPX modular electrical terminal system
- Festo CPX-P control blocks and I/O modules
- Festo MPA-S pneumatic components (when used with CPX terminal)
- Standard industrial control cabinet wiring infrastructure
- AS-Interface compatible systems (with appropriate gateway modules)
Replaces / Drop-In Replacement For
- Direct replacement for OEM part 195708
- Equivalent to CPXAB8KL4POL (alternate part designation)
- Verify compatibility with your CPX system configuration before ordering
Works With
- Festo CPX-AB-8-KL-4POL connection cover (model AK-8KL) for enhanced protection
- Spring-loaded terminal technology for quick manual connections
- M8 and M12 modular connector cables (Festo NEBU modular system)
- Industrial automation platforms supporting modular pneumatic/electrical terminals
