Overview

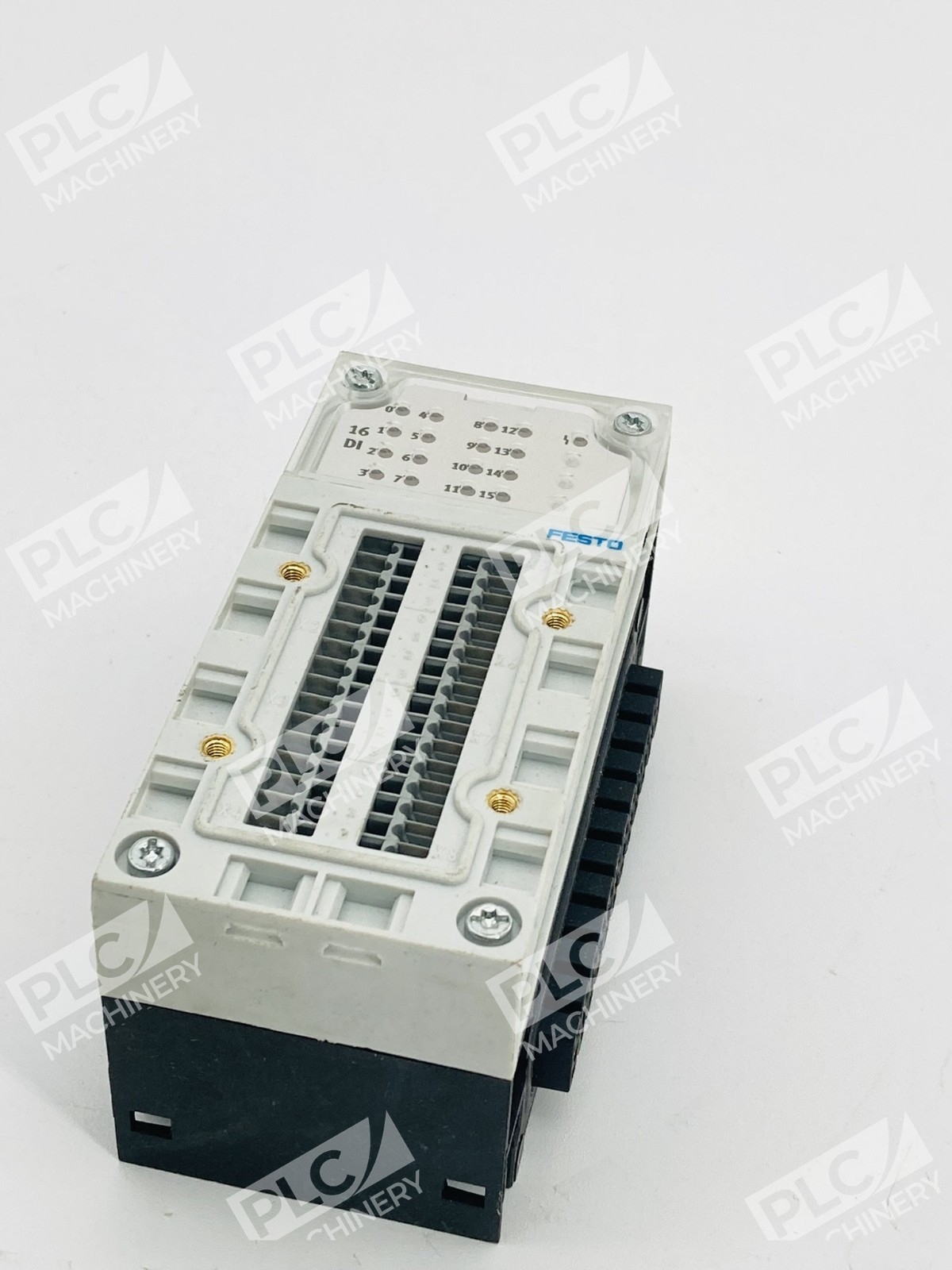

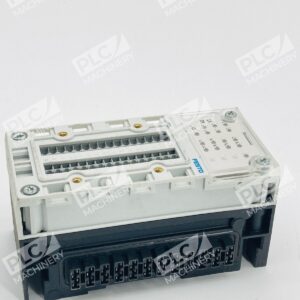

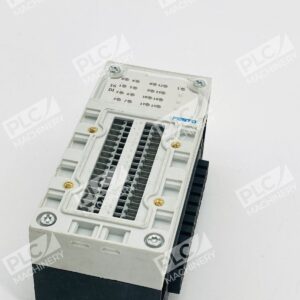

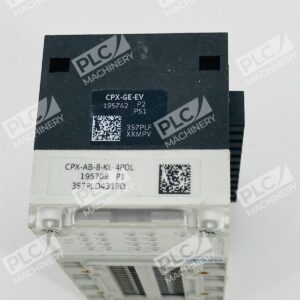

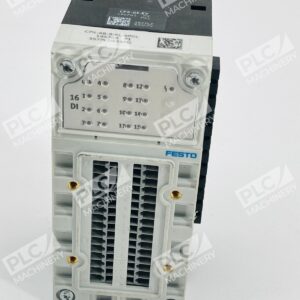

The Festo CPX-AB-8-KL-4POL is an individual connection block component for the Festo CPX electrical terminal system. This manifold block serves as a critical interface for modular pneumatic and electrical control architectures, providing four 4-pin electrical connections and dual terminal strips for flexible wiring configurations. Built to German engineering standards and RoHS-compliant, this module delivers the reliability expected from Festo in factory and process automation applications.
Key Features
- Four 4-pin electrical connections for flexible signal routing
- Dual terminal strips for easy wire termination (0.05–1.5 mm wire gauge)
- IP20 protection rating suitable for control cabinet and indoor industrial environments
- Low-corrosion housing with polyamide (PA) and polycarbonate (PC) construction; CRC classification 1
- RoHS-compliant design for regulatory compliance
- Compact footprint; approximately 75 grams
Technical Specifications

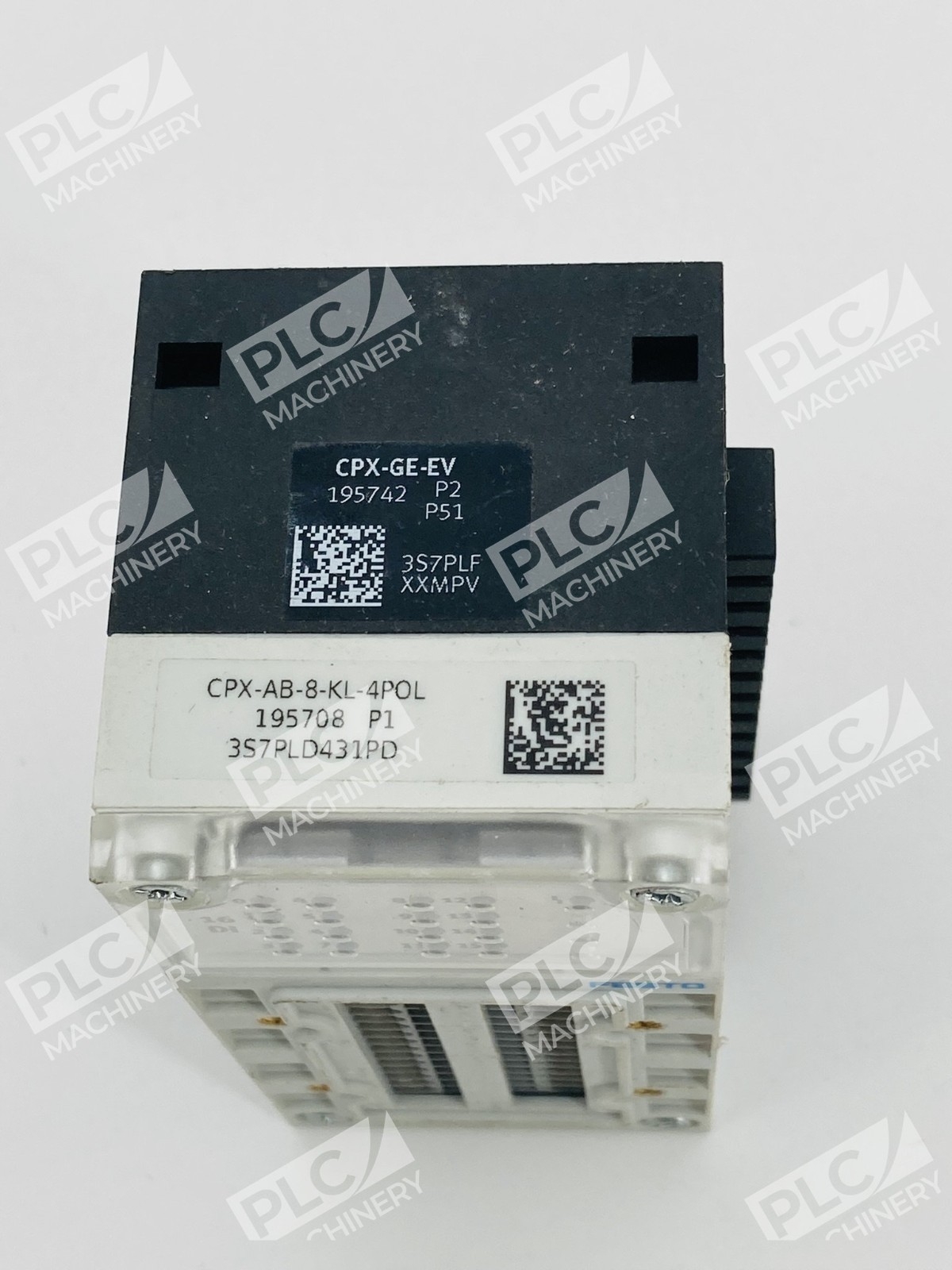

- Part Number: CPX-AB-8-KL-4POL / 195708
- Electrical Connections: 2x terminal strips, 4x 4-pin connectors
- Wire Gauge Range: 0.05–1.5 mm²
- Protection Class: IP20
- Housing Material: Polyamide (PA) / Polycarbonate (PC)
- Corrosion Resistance Classification: CRC 1 (low corrosion stress)
- Weight: 75 grams
- Standards Compliance: VDMA24364-B2-L, RoHS-compliant
- Manufacturer: Festo (Germany)
Typical Applications
- Pneumatic control cabinets — centralized manifold integration for multi-valve control
- Factory automation — modular machine control systems requiring flexible I/O architecture
- Process control — distributed pneumatic and electrical signal distribution
- Machinery retrofits — replacement or expansion of existing Festo CPX systems
- System integrations — quick assembly into standardized Festo automation frameworks
Compatibility & Replacements
Compatible With
- Festo CPX electrical terminal system (modular architecture)
- Festo pneumatic valve manifolds with CPX interface
- Standard industrial control cabinets with IP20-rated environments
- Automation systems requiring 4-pin connector I/O
Replaces / Drop-In Replacement For
The CPX-AB-8-KL-4POL is a direct component replacement for equivalent Festo CPX-AB-8 series connection blocks. Verify exact configuration with your system integrator before ordering to ensure pin count and terminal strip layout match your original installation.
Works With
- Festo CPX electrical terminal series
- Spring-terminal wiring systems (0.05–1.5 mm² wire)
- Standard industrial pneumatic control platforms
- Systems utilizing modular manifold blocks and distributed I/O
