Overview

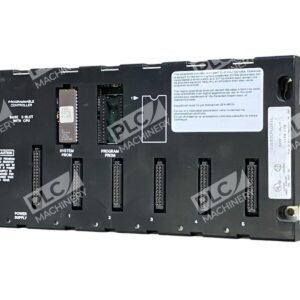

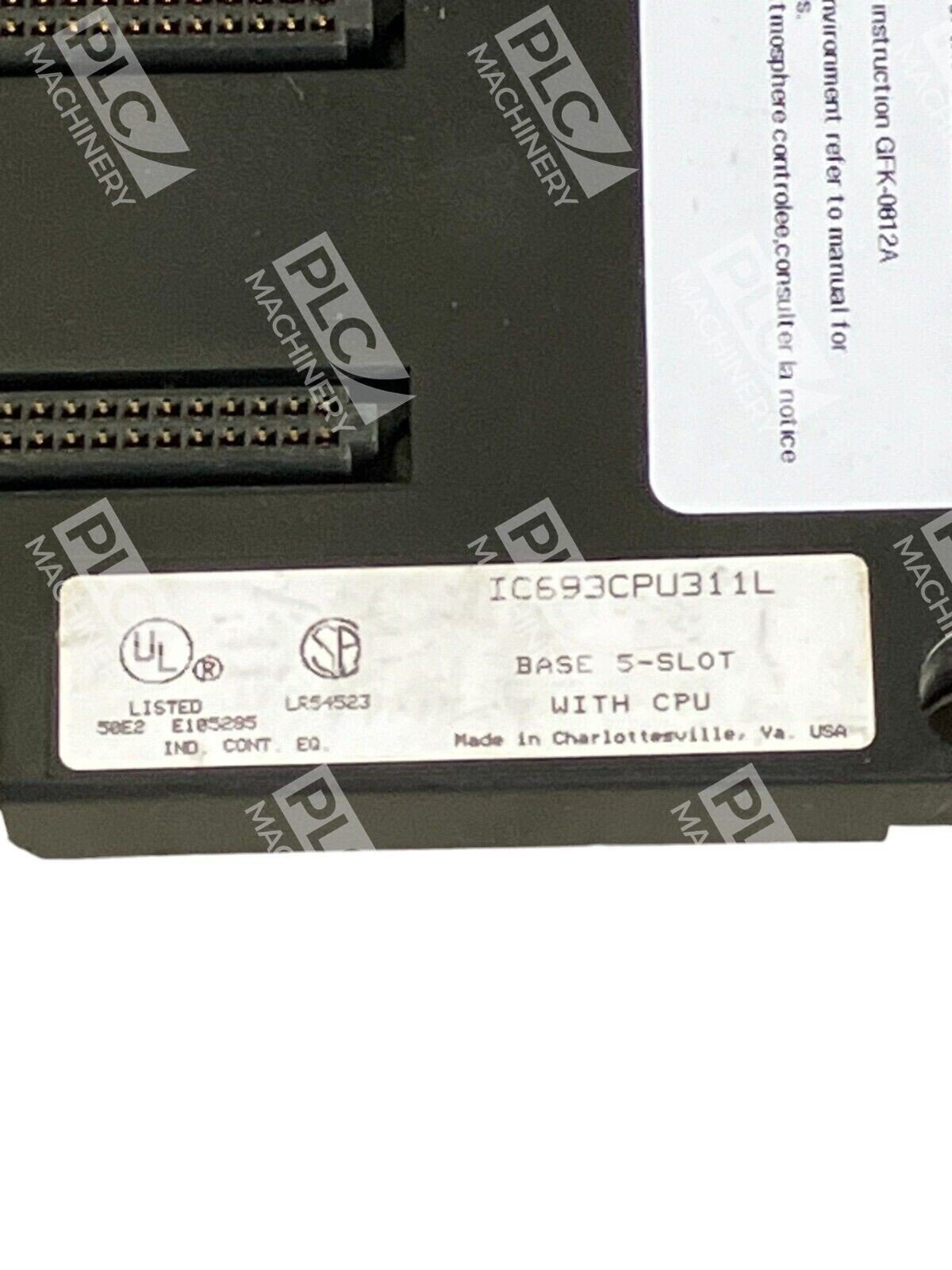

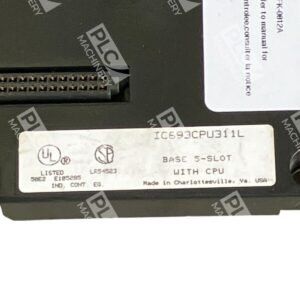

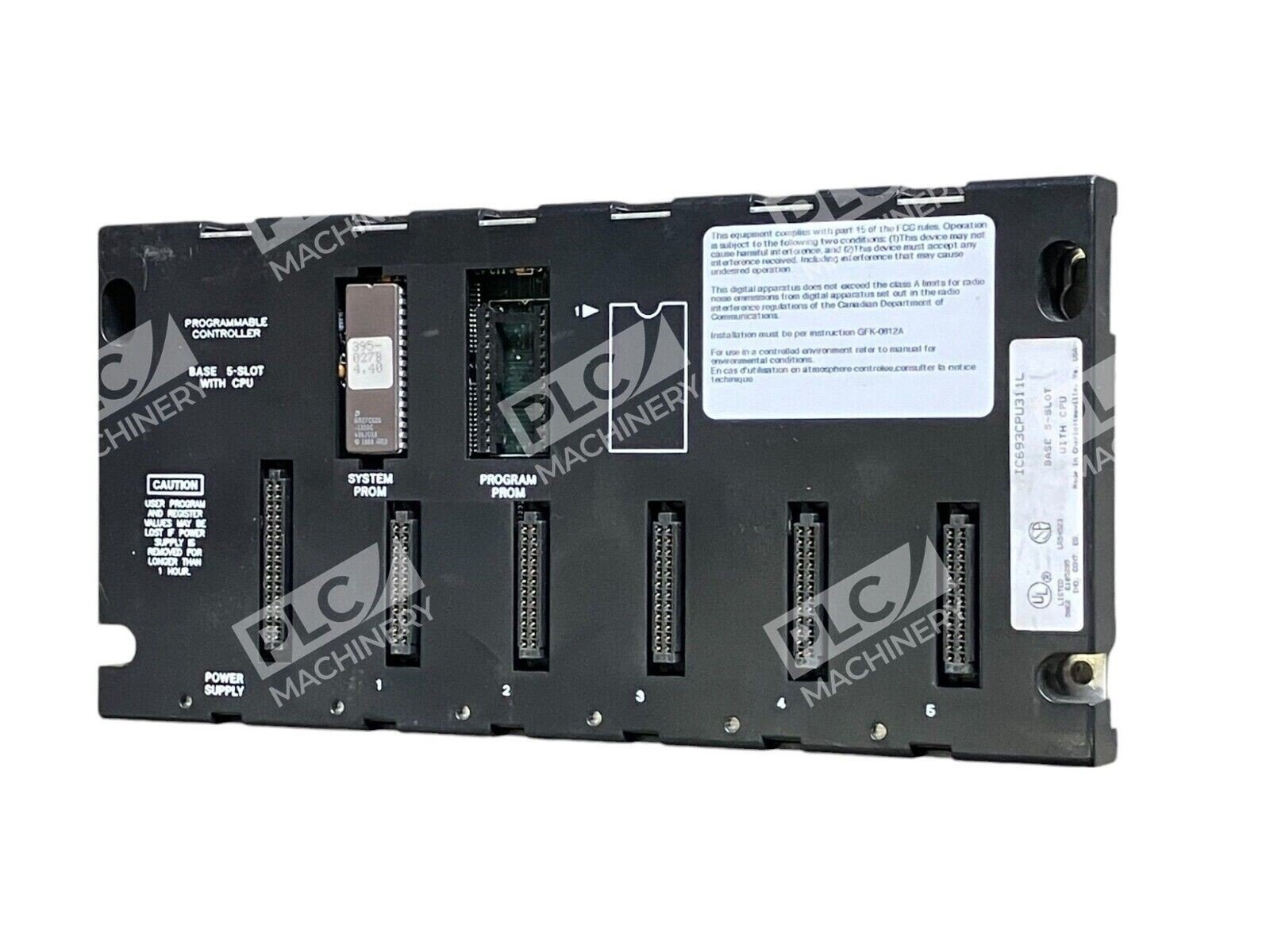

The GE Fanuc IC693CPU311 is a compact 5-slot embedded CPU baseplate designed for the Series 90-30 Programmable Logic Controller platform. Originally manufactured by GE Fanuc (now part of Emerson Automation), this unit integrates the processor directly into the baseplate backplane, eliminating a separate CPU module and providing a space-efficient solution for entry-level industrial automation applications with moderate I/O requirements.
Key Features
- 5-slot baseplate with integrated 80188 processor (non-removable, soldered to backplane)
- 6 KB user program memory (1 KB registry memory) with support for optional EPROM/EEPROM expansion
- Supports up to 160 discrete inputs, 160 discrete outputs, 64 analog input words, and 32 analog output words
- One built-in SNP slave and SNP-X slave serial port (hosted by power supply module)
- Boolean execution time of 18 ms per 1K logic
- 170 embedded timer/counter instructions and shift register support
- Super-capacitor backed memory retention on power loss
Technical Specifications
- Processor Type: 80188, 16-bit
- Processor Speed: 10 MHz
- Program Memory: 6 KB user program, 1 KB registry
- I/O Capacity: 160 discrete inputs, 160 discrete outputs, 64 analog inputs, 32 analog outputs
- I/O Slots: 5 available slots for I/O modules
- Serial Communications: SNP slave, SNP-X slave (via power supply module)
- Boolean Execution Speed: 18 ms per 1K logic
- Series: GE Fanuc Series 90-30
- Typical Power Supply: IC693PWR330 (30W, 120/240 VAC input or 125 VDC output)
- Condition: Used
- Manufacturer Status: Discontinued
Typical Applications
The IC693CPU311 is well-suited for small to mid-sized automation systems requiring modest I/O counts. Common applications include:
- Machine control and monitoring in manufacturing facilities
- Small production line sequencing and logic control
- HVAC and building automation systems
- Discrete manufacturing processes with 5-15 I/O modules
- Equipment retrofit and modernization projects where Series 90-30 compatibility is required
Compatibility & Replacements
Compatible With
- GE Series 90-30 I/O modules (discrete and analog)
- GE Fanuc power supply modules (IC693PWR series)
- GE Fanuc optional communication modules: Ethernet, FIP, Profibus, GBC, GCM, GCM+ modules
- Studio PCM (Programmable Controller Module) programming software
- SNP/SNP-X serial communication protocols
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The IC693CPU311L variant listed in this SKU may have regional or firmware differences. Check your legacy documentation or contact our support team for specific model cross-reference needs.
Works With
- Series 90-30 PLC ecosystem and I/O modules
- GE Fanuc PCM (Programmable Controller Module) development environment
- SNP slave and SNP-X slave communication protocols
- Optional communication modules: Multidrop LAN, PROFIBUS, FIP, Ethernet, GBC, GCM, GCM+
- IC693PWR330 and compatible GE Fanuc power supplies
