Overview

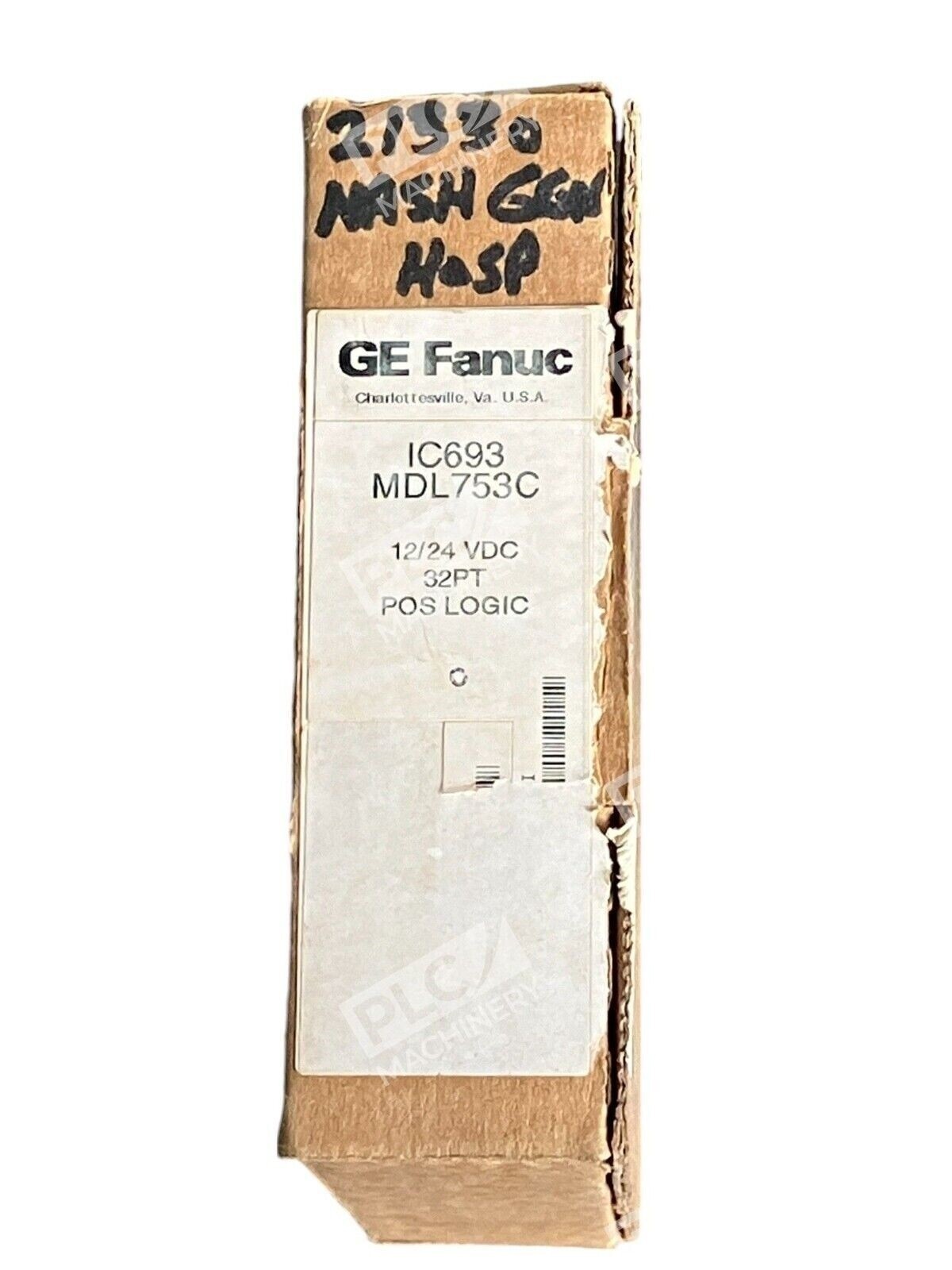

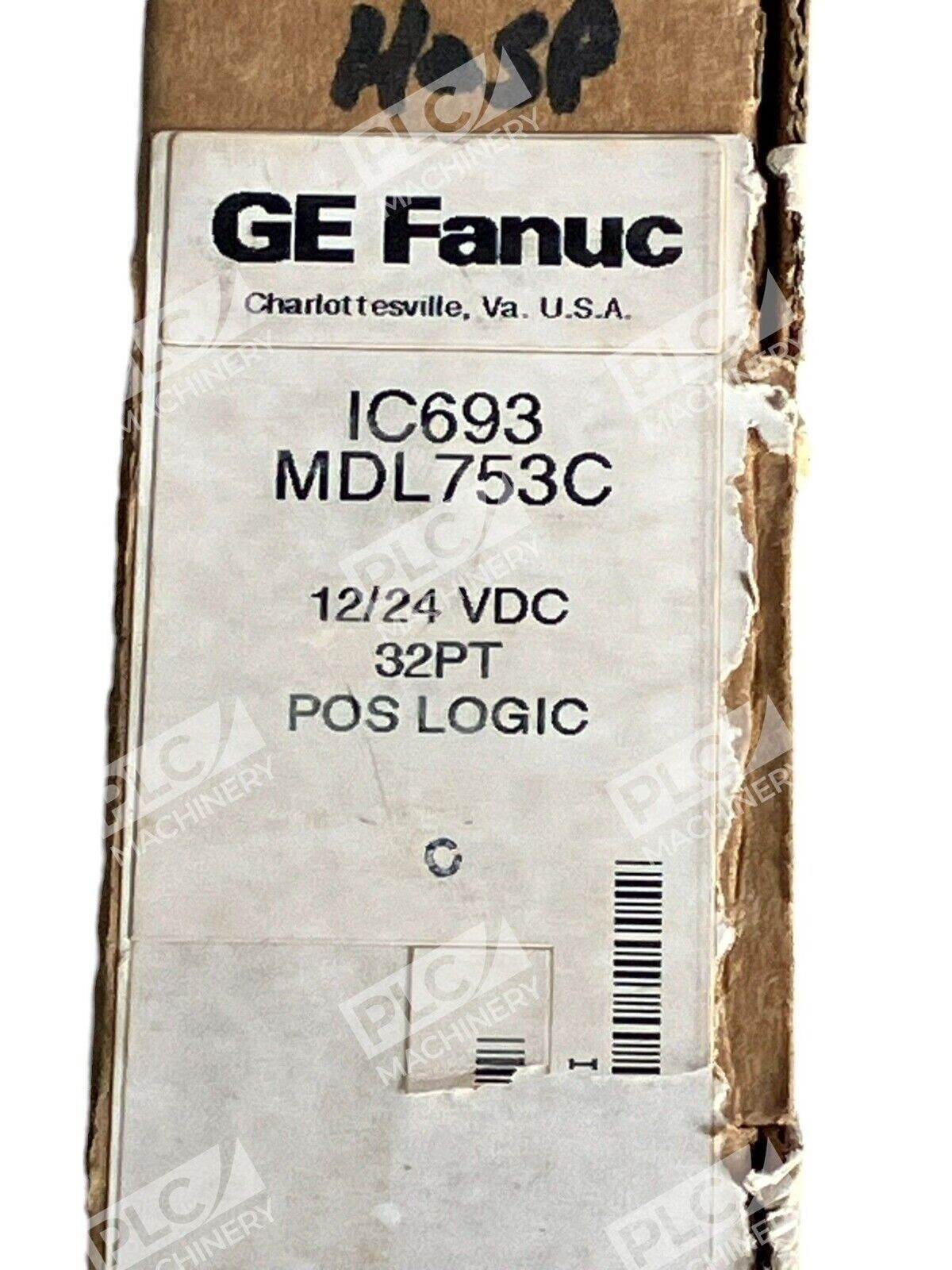

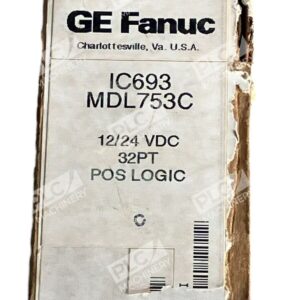

The GE Fanuc IC693MDL753 is a positive logic discrete output module for the Series 90-30 PLC platform. This 32-point output card delivers reliable switching for industrial automation and motion control applications. The module features four isolated output groups, each with dedicated commons and opto-coupler isolation between field and logic sides, ensuring clean signal integrity in harsh industrial environments.
Key Features
- 32 discrete sourcing outputs organized in four isolated groups of eight
- 12/24VDC operation with 0.5A per-point current capacity (4A per group maximum)
- Opto-coupler backplane isolation for EMI protection and galvanic isolation
- Two 24-pin male connectors for easy field wiring (Groups A/B on right, C/D on left)
- Flexible multi-voltage operation: run different groups at different DC voltages simultaneously
- LEDs for output state indication on each point
Technical Specifications
- Output Voltage: +12 to +24 VDC (+20%, –15%)
- Output Current: 0.5A per point, 4A per group, 3A per common pin (recommend dual-pin connection)
- Total Points: 32 outputs in four groups of eight
- Output Type: Positive Logic (sourcing only)
- Backplane Power: 260 mA from 5VDC (includes 3 mA per point ON + 4.7 mA per LED)
- Response Time: Typical 0.5 ms for both signal transitions
- Inrush Current: 5.4A for 10 ms
- Group Isolation: 250 VAC between groups
- Module Type: Series 90-30 I/O card with two 24-pin connectors
- Opto-Isolation: Optical isolation between field side and backplane logic side
Typical Applications
- Solenoid and relay valve control in hydraulic and pneumatic systems
- Industrial motor starter and contactor switching
- LED and indicator lamp drive circuits
- Conveyor belt and production line load management
- Machine tool auxiliary control and safety circuits
- Mixed-voltage environments requiring simultaneous 12V and 24V loads
Compatibility & Replacements
Compatible With
- GE Fanuc Series 90-30 PLC systems (all baseplate types)
- Installs in any I/O slot of Series 90-30 5-slot and 10-slot baseplates
- GE Fanuc programming software (SRTP, PCM, Logicmaster)
- Compatible cable assembly: IC693CBL315
Replaces / Drop-In Replacement For
The IC693MDL753 is the positive logic version. If your system requires negative logic outputs, verify with your system integrator before ordering, as the IC693MDL754 is the negative logic equivalent. No direct product replacement exists—verify your control logic requirements with documentation.
Works With
- Series 90-30 CPUs (all models: IC693CPU312, CPU363, CPU372, CPU374, etc.)
- Series 90-30 baseplates, power supplies, and other I/O modules
- SNP Multidrop and serial communications networks
- Discrete output control logic in PLC programs written for Series 90-30
