Overview

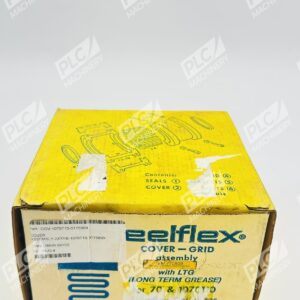

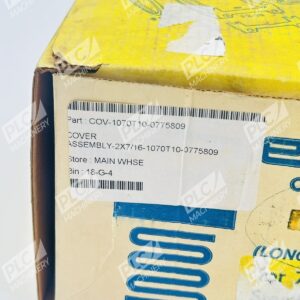

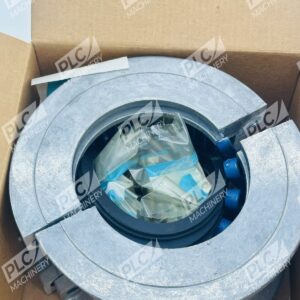

The Falk Steelflex 775809 is a horizontally-split cover-grid assembly engineered for use with Type T10 and T20 1070T grid couplings. This complete assembly includes the aluminum cover, grid elements, seal and gasket kit, cover hardware, and factory-supplied lubricant—all packaged in a single box for convenient stocking and installation. Designed for industrial power transmission applications, the 775809 provides a cost-effective replacement solution for existing Steelflex coupling installations.
Key Features
- Horizontally-split design for easy installation and maintenance
- Aluminum cover material for corrosion resistance
- Complete kit includes grid, seals, gaskets, and hardware
- Factory-supplied LTG grease included
- Compatible with T10 Series Steelflex couplings
- Compact form factor: 6-1/4 in OD × 3.81 in L
Technical Specifications
- Type: T10 Series Horizontally-Split Cover Grid Assembly
- Coupling Size: 1070T
- Cover Material: Aluminum
- Bore Type: Straight Bore
- Segments: 1
- Outer Diameter: 6-1/4 in (158.75 mm)
- Length: 3.81 in (96.8 mm)

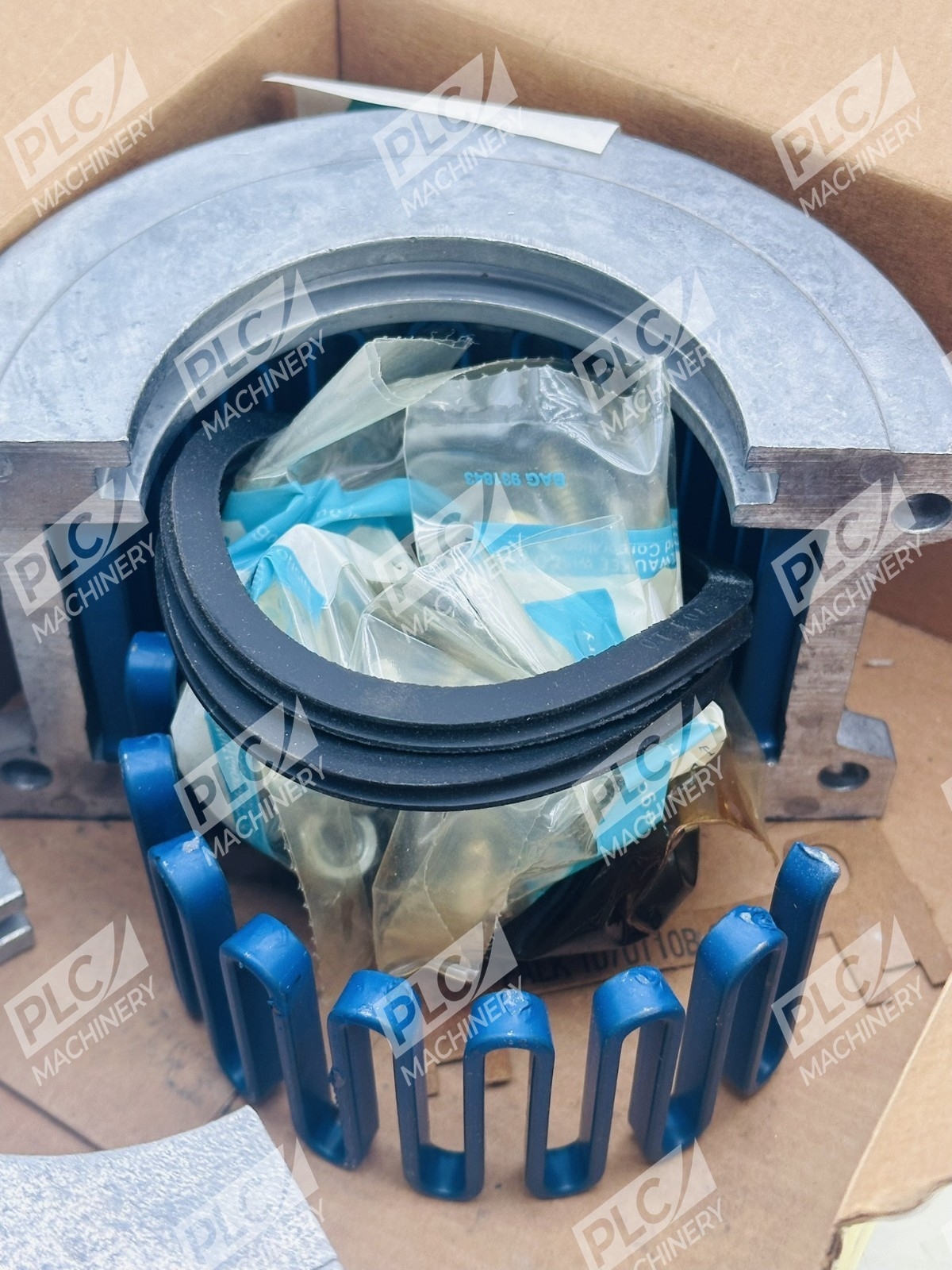

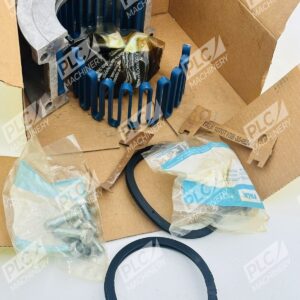

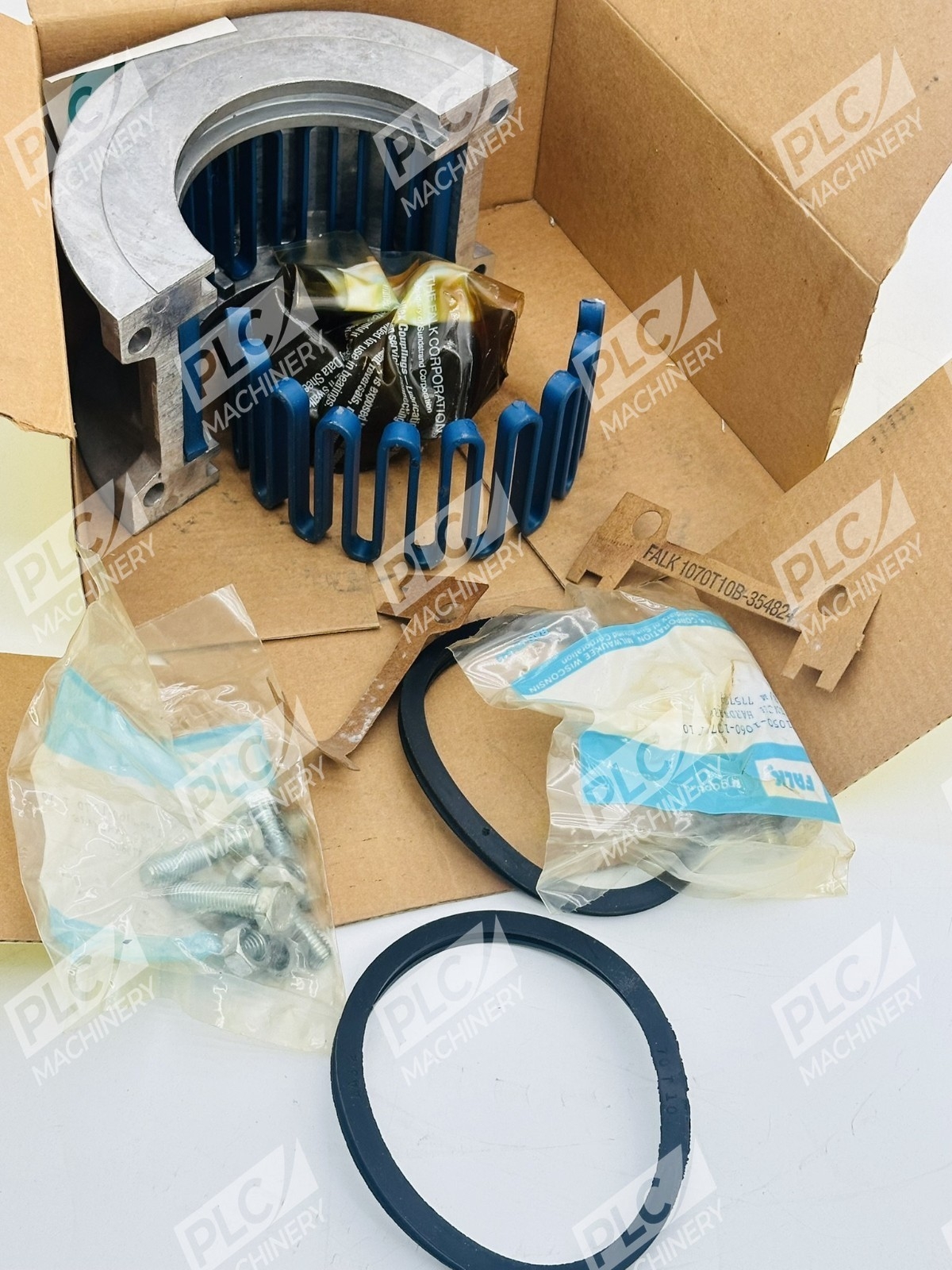

- Kit Contents: Cover, grid, seal kit, gasket kit, hardware, LTG grease packet
Typical Applications
- Industrial motor and driven equipment coupling
- HVAC and mechanical ventilation systems
- Pump drive trains and compressor systems
- Industrial process machinery requiring flexible power transmission
- Replacement of worn or damaged cover-grid assemblies
Compatibility & Replacements
Compatible With
- Falk Steelflex Type T10 1070T grid couplings
- Falk Steelflex Type T20 1070T grid couplings
- Regal Rexnord coupling product lines
- Standard industrial motor flanges and shaft connections
Replaces / Drop-In Replacement For
- Original equipment manufacturer (OEM) 1070T10 cover-grid assemblies
- Worn or damaged Steelflex T10 Series 1070T covers
- Verify compatibility with your specific coupling model before ordering
Works With
- Falk Steelflex grid coupling elastomers and steel grid elements
- Standard industrial lubrication schedules (compatible with supplied LTG grease)
- Flanged and direct-coupled motor configurations
