Overview

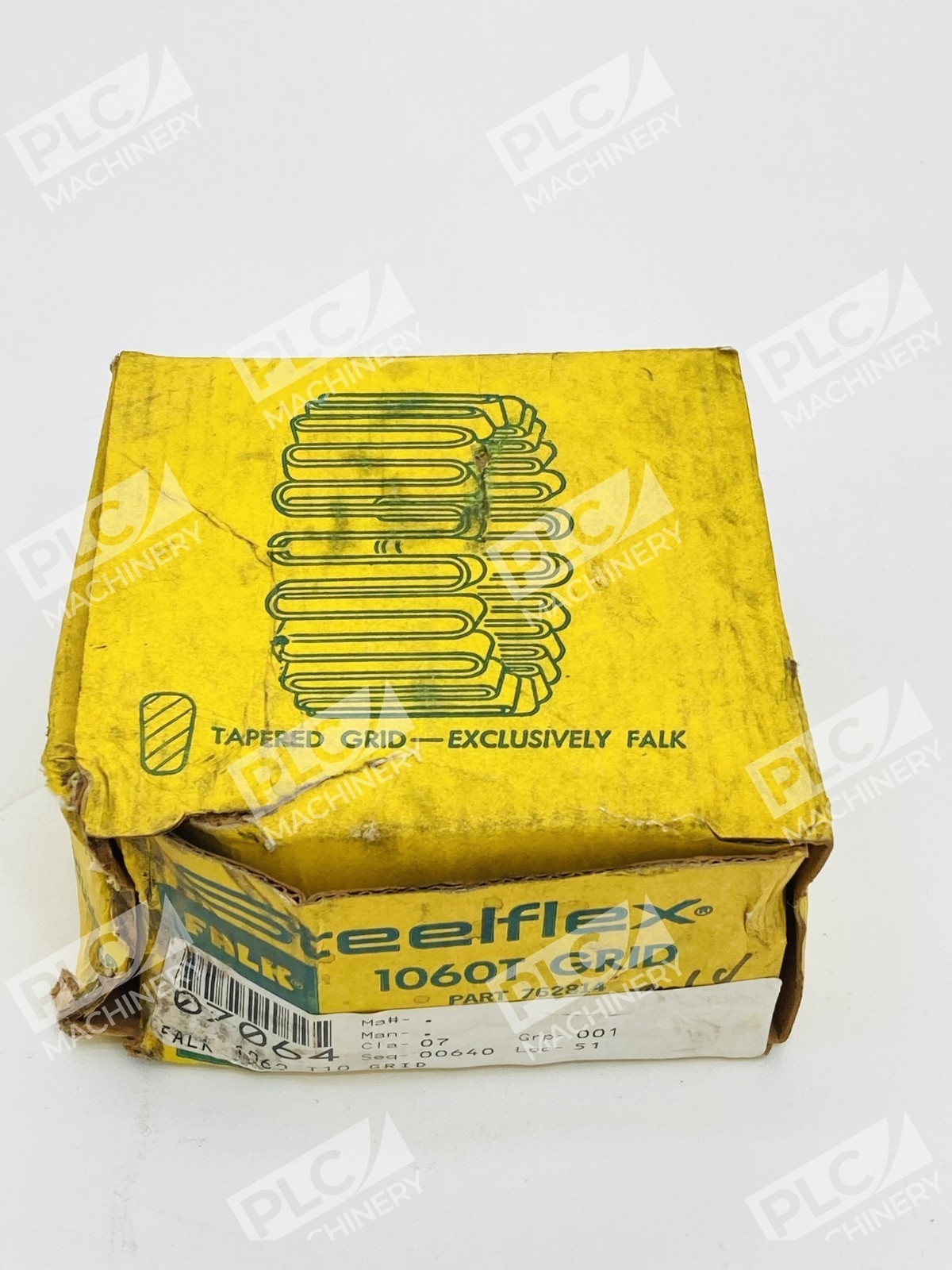

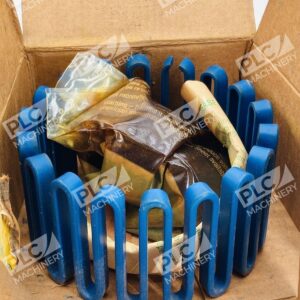

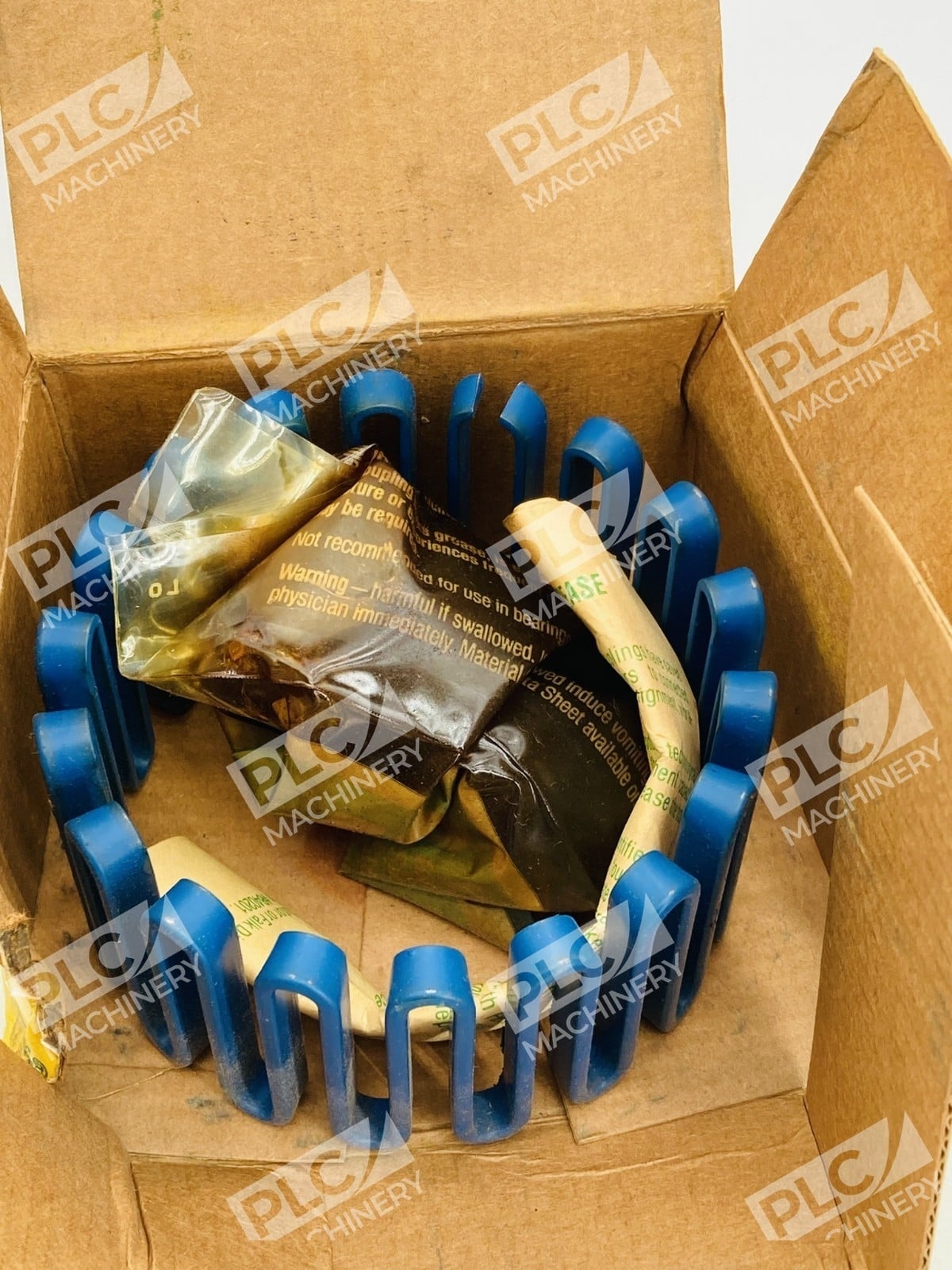

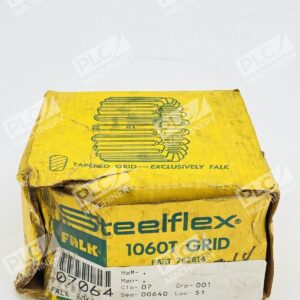

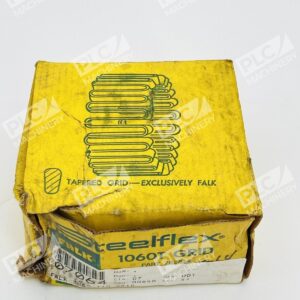

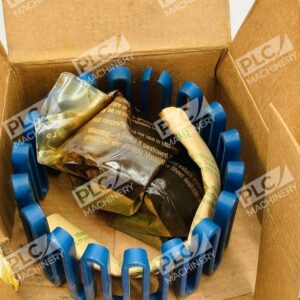

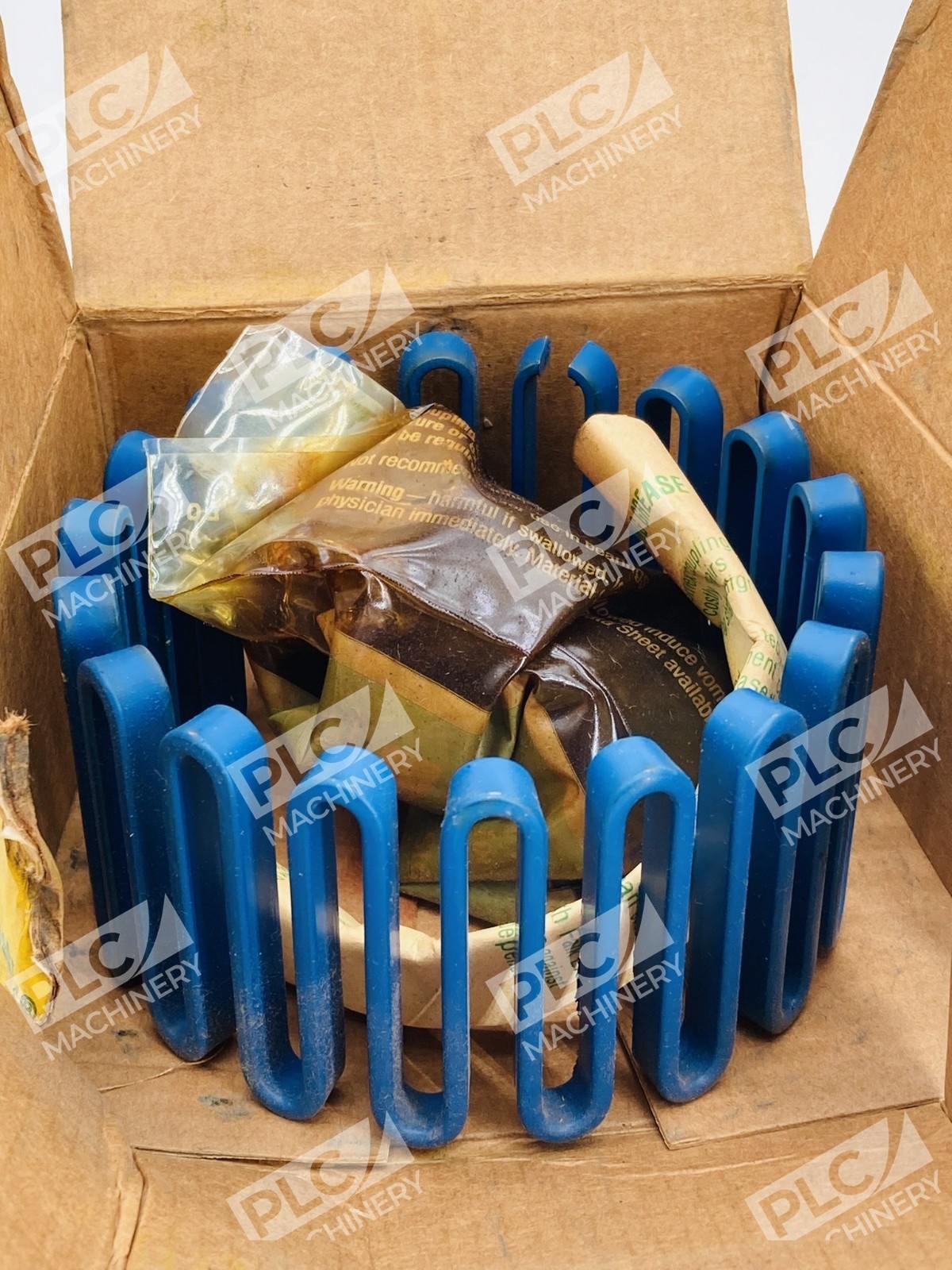

The Falk 1060T Steelflex grid coupling element is a premium serpentine-shaped coupling component engineered for reliable torque transmission in industrial applications. Falk grid coupling elements are made of high-strength alloy steel, tempered to spring hardness and precision shot peened for maximum fatigue resistance and torque transmission capability. This grid element is designed as a direct replacement for existing Falk Steelflex 1060T systems and provides reserve strength for extended coupling life.
Key Features
- High-Strength Alloy Steel Construction: Steelflex high-strength alloy steel grids are tempered to spring hardness and precision shot-peened for increased fatigue strength to protect equipment against shock and vibratory conditions
- Easy Installation & Replacement: Steelflex grid couplings’ grids, grid elements, or grid members are engineered with a tapered t-grid profile allowing for smooth fitment into hub for easy installation and maintenance
- Extended Service Life: Falk Steelflex Grid Couplings are warranted for 5 years when lubricated with Falk Long Term Grease (LTG)
- Minimal Maintenance Requirements: Falk Steelflex couplings require no periodic maintenance when lubricated with Falk LTG (Long Term Grease) at installation
- Industry-Leading Torque Ratings: Steelflex Grid Couplings are available in the widest range of sizes and maintain the highest torque ratings of any grid coupling manufacturer
Technical Specifications
The Falk 1060T element delivers exceptional performance across critical coupling parameters:
- Maximum Torque Rating: 684 Nm
- Maximum Bore Capacity: 2.125 inches
- Minimum Bore Capacity: 0.75 inches
- Material: High-strength alloy steel (shot-peened, tempered to spring hardness)
- Coupling Series: Steelflex T10/T20
- Element Type: Serpentine grid (tapered t-grid profile)
Typical Applications
The Falk 1060T element excels in demanding industrial environments where reliable torque transmission and shock absorption are critical. Steelflex Grid Couplings are known for durability and proven performance in critical applications and are the most frequently specified grid coupling by OEMs and End Users in North America. Common applications include:
- Pump and motor drive systems
- Compressor and fan coupling assemblies
- Four-bearing systems requiring close-coupled alignment
- Equipment requiring flexible misalignment accommodation
- High-shock or vibratory load environments
Compatibility & Replacements
Compatible With
- Falk Steelflex Type T10 grid couplings
- Falk Steelflex Type T20 grid couplings
- 1060T coupling hubs (straight bore and keyed bore configurations)
- Standard horizontally-split coupling covers rated for 1060T
- Equipment with maximum bore requirements up to 2.125 inches
Replaces / Drop-In Replacement For

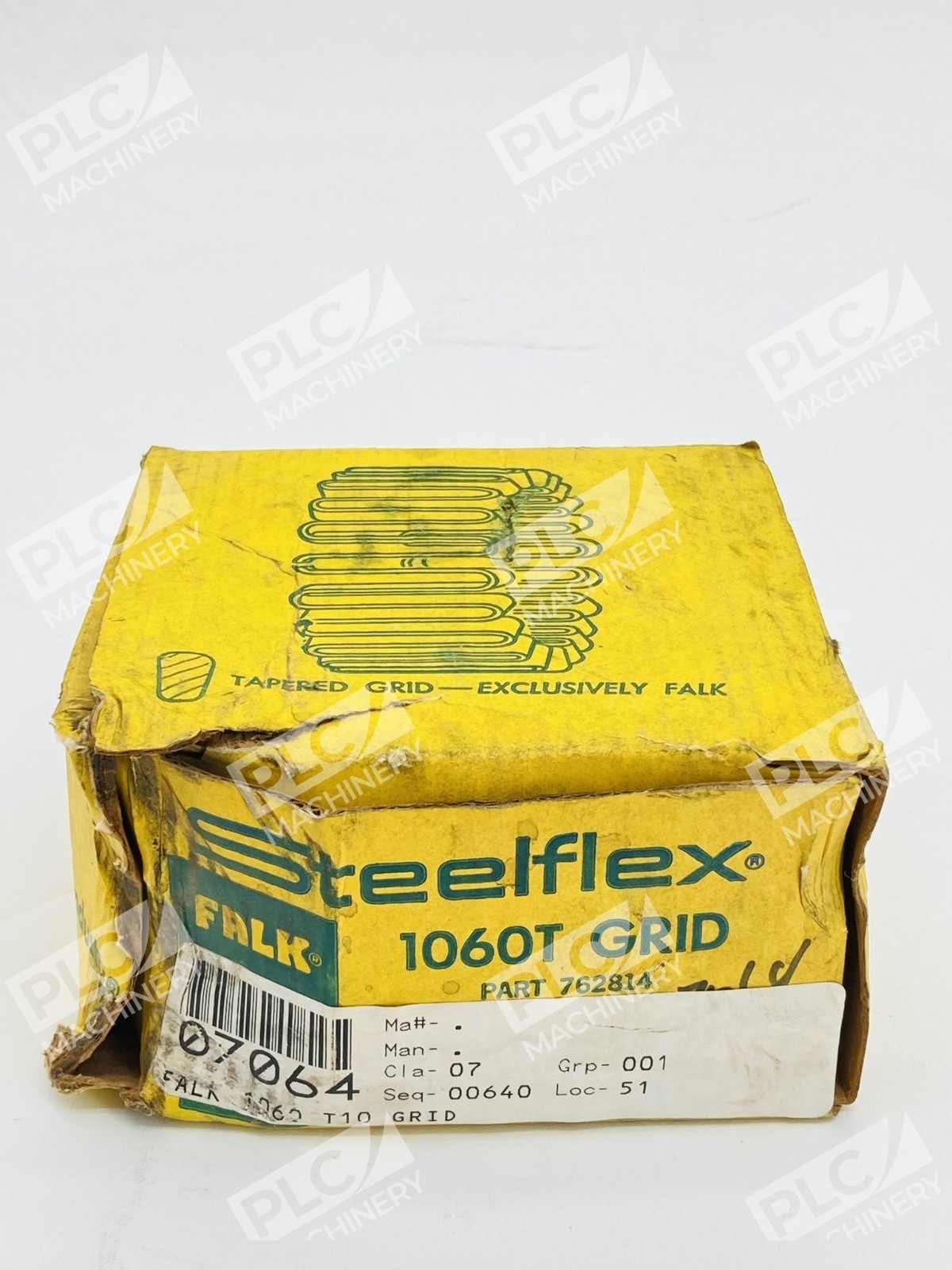

- Falk OEM part number 0762814 (1060T grid element)
- All standard Steelflex 1060T replacement grid elements and grid members
- Original coupling elements in existing 1060T assemblies
Works With
- Falk Long Term Grease (LTG) lubrication system
- Standard industrial motors and prime movers (3600 rpm capable)
- Falk coupling covers and hub assemblies rated 1060T
- Rexnord coupling replacement part systems
