Overview

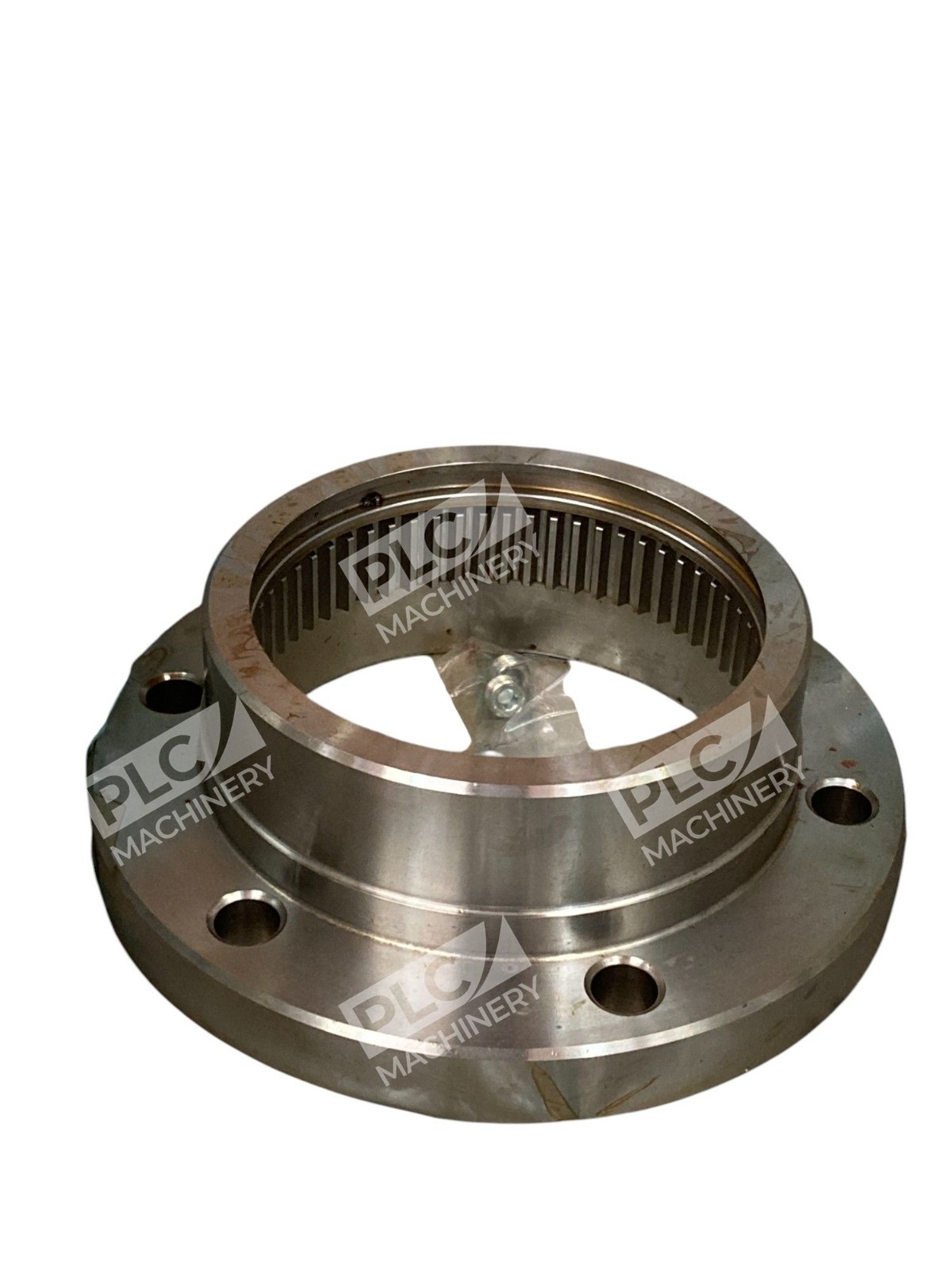

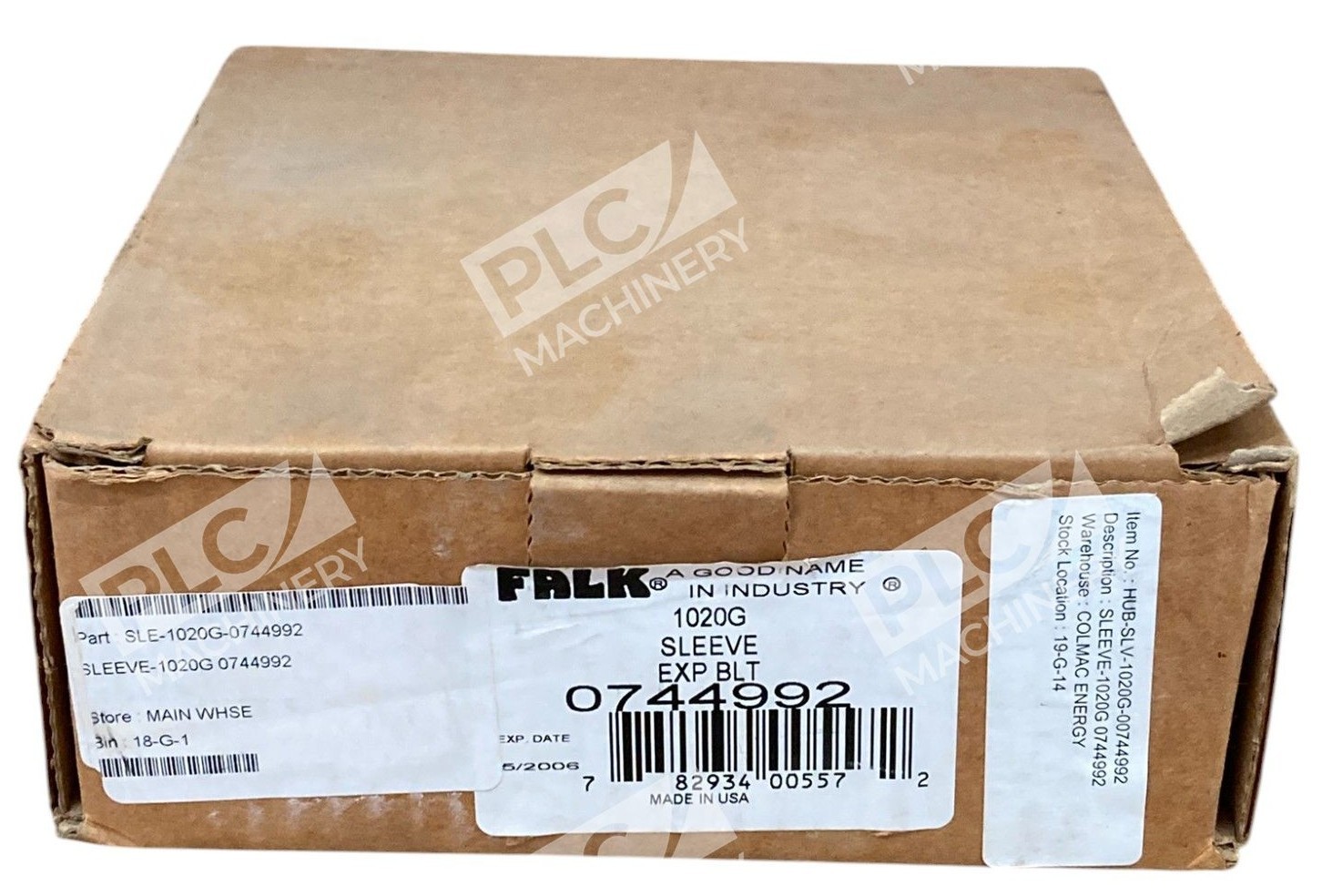

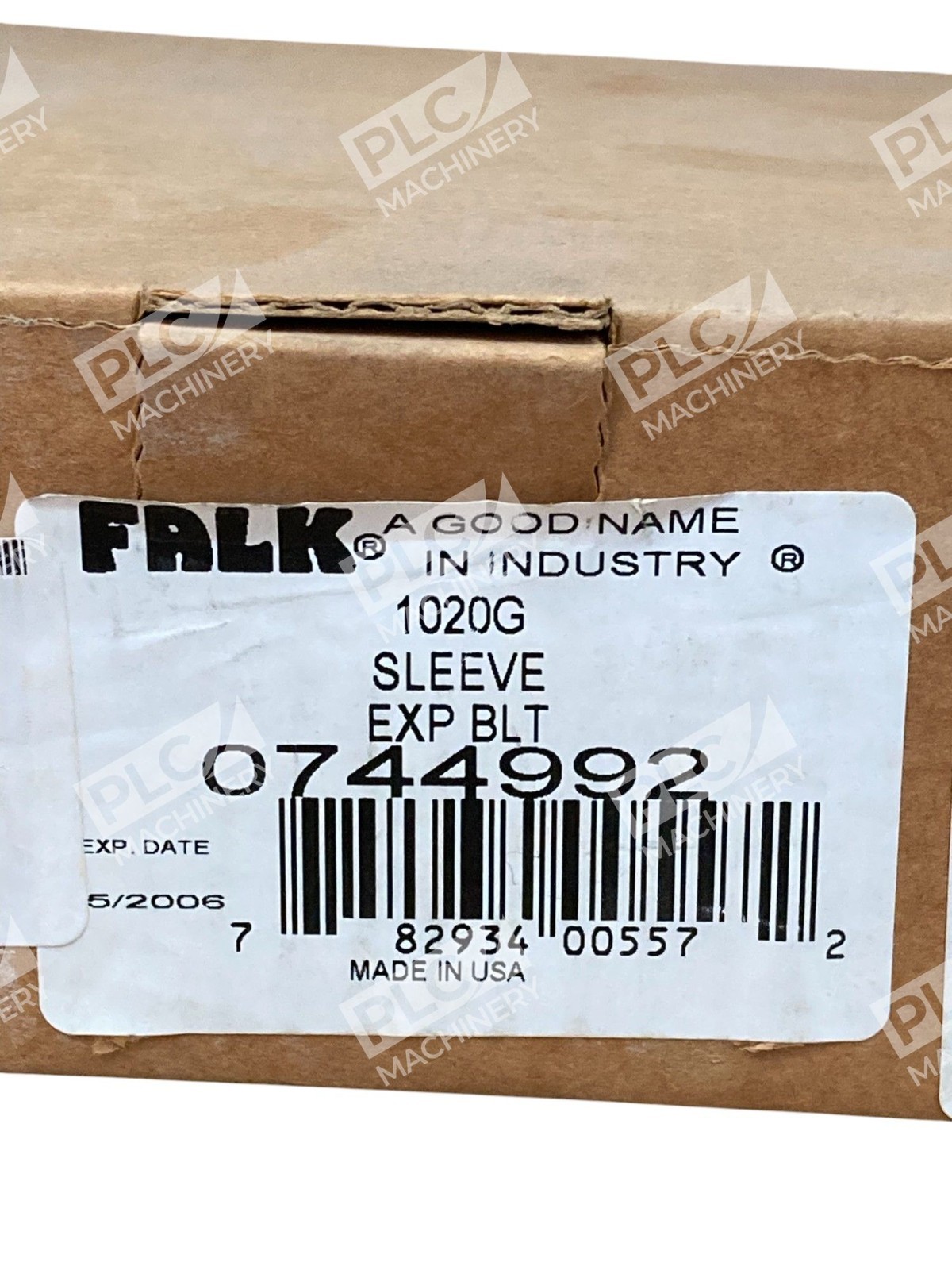

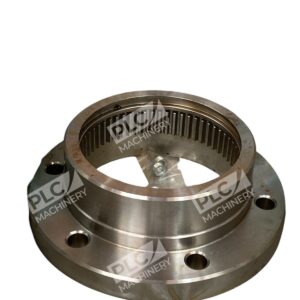

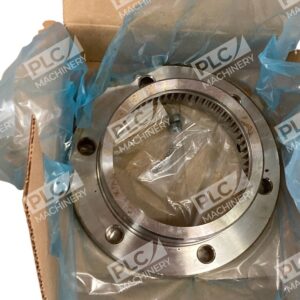

Falk 1020G exposed bolt sleeve 0744992 is a flanged coupling sleeve assembly designed for use with Falk Lifelign Type G20 gear couplings. Manufactured from steel with a 7-inch outside diameter and 12-inch overall length, this component features exposed bolt design with reduced head cap screws and non-turning locknuts for single-wrench installation. Rexnord Falk Lifelign gear couplings are engineered with triple-crowned teeth, allowing the coupling to articulate freely and minimize wear caused by misalignment.
Key Features
- Reduced head cap screws and non-turning locknut allow one-wrench tightening
- Exposed bolt sleeve design with lubrication plug locations for effective grease application
- AGMA bolt pattern makes Falk Lifelign couplings easily interchangeable with any standard gear coupling
- Steel construction for durability in high-speed and high-torque applications
- Three-year warranty on Falk Lifelign couplings when lubricated with Falk LTG Grease and used with other genuine Falk Lifelign components
Technical Specifications
All dimensions and ratings verified from manufacturer specifications:
- Coupling Size: 1020G
- Sleeve Type: Flanged
- Bolt Type: Exposed
- Outside Diameter: 7 inches
- Overall Length: 12.0 inches
- Half Sleeve Length: 2.34 inches
- Material: Steel
- Torque Capacity: 37800 in-lbs
- Maximum Speed: 5600 RPM
- Operating Temperature Range: −30 to +200 °F
- Flex Type: Full Flex
- Series: G Series Exposed Bolts Sleeves
- Weight: 12.6 lbs

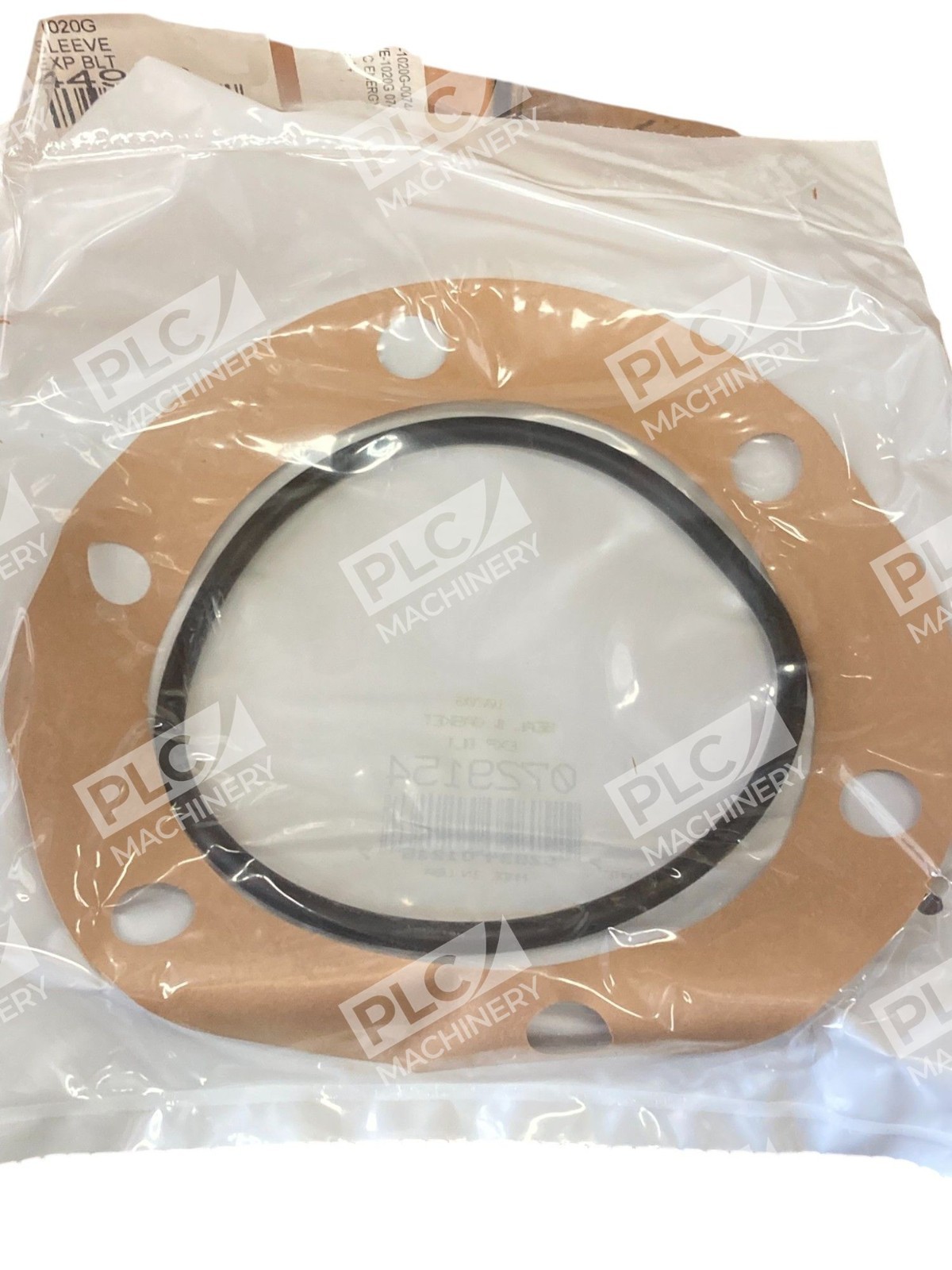

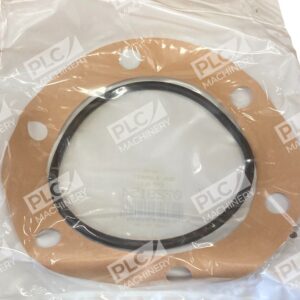

- Includes gasket
Typical Applications
Large flex hubs in these gear coupling lines accommodate high-torque application in space-limited installations. The 1020G sleeve is suited for:
- Industrial motor-to-pump coupling
- Compressor and blower drive transmission
- Gearbox input/output shafting
- High-speed fan and mill applications
- General industrial power transmission requiring misalignment compensation
Compatibility & Replacements
Compatible With
- Falk Lifelign Type G20 1020G gear couplings
- AGMA standard bolt-pattern couplings
- Industrial shaft equipment rated for 5600 RPM maximum
- Systems requiring ±30 to +200 °F operating range
Replaces / Drop-In Replacement For
- Falk 0744992 (original part number)
- 1020G20/52 Sleeve assemblies
- Legacy Falk G-series 1020G exposed bolt sleeves
Works With
- Falk LTG Grease (recommended lubrication)

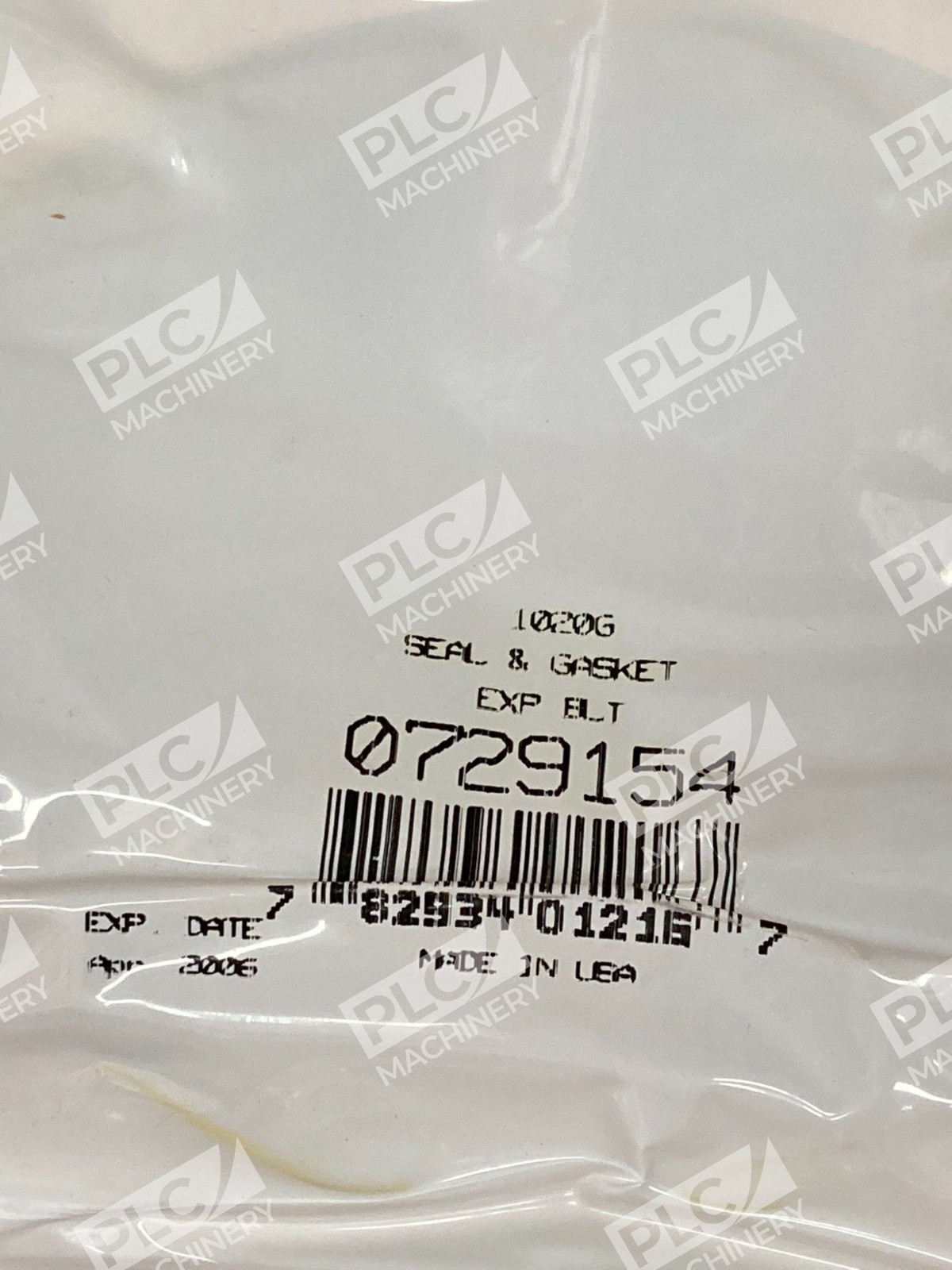

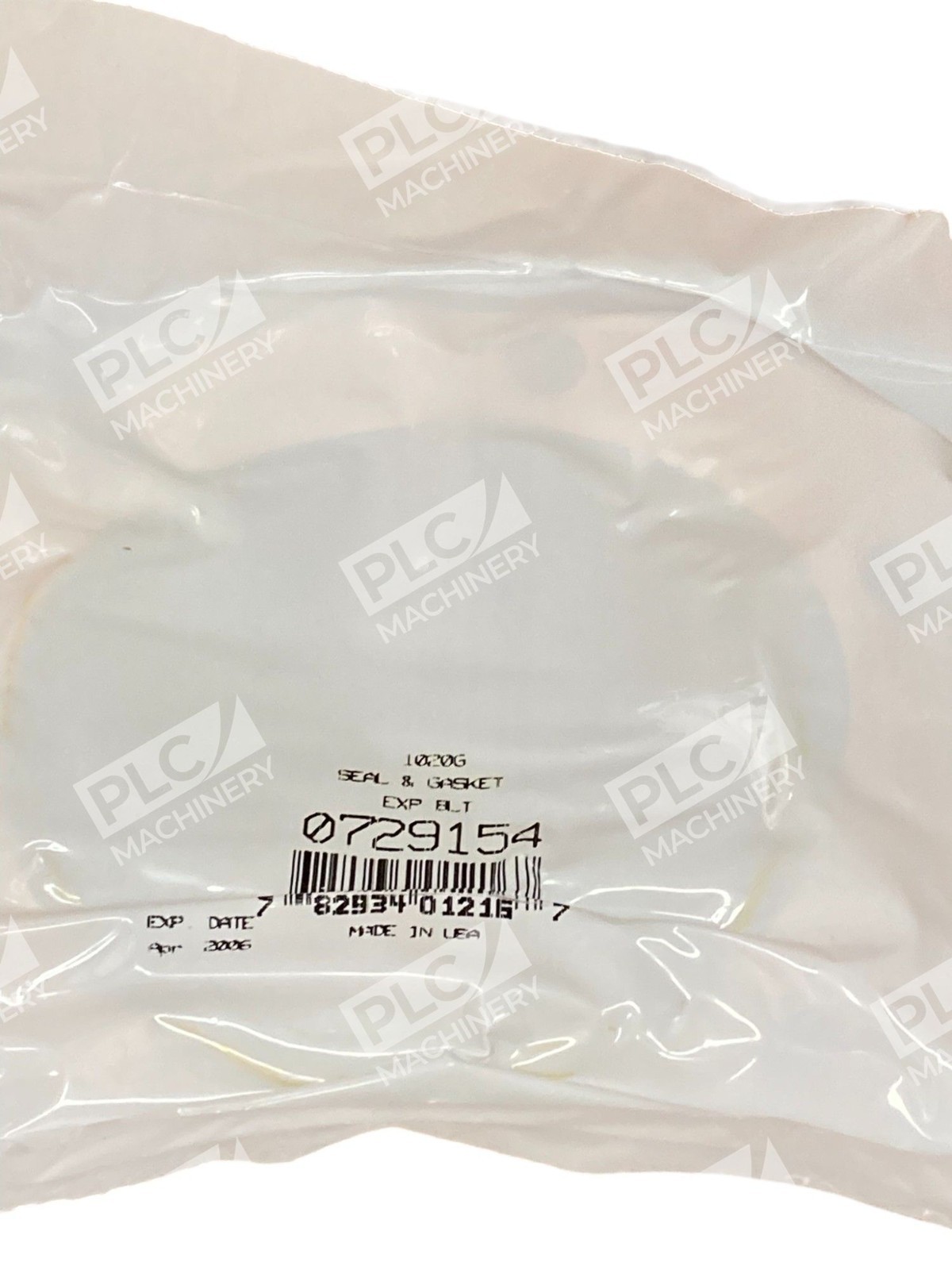

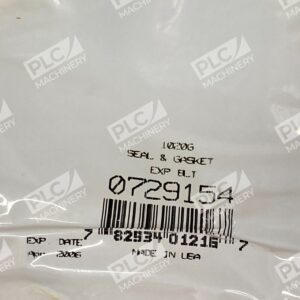

- Falk screw stops and seals (0914053, 0729154)
- Standard metric and imperial wrench sets (one-wrench installation)
- Industrial shaft coupling alignment tools
